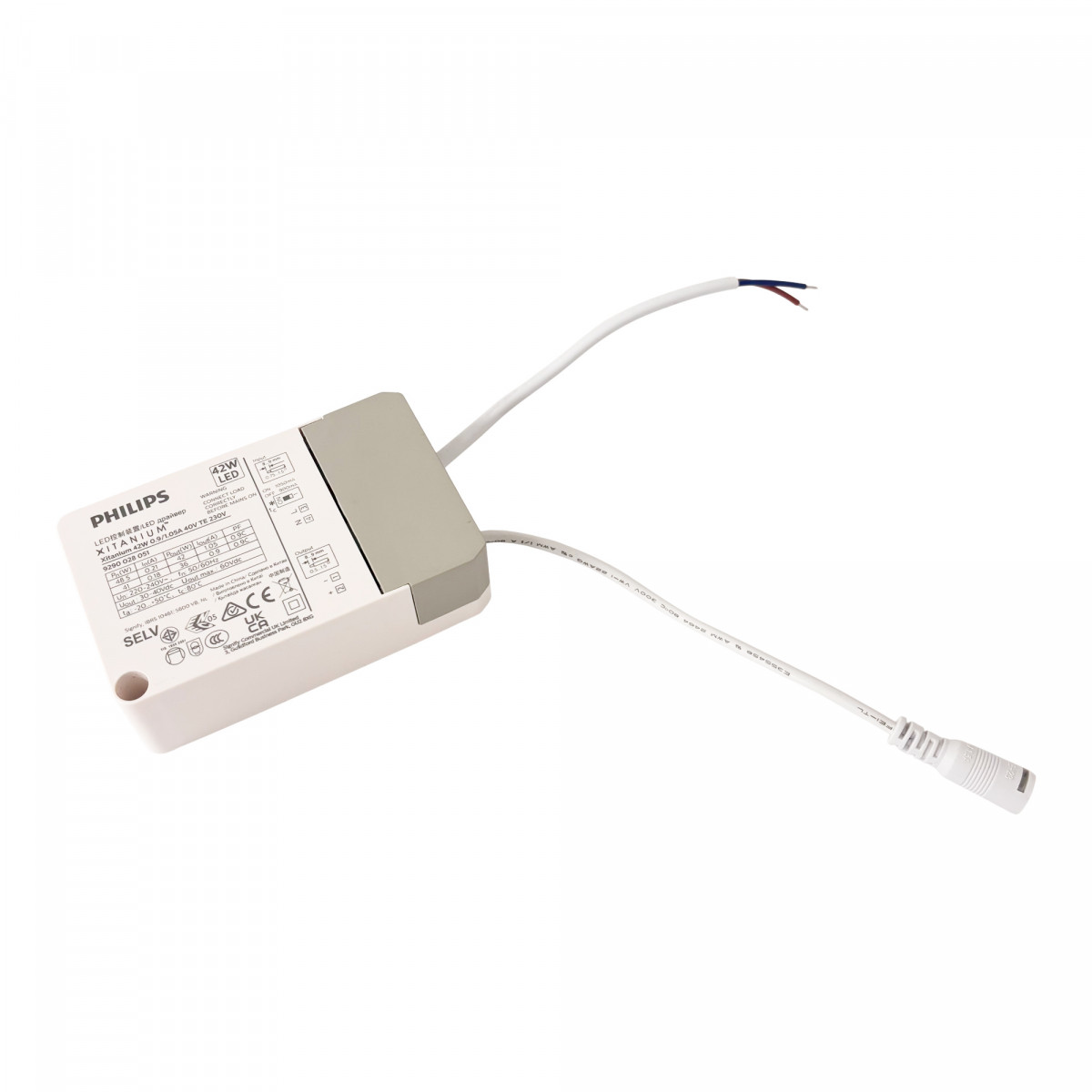

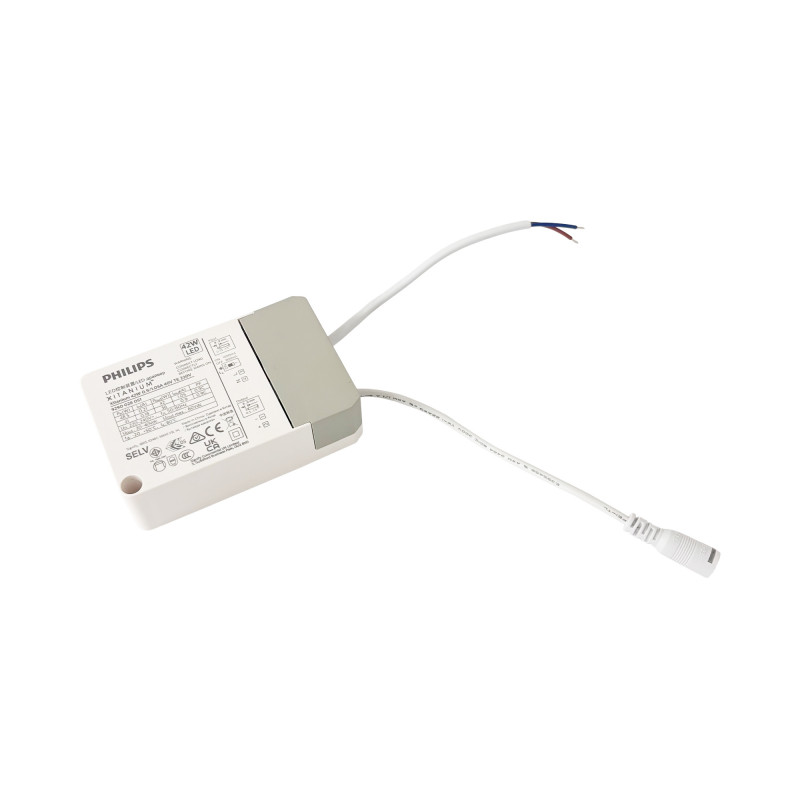

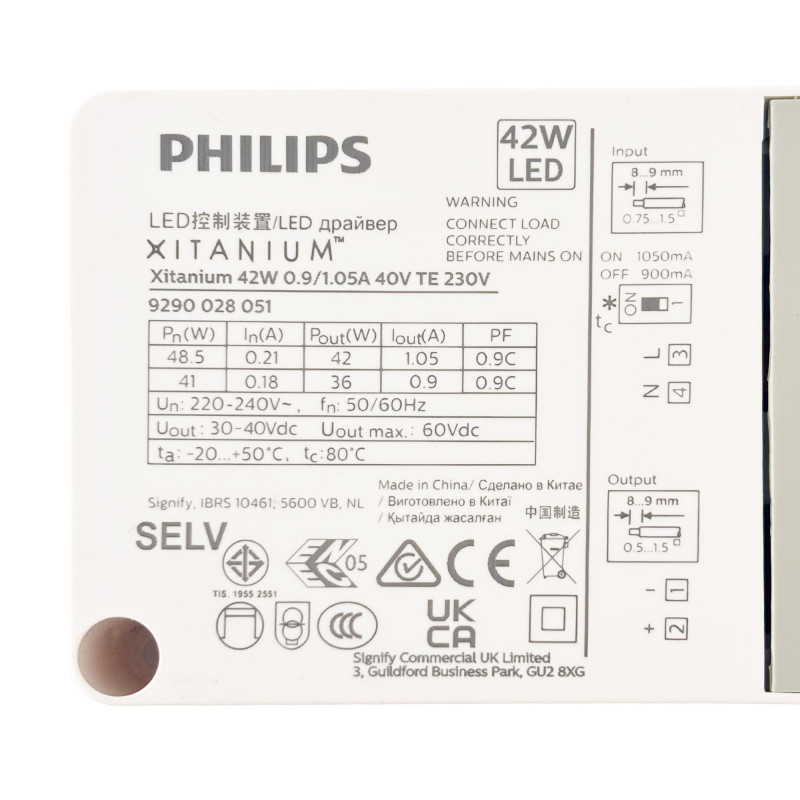

Philips Xitanium Driver - TRIAC Regulation - 42W - 230V - Output 30-40V DC - 0.9/1.05A

SKU:929002805106
Has superado el límite de unidades
In stock 305 units
Data sheet

The Philips Xitanium 42W LED driver offers high performance with a design optimized for professional lighting applications.

With 30-40V DC output and selectable current of 0.9A or 1.05A, it is designed to operate with COB or medium power LED luminaires and modules, ensuring high quality, stable and flicker-free light.

It incorporates TRAILING EDGE dimming technology, which cuts the signal at the end of the cycle.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  sales@barcelonaled.com

LED Driver Xitanium - Philips - 42W - Trailing Edge Dimming

Driver of compact dimensions and robust construction; it offers a constant output of 30-40V DC and is specially developed for downlights, LED spotlights and track luminaires. It incorporates TRAILING EDGE dimming technology, which cuts the signal at the end of the cycle.

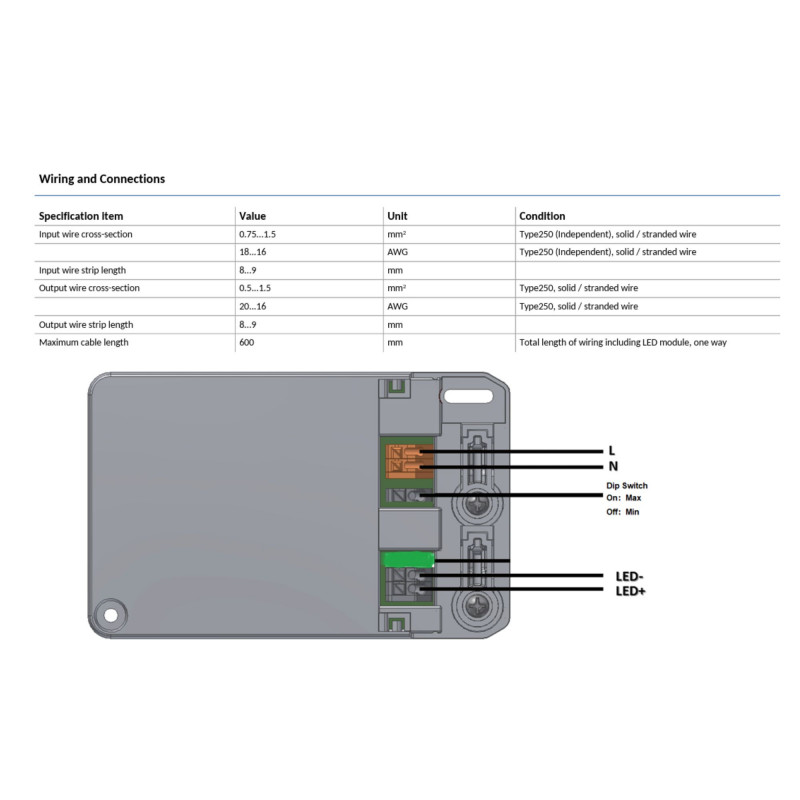

  • Compatibility and performance: Designed to power luminaires with COB technology or medium power LEDs. It offers fixed and safe output (SELV) with selectable constant current, 0.9 A or 1.05 A.

  • Energy efficiency: High efficiency and low power consumption, with minimum harmonic distortion (THD) to optimize energy use.

  • Low ripple: Stable, flicker-free illumination, ideal for areas with cameras or scanners.

  • Durability: Lifetime of 50,000 hours, maintaining reliability and safety.

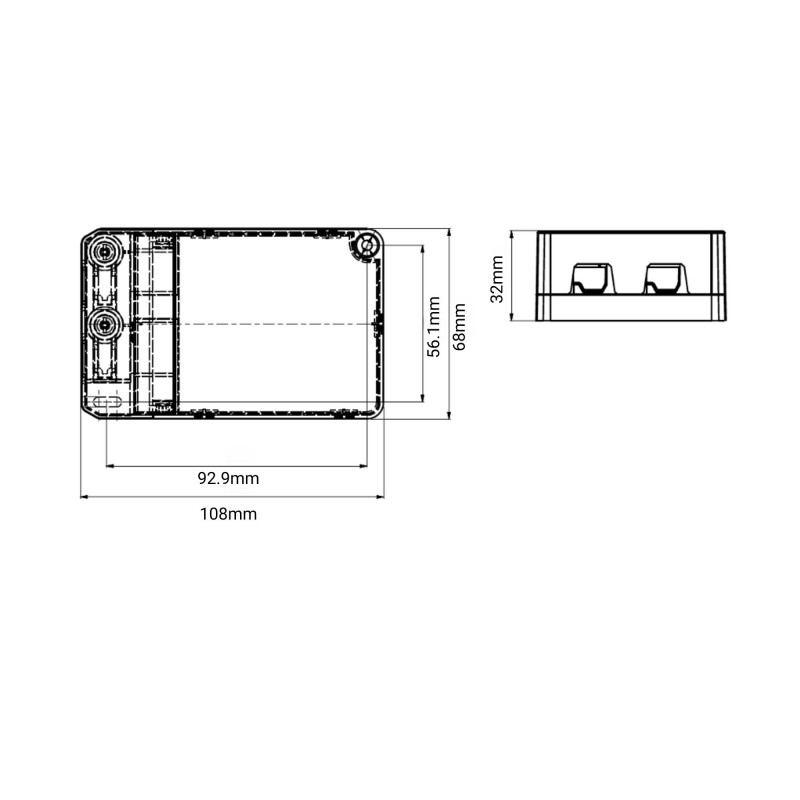

  • Compact design: Small size for easy integration into luminaires with limited space.

  • Applications: Especially suitable for professional lighting solutions, where high reliability and stability are required, ideal for offices, hotels, stores and public buildings.

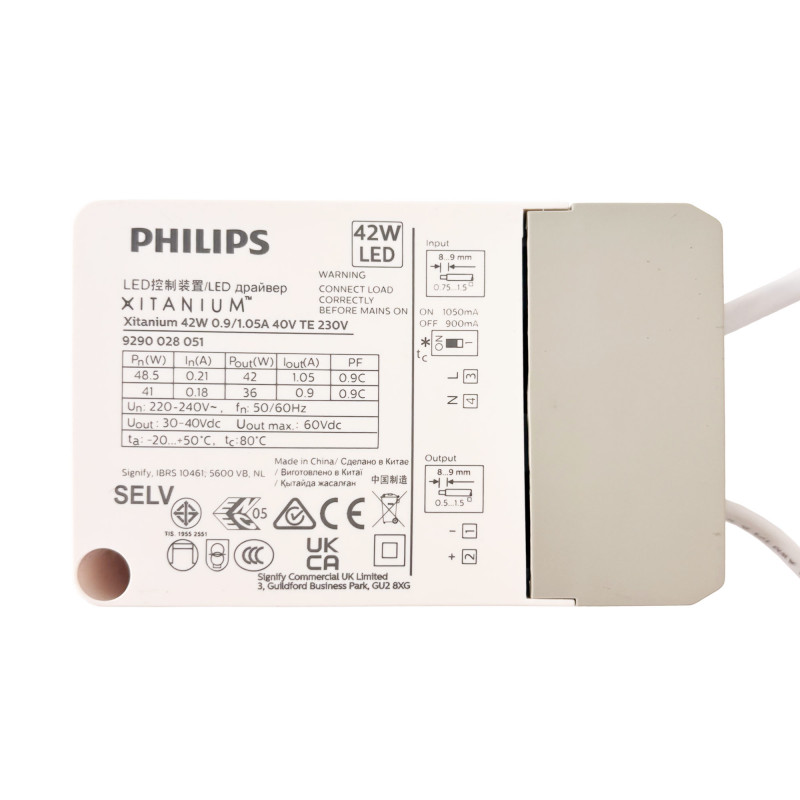

Nominal Voltage (V)
220 - 240 V/AC
Power (W)
42
Frequency (Hz)
50 - 60
Power factor (cosφ)
0.9
Control system
TRIAC
Output voltage (V)
30-40
Maximum intensity (A)
0.9/1.05A
PHILIPS
