Dimmable TRIAC DALI PUSH driver 0/1-10V 8-48VDC 50W multicurrent (180-1500mA)

50W dimmable LED driver 4 in 1: DALI, PUSH, TRIAC, 0/1-10V. Constant current

The SRP-TRIAC-50CC is a 50W ENEC approved 8-48V 4-in-1 power supply with 1-channel constant current output and adjustable current from 180mA to 1500mA by DIP switches, making it suitable for different LED lights.

TRIAC dimming controller is designed with DALI, PUSH, TRIAC, 0/1-10V,4 dimming interfaces in 1. 200-240V-AC. LED driver with amplitude dimming output instead of PWM output to ensure no flicker.

LED dimmer power factor higher than 0.9 and high efficiency higher than 83%. Allows smooth and deep dimming down to 1% with no buzzing or flickering. 1 DALI address can be automatically assigned by DALI masters.

Programmable with Tridonic software. App for users to control their individual luminaires via wifi network.

Compliant with IEC 62386-101, IEC 62386-102 and IEC 62386-207, this DALI controller is compatible with most DALI systems on the market. The Triac dimming driver can be compatible with universal TRIAC dimmers. By selecting the 0/1-10V interface. It is compatible with universal 0/1-10V dimmers.

Select the correct output current before wiring the LED light by DIP switches. Make sure the driver power is disconnected before selecting the output current.

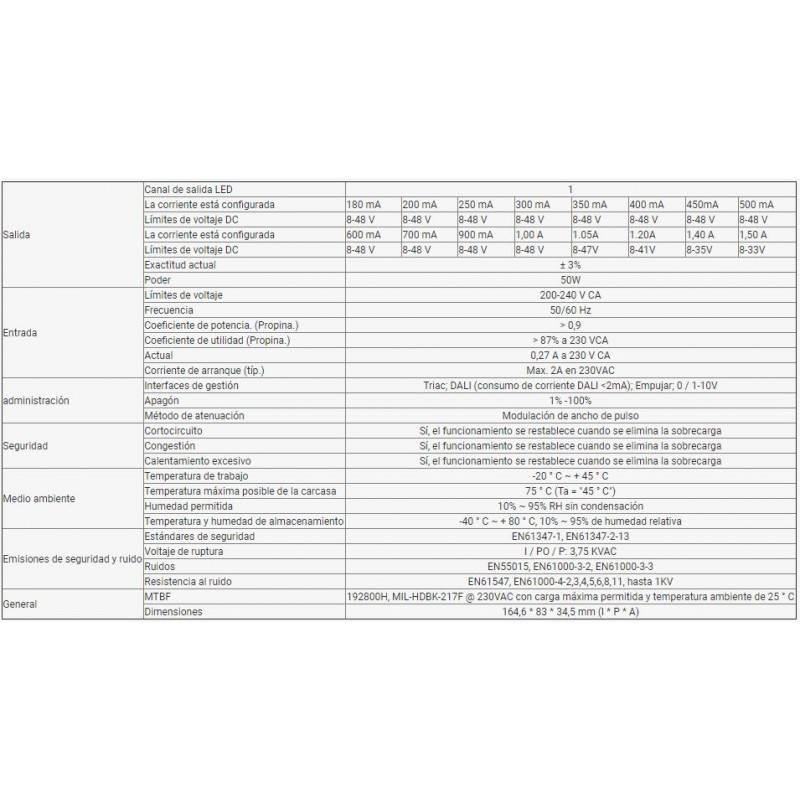

Main Features Dimmable TRIAC DALI PUSH 0/1-10V Dimmable source TRIAC DALI PUSH 0/1-10V

• Dimmable LED driver with TRIAC/DALI/Push+0/1-10V 4-in-1 dimming interfaces.
• 1 constant current output channel, maximum output power 50W.
• Output current 180mA-1500mA selectable by DIP switch.
• Enables to control single color LED lighting.
• Class Ⅱ power supply, fully insulated plastic case.
• High power factor and efficiency.
• Complies with IEC 62386-101, IEC 62386-102, IEC 62386-207 standards.
• Compatible with universal DALI masters supporting DT6 commands.
• Compatible with TRIAC universal dimmers.
• Compatible with 0/1-10V universal dimmers.
• IP20 degree of protection.
• Suitable for indoor LED lighting applications.

1. Dimming interface selection

1.1. The LED controller supports 4 types of dimming input: DALI, PUSH, TRIAC, 0/1-10V.

1.2. Please select any one of the 4 dimming interfaces to be wired each time.

1.3. To connect a new dimming interface, the previously connected dimming interface must be disconnected.

1.4. DO NOT connect more than 2 (including 2) dimming interfaces simultaneously.

2. DALI address assigned by DALI masters

When connected to the DALI interface, the DALI Master controller can automatically assign a DALI address, Please refer to the user manuals of the supported DALI masters for specific operations.

3. PUSH Dimmer mode

While connected with an AC PUSH, the controller will be in PUSH Dimmer Mode, the operations in Dimmer Push Mode are as follows:

3.1. Press the button to turn on/off.

3.2. Press and hold the button to increase or decrease the light intensity to the desired level and release it, then repeat the operation to adjust the light intensity in the opposite direction. The dimming range is from 1% to 100%.

3.3. The memory function after power off or power failure allows the fixture to memorize the status before power off while powering on again.

4. TRIAC dimming input

When connected with a TRIAC dimmer, different TRIAC dimmers from different suppliers may have different minimum dimming levels below which the controller cannot dim. To dim to 1%, make sure that the dimmer supports a minimum dimming level of 1%.

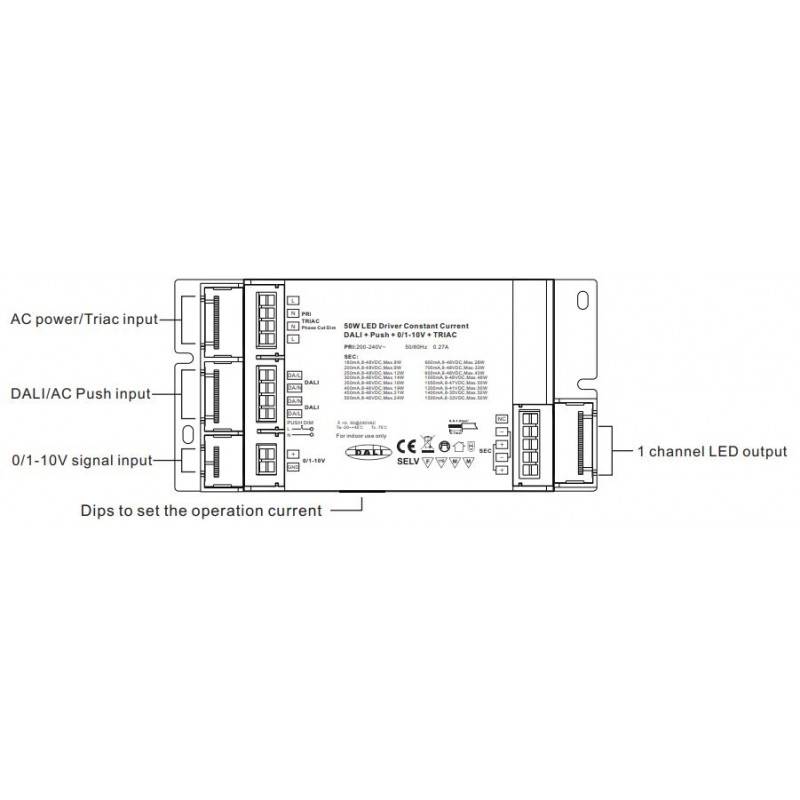

WIRING DIAGRAM
