Dimmable DALI LED Driver 9-24V - Adjustable Current 350/400/450/500mA
SKU:PE14DA2450
€19.99
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: sales@barcelonaled.com
Dimmable LED Driver DALI 9-24V - Adjustable Current
This driver is compatible with constant current LED modules and facilitates its integration in downlights, LED spotlights and decorative or technical luminaires.
- DALI dimming: Incorporates DALI dimming interface through DA1 and DA2 terminals, allowing lighting control within compatible systems.

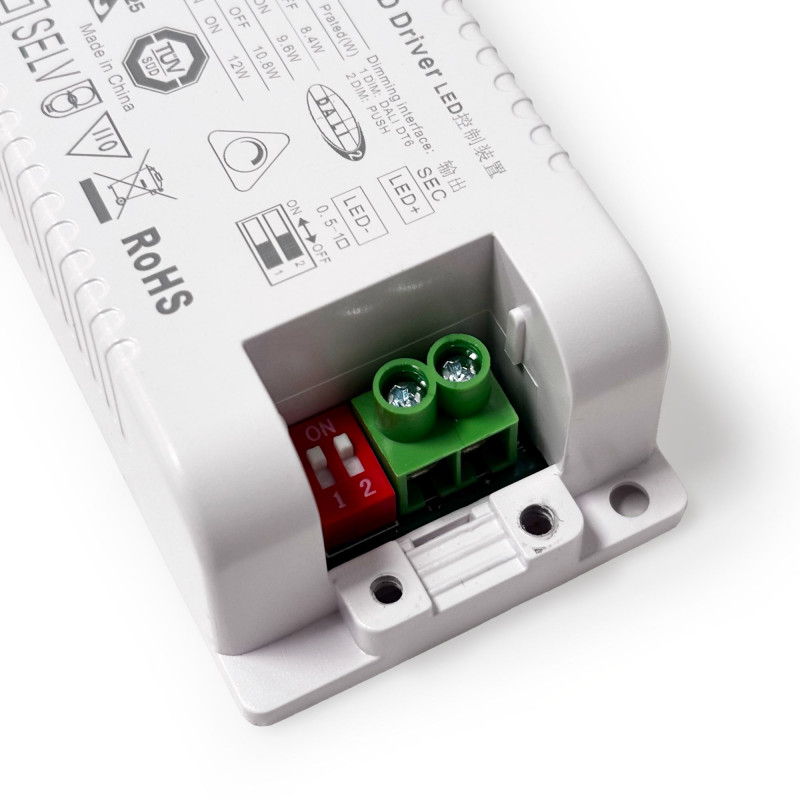

- Adjustable output current: Configurable in 350mA, 400mA, 450mA or 500mA by means of DIP Switch integrated in the driver itself.
- Output voltage range: Operation between 9 and 24V DC, depending on the selected current and the connected LED module.
- Power: Up to 12W, depending on the current setting.
- Input power: 100-250V AC input at 50/60Hz, suitable for standard electrical installations.
- Electrical safety: SELV output and use exclusively for LED modules.
Nominal Voltage (V)
100 - 250
Maximum power (W)
12
IP
IP20

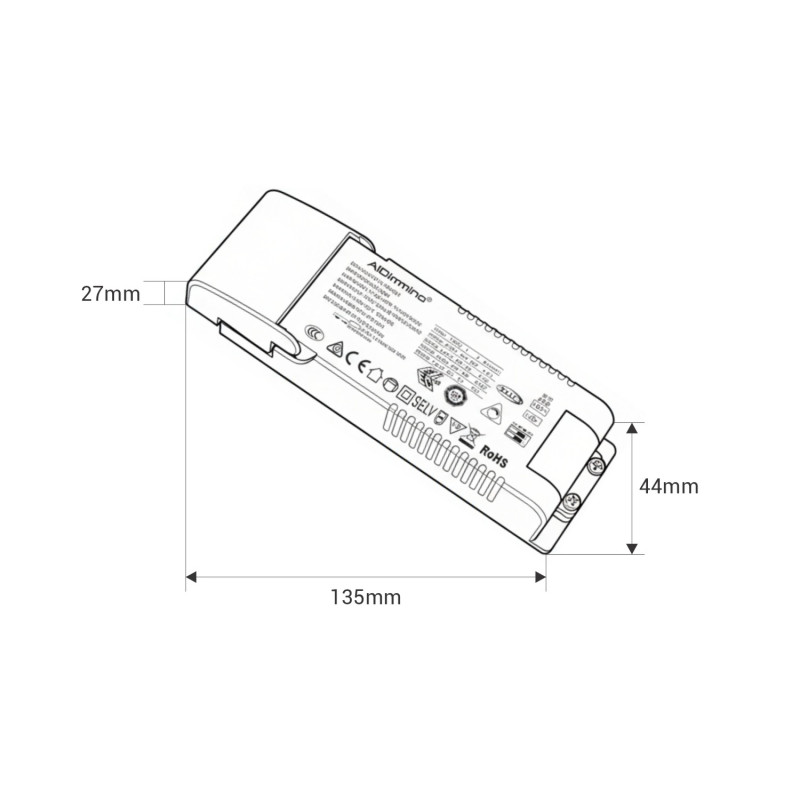

Dimensions (mm) Lxlxh
135 x 44 x 27
Frequency (Hz)
50 - 60
Power factor (cosφ)
0.93
Control system
DALI
PUSH
PUSH
Output voltage (V)
9-24V
Material
Plastic
Use Outdoor
No
Temperature range
-20°C ~ +45°C
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years
Output current mA
500mA
