DALI dimmable DT8 CCT driver 220-240V - Output 6-42V DC - 100-700mA - 12W
DALI dimmable DT8 CCT driver 220-240V - Output 6-42V DC - 100-700mA - 12W
DALI dimmable DT8 CCT driver 220-240V - Output 6-42V DC - 100-700mA - 12W

DALI dimmable DT8 CCT driver 220-240V - Output 6-42V DC - 100-700mA - 12W

SKU:SRP-2309N-12CCT100-700
Has superado el límite de unidades
In stock 7 unidades

DALI dimmable 220-240V 12W driver, converts alternating current into direct current to power LED CCT luminaires such as LED panels, downlights and ceiling lights.

It offers precise dimming from 0.01% to 100%, no flicker, high power factor, and energy efficiency.

It incorporates protection against short circuit and overload.

The DALI Driver is an innovative and versatile device. It's manufactured with high quality components and features a robust design that guarantees a long product lifetime.

It's DALI-2 certified and has an integrated DALI-2/Push interface that ensures reliable and accurate communication.

Its NFC function allows precise adjustment of the output current, with 0.1 mA increments in the range of 100 to 700 mA.

It also features a high power factor and low harmonic distortion, ensuring stable and high-quality power supply.

It ensures constant, flicker-free light, with extremely accurate dimming down to 0.01%.

It's highly compatible with universal DALI masters supporting DT8 commands, simplifying integration into existing systems.

Product features:

  • Input voltage: 220-240V AC
  • Output voltage: 6-42V DC
  • Power: 12W
  • Intensity: 100-700mA
  • Indoor use: IP20

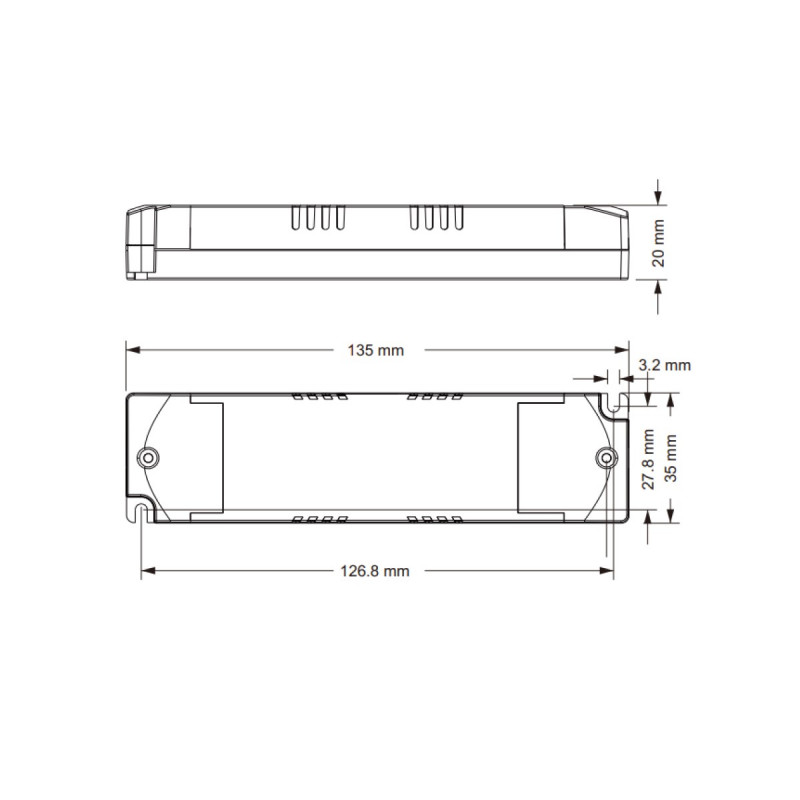

  • Dimensions: 135 x 35 x 20mm
Nominal Voltage (V)
220 - 240 V/AC
Maximum power (W)
12
IP
IP20
Control system
DALI
Output voltage (V)
6-42 Vdc
Colour control
CCT
Use Outdoor
Yes
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Output current mA
100-700mA
SUNRICHER
