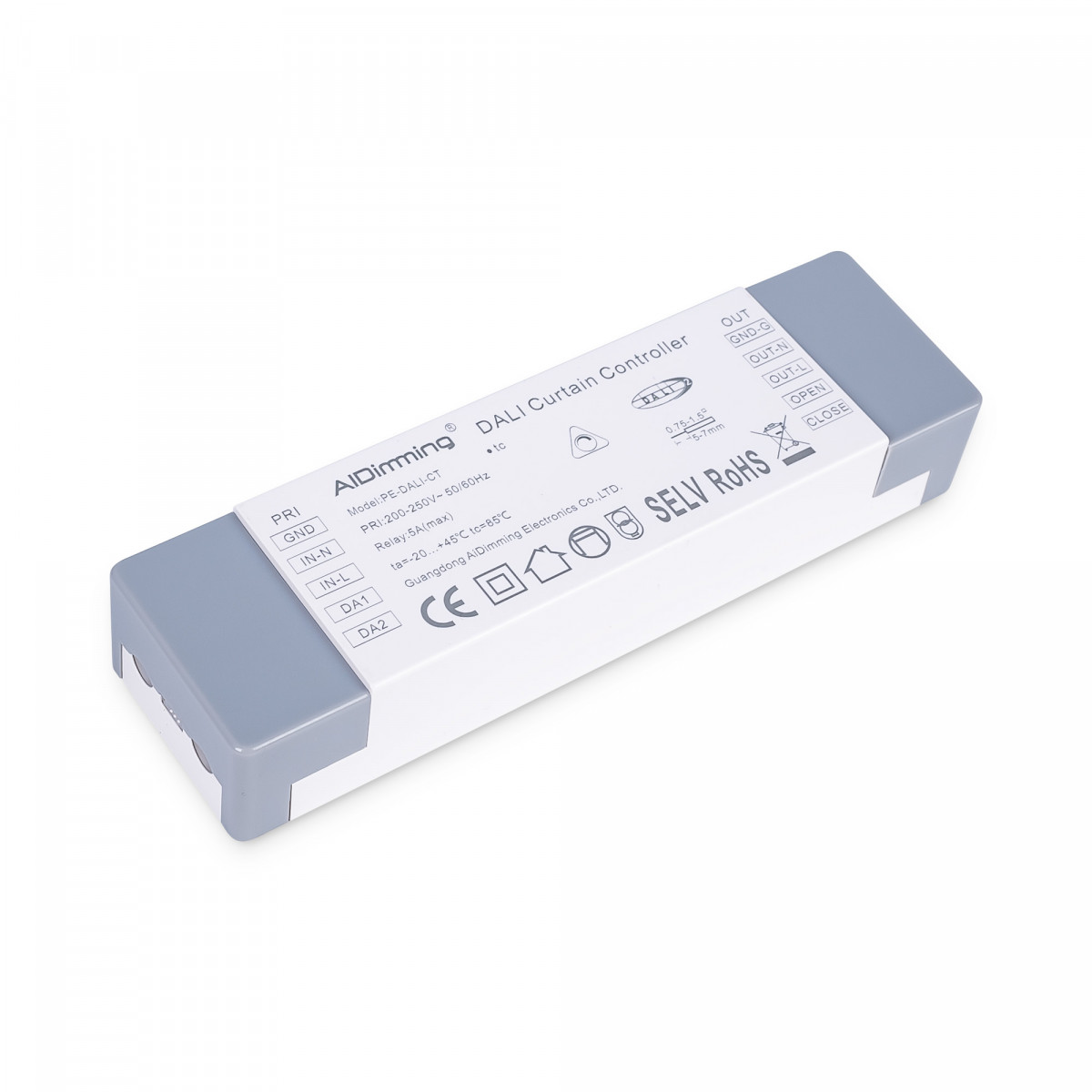

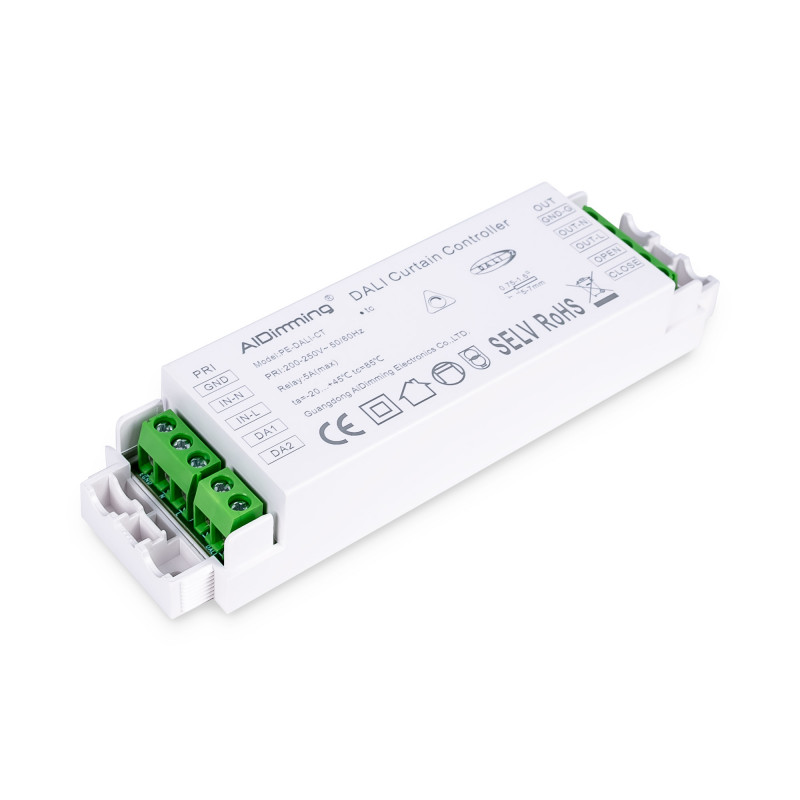

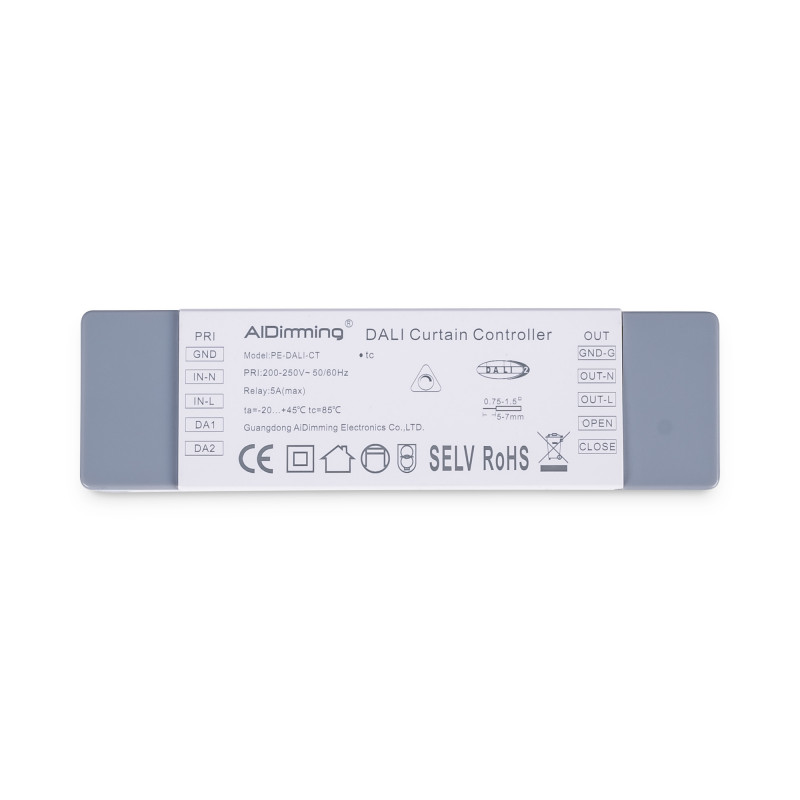

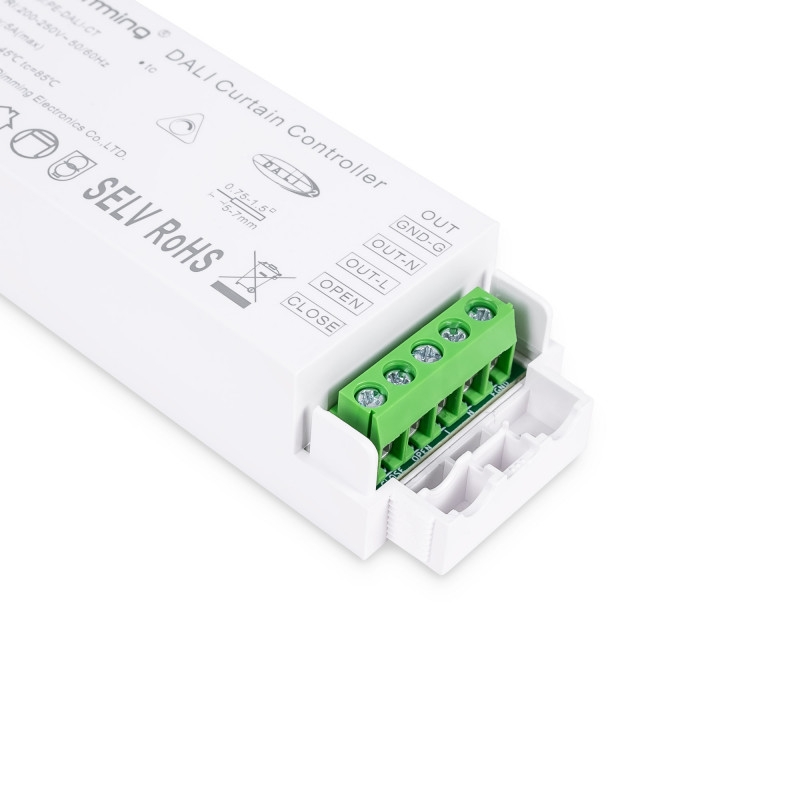

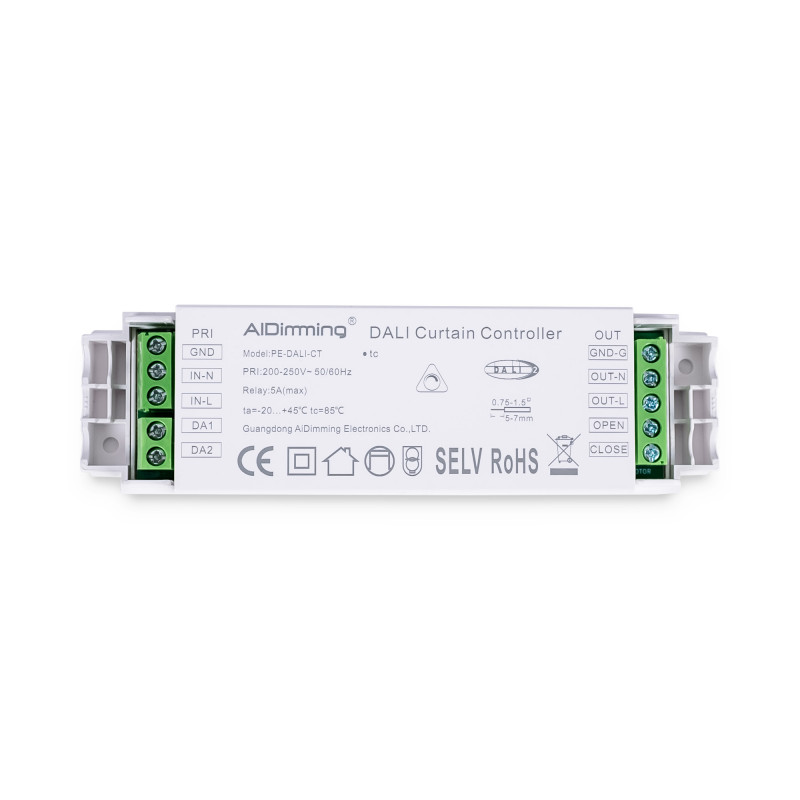

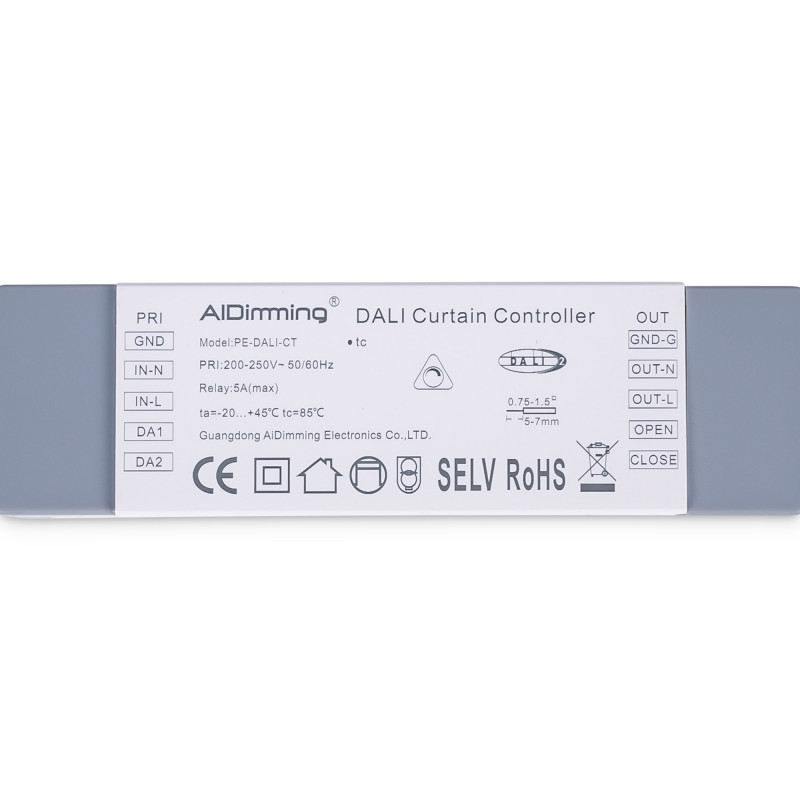

DALI controller for 5-wire curtain motor - 5A - 500W
DALI controller for 5-wire curtain motor - 5A - 500W
DALI controller for 5-wire curtain motor - 5A - 500W
DALI controller for 5-wire curtain motor - 5A - 500W
DALI controller for 5-wire curtain motor - 5A - 500W
DALI controller for 5-wire curtain motor - 5A - 500W

DALI controller for 5-wire curtain motor - 5A - 500W

SKU:PE-DALI-CT
Has superado el límite de unidades
In stock 48 unidades

The controller for motorized curtains enables smart home control through the DALI-2 protocol.

It provides advanced control and the possibility of synchronization with other devices, allowing the integration of motorized curtains into a home automation system, thus achieving a smarter and more personalized residential environment.

The curtain motor controller is designed to integrate with DALI / DALI2 systems.

It enables precise and customized control of the curtains through a digital interface (DALI master required), capable of managing curtain motors with a power consumption of up to 500W.

Compatibility with the DALI-2 standard ensures seamless integration with lighting systems and other DALI devices in the same environment.

Product features:

  • Rated voltage: 200-250V AC
  • Maximum current: 5A
  • Enables control of 5-wire curtain motors
  • Built-in DALI-2 interface
  • Compatible with all DALI systems on the market
  • Dimensions: 130 x 38 x 28 mm
  • Max output power: 500W

Nominal Voltage (V)
12 - 24 V/DC
IP
IP20
Dimensions (mm) Lxlxh
130 x 38 x 28
Frequency (Hz)
50 - 60
Dimmable
Yes
Control system
DALI
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Maximum intensity (A)
5
Barcelona LED
