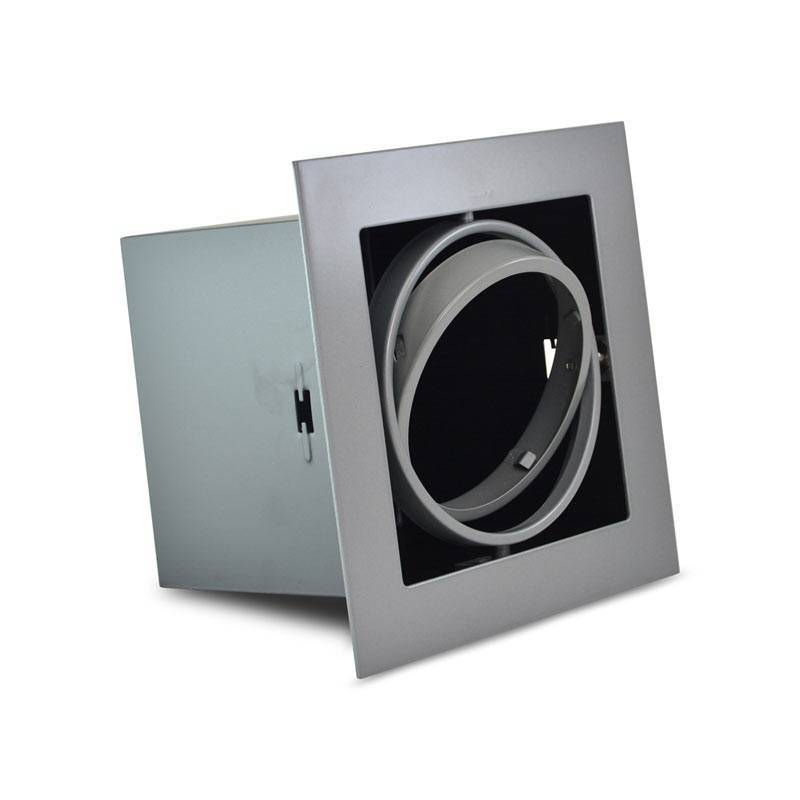

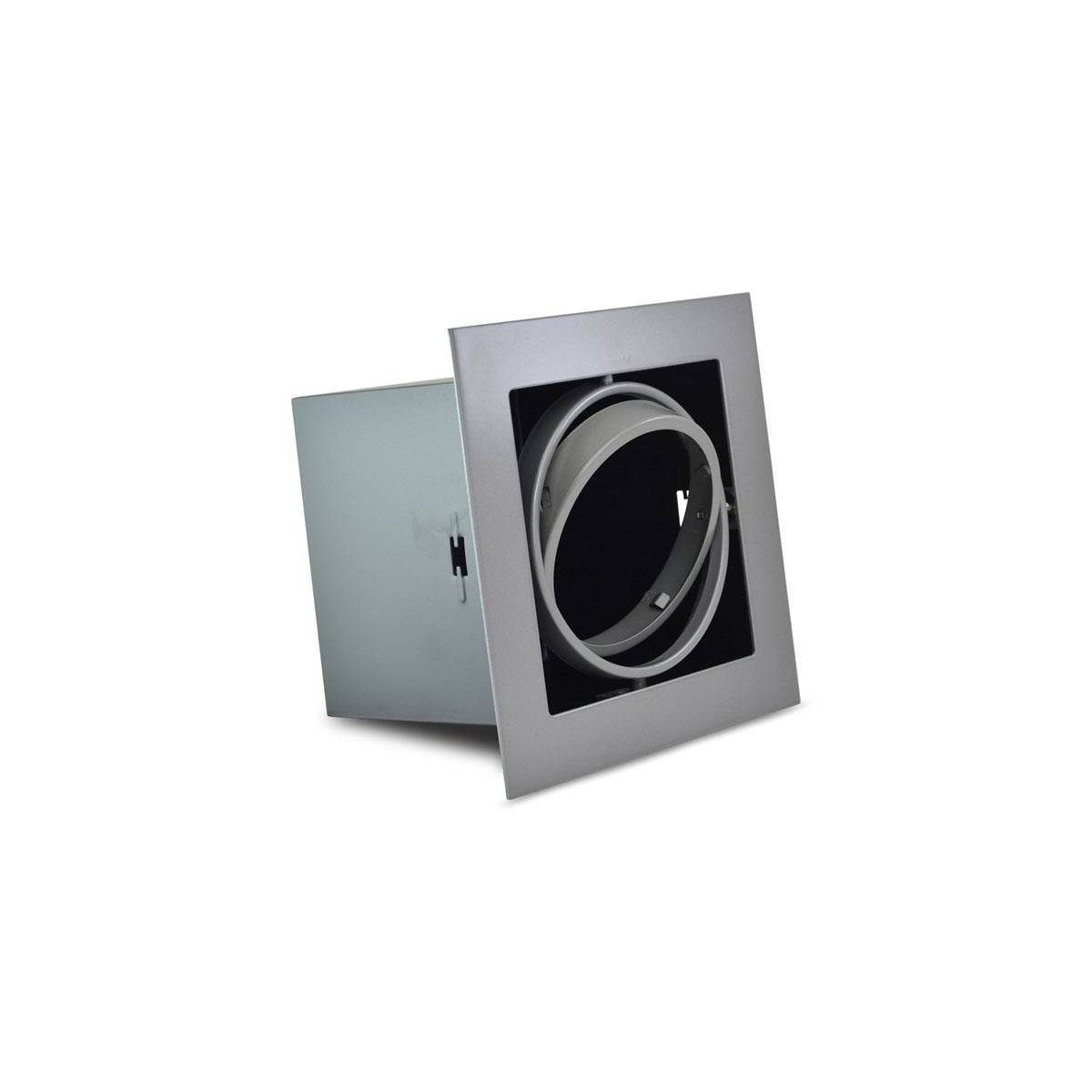

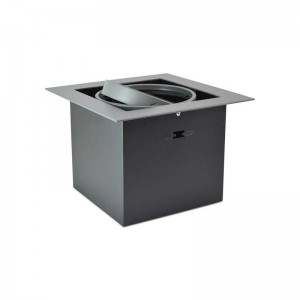

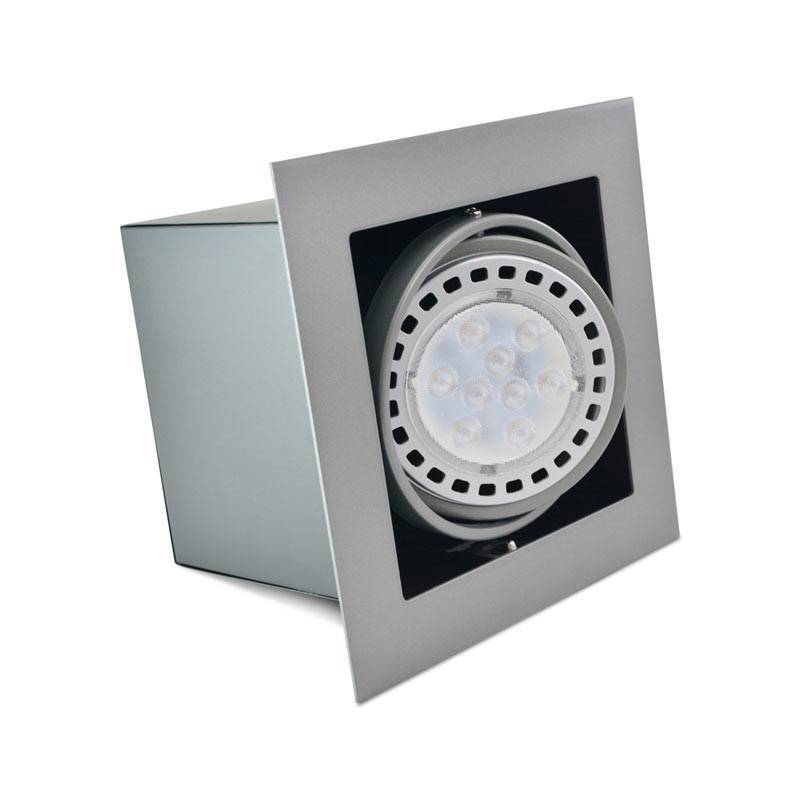

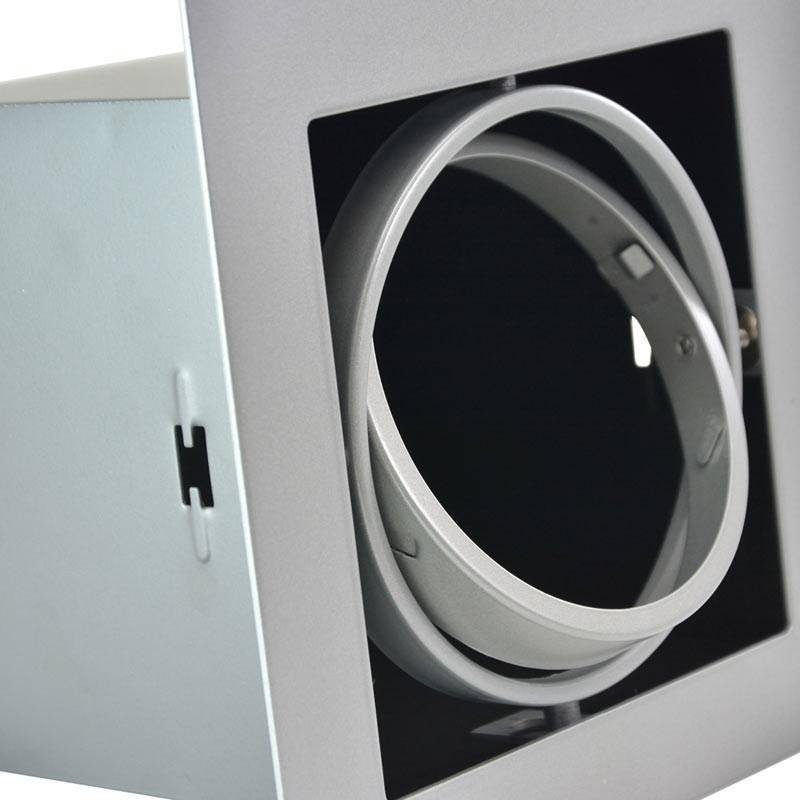

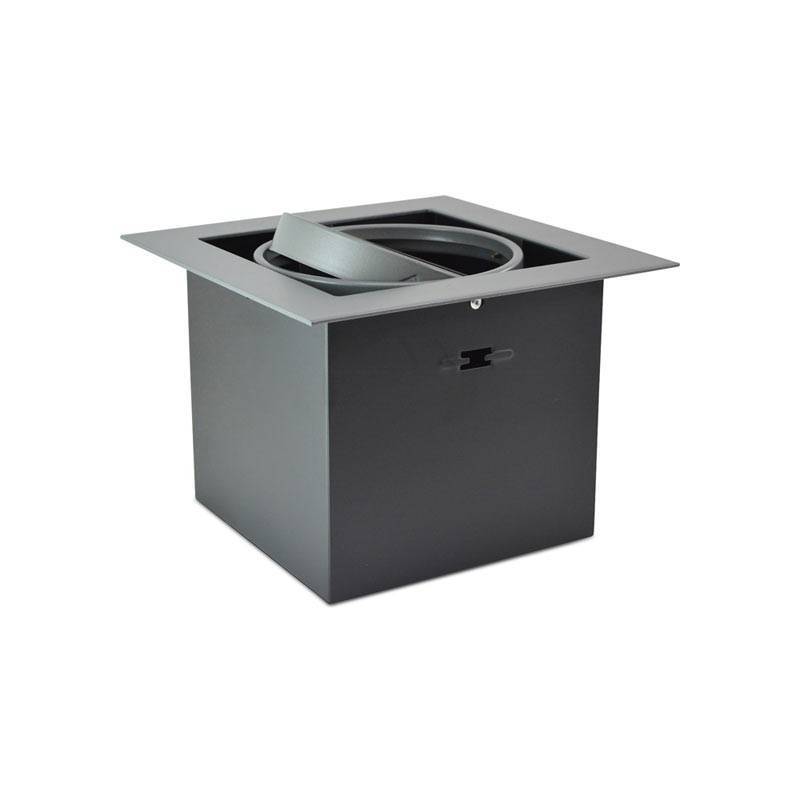

Steel Kardan for QR111 LED Bulb

Steel Kardan for QR111 LED Bulb

Replace conventional metal halide lamps in stores and stores with the steel Kardan and QR111 bulb!

Achieve the same lighting effects and cut electrical energy consumption by up to 90%.

Steel Kardan features:

- Finishes: Epoxy paint and composites of noble materials.

- Base: Ceramic

- Tube: Brass

- Lampshade: Synthetic

- For Bulb QR111 75W maximum

- Measurements: 200x200x142mm

Kardan steel installation:

1. Make a hole in the ceiling suitable for the product dimensions 2.

2. Make sure that there is no active voltage in any of the cables to be handled.

3. Connect the power cables of the transformer to the terminal strip of the luminaire, then insert the transformer into the false ceiling at a minimum distance of 250mm from the surface of the luminaire.

4. Turn the lamp housings to their most vertical position.

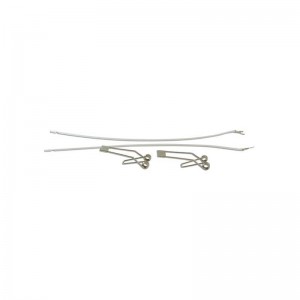

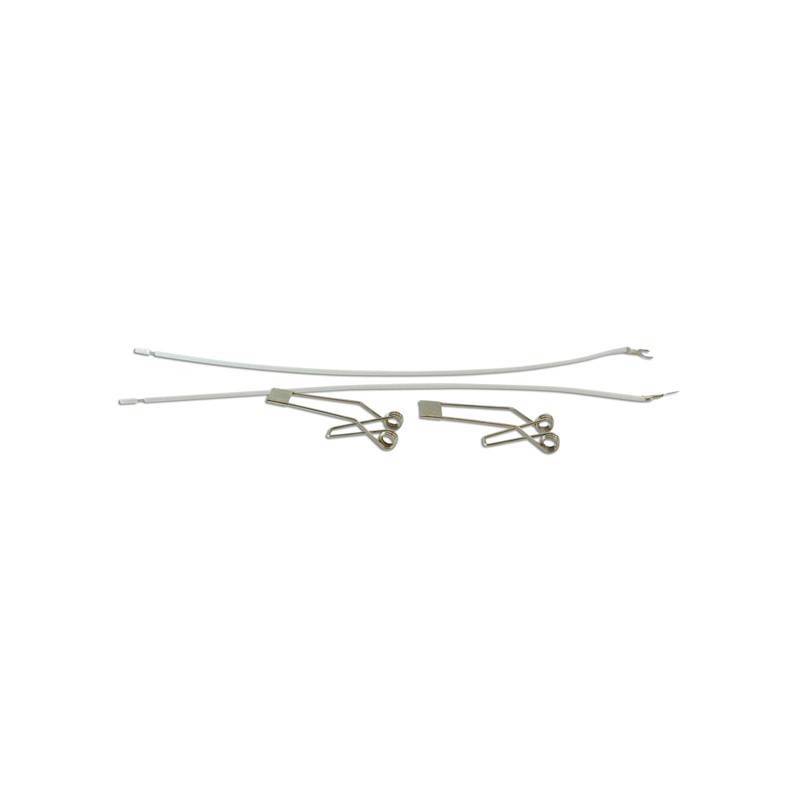

5. Fix the luminaire to the ceiling by means of the anchoring pins.

6. Place the housings in their horizontal position and connect the lamps.

*It is important NOT to cover the luminaire with any type of material inside the recessing.

Combinations:

You can combine the steel Kardan with Bulbs: AR111 LED 11W and AR111 LED 15W, choose the one that best suits your needs.

Kardan steel applications:

• professional lighting, oriented to the retail sector.
