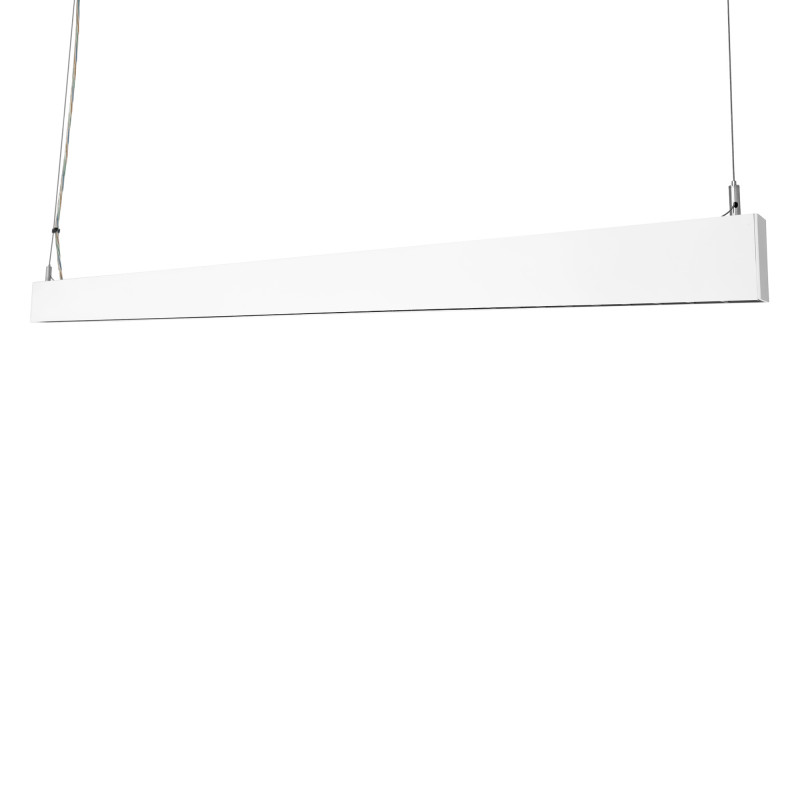

Linear LED CCT luminaire - Suspension/surface - Adjustable power 20W/30W/40W - 120cm - UGR 17

SKU:B9030-UGR17-CCT-B
Colour
Has superado el límite de unidades
In stock 188 units
Data sheet

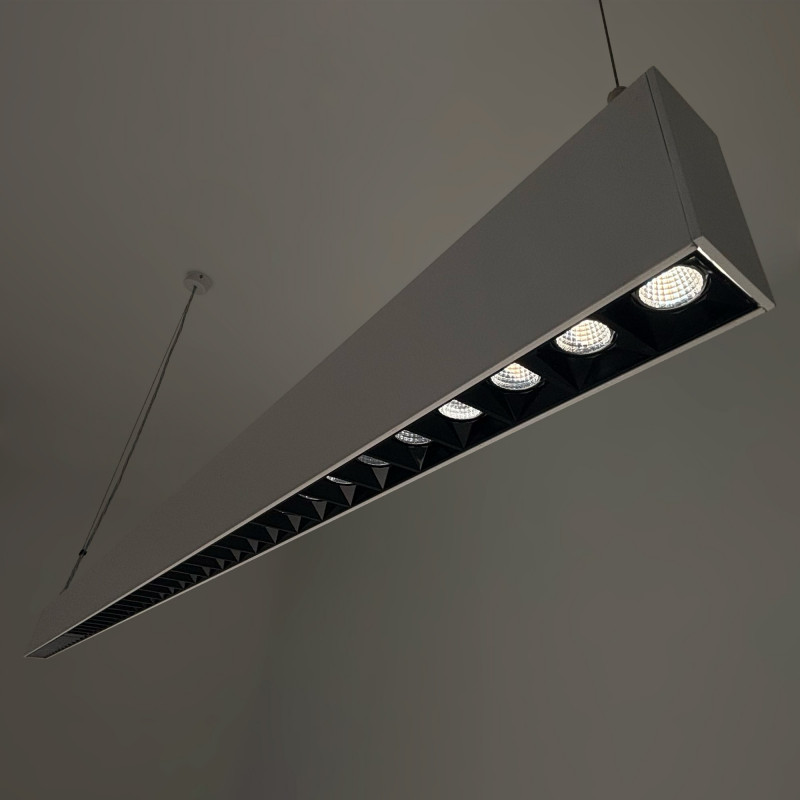

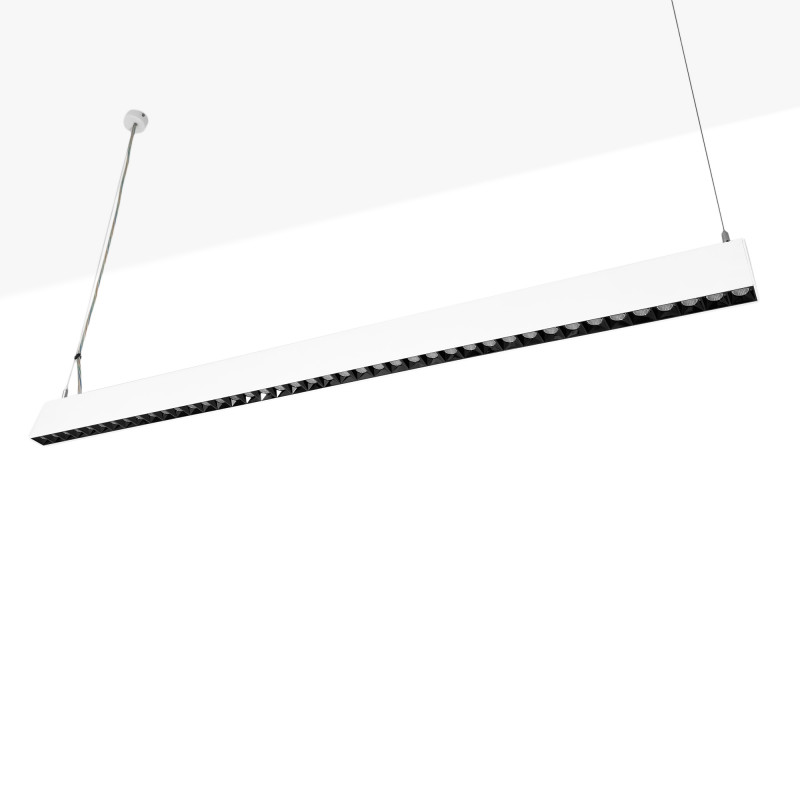

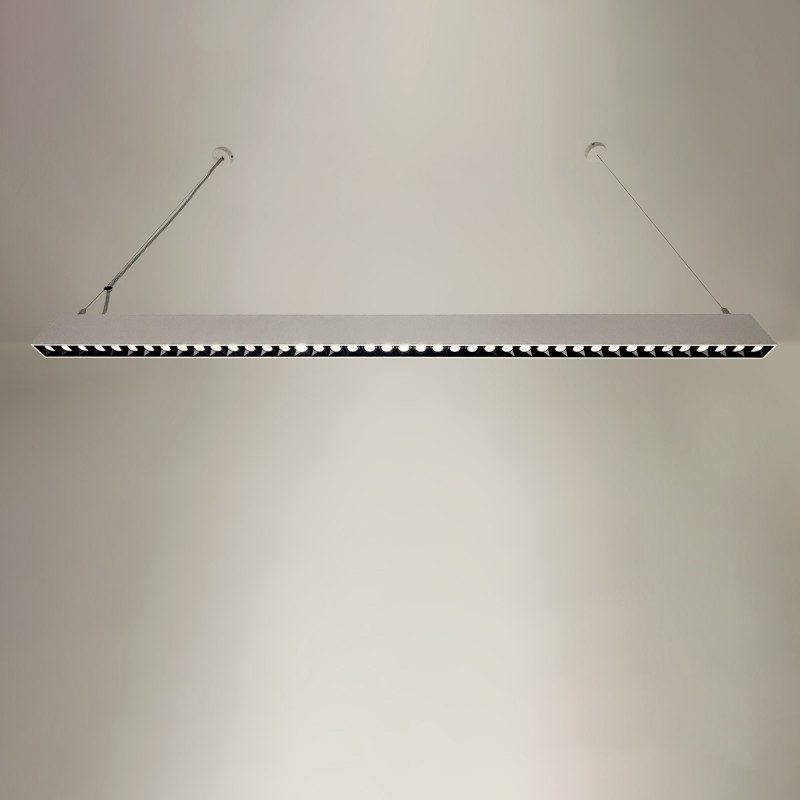

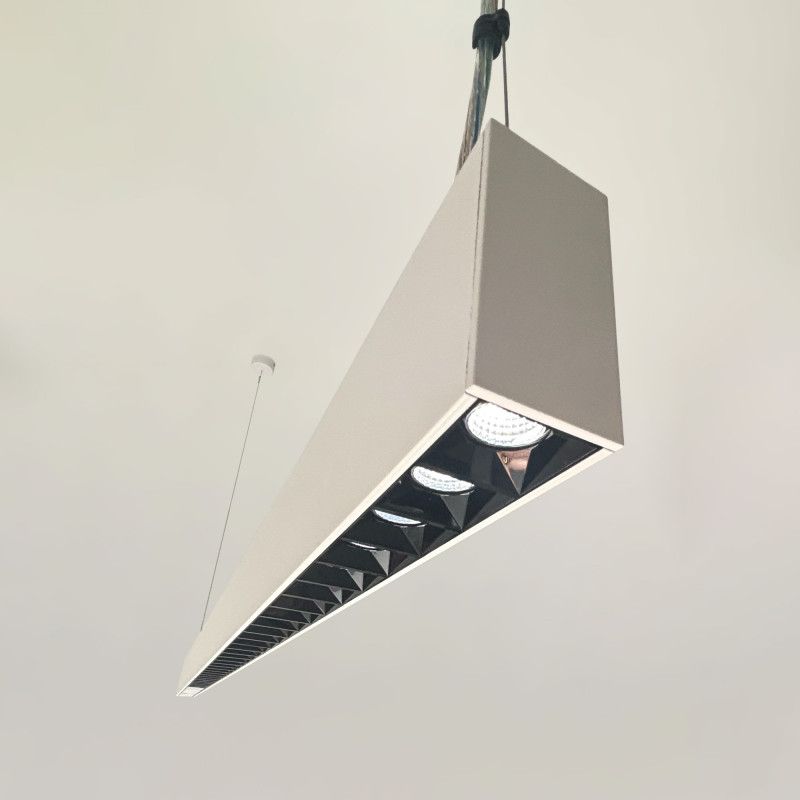

Linear LED luminaire of modern design for suspended or surface installation, ideal for offices, stores and work spaces that require a professional, efficient and high visual comfort lighting.

Equipped with a BOKE driver that allows to adjust the power between 20W/30W/40W and the color temperature (3000K/4000K/5000K).

It provides high quality lighting with up to 3800 lumens and a CRI>90, ensuring true colors and natural light.

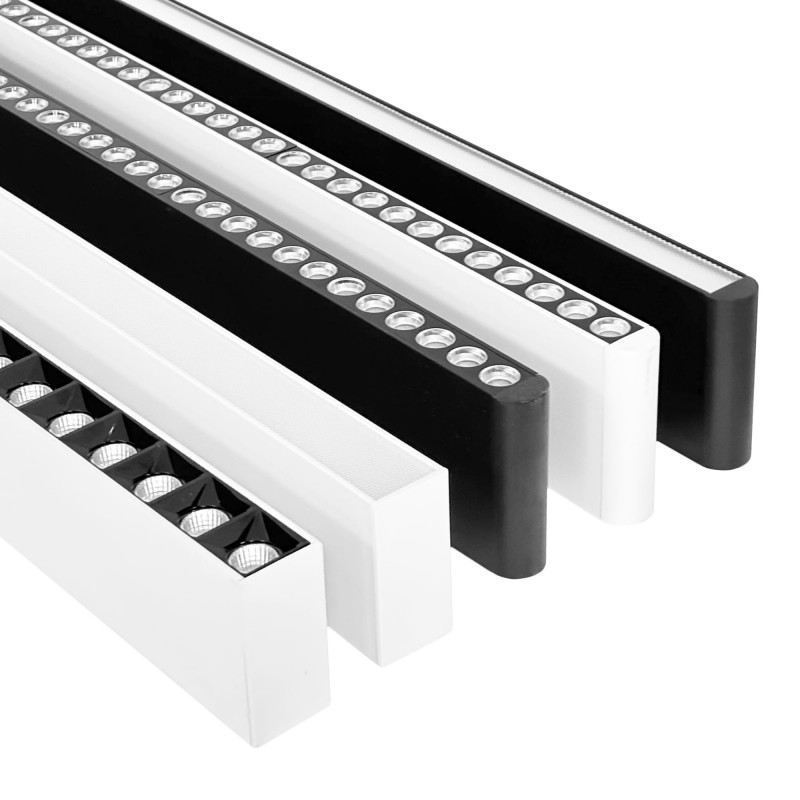

Interconnectable with other linear luminaires. Includes complete installation kit.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  sales@barcelonaled.com

LED Linear Luminaire - Adjustable Power - 120 cm - UGR<17

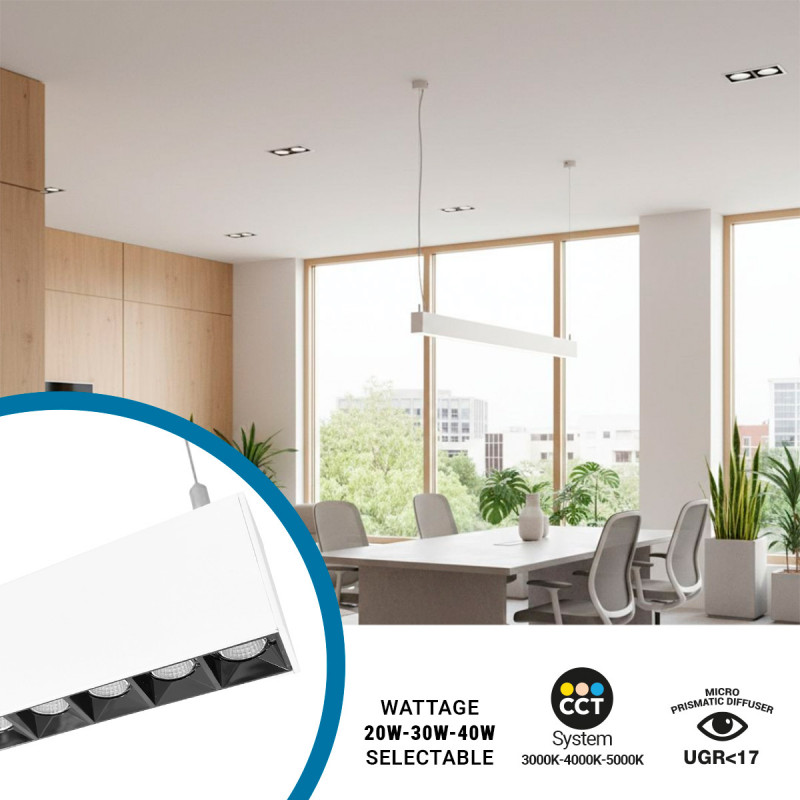

Designed to provide efficient, uniform and comfortable light, it is ideal for offices, retail, restaurants and spaces where professional lighting with glare control is required.

Key features:

  • High quality illumination: offers up to 3800 lumens with an approximate efficiency of 95 lm/W. Incorporates OSRAM SMD3030 LED chips with CRI>90 for superior color rendering, very close to daylight.

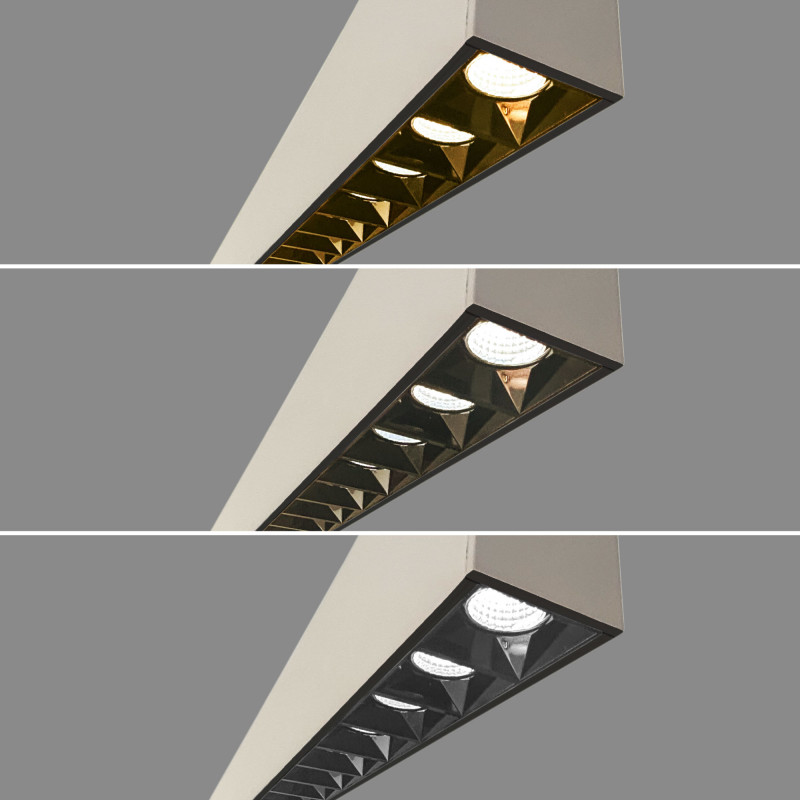

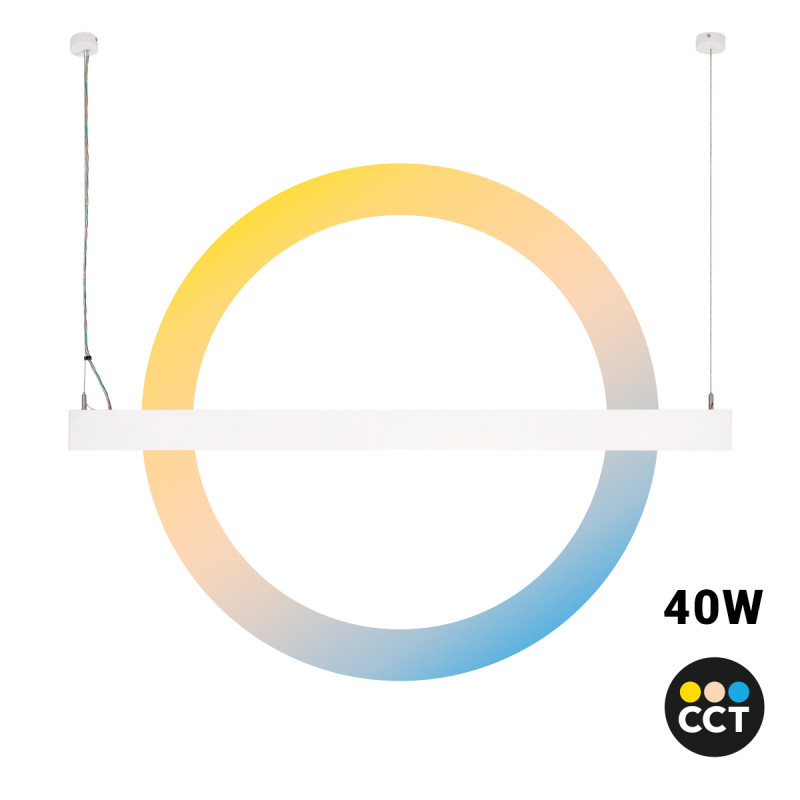

  • Adjustable CCT and power: BOKE driver allows to select 3000K/4000K/5000K and adjust the power between 20W/30W/40W, adapting to different lighting levels and environments.

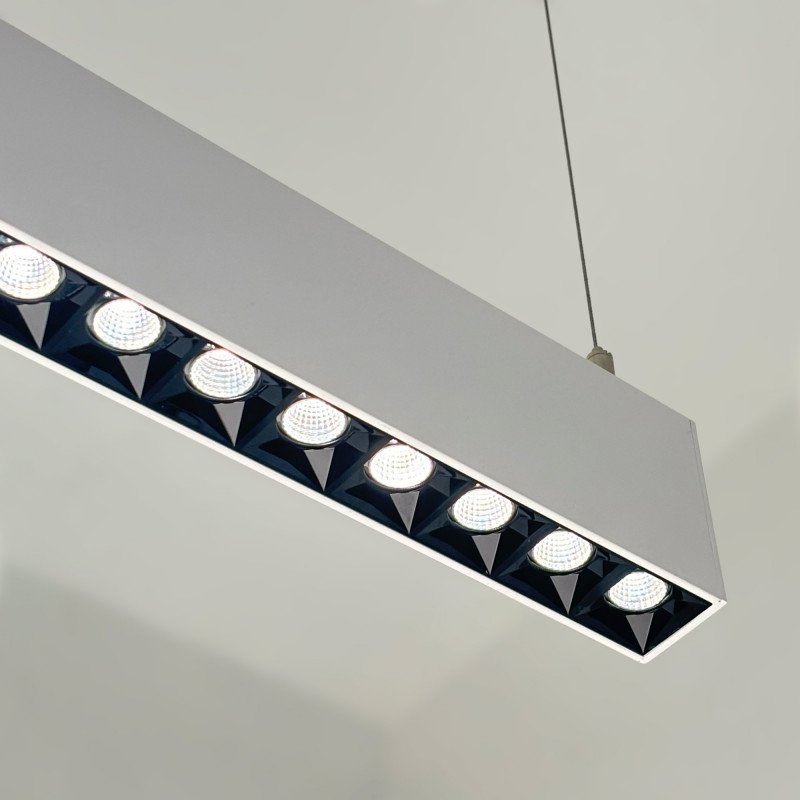

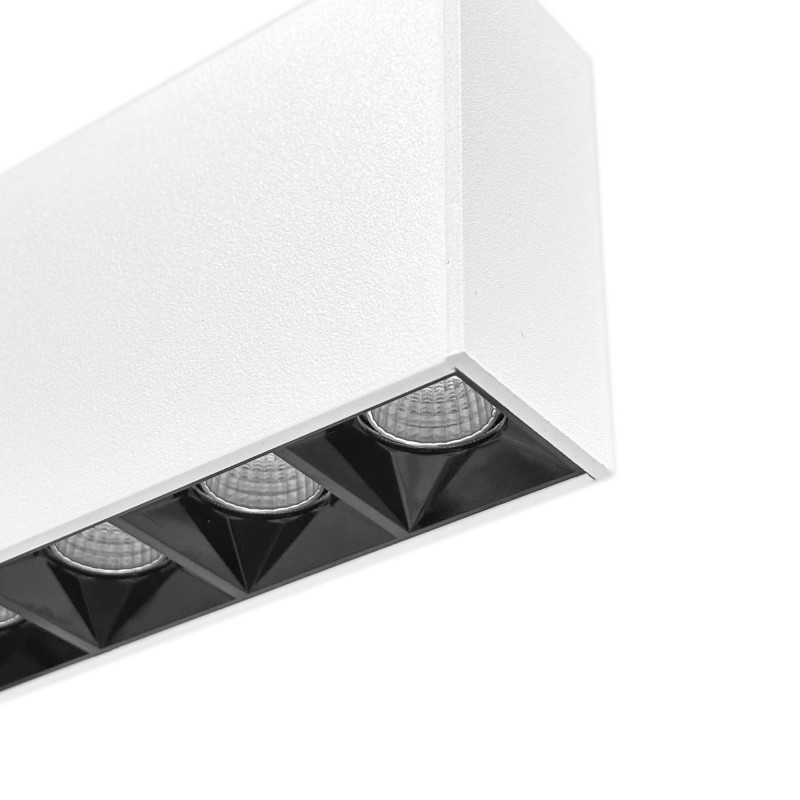

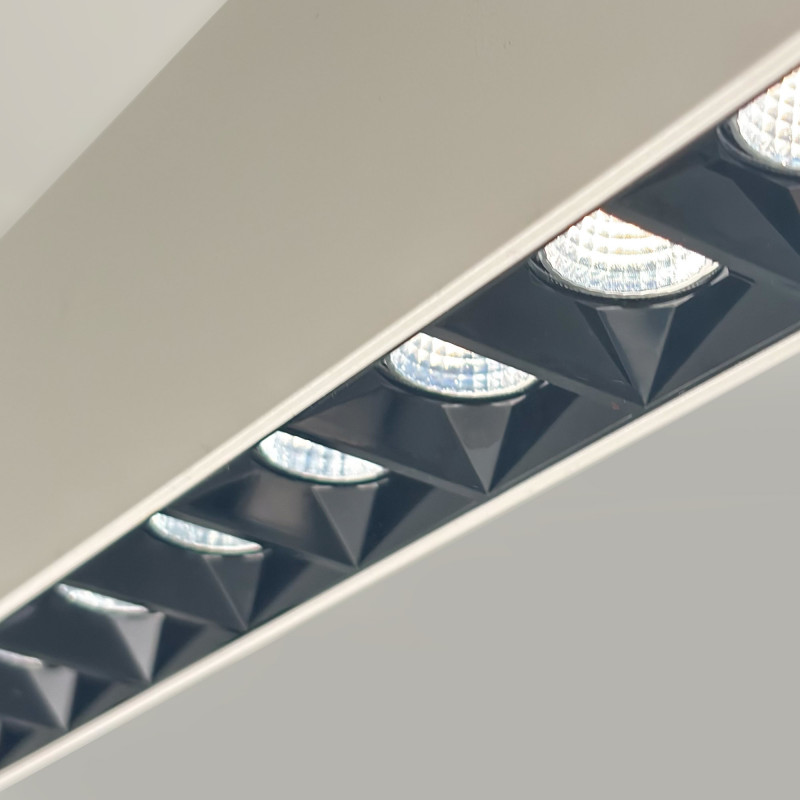

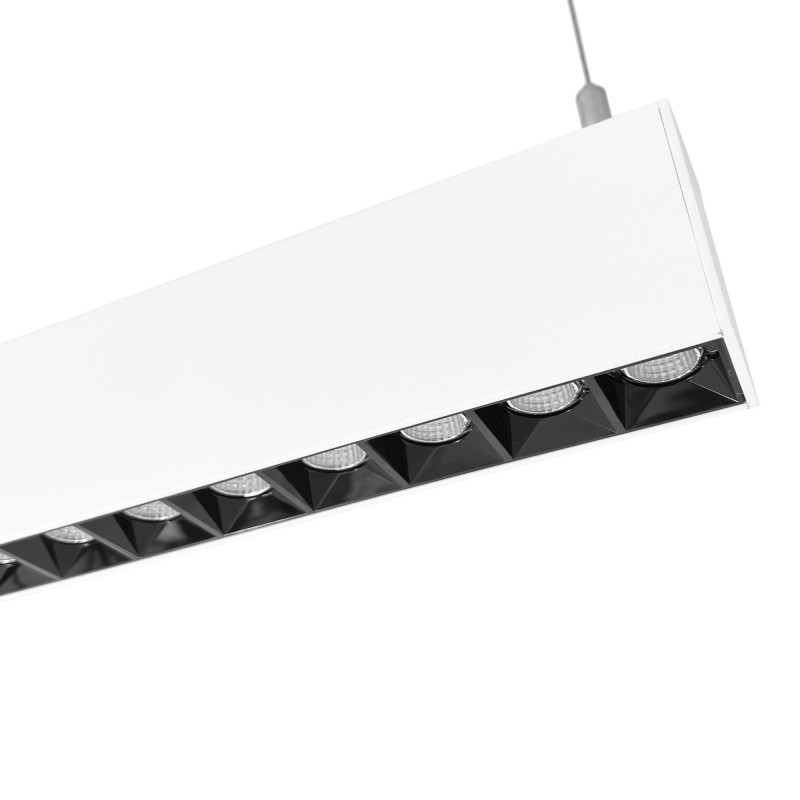

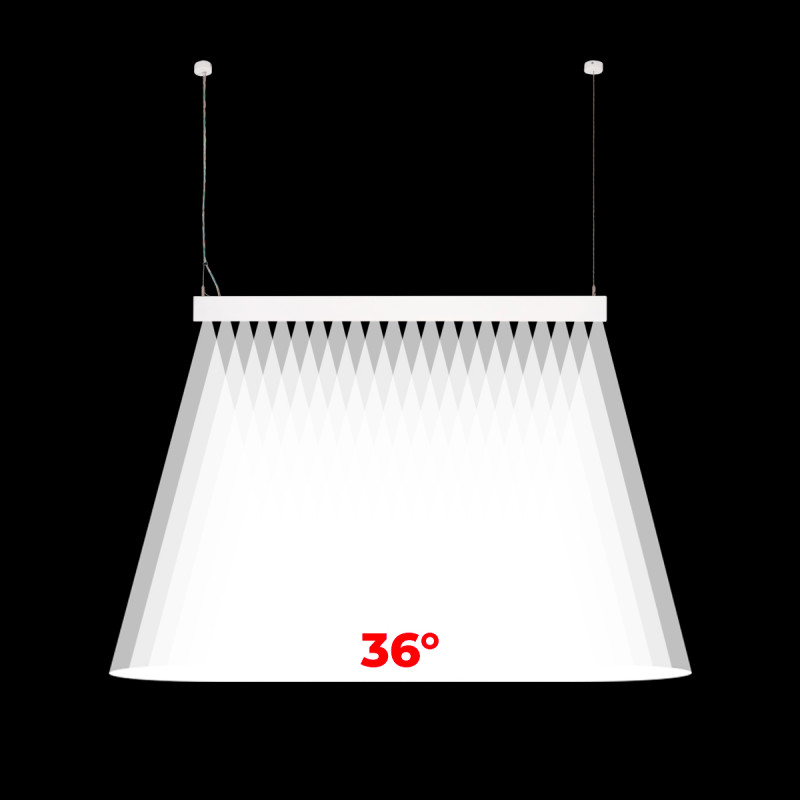

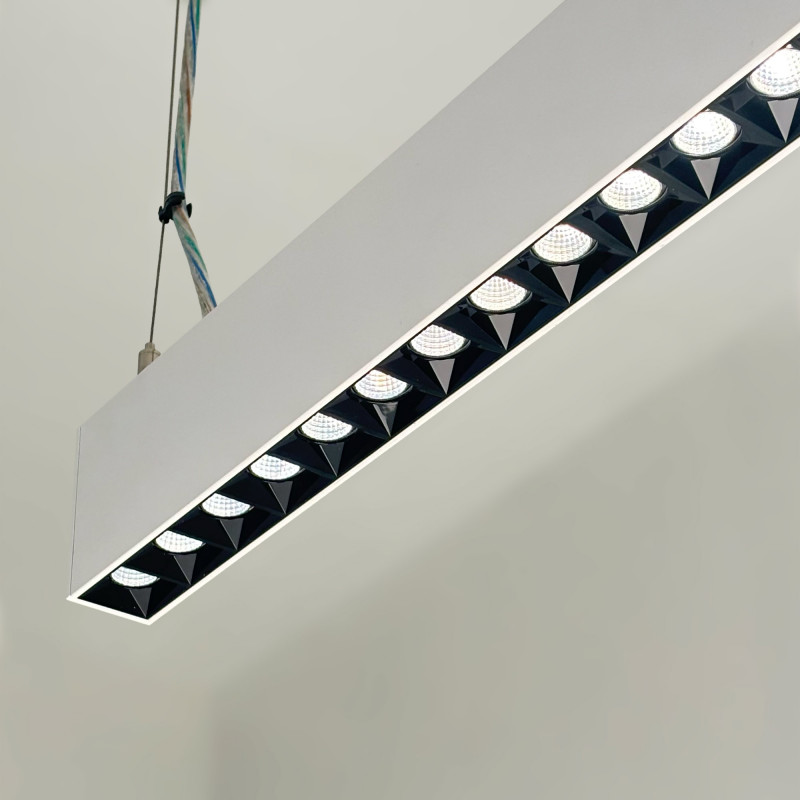

  • Low glare optics UGR<17: 36° aperture angle directs light precisely and reduces glare.

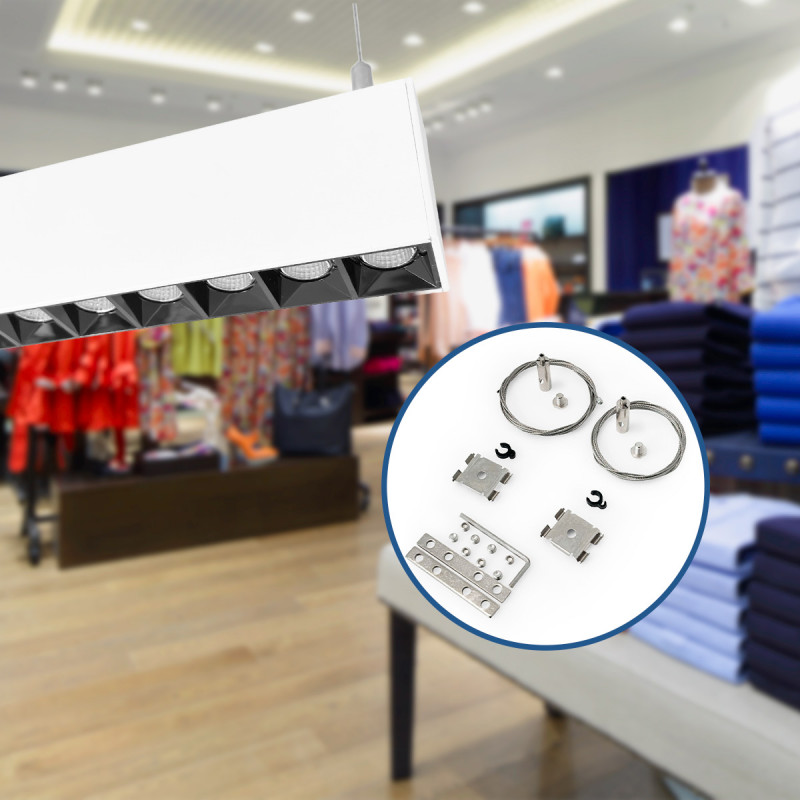

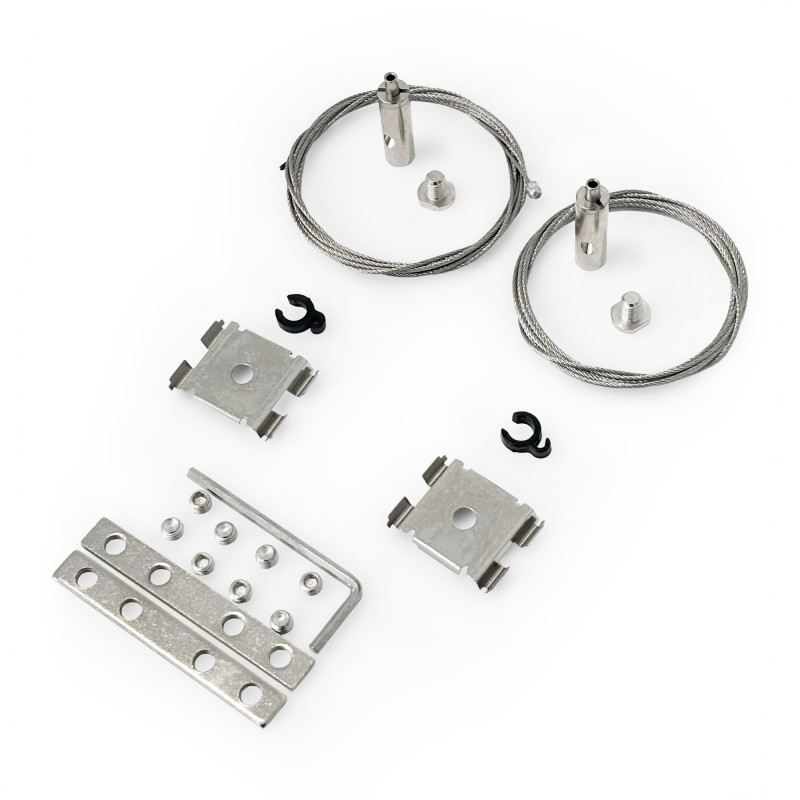

  • Installation kit included for suspension and surface mounting:

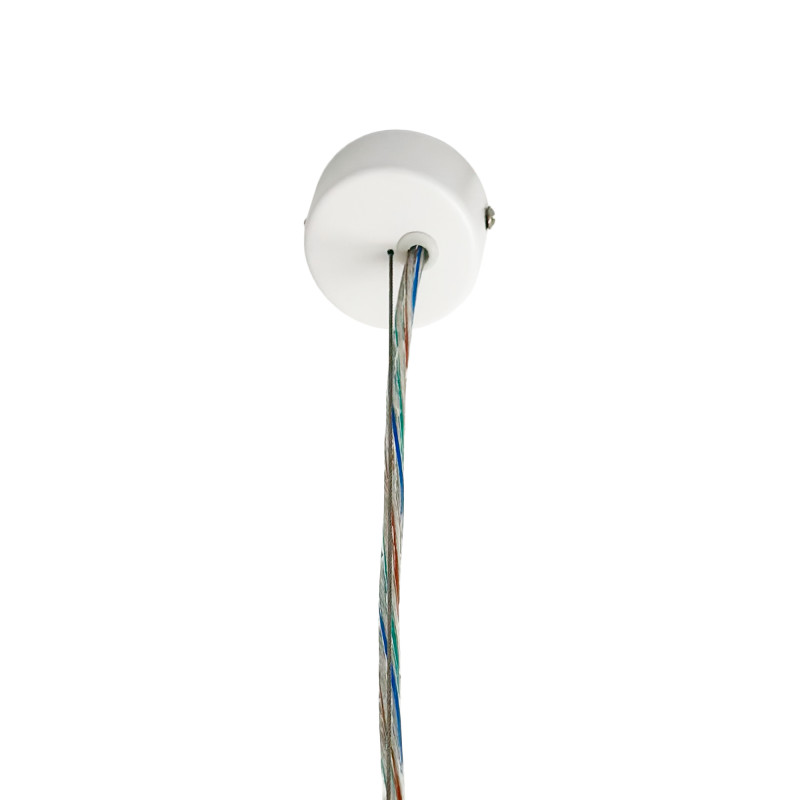

    ✔ 2 ceiling fleurons φ60mm.

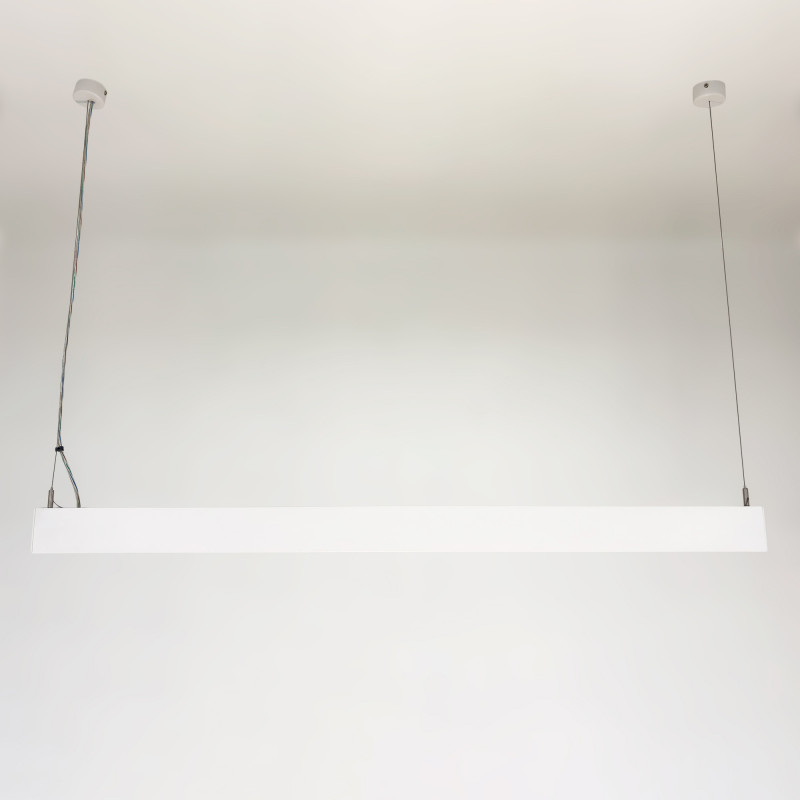

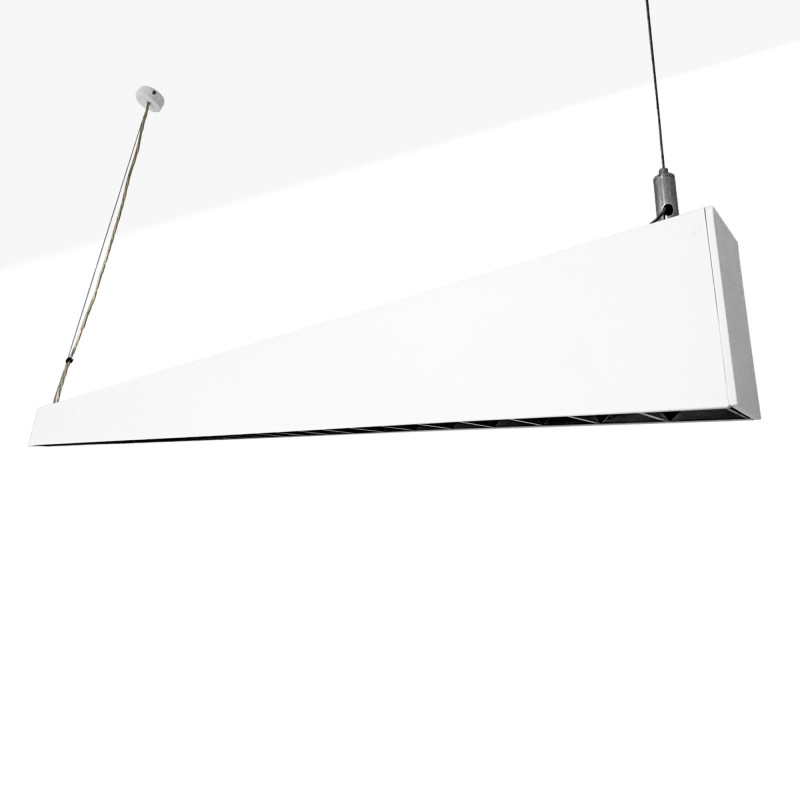

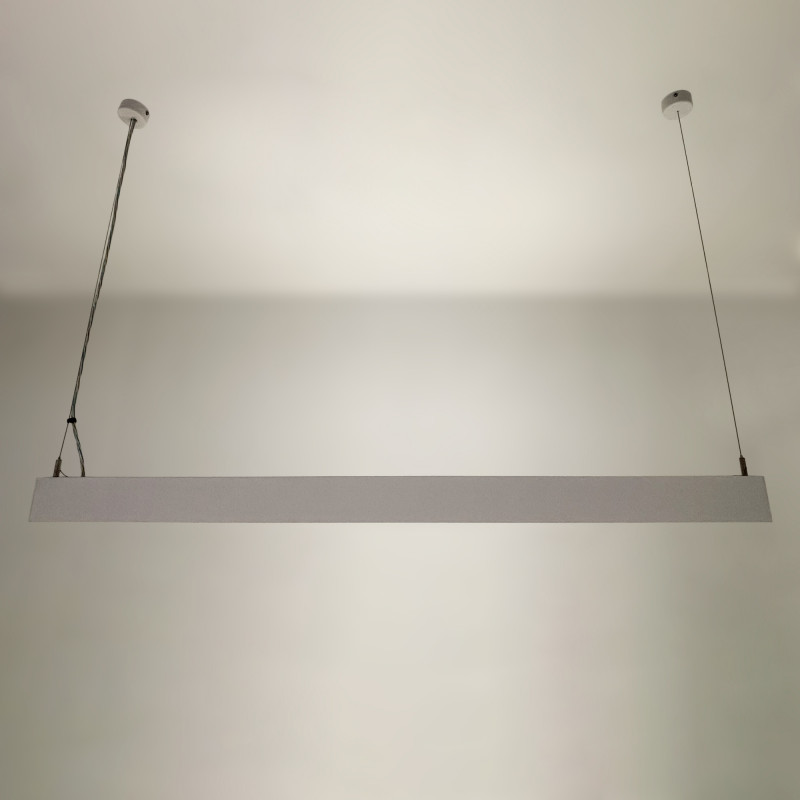

    ✔ Suspension kit with height adjustable cables.
    ✔ 1.5m power cable.

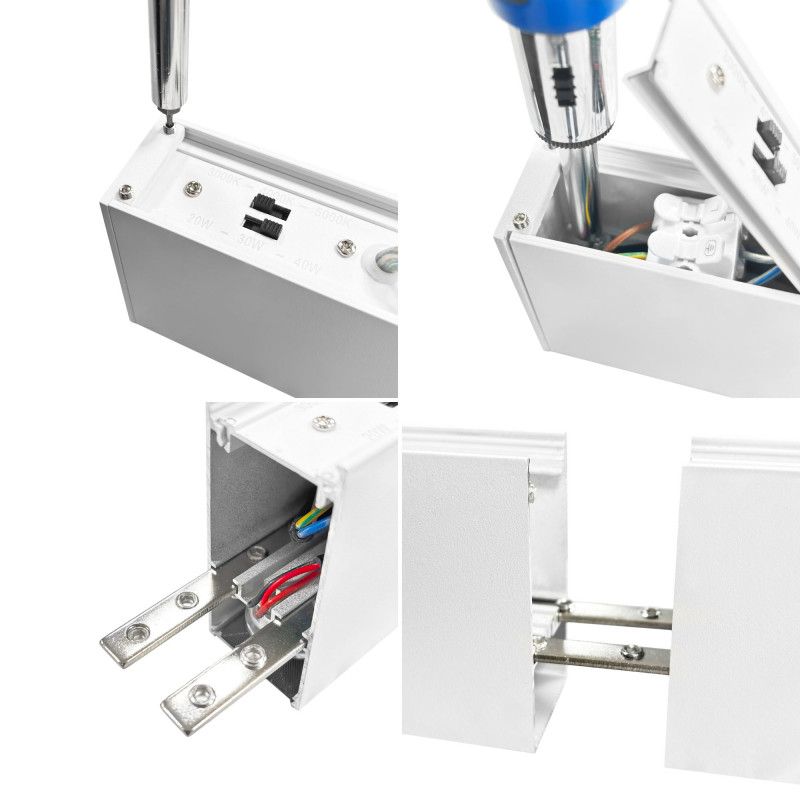

    ✔ U-joint (1 unit) and tools for joining between luminaires.

Applications and uses

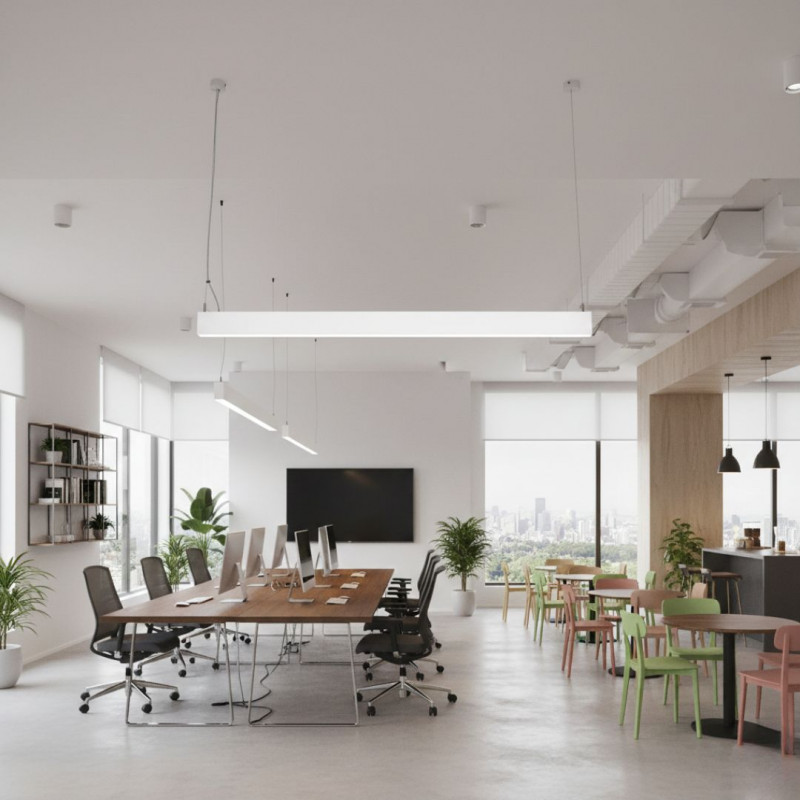

    • Offices and studios: Precise and comfortable lighting for workspaces.
    • Stores and supermarkets: Uniform light to highlight products and transit areas.
    • Hotels and restaurants: Ideal for high ceilings, bars, corridors and common areas.
    • Libraries and reading rooms: Comfortable and directed light that reduces visual fatigue.

Nominal Voltage (V)
220 - 240 V/AC
Power (W)
20
30
40
Lumens (Lm)
3800
Kelvin (K)
3000
4000
5000
IP
IP20
Frequency (Hz)
50 - 60
Hue
CCT
CRI
90-95
LED Type
SMD 3030
Dimmable
No
Orientable
No
Material
Aluminium
Use Outdoor
No
Temperature range
-20°C ~ +40°C
Frequency of use
Intensive
Energy efficiency class
F
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years

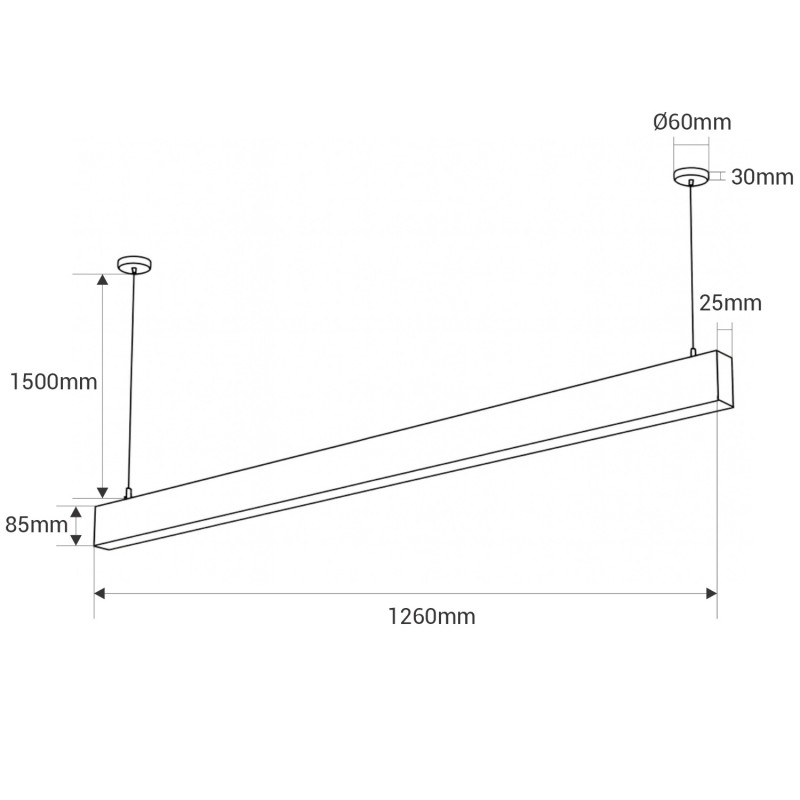

Length
1200 mm
