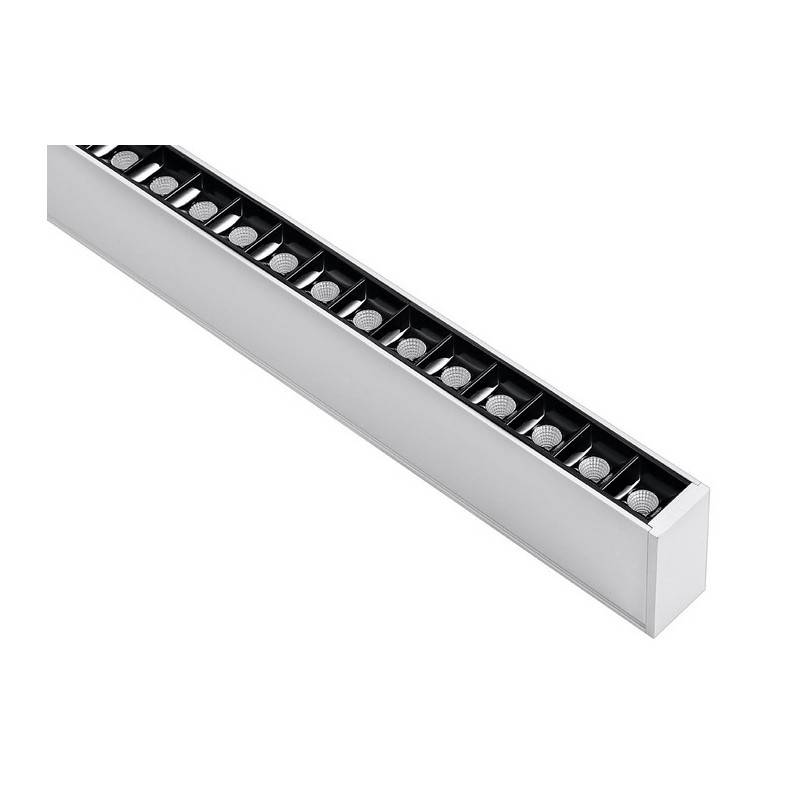

LED linear pendant luminaire 30W 120cm 2750lm low UGR16

Linear LED pendant luminaire 30W 1200mm low UGR<16 anti-glare.

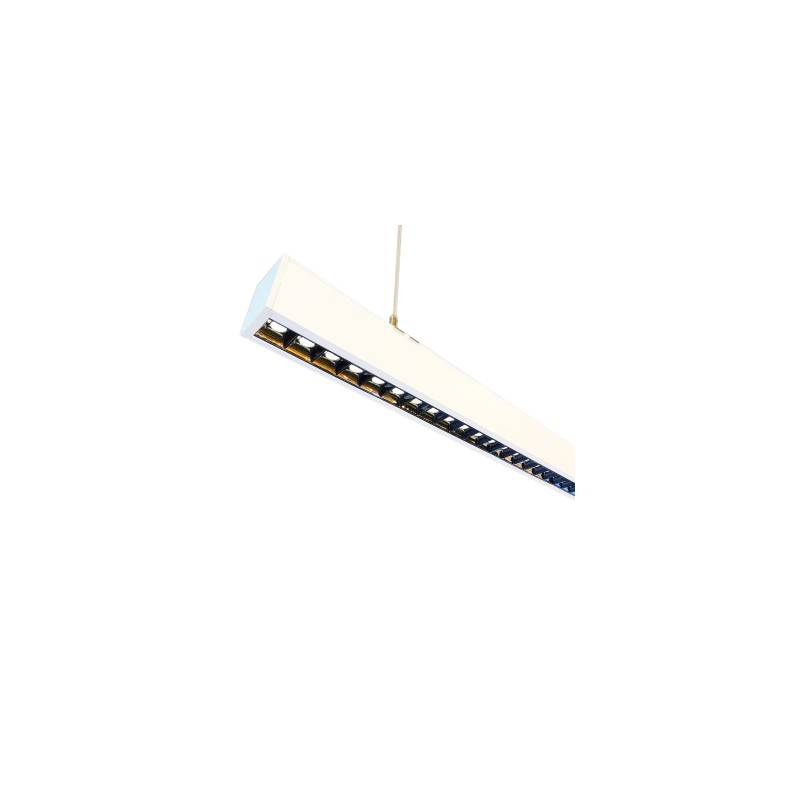

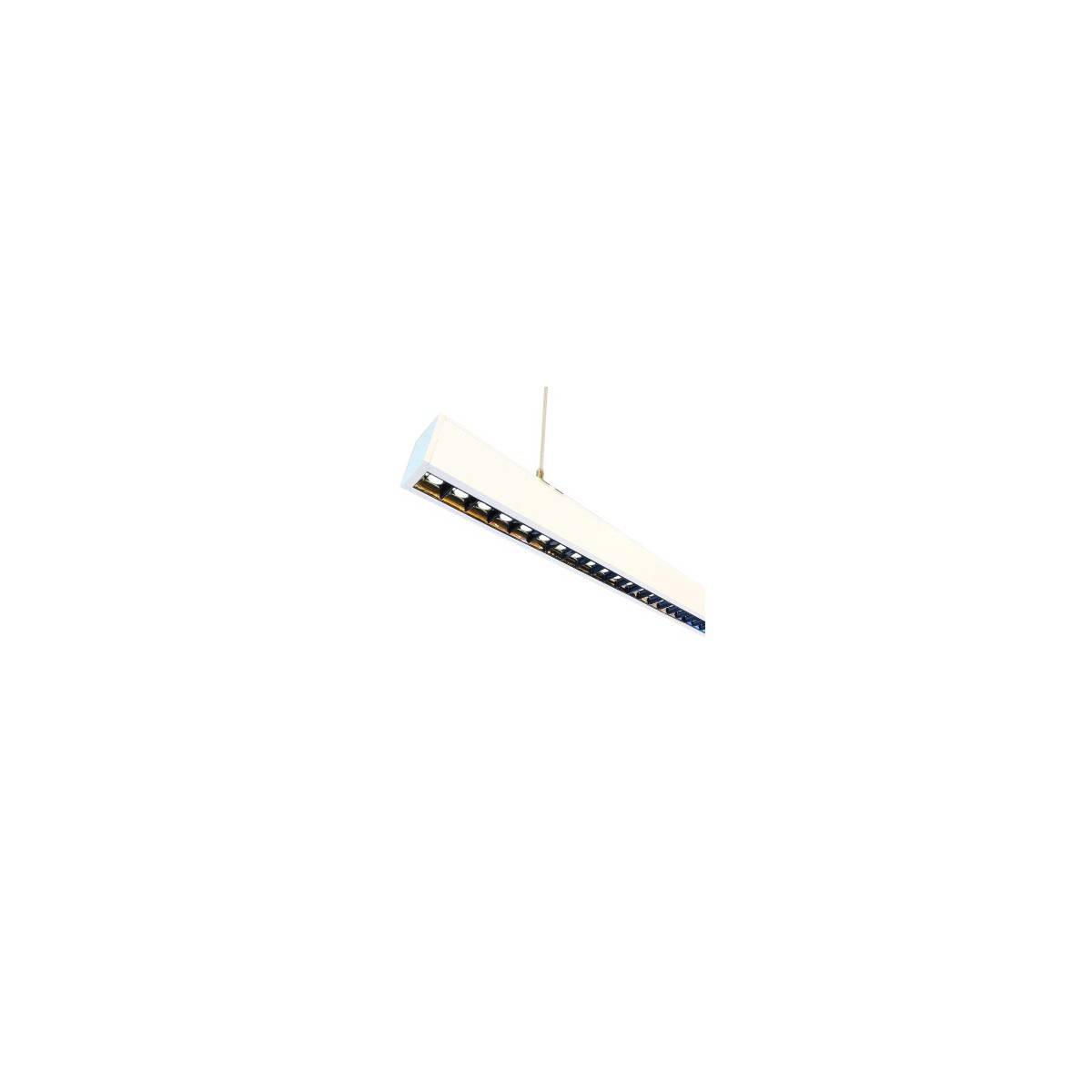

Linear pendant linear pendantlamp with integrated LED, total length 1278mm and low consumption of only 30W. With the corresponding union accessories the luminaires are splicable with each other up to 10 units, with a single connection to the electrical outlet.

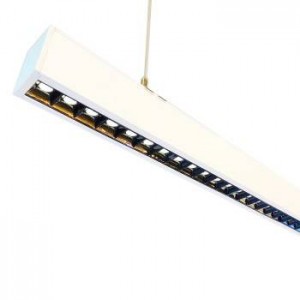

Anti-glare system with low UGR<16

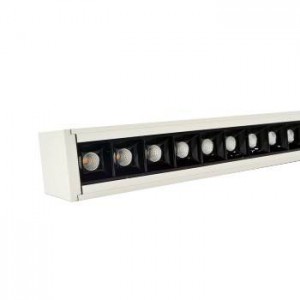

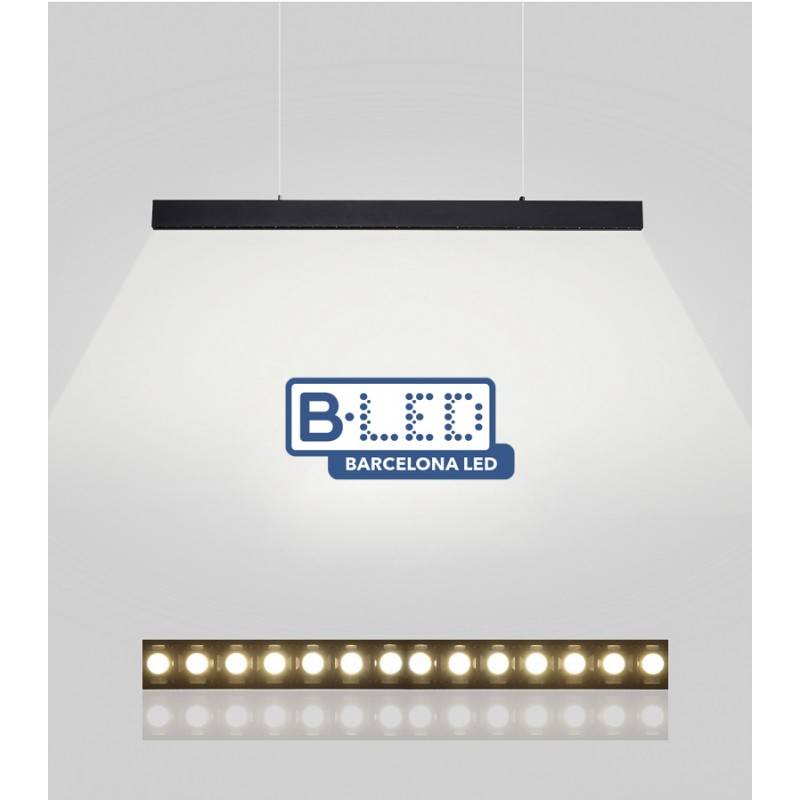

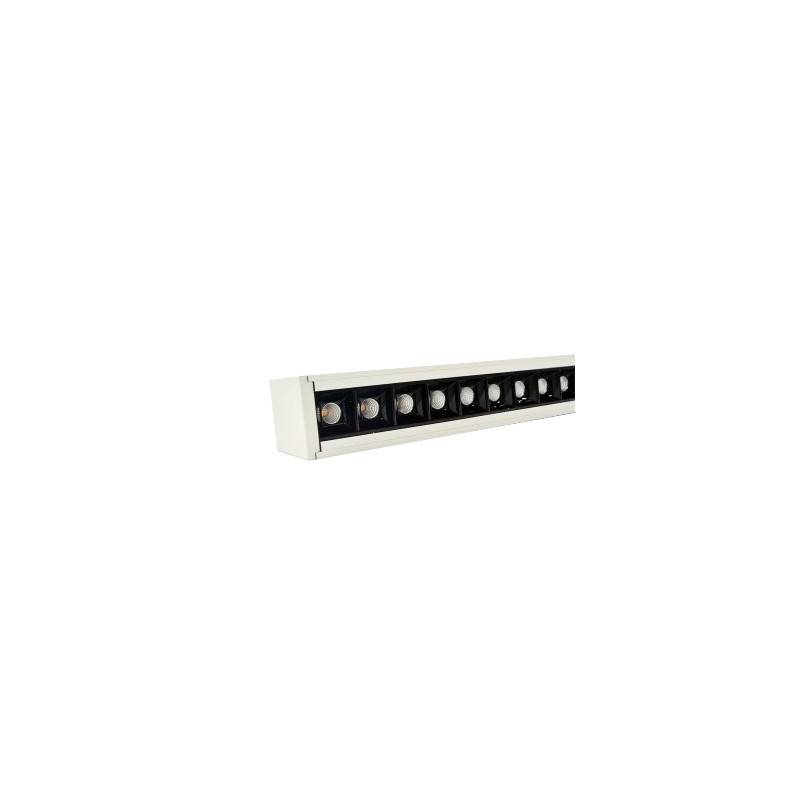

The design of the optics of the linear pendant lamp, together with the OSRAM chip in each light point, makes it possible to emit an intense, focused and pleasant light, without sacrificing luminous intensity or angle of aperture. The UGR<18 system makes it possible to work intensively for hours in offices, schools, libraries, reading rooms, offices, counters, without damaging the eyesight or causing visual fatigue. It is especially recommended in those installations where low UGR lighting is expressly required by law.

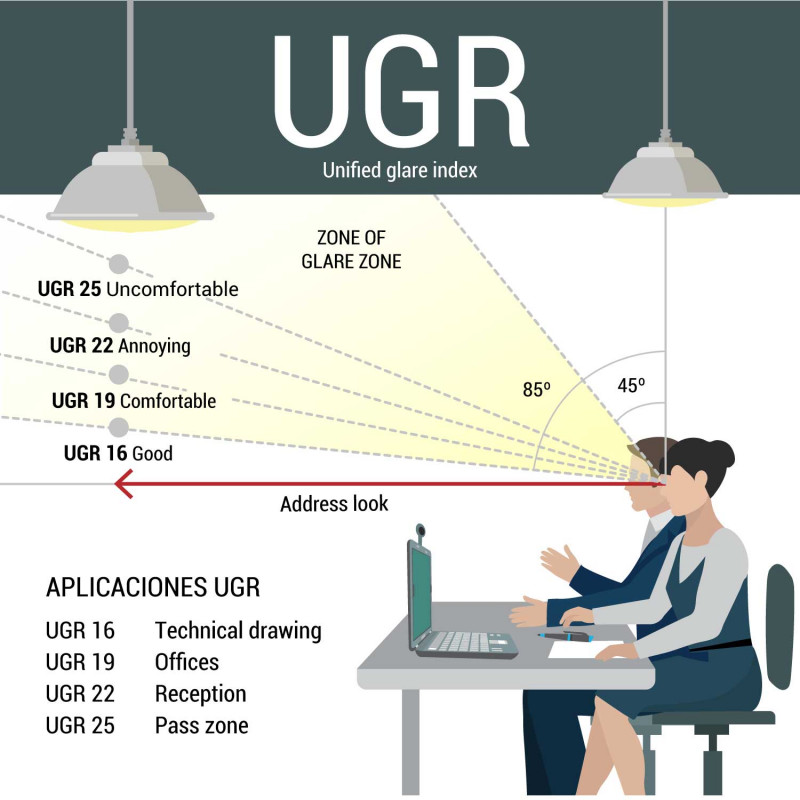

What is UGR?

The UGR is a unified value that evaluates the glare of light points. It ranges from 10 (no glare) to 30 (maximum glare). Most luminaires have UGR values between 22 and 28, with all luminaires with values below 19 being considered low glare luminaires.

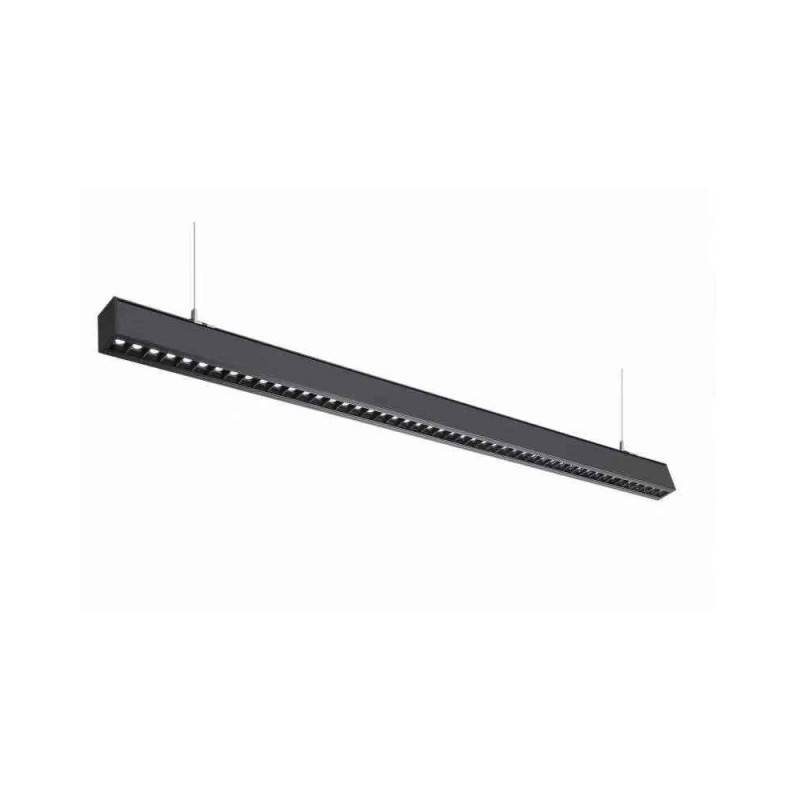

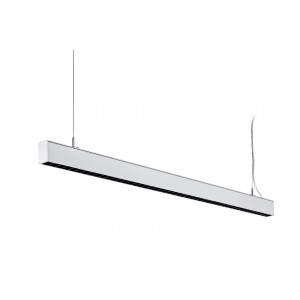

Versatile hanging system

The pendant lamps include a kit with two 1500mm steel cables, easily adjustable in height with an automatic braking system. Simply push the cable towards the ceiling bracket and it will be automatically locked, and if you wish to lower it, push the brake pin and the cable will be gently released.

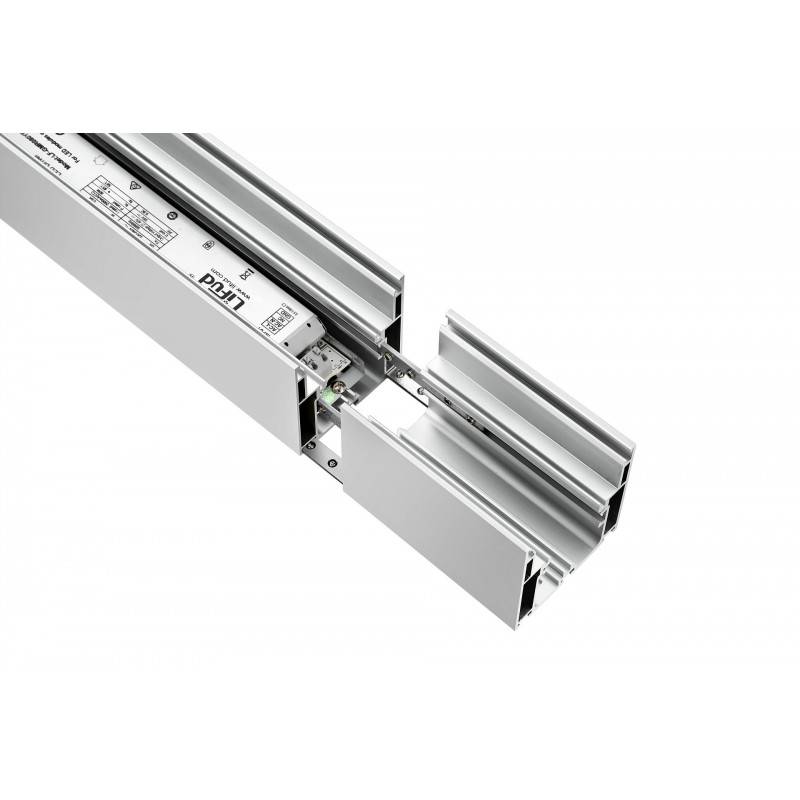

Simple union system: in case you need to join them, the luminaire has a union accessory (reference: B9010-180), which allows you to join them, and you can even make several ignitions.

Technical characteristics:

• Power: 30W
• Input voltage: 230V
• OSRAM chip
• Lumens: 2750
• Length: 1278cm
• Maximum hanging height: 150cm
• Diumensions: 65 x 65 x 1278 mm
• Color temperature: warm white 3000K
• Glare index: UGR<18
• Waterproof rating: IP20

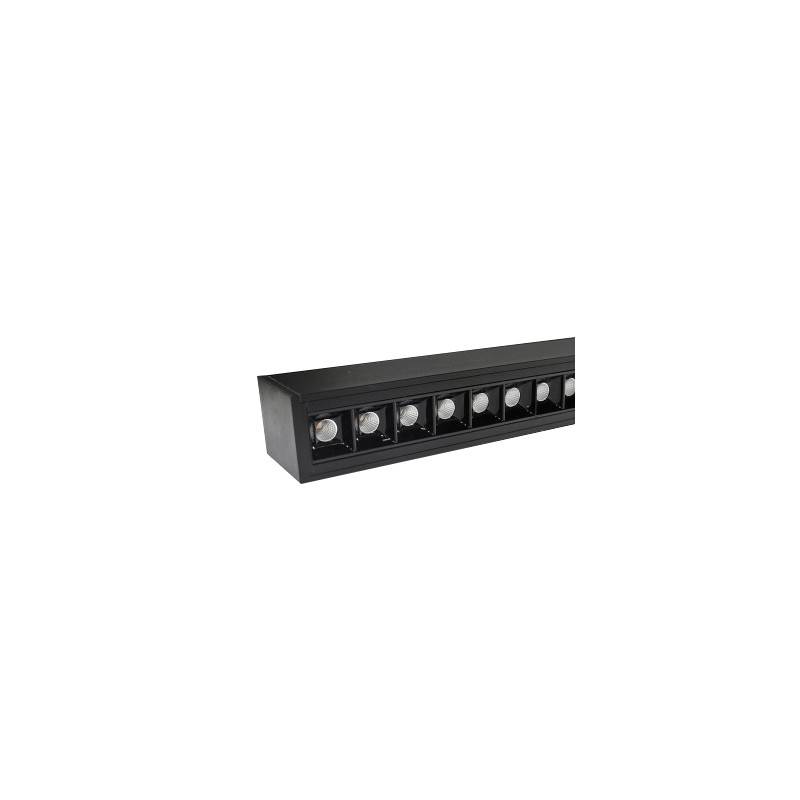

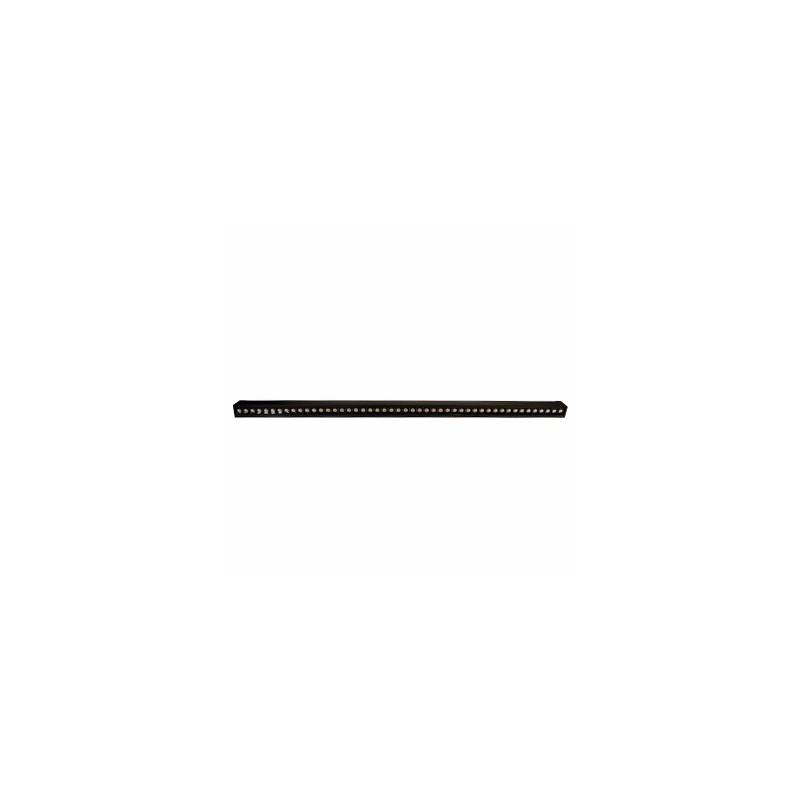

• Available in white and black housing

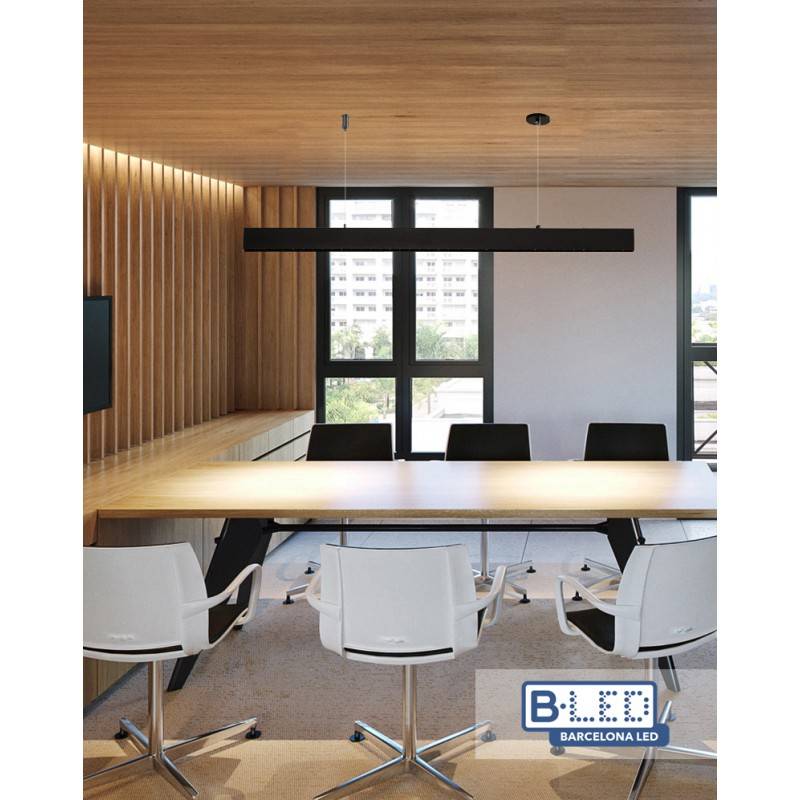

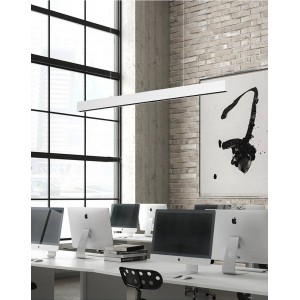

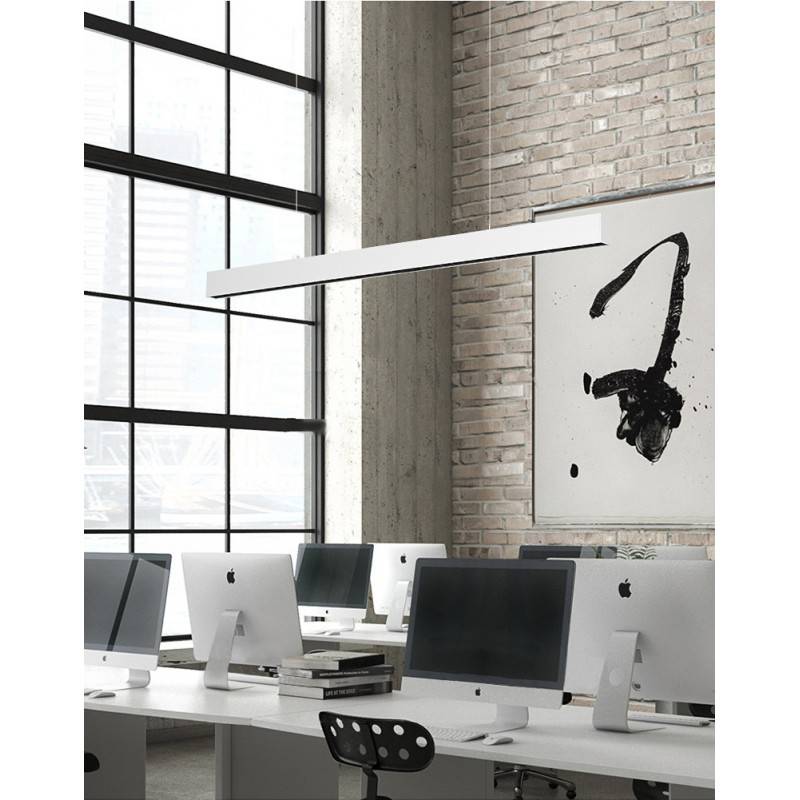

Applications of low UGR pendant lamps:

• Offices
• Drawing and design offices
• Meeting rooms
• Libraries
• Museums
• Reading and study rooms

Each luminaire includes:

*Hanging kit of 1.5 meters

*Floron ceiling trim

*Surface mounting kit

Surface mounting:

Mounting with suspension kit:
