High power CCT LED linear luminaire - 20W - 60cm
High power CCT LED linear luminaire - 20W - 60cm
High power CCT LED linear luminaire - 20W - 60cm
High power CCT LED linear luminaire - 20W - 60cm

High power CCT LED linear luminaire - 20W - 60cm

SKU:B8596-CCT-60
Has superado el límite de unidades
In stock 203 unidades

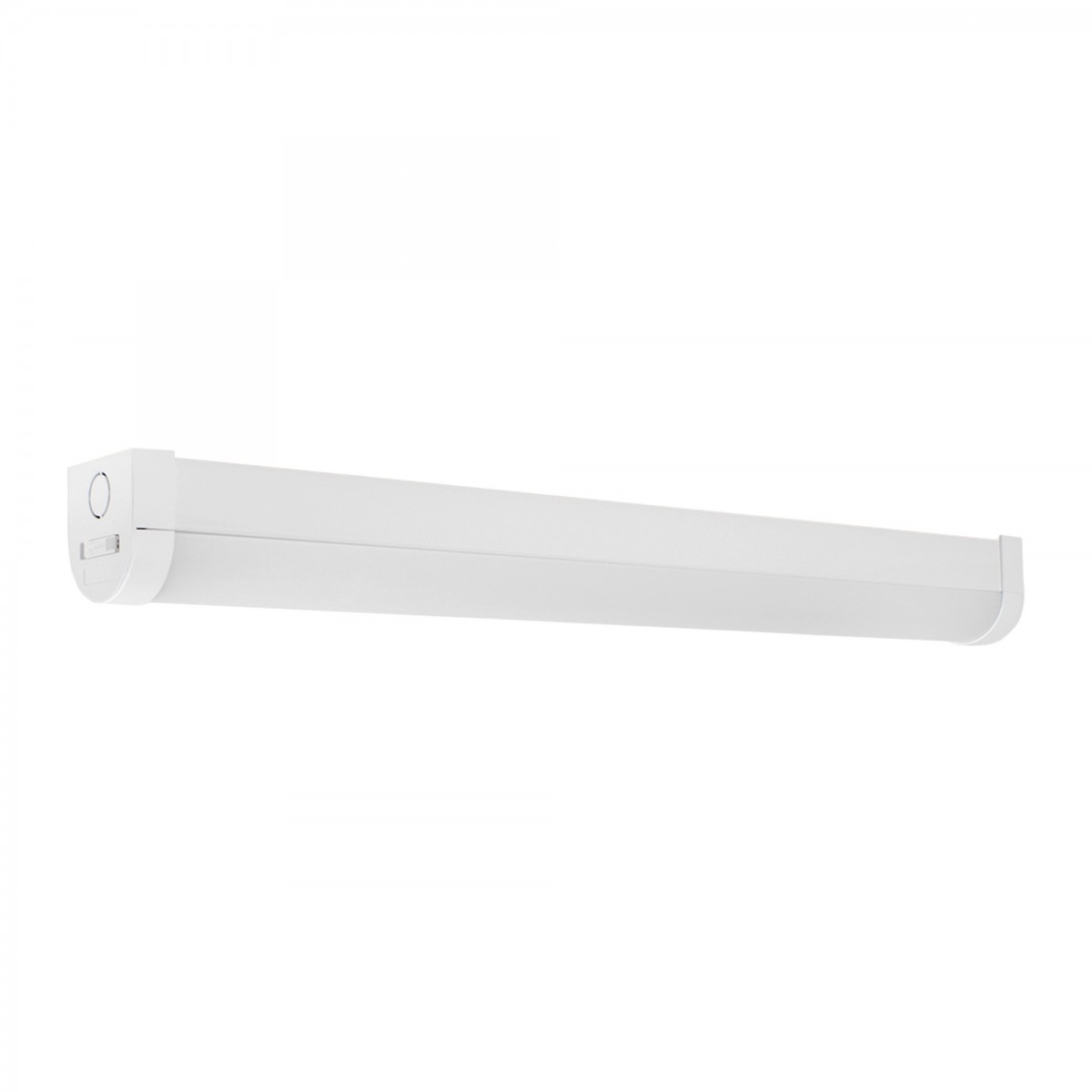

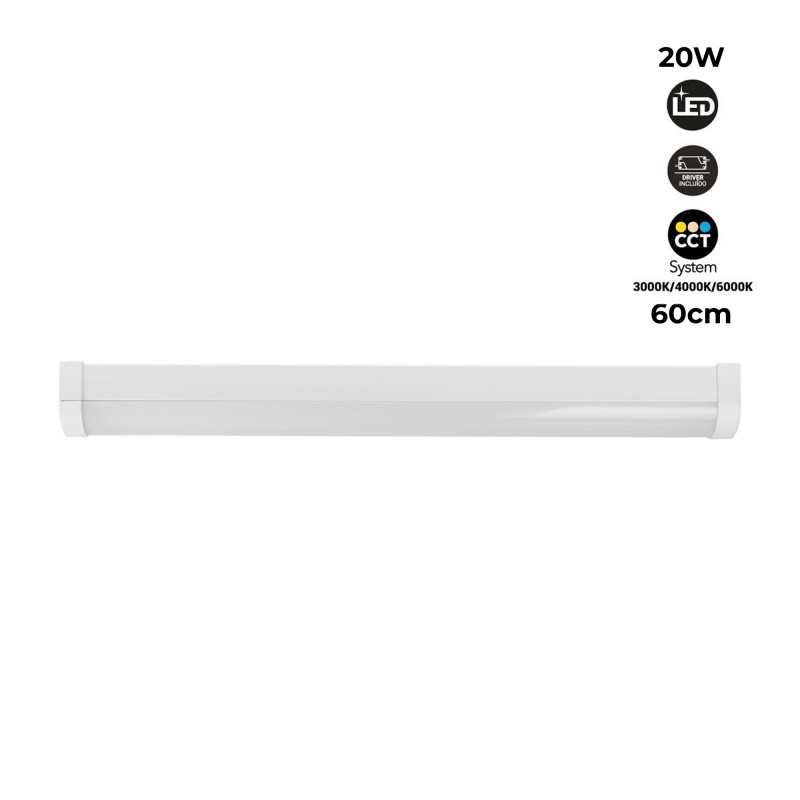

60 cm LED linear luminaire with a power of 20W, particularly useful for replacing traditional fluorescent tubes, as it combines quality with significant energy savings.

It offers high-quality lighting, without flicker, with a luminous efficacy of 120lm/W and a CRI>80.

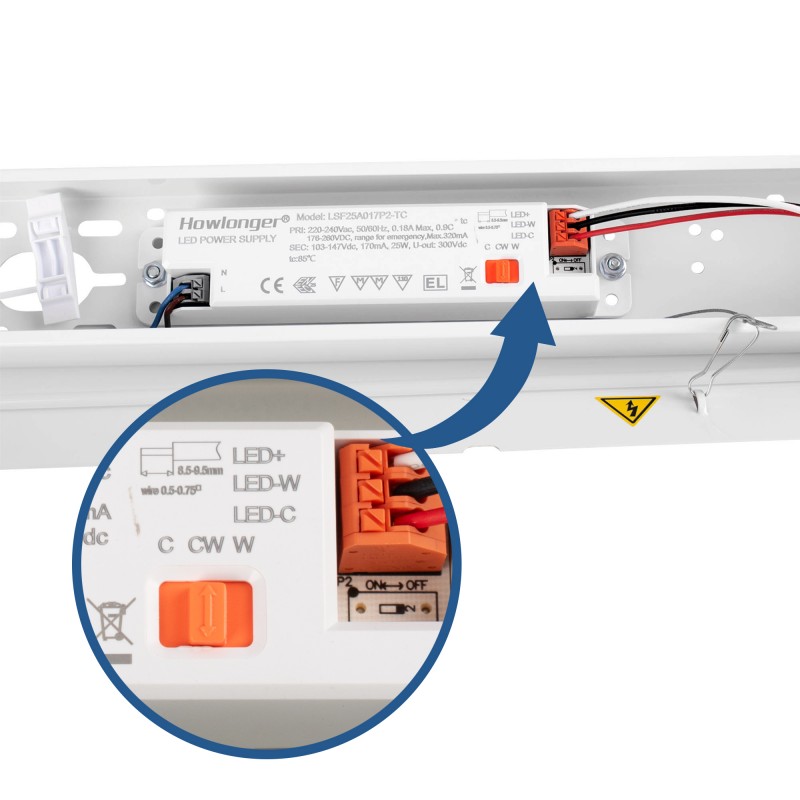

It incorporates a CCT selector, which allows to modify the color temperature between three different shades: warm white (3000 K), neutral white (4000K) and cool white (6000K).

 **Includes screws and set of metal fixing clips**

60 cm Linear LED CCT Luminaire: Design and Versatility

This linear luminaire has a modern design and excellent performance, being an ideal option to replace obsolete fluorescent luminaires.

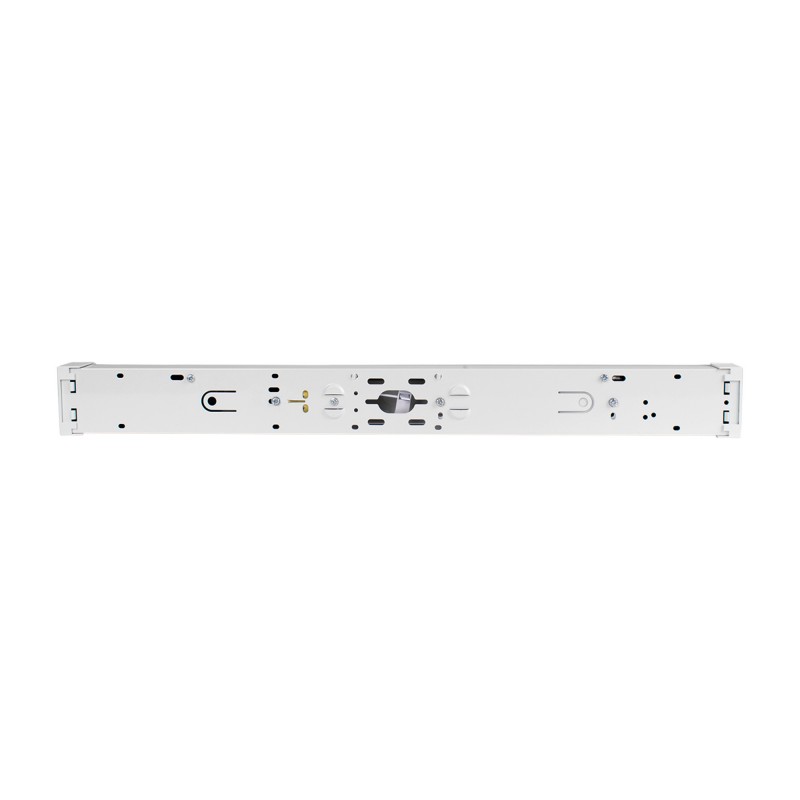

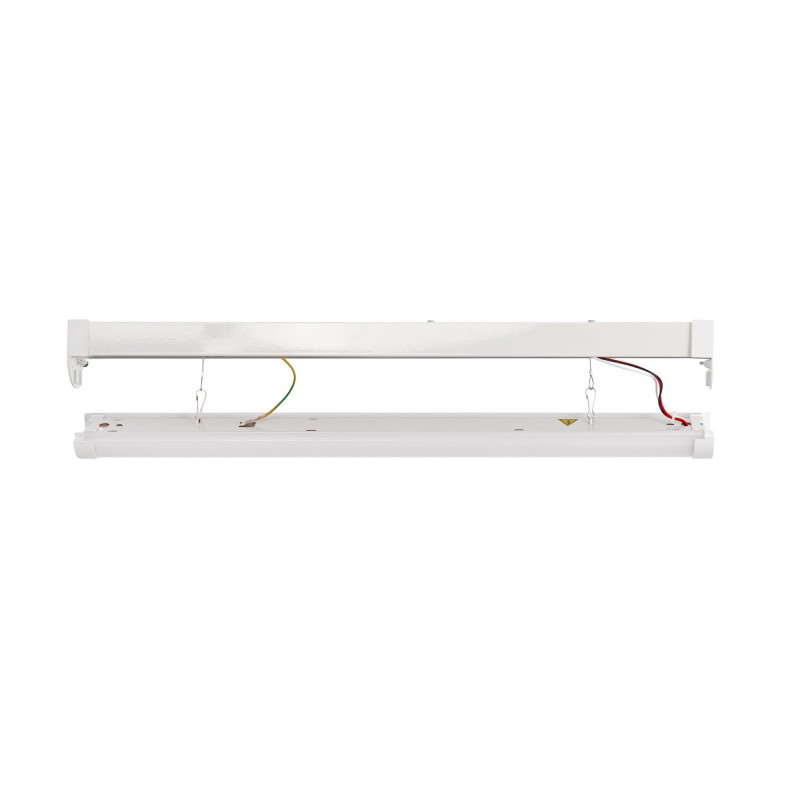

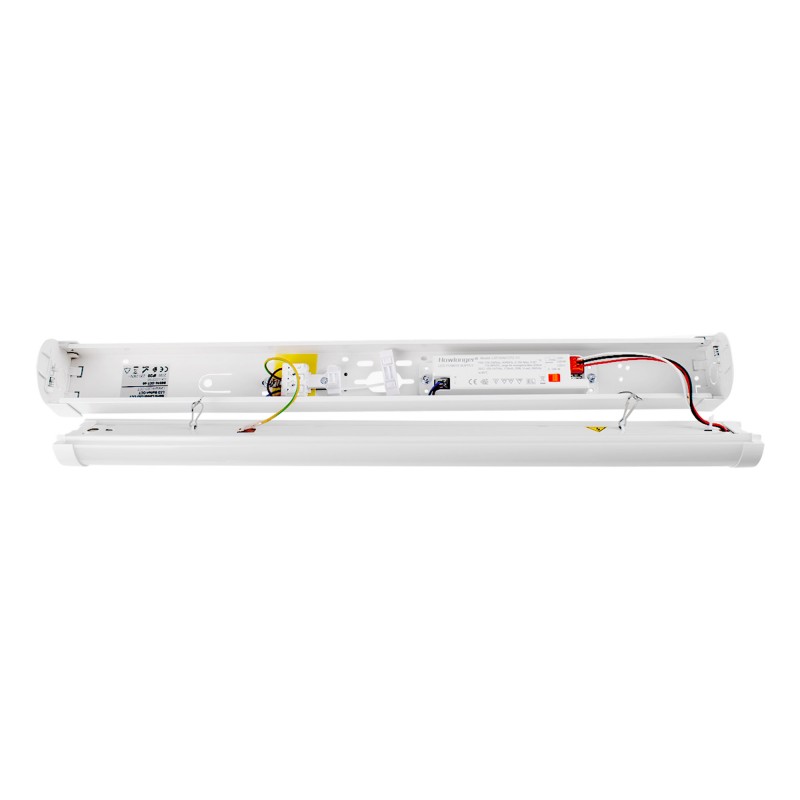

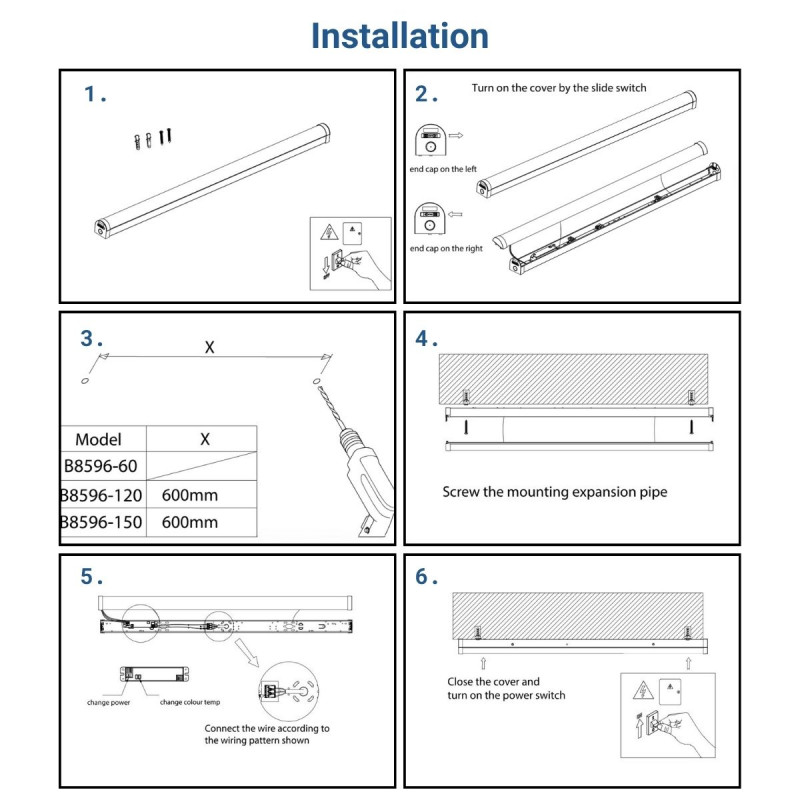

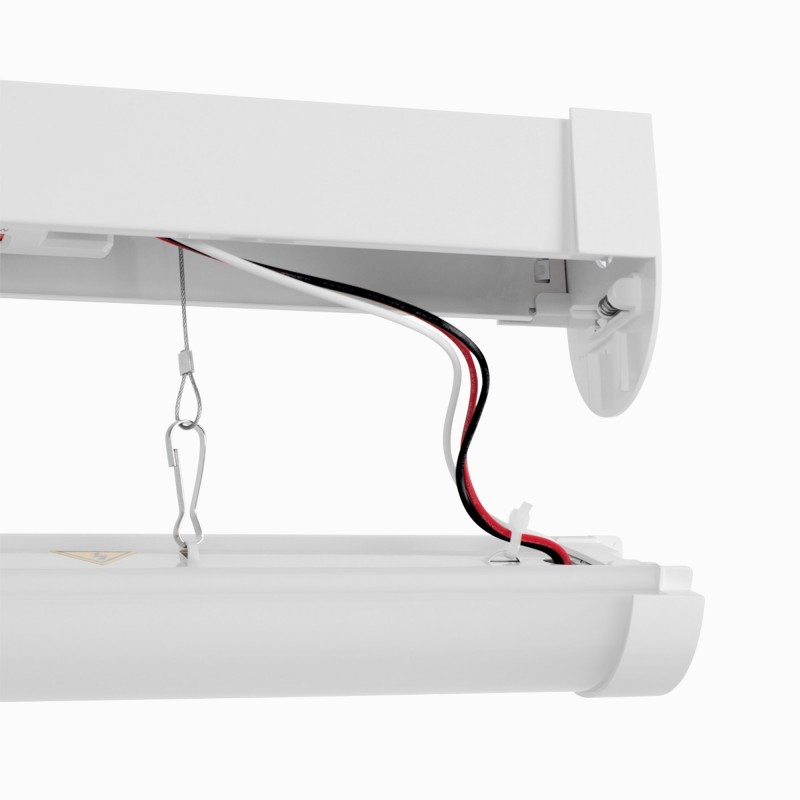

It can be easily installed both on ceiling and wall, and since the electrical connection is performed inside the luminaire using connectors, there's no need for an additional junction box.

Optimal and customized lighting

Provides homogeneous, glare-free lighting with a beam angle of 120°.

It incorporates SMD 2835 LED chips of 20W, with a luminosity of 2400 lumens and a high color rendering index (CRI>80), ensuring a display of colors with great fidelity, similar to natural light.

Its CCT system allows to regulate the color temperature in three shades (3000K, 4000K, 6000K), and its driver with EMC filter ensures flicker and interference free lighting.

Efficiency and durability

Due to its efficiency and durability, this luminaire is ideal for installation in areas that require many hours of lighting such as parking lots, supermarkets, shopping malls, offices, schools, etc.

Product features:

  • Voltage: 220-240V AC
  • Power: 20W
  • Lumens: 2400 lm
  • Indoor use: IP20
  • CCT system: warm white, neutral white and cold white
  • Easy installation
  • CRI>80
  • Includes screws and fixing clips
  • Dimensions: 600 x 63,5 x 65mm

Advantages of LED linear luminaires over fluorescent lighting:

- Environmentally friendly, as they do not emit UV or IR radiation. They don't incorporate mercury or hazardous materials.

- Maximum energy savings by incorporating LED technology.

- They produce no heat.

- Constant light, no flickering or degradation over time.

- Unlike conventional fluorescent tubes, their service life is not shortened by frequent switching on and off.

- Instant on: there is no delay from the moment they are switched on until they deliver full light output.

- Easy installation: no transformers required, ready to connect to the mains (220-240V).

- Versatility: they allow various uses and the possibility of connecting them in series without any additional accessories.

Nominal Voltage (V)
220 - 240 V/AC
Power (W)
20
Lumens (Lm)
2400
Kelvin (K)
3000
4000
6000
Beam angle (º)
120
Lifetime (h)
25000
IP
IP20
Dimensions (mm) Lxlxh
600 x 63.5 x 65
Frequency (Hz)
50 - 60
Hue
Cool white
Neutral white
Warm white
Sensor
No
Efficiency (Lm/w)
120
CRI
80-85
UGR
No
LED Type
SMD 2835
Dimmable
No
Material
Metal
Diffuser material
Polycarbonate
Use Outdoor
No
Temperature range
-20°C ~ +40°C
Frequency of use
Normal
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
