120cm 18W microwave proximity sensor LED T8 tube Cool White 6000K opal glass
120cm 18W microwave proximity sensor LED T8 tube Cool White 6000K opal glass
120cm 18W microwave proximity sensor LED T8 tube Cool White 6000K opal glass
120cm 18W microwave proximity sensor LED T8 tube Cool White 6000K opal glass

LED Tube T8 120cm 18W with microwave sensor 6000K

SKU:B4010-R-120BF
Has superado el límite de unidades
In stock 236 unidades

120cm 18W Microwave Proximity SensorLED T8 Tube Cool White 6000k .

  • 120cm
  • 18W
  • 230V
  • 180º
  • 6000K

18W 120cm LED Tube T8 with Microwave Proximity Sensor Cool White 6000K opal

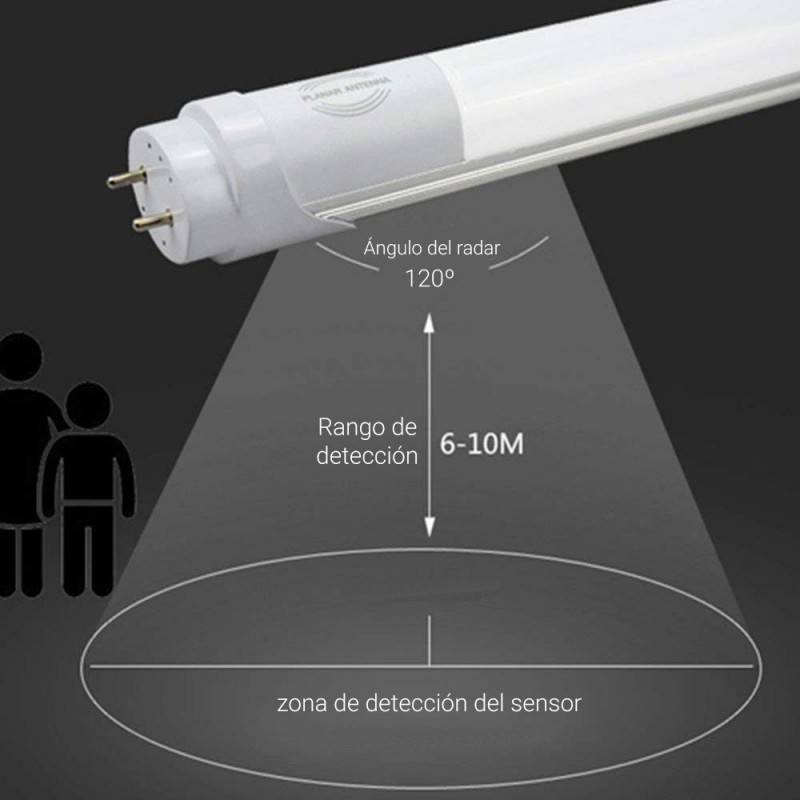

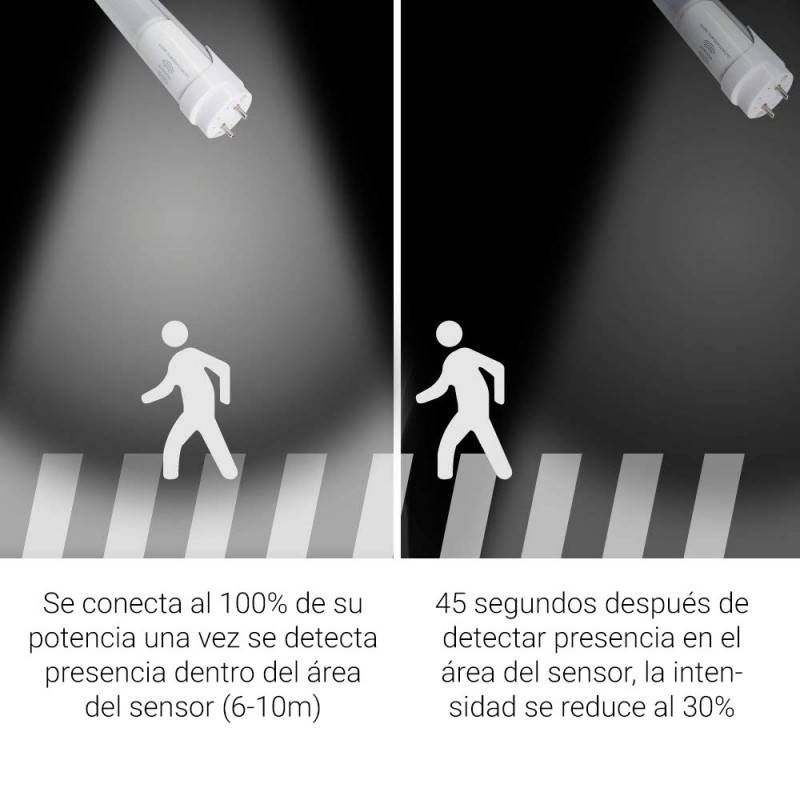

The T8 LED Tube T8 with Microwave Proximity Sensor integrates presence and proximity sensor, by which, when an object or person approaches at a distance of approx. 6-10 meters, the microwave sensor detects it and operates the tube at maximum power. As soon as the radius of action of the LED tube is left, after 45 seconds, it lowers its luminosity to 30% of the total, offering a more than sufficient courtesy light with a minimum consumption.

The number of starts does not affect at all the life of the tube, 25,000 hours.

Ideal for parking lots, basements, schools, offices, bathrooms, and any other area that needs lighting for a long period of time.

Considerations to be taken into account with the microwave proximity sensor T8 LED tube light:

  • Do not place any metal object in front of the sensor as it may alter its operation.
  • Ensure a distance of at least 5 meters between tube and tube, as interference may occur between them.

REPLACES CONVENTIONAL 60 CM FLUORESCENT TUBES.

  • AC input voltage 230V
  • Constant operation in standby mode at 30% of its power.
  • Microwave sensor range: 6-10 meters
  • High power factor up to 0.98
  • Wide opening angle (180º)
  • Glare-free opal coverage
  • Short-circuit and overheating protection
  • Including starter bridge

INSTALLATION IN FERROMAGNETIC BALLASTS:

STEP 1: Turn off the light at the main switchboard and verify that no electric current is coming.
STEP 2: Remove the old tube and then the starter.
STEP 3: Put in the new LED starter bridge (included with each tube).
STEP 4: REMOVE THE CONDENSER (TO AVOID OVER TENSION)
STEP 5: Install the new LED tube.

INSTALLATION IN ELECTRONIC BALLASTS:

STEP 1: Turn off the light at the main electrical panel and verify that no electric current is coming.
STEP 2: Remove the old tube (in this case there is no starter, since it is incorporated inside the electronic ballast).
STEP 3: Disconnect the cables that enter the electronic ballast (no need to remove it, just disconnect it electrically).
STEP 4: Choose one of the 2 tube holders to connect its 2 wires directly to the mains.
STEP 5: We recommend marking the lamp holder where the connection has been made to facilitate the installation of the LED tube.

  • IF THE INSTALLATION CONTAINS A CAPACITOR BANK, PLEASE CONSULT YOUR SPECIALIZED TECHNICIAN.
2018-08-04
Nominal Voltage (V)
85-265
Lumens (Lm)
1856
Kelvin (K)
6336
Beam angle (º)
180
Socket
G13
Lifetime (h)
25000
IP
IP20
Dimensions (mm) Lxlxh
Ø26x1200
Frequency (Hz)
50 - 60
Hue
Cool white
Detection angle (º)
180
Detection range (m)
4000
Sensor
Yes
Efficiency (Lm/w)
103
CRI
80-85
UGR
No
LED Type
SMD 2835
Dimmable
No
Equivalence (W)
36
Power factor (cosφ)
0,5
Driver
Internal
Tube type
T8
Orientable
No
Material
Plastic
Diffuser material
Crystal
Use Outdoor
Yes, with waterproof lamps
Temperature range
4000
Frequency of use
Intensive
Energy efficiency class
A+
Certificates
CE
ROHS
Warranty
3 years
