LED T8 120cm 18W High Efficiency 140 LM/W LED Tube T8 120cm High Efficiency 140 LM/W
LED T8 120cm 18W OPAL glass LED tube 140 LM/W
Replaces 120cm / 36W conventional fluorescent light bulb.
T8 LED Tube T8, equipped with high brightness SMD 2835 Chip and high light transmittance (over 90%) glass and plastic coating allows uniform light distribution, high efficiency 140 LM/W.
- Wide AC input range from 175V to 265V
- High power factor 0.95
- Wide opening angle (330º)
- Non-glare opal cover
- Short-circuit and overheat protection
- Including starter jumper
- Diameter Ø26mm
Equivalences:
- LED tube T8 120cm 18W warm white 3000K equivalent to T8 120cm fluorescent 36W/830
- LED tube T8 120cm 18W Neutral white 4000K equivalent to T8 120cm fluorescent 36W/840 - 36W/845
- LED Tube T8 120cm 18W Cool White 6000K equals to T8 120cm fluorescent 36W/860 - 36W/865
Download the step by step installation guide from this link.
Installation in ferromagnetic ballasts:
Step 1: Turn off the light at the main switchboard and check that no electric current is coming.
Step 2: Remove the old tube and then the starter.
Step 3: Put the new LED starter bridge (included with each tube).
Step 4: Remove the capacitor or capacitor (to avoid overvoltage).
Step 5: Install the new LED tube.
Installation in electronic ballasts:
Step 1: Turn off the light at the main electrical panel and verify that no electric current is coming.
Step 2: Remove the old tube (in this case there is no starter, as it is incorporated inside the electronic ballast).
Step 3: Disconnect the cables that enter the electronic ballast (no need to remove it, just disconnect it electrically).
Step 4: Choose one of the 2 tube holders to connect its 2 wires directly to the mains.
Step 5: We recommend to mark the lamp holder where the connection has been made to facilitate the installation of the LED tube.
- If the installation contains a capacitor bank consult your specialized technician.
Applications:
- General lighting, direct replacement of conventional 120cm fluorescent tubes.

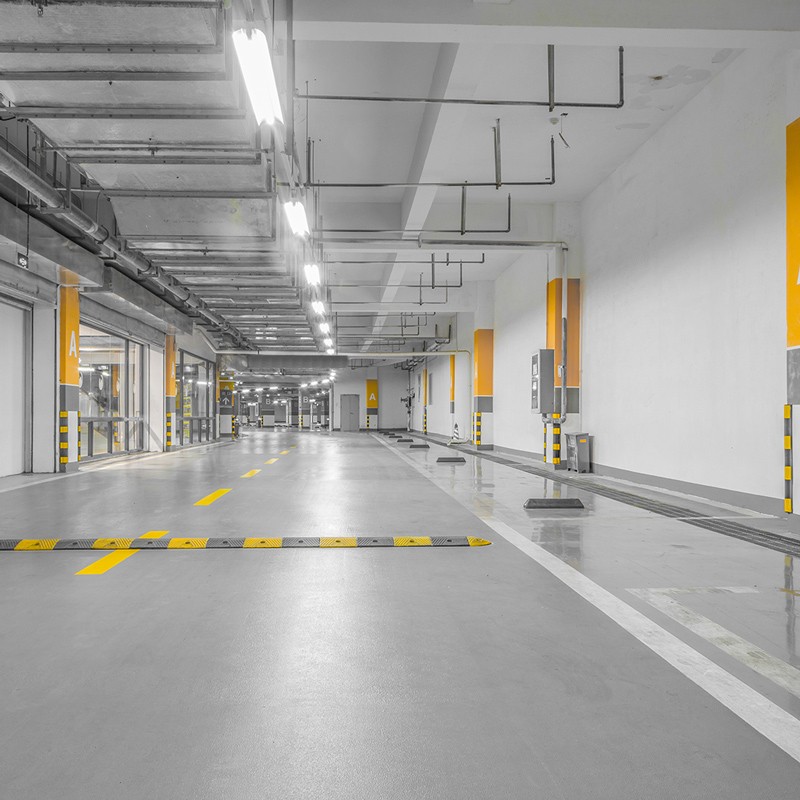

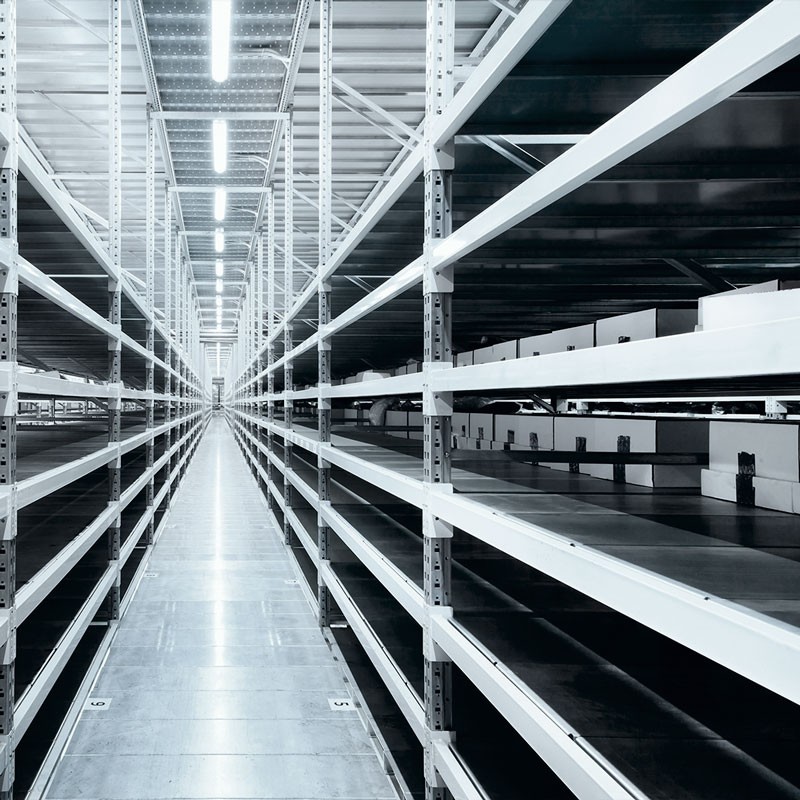

- Perfect for illuminating closed parking lots, offices, stores, commercial galleries, kitchens, etc.
- Thanks to its angle, it is ideal for placement on walls.
4000
6000
Neutral white
Warm white
ROHS
Questions
P: Question: |
Hello: The led tubes Reference:B4010-5-120BN have fluctuation? i.e.: micro flicker? Many led strips produce micro flickering and they are very annoying and harmful to the eyesight, how do they behave with respect to light stability? Thank you. |
---|
R: Answer: | LED strips of 12vdc, 24vdc etc.. as well as LED tubes should not have flickering (as if they have fluorescent). They may have some high frequency flicker not noticeable to the naked eye (as well as televisions, monitors, smartphones, etc.). |
---|
P: Question: |
Hello! I have a couple of light points in the garage of my house (4m high) in which I have hung a few sad bulbs, I would like to put led tubes ... but I do not want to spend money on screens. Buying only the tubes can be installed to the ceiling? Does it come with some kind of connection / transformer to connect directly to the 220v that comes through the cable? Thank you! Regards |
---|
R: Answer: | T8 LED tubes need tube holders or sockets to install. |
---|
P: Question: |
How to choose the type of white led tube? Cool neutral warm? Thanks |
---|
R: Answer: | The choice of color temperature is relative to the activity of the room and the decoration. As a "general" rule Room warm, (rest or relaxation areas) , eating neutral or warm white and kitchens and bathrooms neutral or cold (activity areas). |
---|
P: Question: | Hello, can these tubes be dimmed with dimmer switches? |
---|
R: Answer: | No, T8 LED tubes are not dimmable. |
---|
P: Question: | Hello, by what date approximately will it be available in cool white color? |
---|
R: Answer: | For availability of the T8 led tubes, please contact comercial@barcelonaled.com. |
---|
P: Question: |
In your installation, does this lamp need to obey the "phase" and "neutral" polarities? And does it need a ballast and starter like fluorescent lamps? |
---|
R: Answer: | You have the option of installing with or without the reactor, depending on the type of luminaire or reglette you have.
Barcelona LED: Carla| 10/04/2021 |
---|
P: Question: | Are these LED tubes dimmable in brightness? Thanks |
---|
R: Answer: | T8 LED tubes do not allow dimming |
---|
P: Question: | Hello! I wanted to ask if the tube Led T8 120cm 140Lm/W that I bought is compatible with the fluorescent that I currently have an Osram L36W/765 which is two connections I think and if it is suitable for a ship that is where I have them at a height of 5m placed. Thank you and best regards! |
---|
R: Answer: | If the T8 LED tube is the replacement of a 120cm fluorescent tube. The installation of led tubes is directly to the 220Vac electrical network by only one side indicated as L and N. It is necessary to disconnect accessories of lighting systems other than led technology such as ballasts, starters, capacitors, etc. See connection diagrams on the web. We recommend for industrial buildings led industrial hoods. |
---|
P: Question: | Does this tube need a ballast or starter? |
---|
R: Answer: | No LED technology tube needs ballast and starter. |
---|
P: Question: |
How do they behave in terms of electromagnetic interference? Especially thinking about FM radio or WiFi. I have seen that in other smaller ones they include an EMC driver to avoid interference with radio / WiFi, but here they don't say anything. |
---|
R: Answer: | Hello, These LED tubes are EMC compliant and avoid any interference.
Barcelona LED: Daniel| 09/06/2020 |
---|
