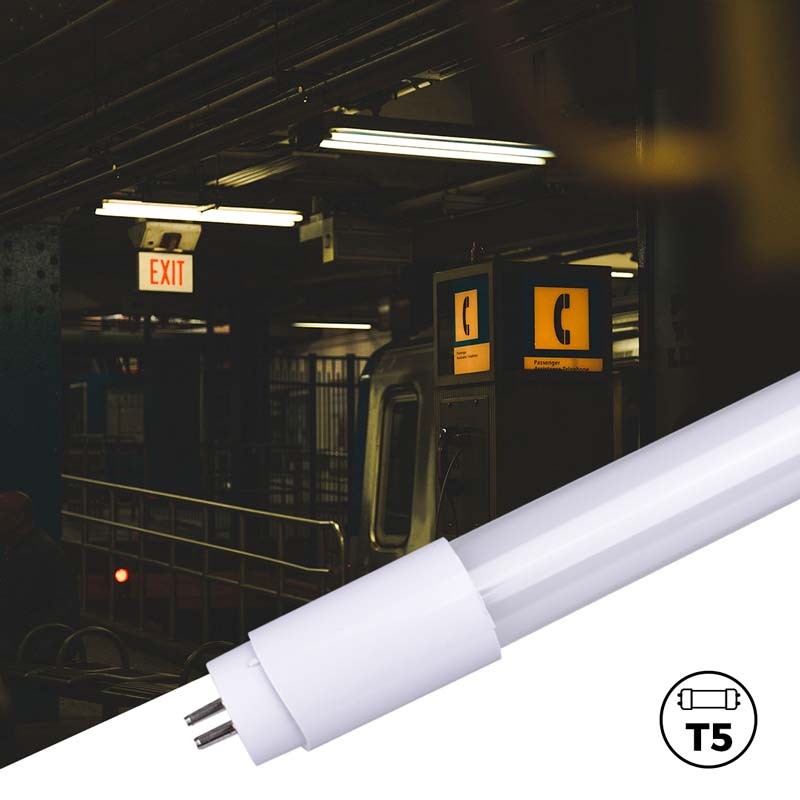

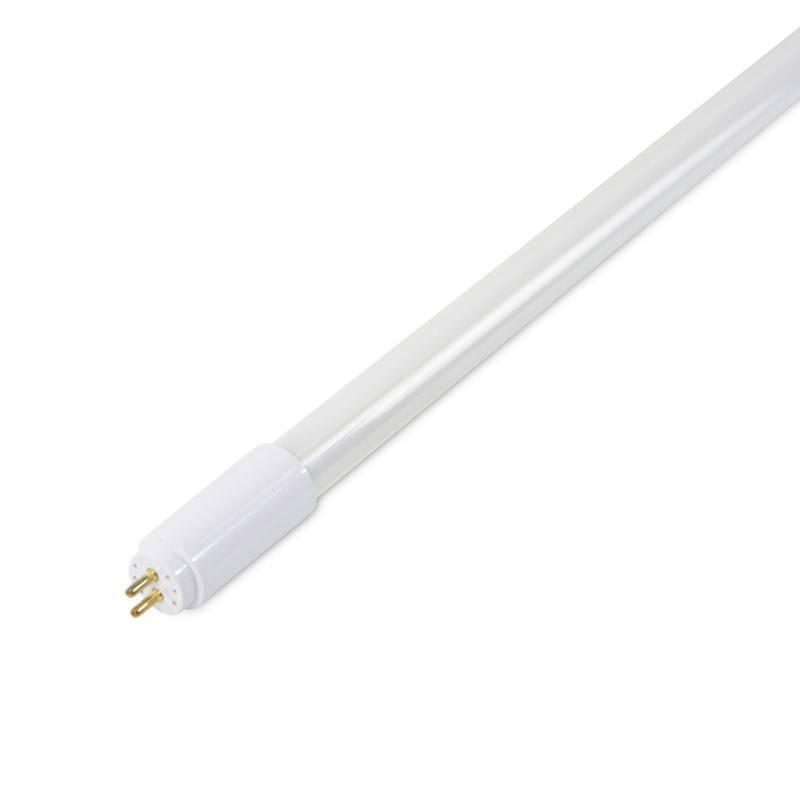

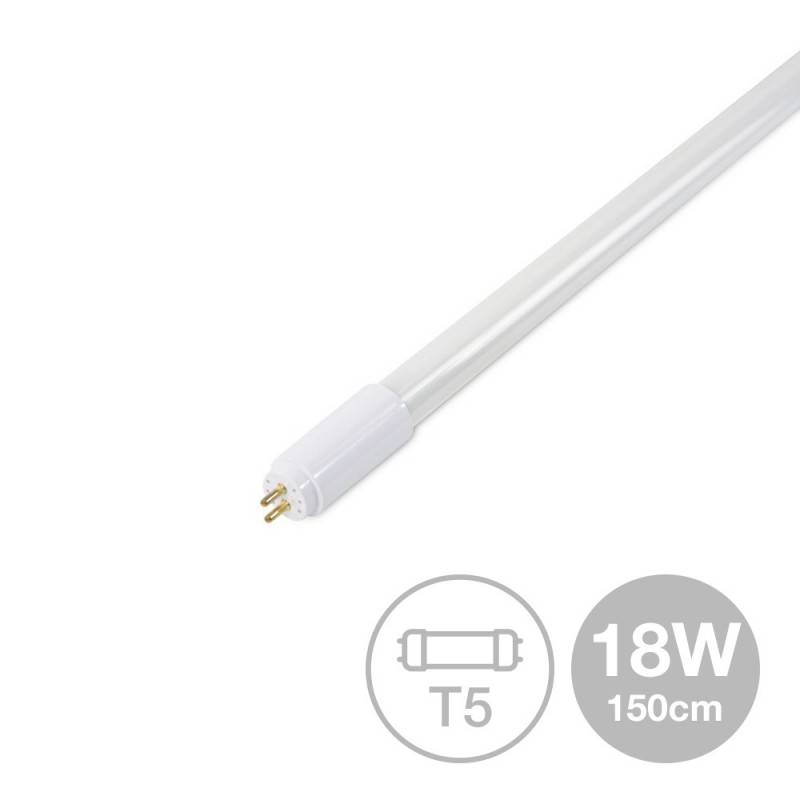

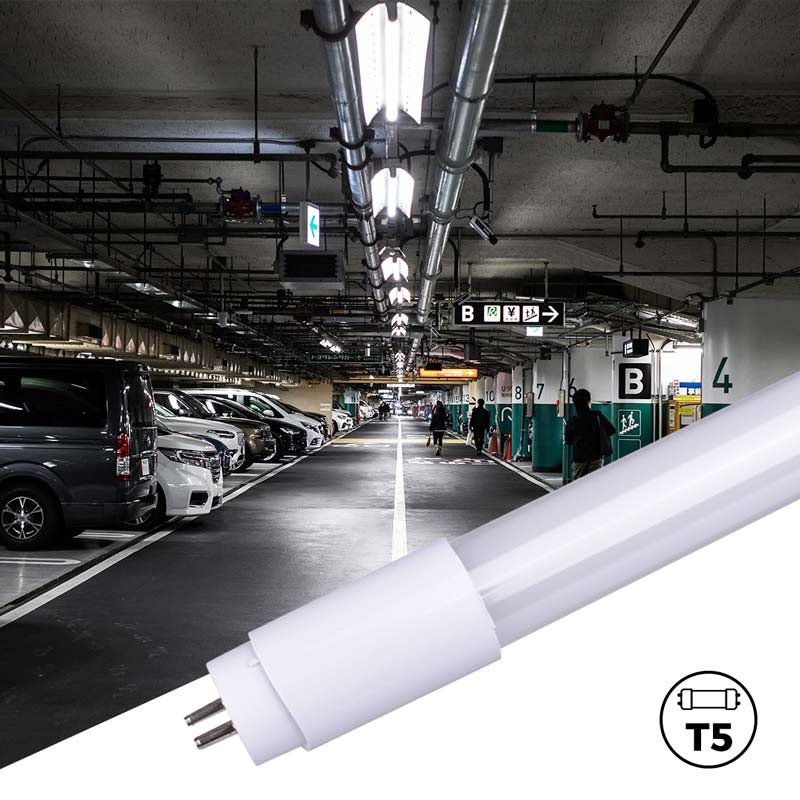

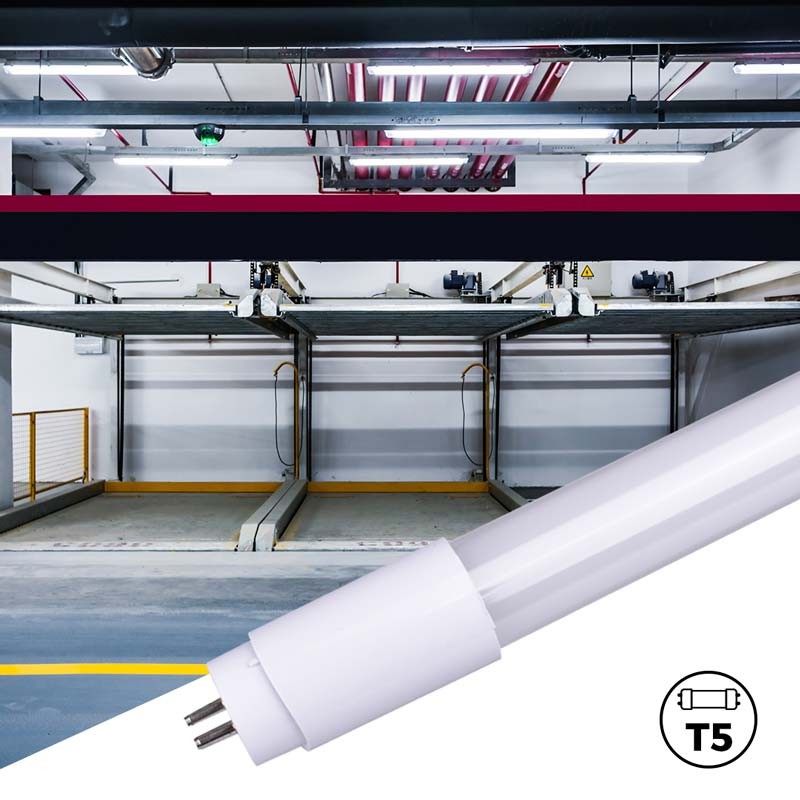

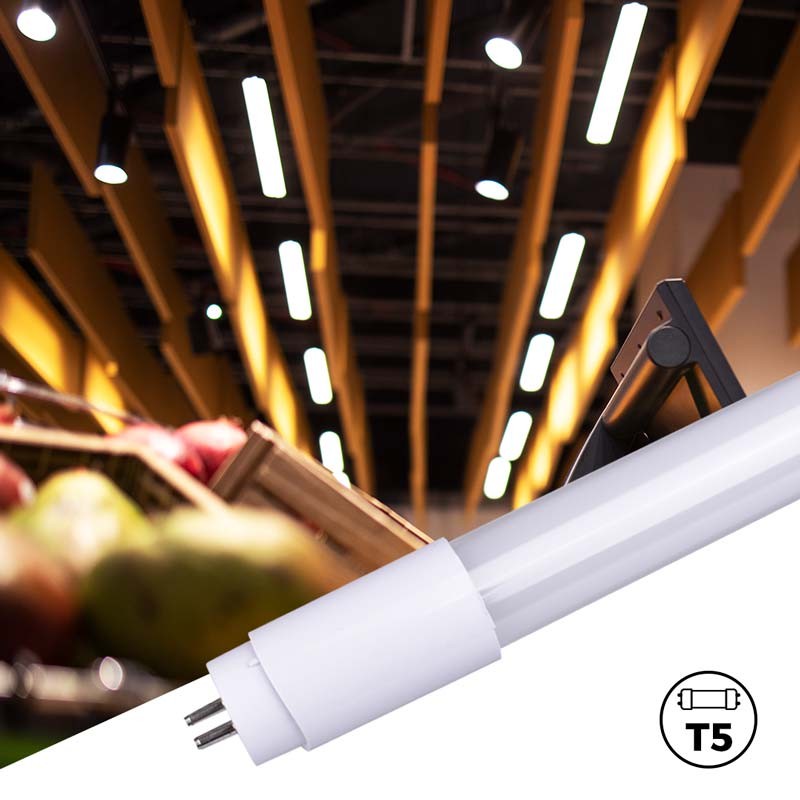

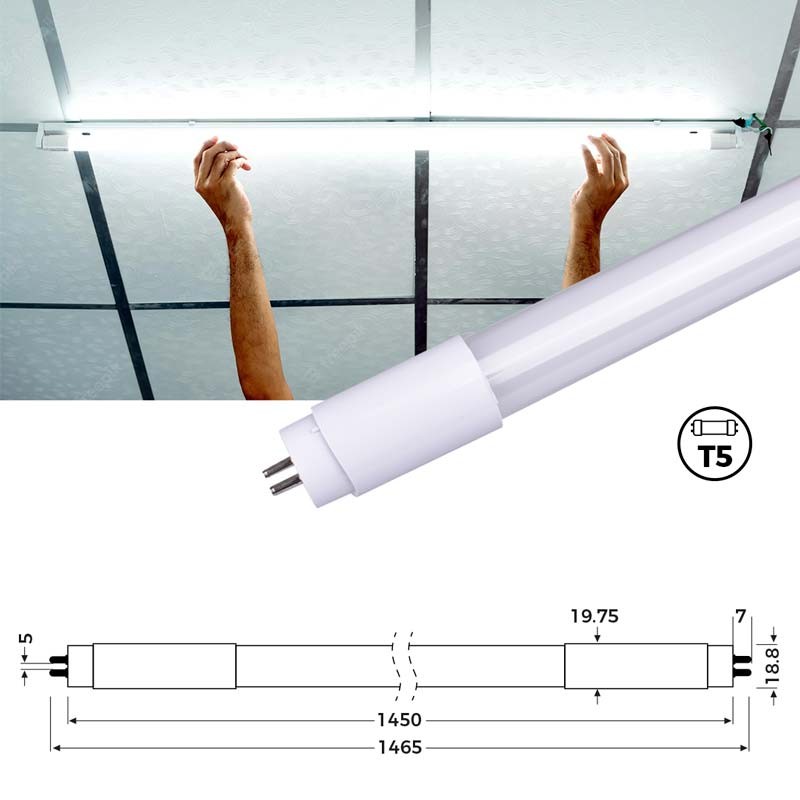

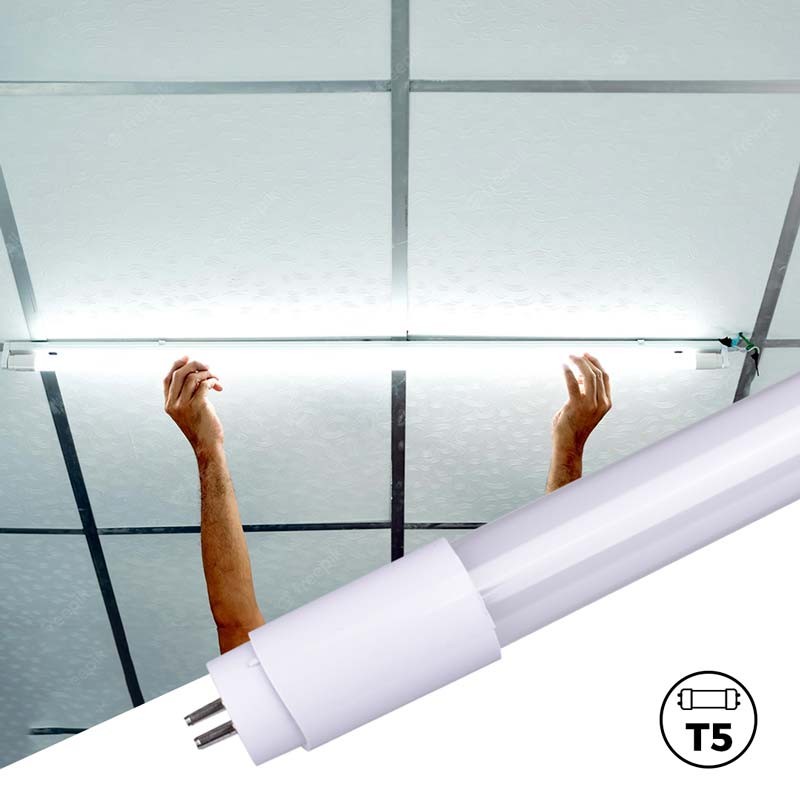

LED T5 18W 150cm (1465mm) opal glass LED T5 tube
SKU:B4030-150BN
€14.90
Tax included
LED T5 Opal Tube 18W 150cm (1465mm)
Replace conventional fluorescent tubes with LED T5 tubes!

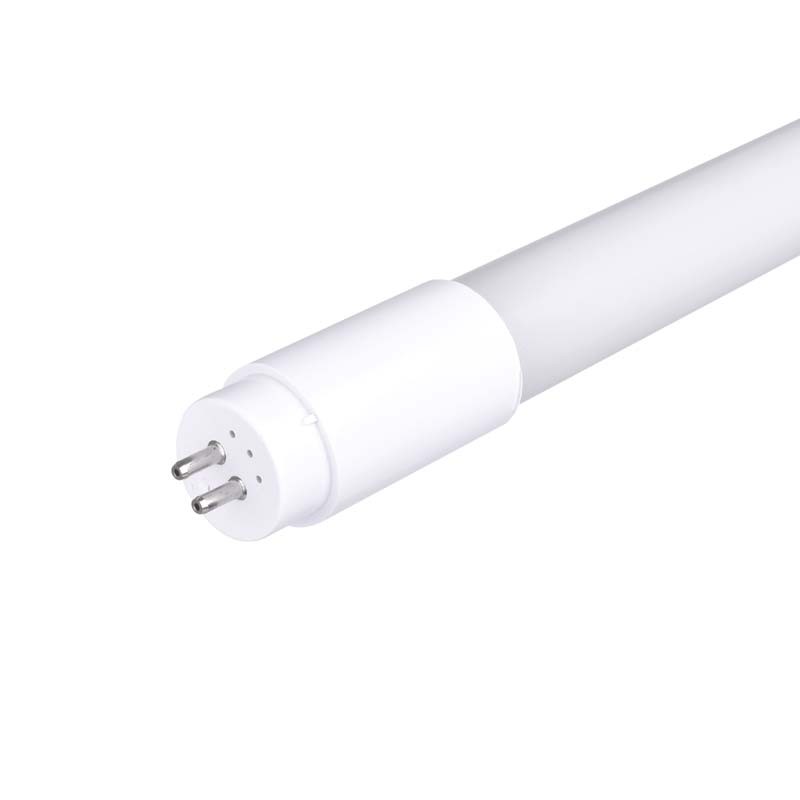

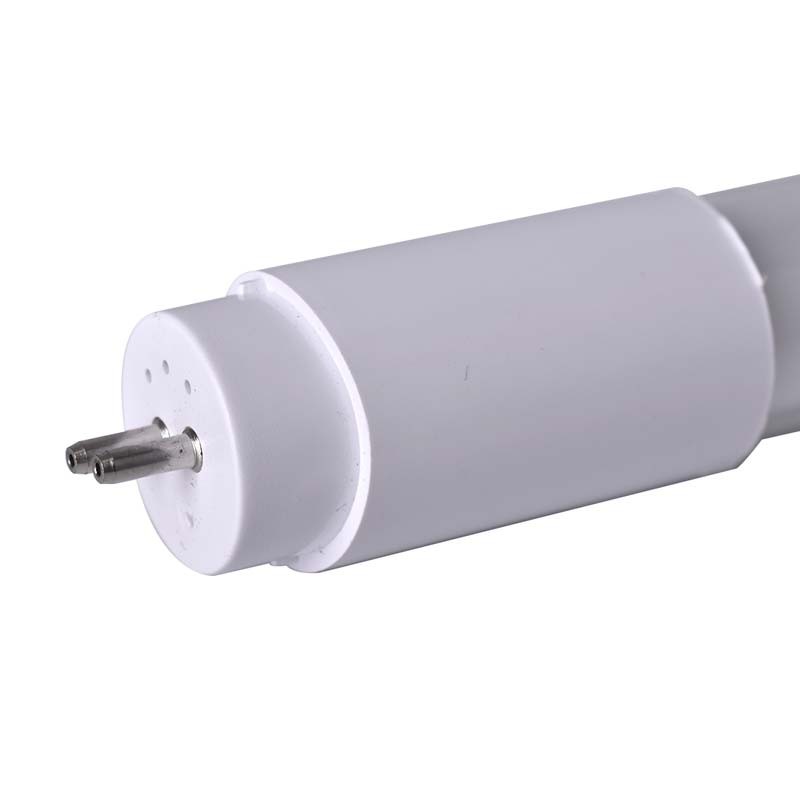

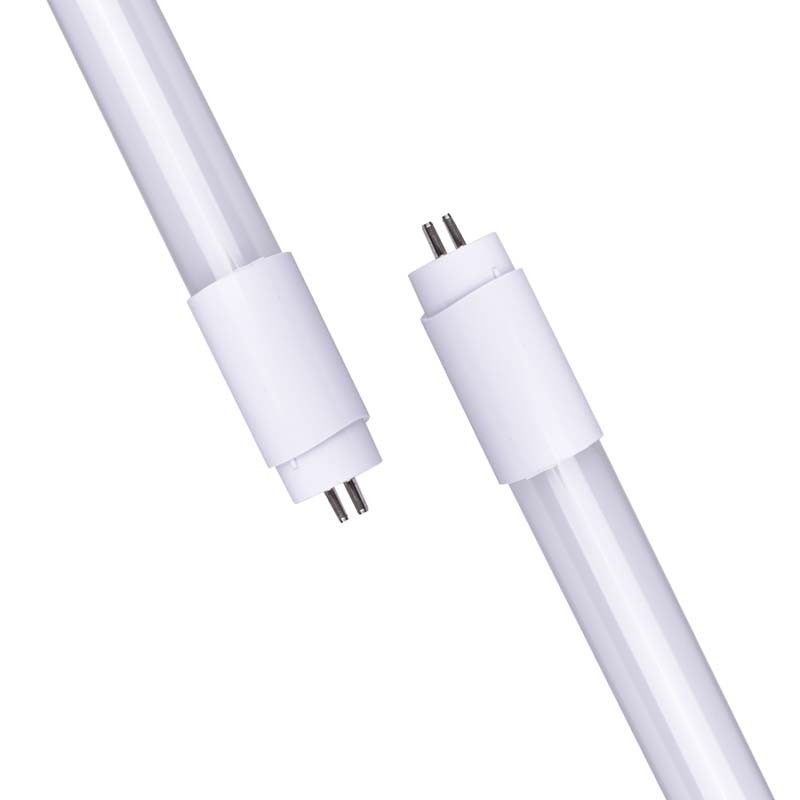

The T5 Crystal LED Tube T5 has two G5 side connections for easy installation, emits powerful illumination and low power consumption, and contains 18W to provide illumination equivalent to conventional fluorescent tubes.
The 1500mm T5 LED tube is made of opal glass with class A+ energy efficiency. In addition, it emits alight opening angle of 300°, which is ideal for illuminating large spaces.
Features of Opal T5 LED Tube Light
✔ Opal Coverage: No glare emission.
✔ Overheating and short circuit protection.
300º opening angle
✔ Instant on
Technical installation
STEP 1: Turn off the light at the electrical main switchboard and verify that no electric current is coming.
STEP 2: Take out the old tube (in this case there is no starter, as it is incorporated inside the electronic ballast).
STEP 3: Disconnect the cables that enter the electronic ballast (no need to remove it, just disconnect it electrically).
STEP 4: Connect phase to one side of the connection and connect neutral to the mains on the other side.
- IF THE INSTALLATION CONTAINS A CAPACITOR BANK, CONSULT WITH YOUR SPECIALIZED TECHNICIAN.
Applications of Opal T5 LED Tube Light:
✔ Shops
✔ Offices
✔ Kitchens
✔ Commercial galleries
You may also be interested in...
We have a wide range of LED tubes, among which you can find different sizes, 60cm T5 LED tubes or 120cm LED tubes.
2018-07-06
Nominal Voltage (V)
230
Lumens (Lm)
2279
Kelvin (K)
4000
6000
6000
Beam angle (º)
300
Socket
G5
Lifetime (h)
25000
IP
IP20
Dimensions (mm) Lxlxh
Øx1465
Frequency (Hz)
50 - 60
Hue
Cool white
Neutral white
Neutral white
Detection angle (º)
No
Detection range (m)
No
Sensor
No
Efficiency (Lm/w)
127
CRI
80-85
UGR
< UGR19
LED Type
SMD 2835
Dimmable
No
Power factor (cosφ)
0,92
Driver
Internal
Tube type
T5
Orientable
No
Material
Plastic
Diffuser material
Crystal
Use Outdoor
Oui, with adjustable lamp
Temperature range
No
Frequency of use
Intensive
Energy efficiency class
A+
Certificates
CE
ROHS
ROHS
Warranty
3 years
