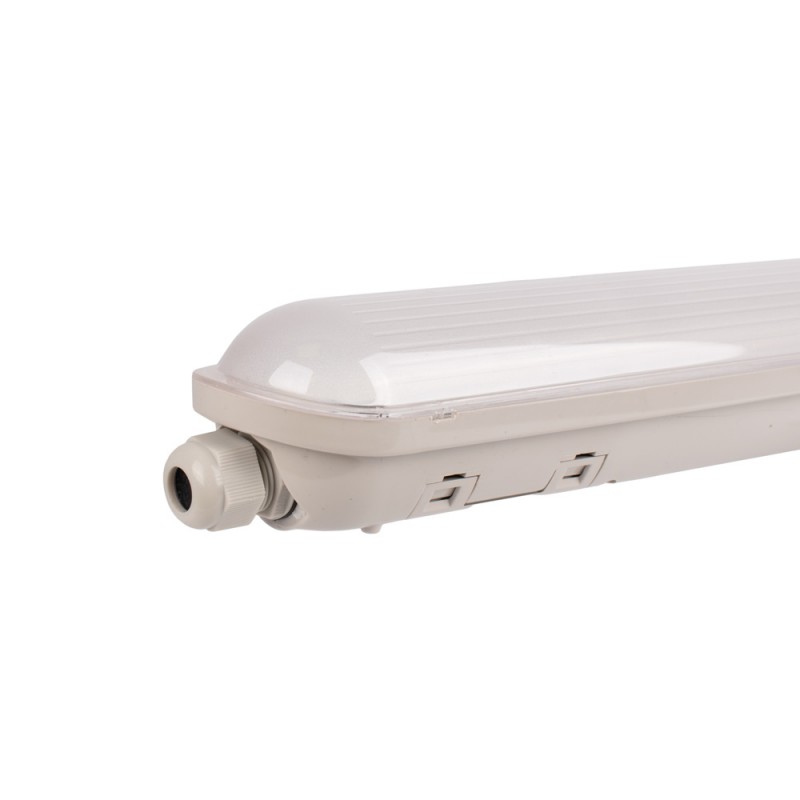

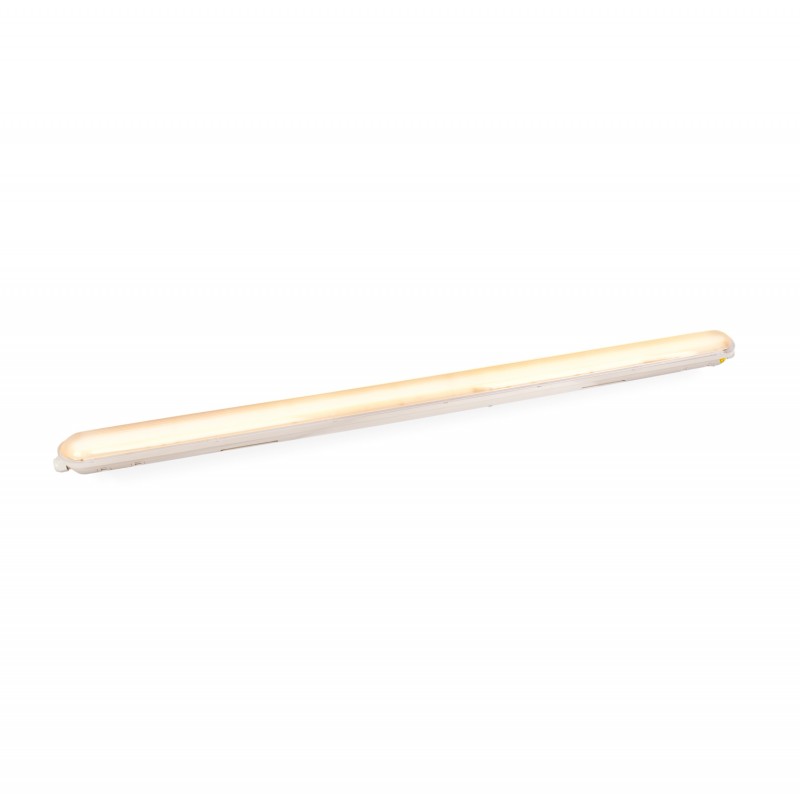

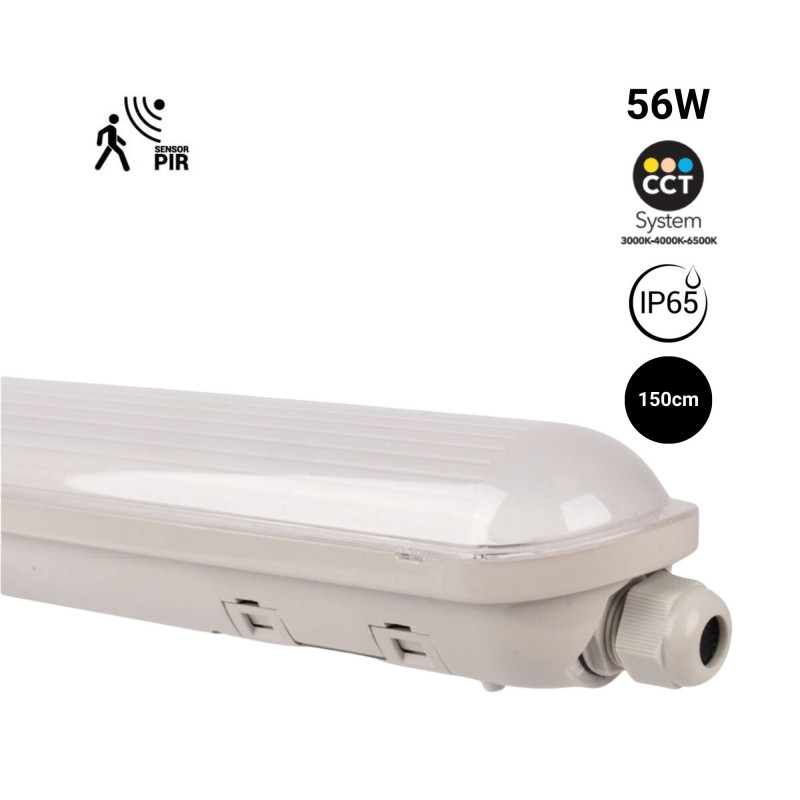

Linkable Tri-proof CCT LED batten light with motion sensor - 150cm - 56W - IP65

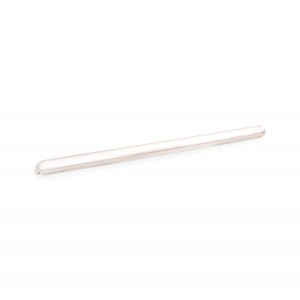

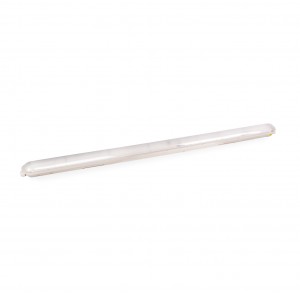

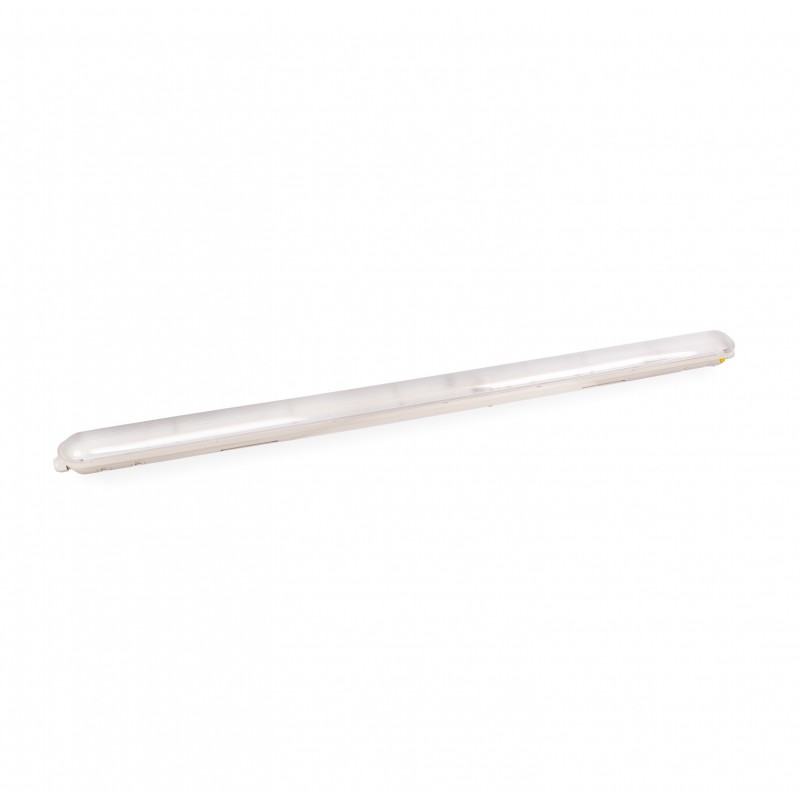

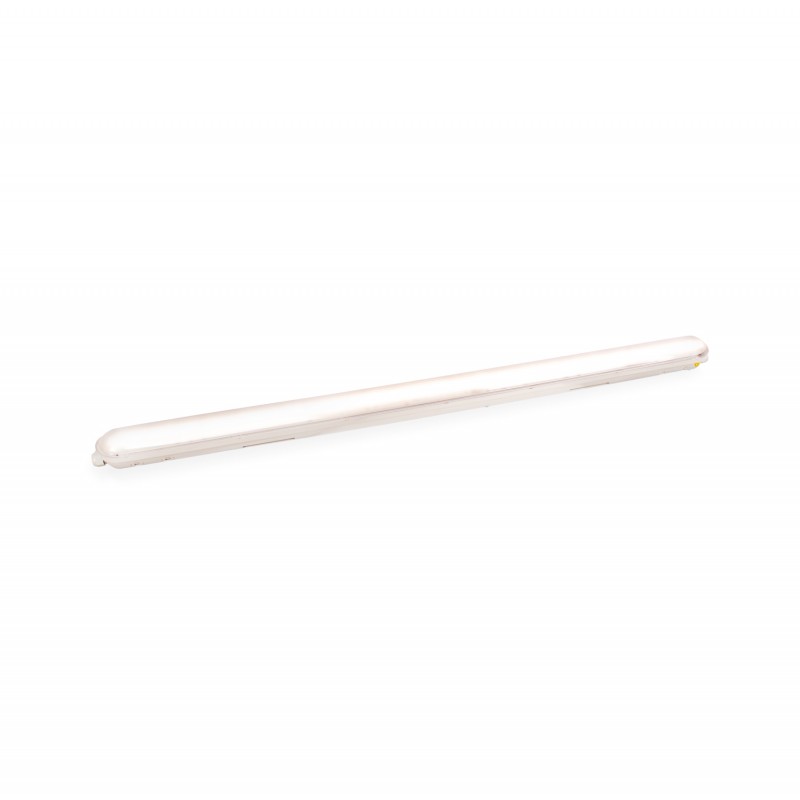

The 150cm-long LED linear tri-proof batten is an excellent choice to replace traditional fluorescent tubes, as it combines quality with remarkable energy savings.

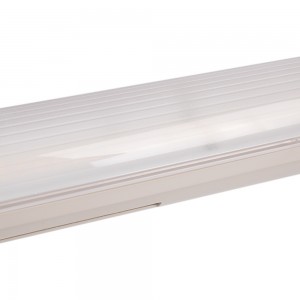

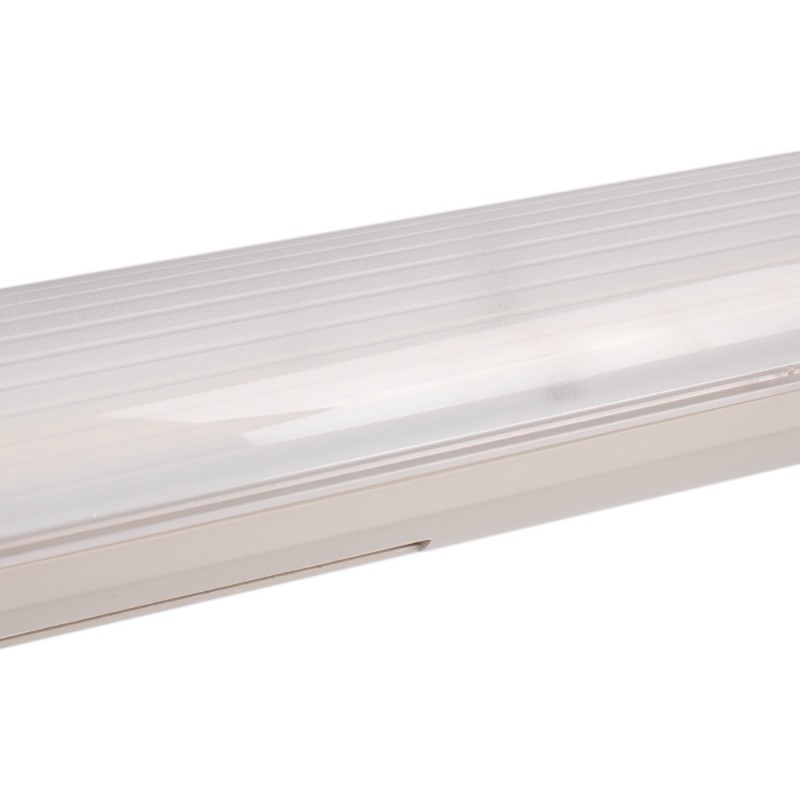

With a power of 56W and a luminous flux of 7500 lumens, this fixture emits a homogeneous and glare-free light thanks to its opal diffuser, with a beam angle of 120º.
It incorporates an occupancy sensor that enables configuration for both the detection area and the minimum light level required for activation, as well as the duration it remains illuminated.
It has an internal driver with EMC filter that prevents electromagnetic interference and minimizes flicker.

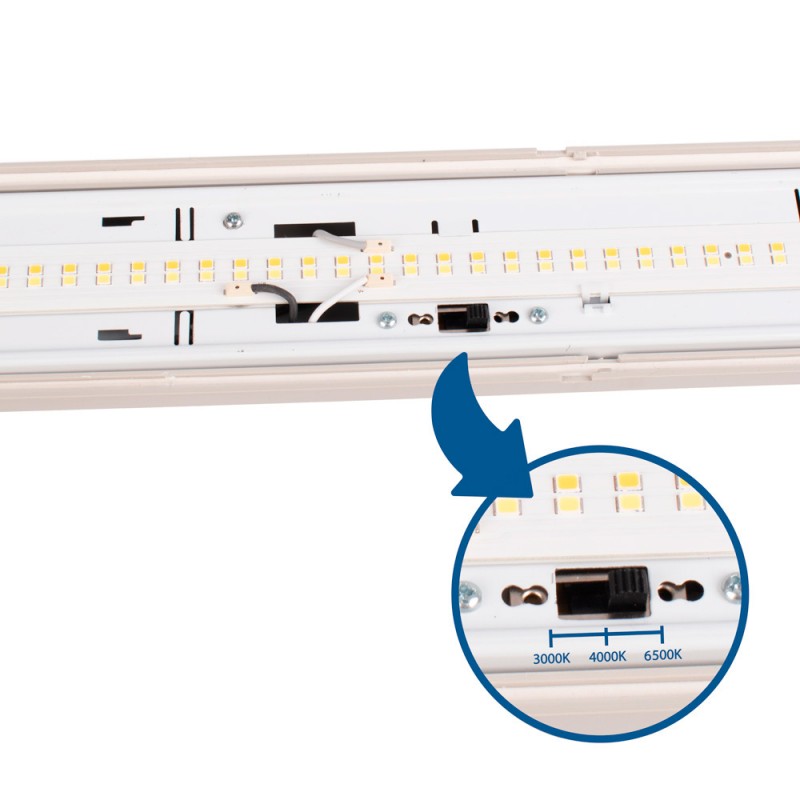

Its CCT system allows selecting the light temperature using an internal switch, offering three possible variants: warm light (3000K), neutral light (4000K), and cool light (6500K), thus adapting to the needs of each space.
In addition, its high color rendering index (CRI>80) guarantees color rendering very similar to natural light.
This product is ideal for installation in areas that require a long period of lighting, such as parking lots, supermarkets, warehouses, garages, offices, among others, due to its efficiency and durability. In addition, thanks to its high IP protection rating (IP65), this luminaire can be installed in humid or outdoor environments without any inconvenience.

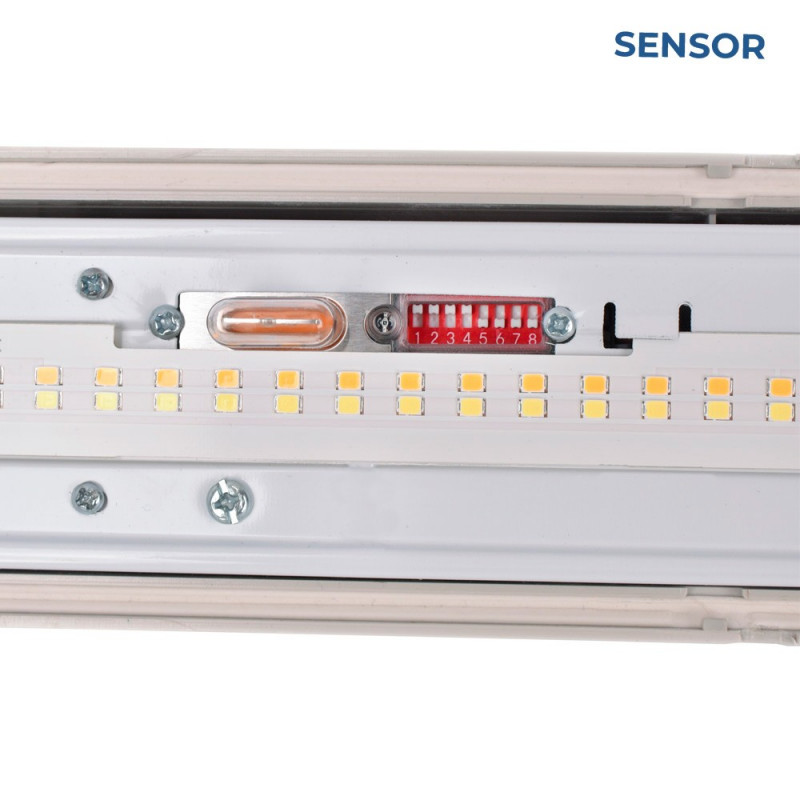

Sensor settings
Switches 1-2: Detection area (25%, 50%, 75%, 100%)
Switches 3-4-5: Hold time, on time (5s, 30s, 90s, 5min, 20min, 30min)
Switches 6-7-8: Ambient light sensitivity, 2lux, 10lux, 30lux, 30lux, 50lux, (night) / Disable (day).
Product features:
|
Please note that some technical characteristics such as power or CRI may vary depending on the colour temperature of light. For further details, please refer to the attached "Test Reports" in the "Downloads" section or contact our sales advisors.
4000
6500
ROHS
