Linkable LED tri-proof batten light - 40W 120cm 5200lm 130 lm/W IP65

SKU:B8400-120BN
Colour temperature
Has superado el límite de unidades
In stock 2724 unidades

Tri-proof LED batten light. 120cm-long with 40W power and a light output of 130 lm/W, perfect for replacing conventional fluorescent tube battens, with energy savings of 50%. It incorporates Sanan SMD2835 LED chip for professional use and high brightness. Made of waterproof polycarbonate (IP65 protection and IK04 classification against knocks and falls).

  • 1180x72x61mm
  • 40W
  • 230V
  • 5200lm
  • IP65
  • 130 lm/W

Weathertight LED batten light - 120cm and 40W

LED tri-proof lamp manufactured with the highest quality to obtain a saving of almost 50% compared to a conventional fluorescent tube waterproof luminaire.

Housing made of waterproof, dustproof and corrosion resistant polycarbonate, IP65 rated, suitable for outdoor use as well as indoor use subject to moisture, vapors and splashes. The inner housing and PCB are made of aluminum, and the semi-transparent diffuser allows correct light emission with virtually no loss of luminous flux.

It incorporates a SAN'AN SMD2835 LED chip with high luminous efficacy (130mm/W), with a total luminous flux of 5200 lumens in neutral white 4000K. The driver is designed with EMC filter to avoid electromagnetic interference and with a significant reduction of flicker to a minimum.

Replace now your linear waterproof fluorescent tube fixture with our tri-proof LED linear light. Equivalent to 2 tubes of 120cm, so the energy consumption is reduced from 72W to 40W with a higher brightness and intensity.

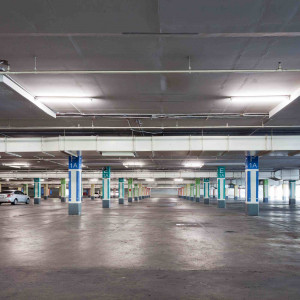

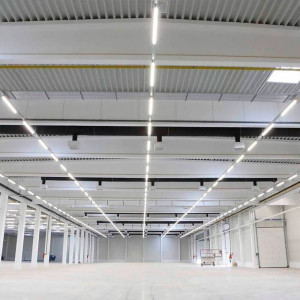

This product is designed for use in parking lots, parking lots, industrial buildings, maintenance areas, sports centers, etc...

pantalla estanca led 120cm pantalla estanca led 120cm

pantalla estanca led

Product features:

  • Power: 40W, replaces 2 fluorescent tubes of 120cm, reducing power consumption from 72W to 40W.
  • Input voltage: 230V
  • Luminous efficacy: 130Lm/W
  • Luminous flux: 5200Lm
  • San'an SMD2835 LED chip Neutral white 4000K
  • Shock and vibration protection IK04
  • Wide 120º beam angle
  • Instant on, no flicker and no noise
  • Integrated EMC filtered driver against electromagnetic interference
  • Splash, humidity, dust and dirt proof IP65

pantalla estanca

instalación pantalla estanca

pantallas estancas led precios

Nominal Voltage (V)
230V-AC
Lumens (Lm)
5200
Kelvin (K)
4000
Beam angle (º)
120
Lifetime (h)
25000
IP
IP65
Dimensions (mm) Lxlxh
1180x72x61
Frequency (Hz)
50 - 60
Hue
Neutral white
Sensor
No
Efficiency (Lm/w)
130
CRI
80-85
UGR
No
LED Type
SMD 2835
Dimmable
No
Power factor (cosφ)
0.9
Material
Polycarbonate
Diffuser material
Polycarbonate
Use Outdoor
Yes
Temperature range
-20°C ~ +40°C
Frequency of use
Intensive
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
