Adjustable linear spotlight for magnetic rail 48V CCT - 12W - DALI dimming - UGR18
SYSTEM-CCT-DALI-2

Adjustable linear track light 48V - CCT - 12W - DALI dimming - UGR18

SKU:PML-12WU18-CCT-DALI-N

Volume discounts

Quantity Price
5 €33.94
10 €33.24
20 €32.54
40 €30.79
Has superado el límite de unidades
In stock 108 units
Data sheet

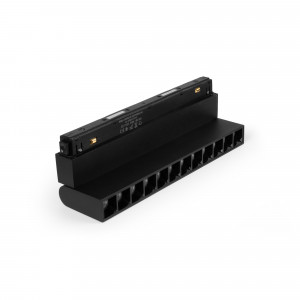

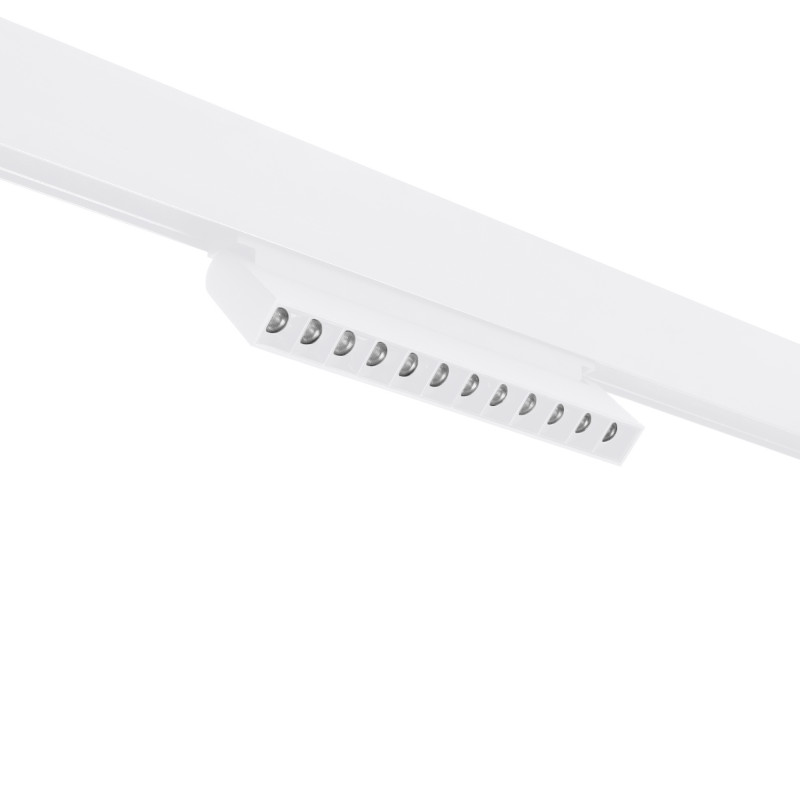

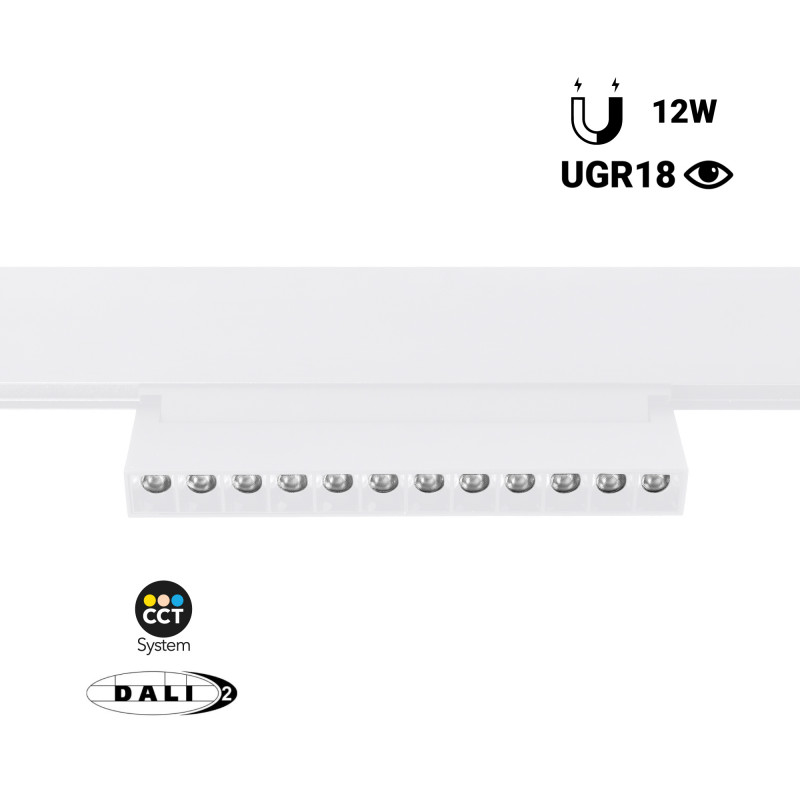

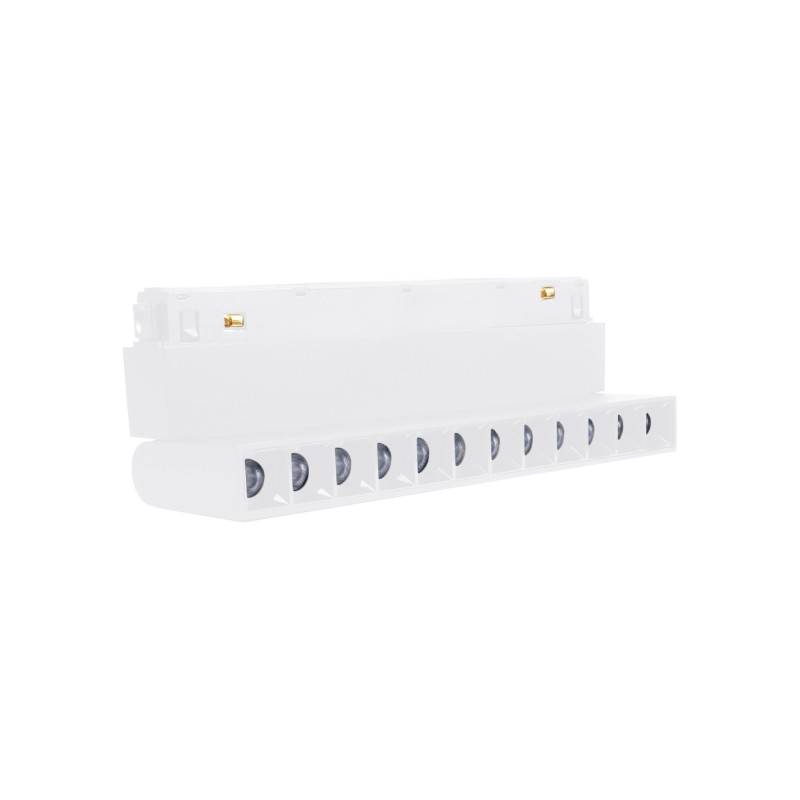

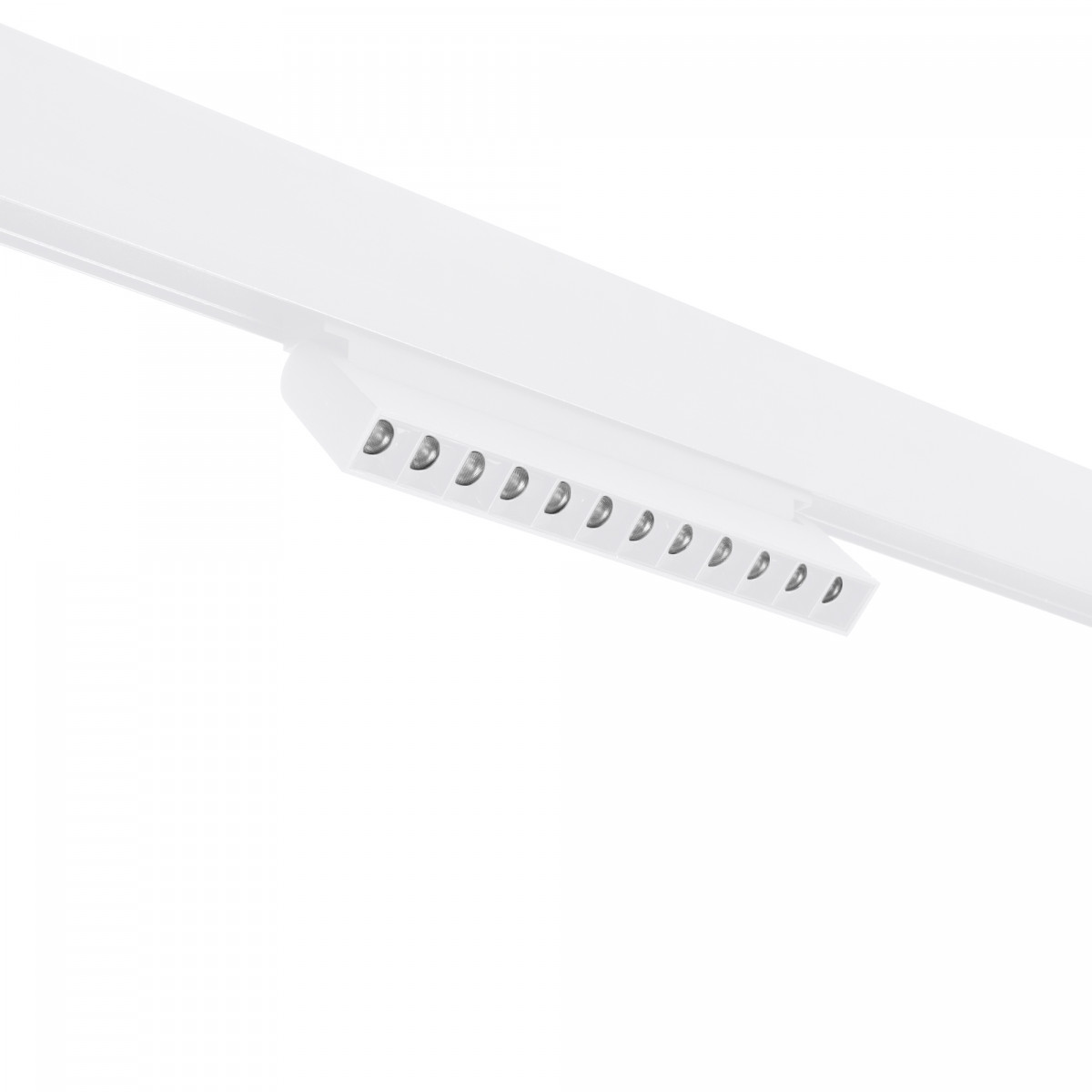

LED linear spotlight for magnetic rail 48V, adjustable, with a power of 12W.

Incorporates dimmable driver by DALI-2 protocol and CCT system with adjustable color temperature (2700K - 6000K).

Requires controller and/or DALI master (not included).

Designed to minimize glare (UGR18). Perfect for offices and commercial spaces, offers efficient lighting and superior visual comfort.

Available in white or black.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  sales@barcelonaled.com

Magnetic linear track spotlight CCT - 12W - Control DALI-2

  • Modern, sleek design: Its modern, linear aesthetic complements any contemporary décor. Compact 22cm dimensions allow for discreet and elegant integration into both residential and commercial spaces. Available in black or white.
  • DALI-2 dimming: It has a dimmable driver by DALI-2 protocol, which allows adjusting the intensity and hue of the light with ease, offering total control over the atmosphere of any space. It requires a DALI controller and/or master to control the luminaire (not included).

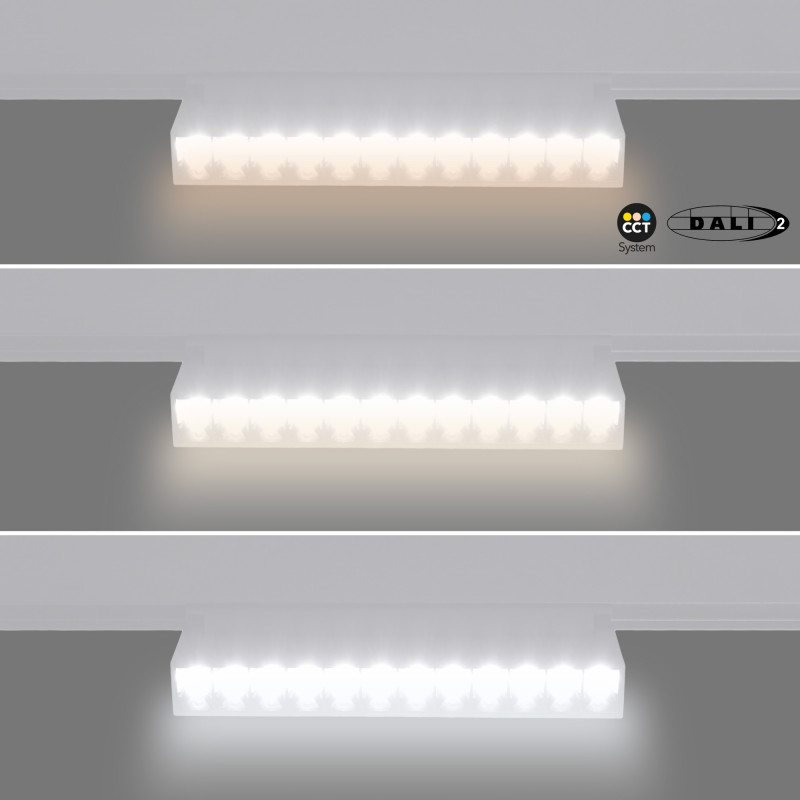

  • Adjustable CCT system: Through DALI control, the color temperature can be adjusted between 2700K and 6000K to suit different needs and environments. The default shade of the luminaire is neutral white.

  • Maximum visual comfort: With a UGR18 rating, this luminaire is specially designed to minimize glare and avoid eye fatigue, ensuring maximum visual comfort for users.

  • Focused aperture angle: Composed of individual spotlights with a 24° aperture angle, it provides targeted and precise lighting, ideal for highlighting specific areas or elements of the environment.

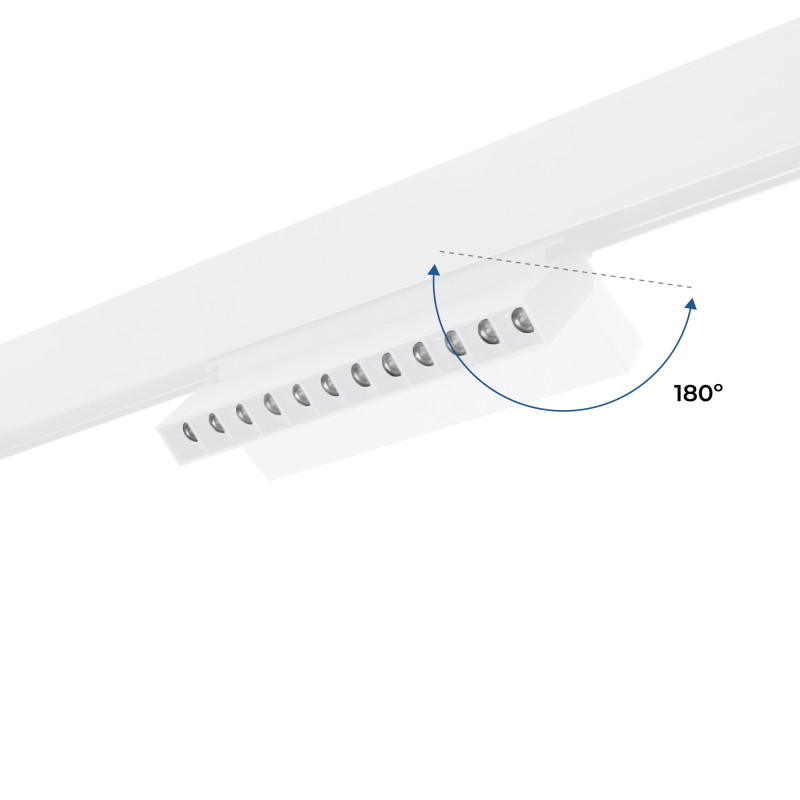

  • Adjustable luminaire: Allows the light to be directed to where it is most needed, increasing functionality and adaptability in any installation.

  • Simple and versatile installation: Its practical design allows quick installation on the magnetic track without the need for tools. In addition, it can be easily moved along the track and combined with other luminaires.

Nominal Voltage (V)
48V
Power (W)
12
Beam angle (º)
24
Lifetime (h)
25000
IP
IP20
Dimensions (mm) Lxlxh
220 x 103 x 23
Hue
CCT
CRI
95-97
UGR
UGR18
Dimmable
Yes
Driver
BOKE
Control system
DALI
Colour control
CCT
Orientable
Yes
Use Outdoor
No
Certificates
CE
ROHS
Warranty
3 years
Track Type
Magnetic
