Intelligent single color LED strip IC 24V DC - 15W/m - IP20 - 120LED/m - Width 10mm - 10 meters

SKU:B1577-BN
Colour temperature
Has superado el límite de unidades
In stock 57 unidades

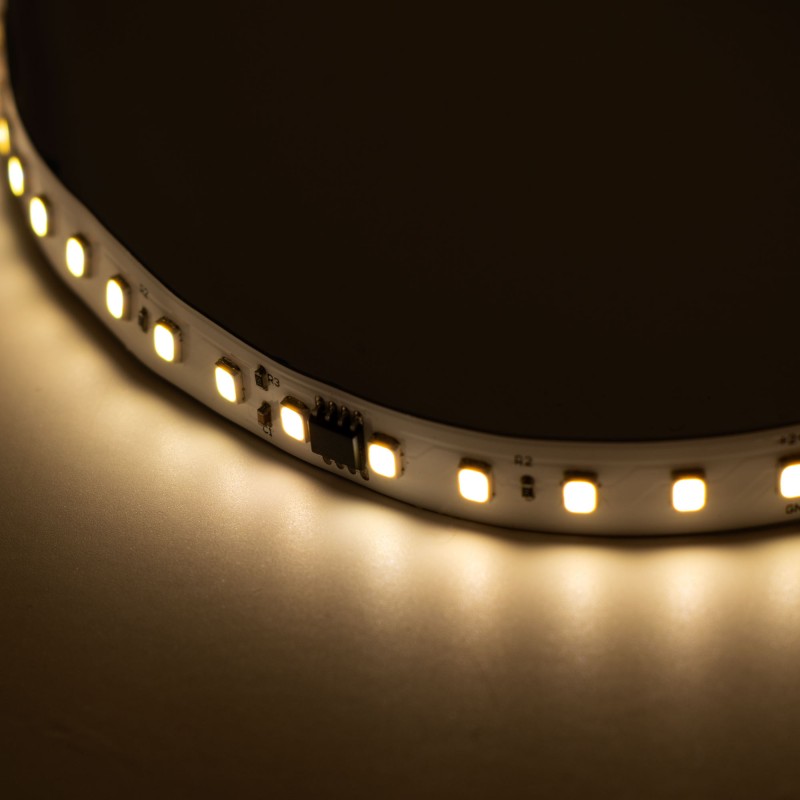

The intelligent single color LED strip (IC) is designed to operate with 24V DC voltage.

Each LED chip has its own SMD2835 light source and integrated driver (IC), allowing individual control of each LED in the strip. In this way, the LED strip can be programmed to create customized light patterns.

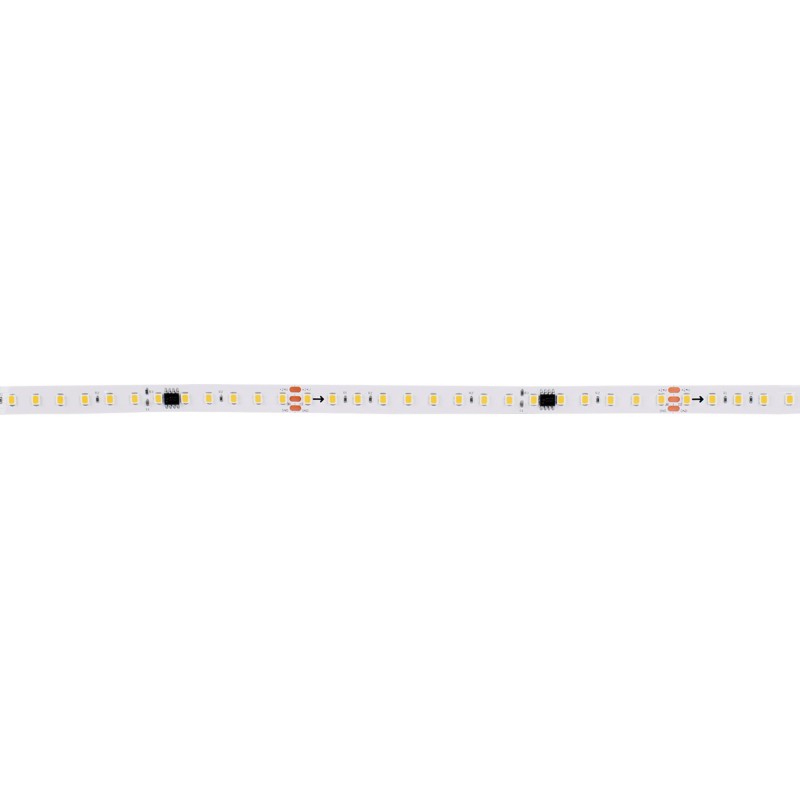

It can be cut every 125 mm and is available in 3 shades: warm white, neutral white and cool white.

The intelligent LED strip IC allows you to control each LED individually. It is ideal for decoration of hotels, bars, all kinds of events or as a replacement for traditional neon lights.

With 120° beam opening angle and 24V voltage, the strip has 1200 high quality integrated SMD 2835 LED lights.

It features a high color rendering index (CRI>80), allowing colors to be displayed with high fidelity, similar to natural light.

The individual control of each chip offers multiple LED illumination possibilities, allowing the creation of eye-catching visual effects. In addition, these IC LED strips are easy to program and work well with many types of controllers to create the desired effect every time.

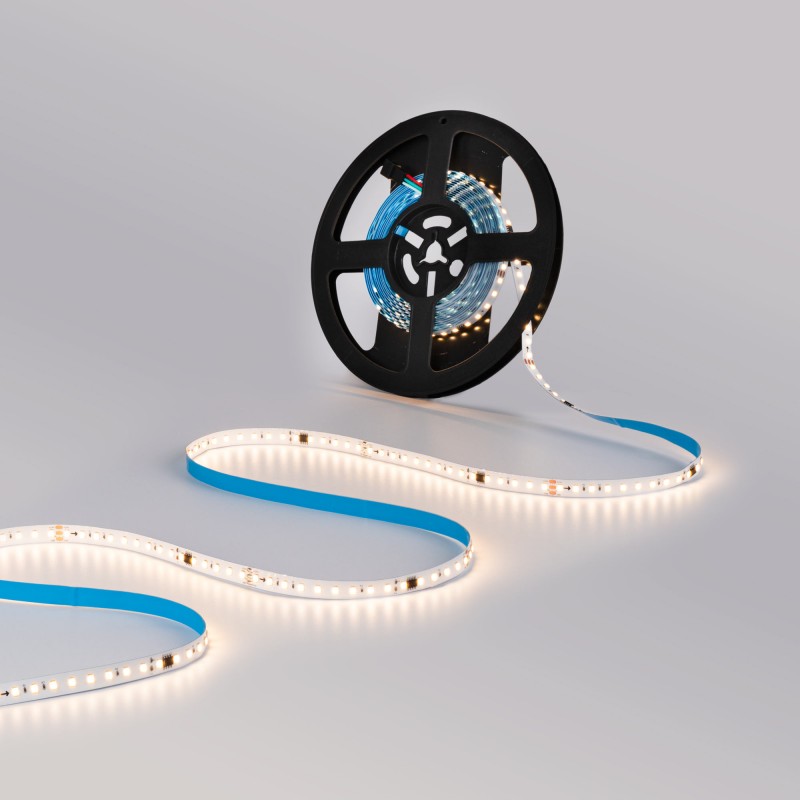

The LED strip is self-adhesive on the back and comes in a 10 meter reel with an IP20 protection rating.

The wires of the LED strip are made of high quality copper and have excellent conductivity, which ensures stable and uniform illumination. The outer layer of the strip is made of PVC, which makes it eco-friendly and durable, and provides it with a very long service life.

Main product features:

  • Voltage: 24V DC
  • Power: 150W (15W/m)
  • Width: 10mm
  • Length: 10m
  • IP20: indoor use
  • SMD2835
  • 120ch/m
  • Shade: warm white (3000K), neutral white (4000K) and cool white (6000K)
  • Cutting distance: 125mm

Nominal Voltage (V)
24V-DC
Power/m (W/m)
15
Kelvin (K)
3000
4000
6000
Beam angle (º)
120
IP
IP20
Dimensions (mm) Lxlxh
10X10000
Hue
Cool white
Neutral white
Warm white
CRI
80-85
LED Type
SMD 2835
Dimmable
Yes
No. of chips/metre
120
Track width (mm)
10
Cutting distance (mm)
125
Temperature range
-20°C ~ +40°C
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
