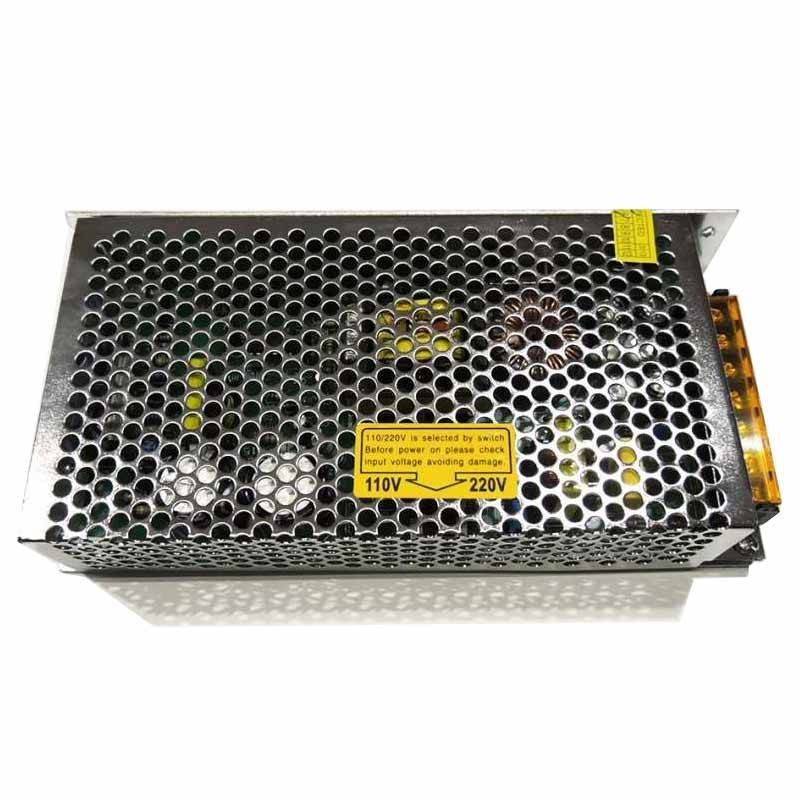

Switching power supply 24V 100W
Switching power supply 24V 100W
Switching power supply 24V 100W

Switching power supply 24V 100W IP20

SKU:B1566-100
Has superado el límite de unidades
In stock 217 unidades

Switching power supply for LED strips, LED neon, floor lights... suitable for use with all types of 24V-DC luminaires with a maximum load of 100W. Input voltage 110V/230V.

For indoor use, IP20 rating.

  • Output 24V
  • Max. power 100W
  • Input 110-230V
  • IP20

Switching power supply 24V 100W 4.2A IP20

The 100W switching power supply has a switch to select the input voltage 110-AC or 230V-AC and a 24V-DC 4A output, the output voltage can be adjusted by ±10% and, by compensating the voltage drop between the A.F. and the point of consumption, it can move the power supply away from the point of consumption. The A.F. are protected against overloads and overvoltages, and their casing is made of perforated sheet metal. This allows its cooling by natural air convection.

Applications: Its main function is to feedled strips at 24V-DC, as well as any other element with 24V-DC working voltage, as long as it does not exceed the maximum power of the source. Suitable for all kinds of uses: domestic, commercial, office, restaurant and hotel business, etc.

  • Output voltage: 24 V Direct current
  • Error: ± 1%.
  • Output amperage: 0 ~ 4A
  • Output power: 100W DC
  • Efficiency: 81% Efficiency: 81% Efficiency: 81% Efficiency: 81% Efficiency: 81% Efficiency: 81
  • Voltage range: 23.76~ 24.24V
  • Input range: 85 ~ 180 V ~ 132V AC 264V AC 63Hz ~ 47 255 ~ 370V DC
  • Overload Protection: 105% ~ 150% (protection type: reduce input power reset: auto recover)
  • Inlet stability: ± 0.5%
  • Temperature coefficient: 0-50c
  • Setup, place, timeout: 100 ms 200 ms 30 ms
  • Working temperature: -10 ~ +60
  • Three connections.
  • Temperature limits: -20 ~ +85
  • Dimensions: 199 * 98 * 37
  • Weight: 0.6kgs
2018-06-02
Nominal Voltage (V)
110-230
Power (W)
100
Lifetime (h)
25000
IP
IP20
Dimensions (mm) Lxlxh
159x98x41
Frequency (Hz)
50 - 60
Power factor (cosφ)
0.5
Output voltage (V)
24V
Material
Aluminium
Use Outdoor
No
Temperature range
-20°C ~ +40°C
Frequency of use
Normal
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Maximum intensity (A)
4
