Switched Mode Power Supply 24V, 350W

SKU:B1566-350
Has superado el límite de unidades
In stock 76 units
Data sheet

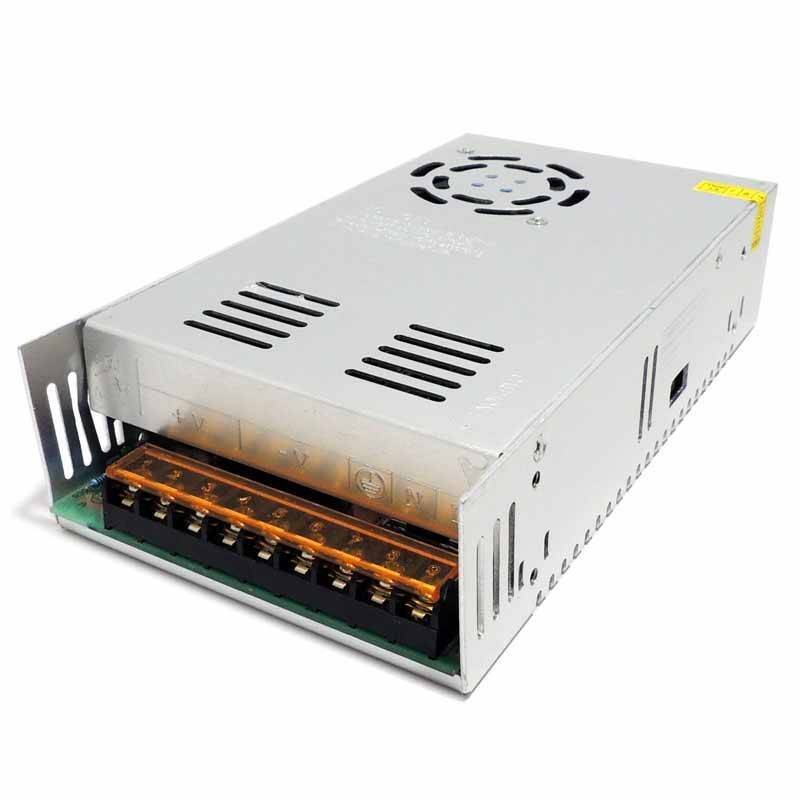

Switchingpower supply 24V 350W with built-in fan.

  • 350W
  • 24V
  • 0.9Kg
  • IP20

It incorporates a fan for cooling, so it is not recommended for use in very quiet places, as it could generate annoying noises.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

Switched Mode Power Supply 24V, 350W

  • Output voltage: 24 V direct current
  • Error: ± 1%.
  • Output amperage: 0 ~ 15A (15 amps)
  • Wave and noise: 100mp-p
  • Output power: 350W DC
  • Efficiency: 81% Efficiency: 81% Efficiency: 81% Efficiency: 81% Efficiency: 81% Efficiency: 81
  • Voltage range: 23.76~ 24.24V
  • Input range: 85 ~ 180V ~ 132V AC 264V AC 63Hz ~ 47 255 ~ 370V DC
  • Overload Protection: 105% ~ 150% (protection type: reduce input power reset: auto recover)
  • Inlet stability: ± 0.5%
  • Temperature coefficient: 0-50c
  • Setup, place, timeout: 100 ms 200 ms 30 ms
  • Working temperature: -10 ~ +60
  • Three connections.
  • Temperature limits: -20 ~ +85

It incorporates a fan for cooling, so it is not recommended for use in very quiet places, as it could generate annoying noises.

2018-06-02
Nominal Voltage (V)
110-230
Power (W)
350
Lifetime (h)
25000
IP
IP20
Dimensions (mm) Lxlxh
215x114x50
Frequency (Hz)
50 - 60
Power factor (cosφ)
0.5
Output voltage (V)
24V
Material
Aluminium
Use Outdoor
No
Temperature range
-20°C ~ +40°C
Frequency of use
Normal
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Maximum intensity (A)
15
Barcelona LED

Questions

P: Question: Good morning, I have purchased this product but I can not get me out the 24v, as I have to make the connections?
Thank you!

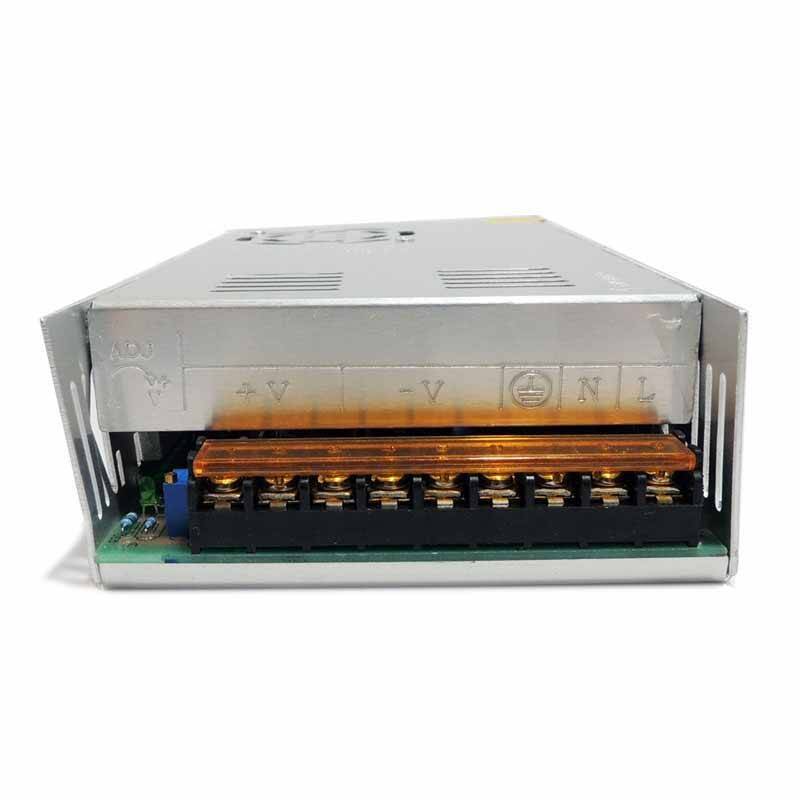

R: Answer: The power supply is connected to the 220-240Vac mains at the connections marked L (line), N (neutral), and Ground. The 24Vdc output of the power supply is identified as +V (positive pole) and COM or -V (negative pole).
