220V AC COB LED Strip - 10W/m - 12mm - IP67 - 20 meters

220V AC COB LED Strip - 10W/m - 12mm - IP67 - 20 meters

SKU:B1536-20-270
Colour temperature
Has superado el límite de unidades
In stock 9 unidades

The COB LED strip stands out for its bright and uniform lighting, with no shadows or visible light spots, unlike traditional LED strips.

It has a total width of 12mm (PCB: 10.5mm) and its great flexibility allows easy installation in any space. It can be cut every 50 cm and has a CRI>90.

Incorporating COB technology, it has a high luminous efficacy of 100lm/W, with a density of 288 LED/meter.

Due to its IP67 protection rating , it's suitable for outdoor installation.

It's dimmable and available in warm white (2700K), neutral white (4000K) and cool white (6000K).

This LED strip incorporates COB technology, which allows it to emit a continuous light without visible points. Especially recommended when homogeneous illumination is desired, to work with reflective surfaces or to use transparent diffusers.

With a luminous intensity of 10W per meter, this strip provides exceptional brightness, superior to conventional LED strips.

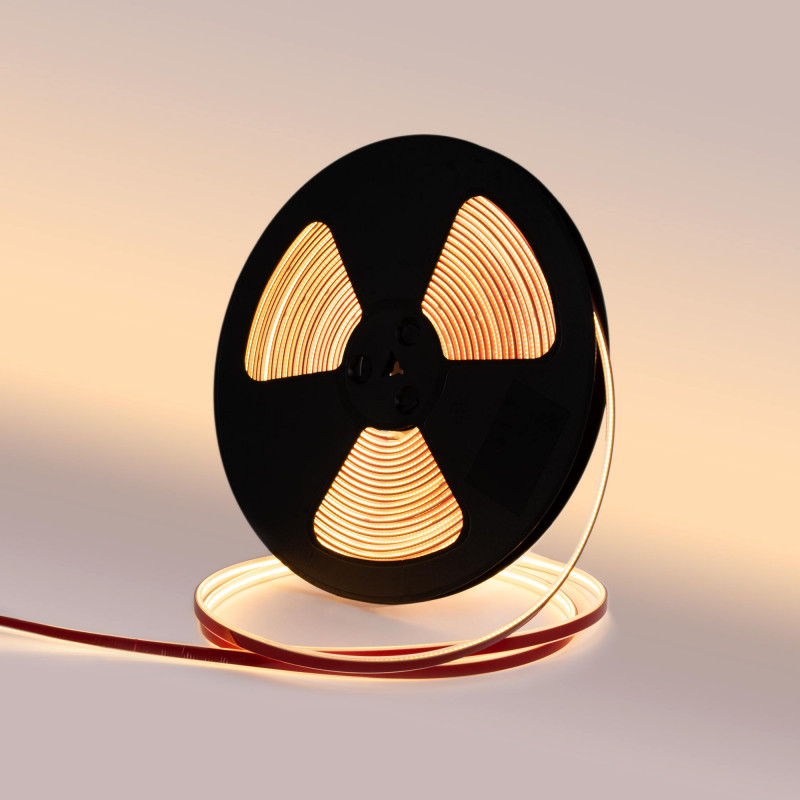

The LED strip comes in a roll of 20 meters and allows cuts every 50cm, according to the indicated marks. It incorporates 3M self-adhesive on the back to adhere to the desired surface.

For its correct operation, it requires a rectifier that converts alternating current into direct current (Compatible reference: B1536-CI-EU).

In addition, for installation, it's recommended to use the specific connectors corresponding to our products: B1536-TT (strip-to-strip connector), B1536-CTT (strip-to-strip connector with cable) and B1536-L (90º connector).

Product features:

  • Voltage: 220V AC
  • Efficacy: 100lm/W
  • Power: 10W/m
  • Beam angle: 120°.
  • Dimmable
  • Total width: 12mm
  • PCB width: 10.5mm
  • Cut distance: 500mm
  • IP67: outdoor use
  • Strip length: 20 meters
  • LED chips: COB (288 LED/m)
  • Available in shades: warm white (2700K), neutral white (4000K) and cool white (6000K)
  • Dimensions: 12x20000mm

Please note that certain technical characteristics such as power or efficacy may vary according to the color/shade of the product. For further information, please consult the attached test reports in the "Downloads" section, or contact our sales advisors.

Nominal Voltage (V)
220 - 240 V/AC
Power/m (W/m)
10
Kelvin (K)
2700
4000
6000
Beam angle (º)
120
IP
IP67
Dimensions (mm) Lxlxh
12x20000mm
Hue
Cool white
Neutral white
Warm white
CRI
90-95
LED Type
COB
Dimmable
Yes
No. of chips/metre
288
Track width (mm)
12
Use Outdoor
Yes
Adhesive
3M
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
