220V AC COB LED Strip - 10W/m - 12mm - IP67 - 20 meters

SKU:B1536-20-BN
Colour temperature
Has superado el límite de unidades
In stock 45 unidades

The COB LED strip stands out for its bright and uniform lighting, with no shadows or visible light spots, unlike traditional LED strips.

It has a total width of 12mm (PCB: 10.5mm) and its great flexibility allows easy installation in any space. It can be cut every 50 cm and has a CRI>90.

Incorporating COB technology, it has a high luminous efficacy of 100lm/W, with a density of 288 LED/meter.

Due to its IP67 protection rating , it's suitable for outdoor installation.

It's dimmable and available in warm white (2700K), neutral white (4000K) and cool white (6000K).

This LED strip incorporates COB technology, which allows it to emit a continuous light without visible points. Especially recommended when homogeneous illumination is desired, to work with reflective surfaces or to use transparent diffusers.

With a luminous intensity of 10W per meter, this strip provides exceptional brightness, superior to conventional LED strips.

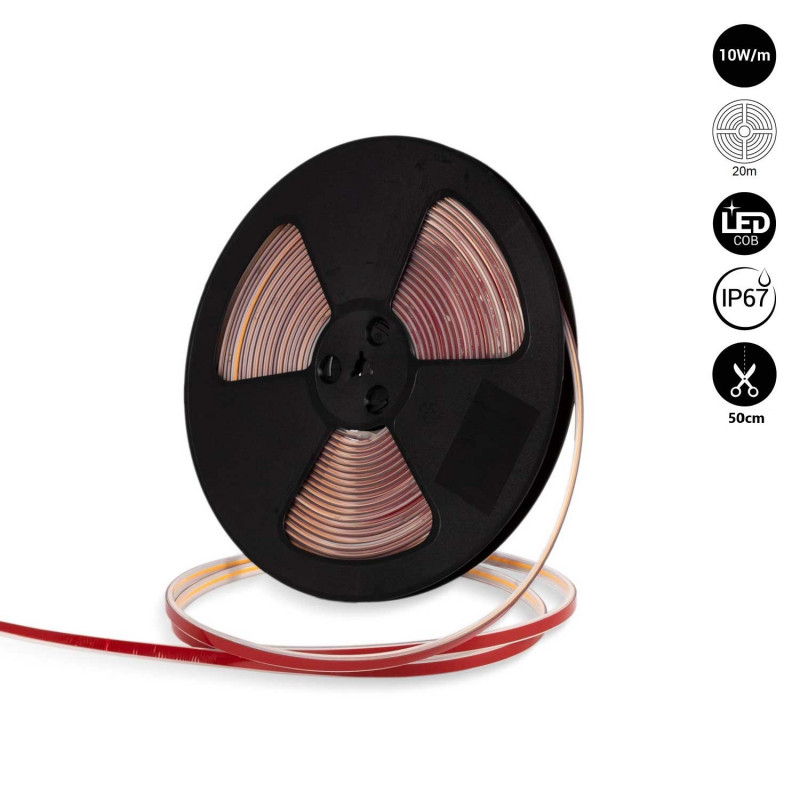

The LED strip comes in a roll of 20 meters and allows cuts every 50cm, according to the indicated marks. It incorporates 3M self-adhesive on the back to adhere to the desired surface.

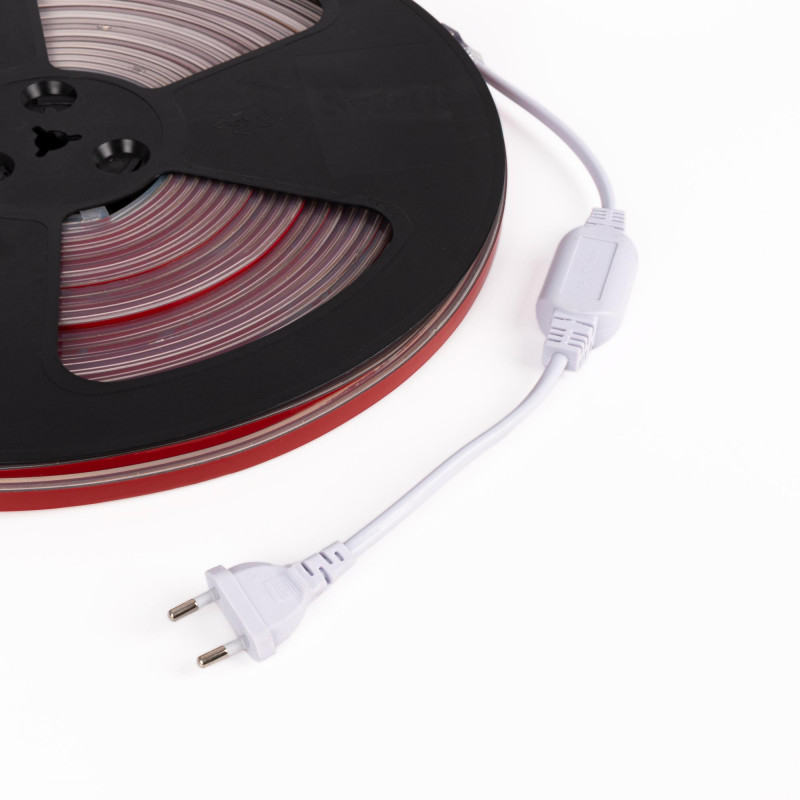

For its correct operation, it requires a rectifier that converts alternating current into direct current (Compatible reference: B1536-CI-EU).

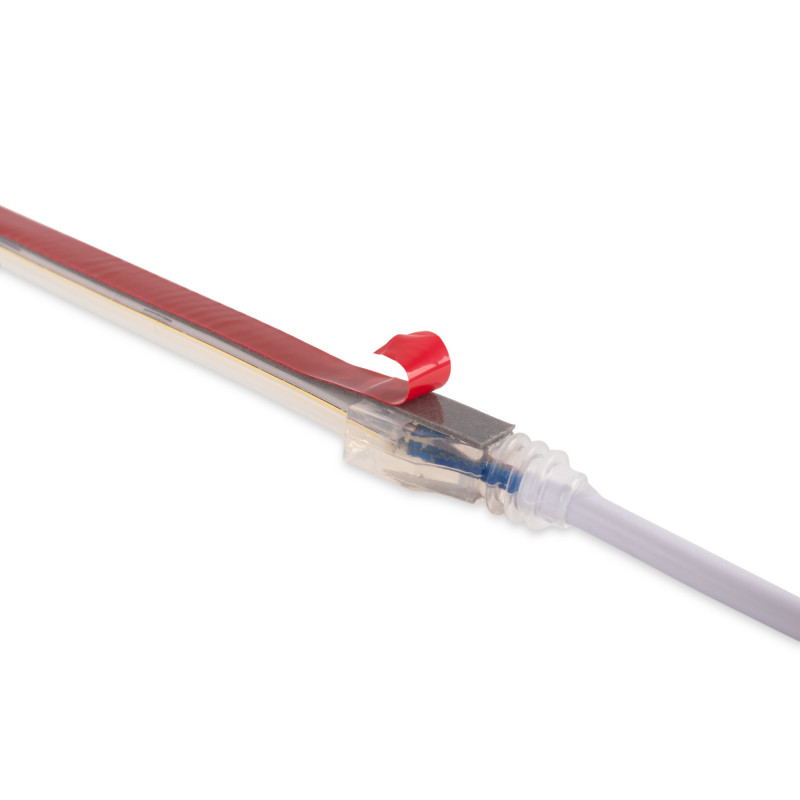

In addition, for installation, it's recommended to use the specific connectors corresponding to our products: B1536-TT (strip-to-strip connector), B1536-CTT (strip-to-strip connector with cable) and B1536-L (90º connector).

Product features:

  • Voltage: 220V AC
  • Efficacy: 100lm/W
  • Power: 10W/m
  • Beam angle: 120°.
  • Dimmable
  • Total width: 12mm
  • PCB width: 10.5mm
  • Cut distance: 500mm
  • IP67: outdoor use
  • Strip length: 20 meters
  • LED chips: COB (288 LED/m)
  • Available in shades: warm white (2700K), neutral white (4000K) and cool white (6000K)
  • Dimensions: 12x20000mm

Please note that certain technical characteristics such as power or efficacy may vary according to the color/shade of the product. For further information, please consult the attached test reports in the "Downloads" section, or contact our sales advisors.

Nominal Voltage (V)
220 - 240 V/AC
Power/m (W/m)
10
Kelvin (K)
2700
4000
6000
Beam angle (º)
120
IP
IP67
Dimensions (mm) Lxlxh
12x20000mm
Hue
Cool white
Neutral white
Warm white
CRI
90-95
LED Type
COB
Dimmable
Yes
No. of chips/metre
288
Track width (mm)
12
Use Outdoor
Yes
Adhesive
3M
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
