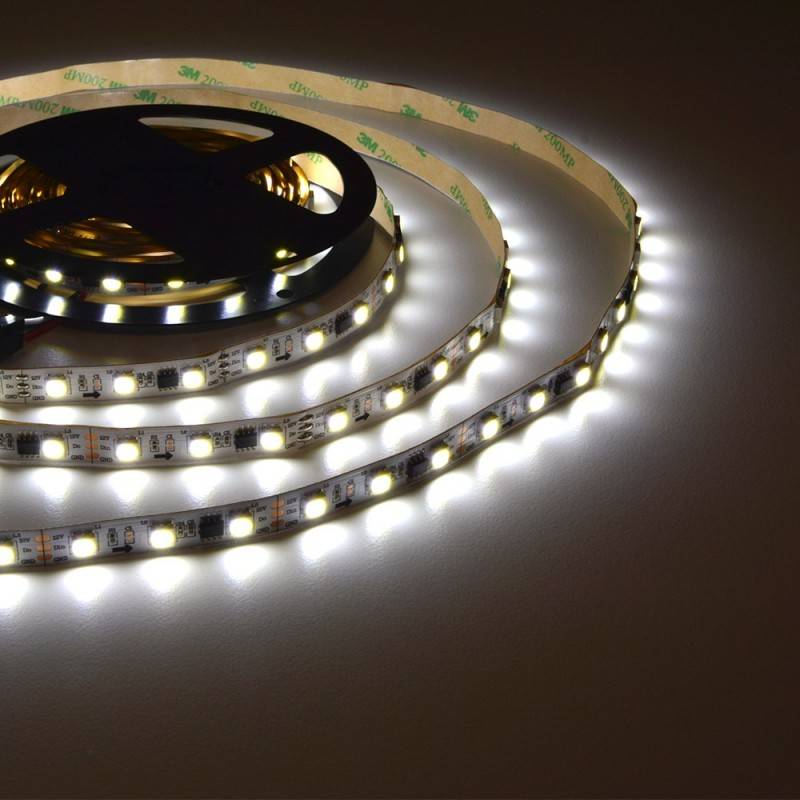

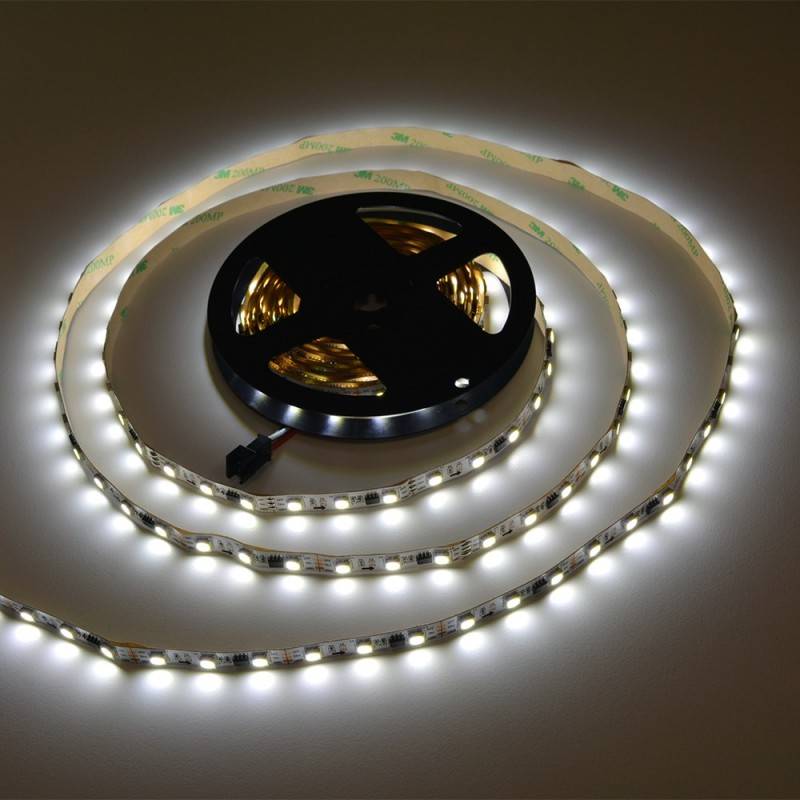

Intelligent LED Strip IC 12V DC - 14,4W/m - IP20 - 60 LED/m - Width 10mm - 6000K - 5 meters
INTELLIGENT DIGITAL IC LED STRIP, 12V 72W 300 CHIPS SMD5050, IP20
-
72W 12V LED Strip
-
5 meter reel
-
Cool white 6000K
-
60 chips/meter SMD5050
-
WS2811 IC control chip
-
Cutting distance 50mm
-
IP20 protection degree
-
PCB width: 10mm
-
Flexible, high brightness and luminosity
-
Power supply required (not included)
Intelligent LED strips, 3-core groups, to form translation, flickering, motion and rhythm effects. Strip width 10 mm, with 3M self-adhesive strip on the back side.
Available in cool white (6000K). Responds to sound with the corresponding B1610-WIFI controller (sold separately).
With proper programming, soundbar arrays and effects can be formed. With over 2048 programmable effects and variable speed and intensity, the combinations with each other are endless.
The IP20 rated strips are designed to be installed indoors, on an aluminum metal profile for a perfect finish and efficient heat dissipation. In case you want to install it outdoors, it must be installed inside completely watertight profiles, and it is advisable to protect it with a silicone cover. For outdoor use we have the reference: B1542-3IC-BF.
Meaning of the colored wires:
Red: positive
White: negative (GND)
Green: data
ROHS
