Hippo SMD single colour Strip-to-Strip connector - 10mm PCB - 2 pin - IP20 - Max 24V
Hippo SMD single colour Strip-to-Strip connector - 10mm PCB - 2 pin - IP20 - Max 24V
Hippo SMD single colour Strip-to-Strip connector - 10mm PCB - 2 pin - IP20 - Max 24V
Hippo SMD single colour Strip-to-Strip connector - 10mm PCB - 2 pin - IP20 - Max 24V
Hippo SMD single colour Strip-to-Strip connector - 10mm PCB - 2 pin - IP20 - Max 24V

Hippo SMD single colour Strip-to-Strip connector - 10mm PCB - 2 pin - IP20 - Max 24V

SKU:SEN10BB-2
Has superado el límite de unidades
In stock 907 unidades

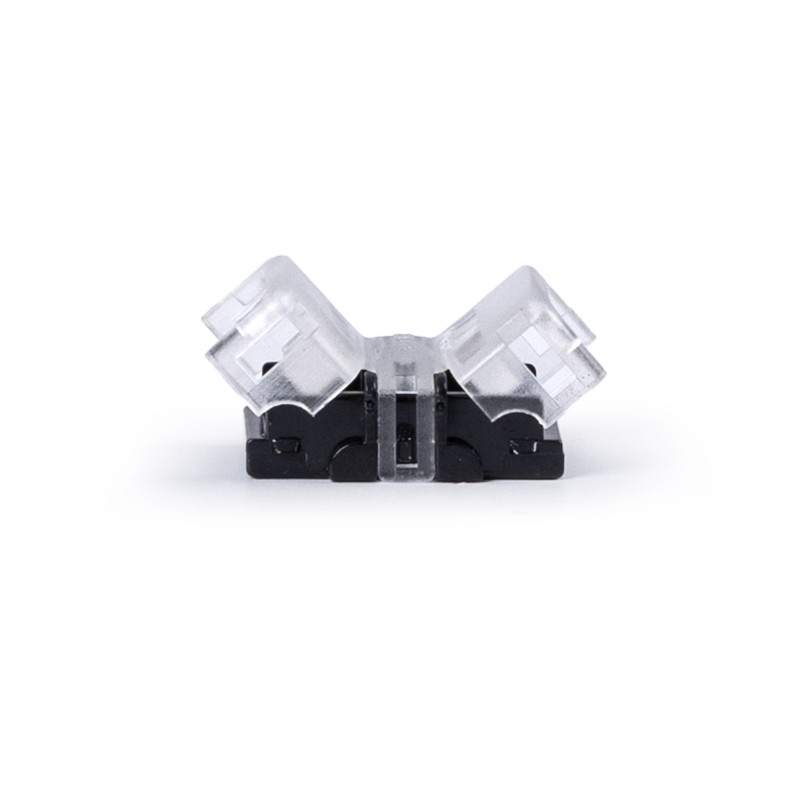

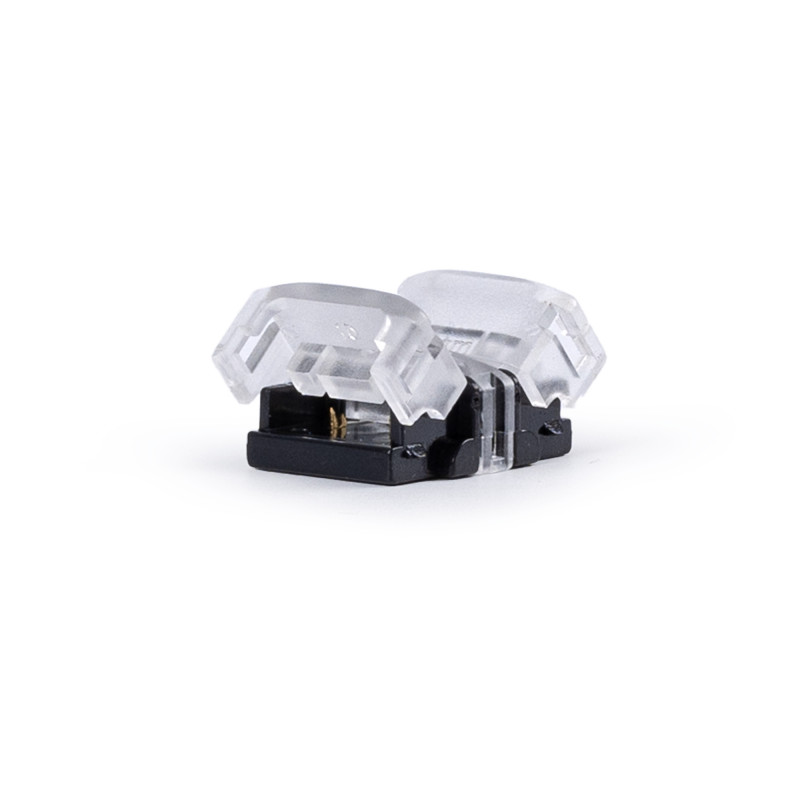

Hippo quick connector for LED strip-to-strip connection.

Suitable for single colour SMD LED strips with 10mm PCB.

IP20 protection. Supports voltages between 3-24V.

Hippo 2-pin connector strip to strip - 10mm PCB - IP20 - Max 24V

Hippo quick connector for connection of two 10mm PCB LED strips.

It's valid for all single colour SMD IP20 LED strips with a 10mm wide PCB and a maximum of 24V.

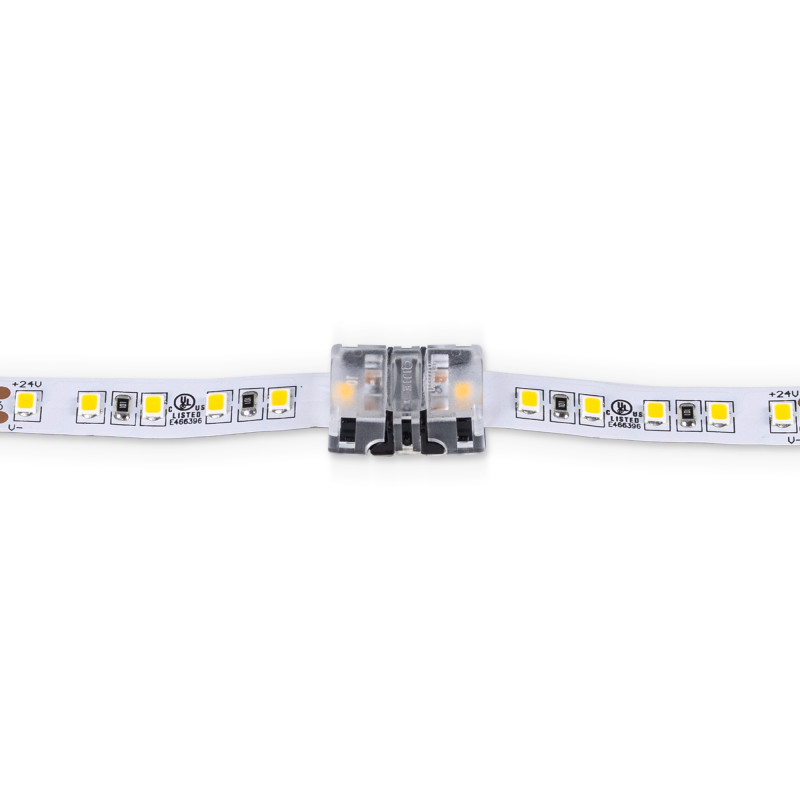

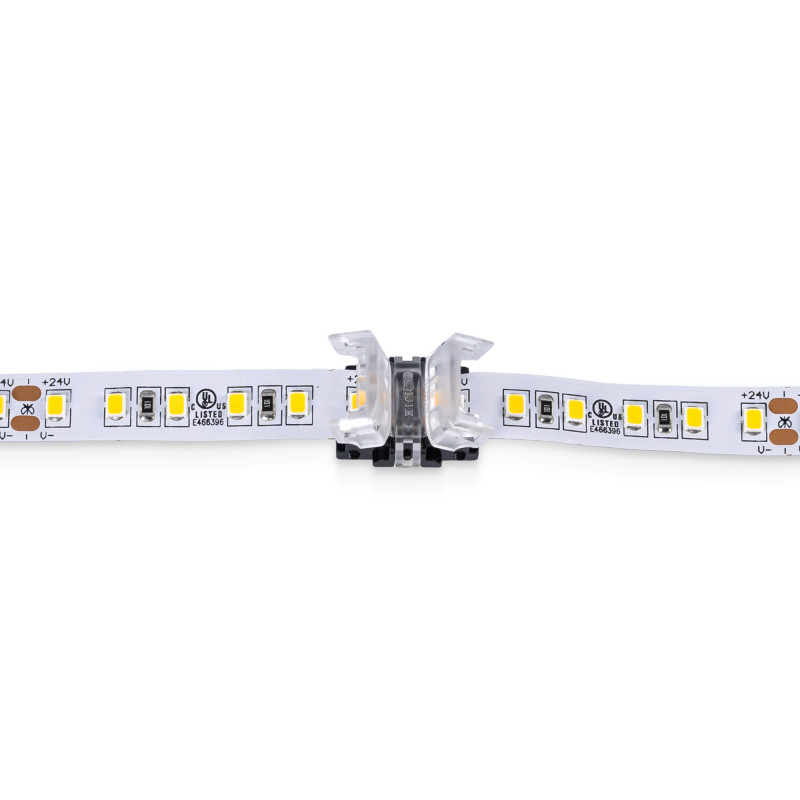

For installation, insert the strips into the terminals of the HIPPO connector. Then close the caps gently until you hear a click.

Product features:

  • Input voltage: 3-24V DC
  • Maximum current: 3.5A
  • LED strip type: SMD
  • PCB width: 10mm
  • Number of pins: 2
  • Dimensions: 19.6 x 14.6 x 7.7mm
  • Indoor use: IP20

Nominal Voltage (V)
3-24 V
IP
IP20
Dimensions (mm) Lxlxh
19.6 x 14.6 x 7.7
Track width (mm)
10
Material
Polycarbonate
Use Outdoor
No
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Maximum intensity (A)
3.5
ONLUMI
