Hippo COB CCT strip-to-controller connector - 10mm PCB - 3 pin - IP20 - Max 24V
Hippo COB CCT strip-to-controller connector - 10mm PCB - 3 pin - IP20 - Max 24V
Hippo COB CCT strip-to-controller connector - 10mm PCB - 3 pin - IP20 - Max 24V
Hippo COB CCT strip-to-controller connector - 10mm PCB - 3 pin - IP20 - Max 24V
Hippo COB CCT strip-to-controller connector - 10mm PCB - 3 pin - IP20 - Max 24V

Hippo COB CCT strip-to-controller connector - 10mm PCB - 3 pin - IP20 - Max 24V

SKU:MN20-X10C-3PW
Has superado el límite de unidades
In stock 453 unidades

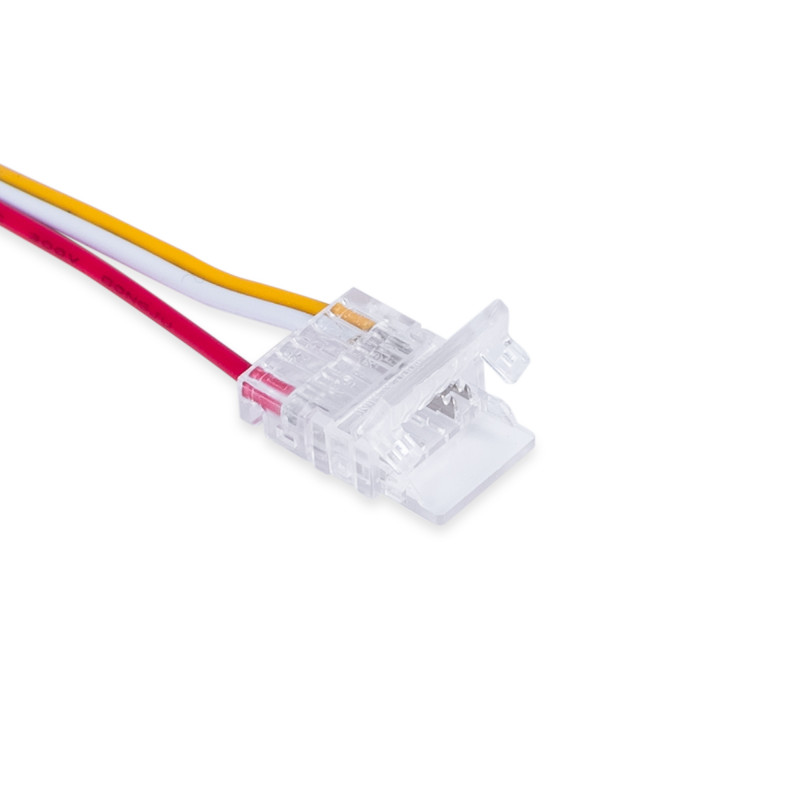

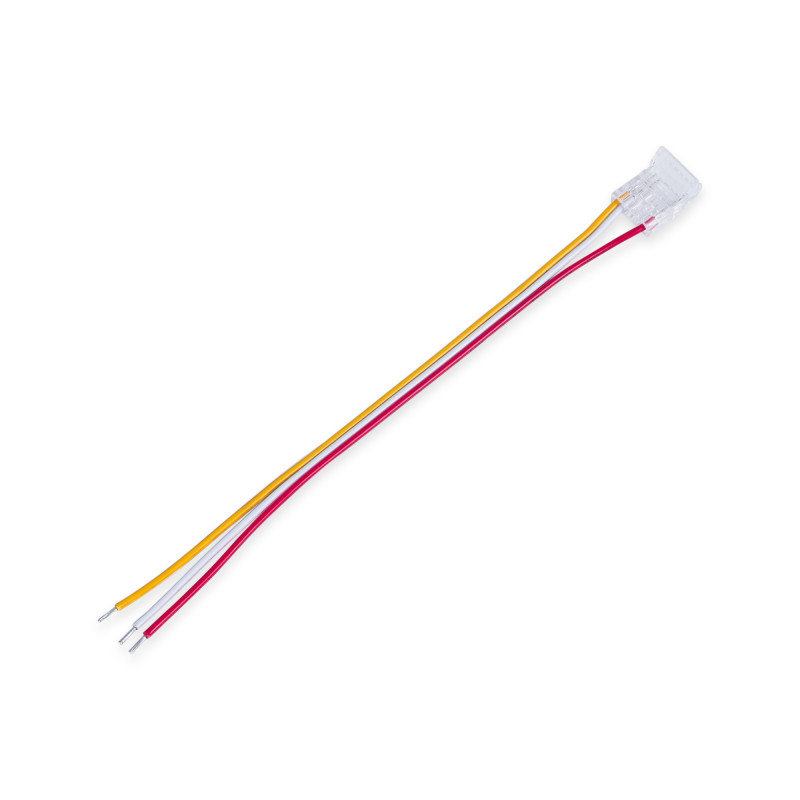

Hippo quick connector for LED strip to controller connection. Suitable for CCT COB LED strips with 10mm PCB.

IP20 protection. Supports voltages between 3-24V.

Hippo 3-pin connector strip to controller - 10mm PCB - IP20 - Max 24V

Hippo quick connector for connection of 10mm PCB LED COB strip to controller.

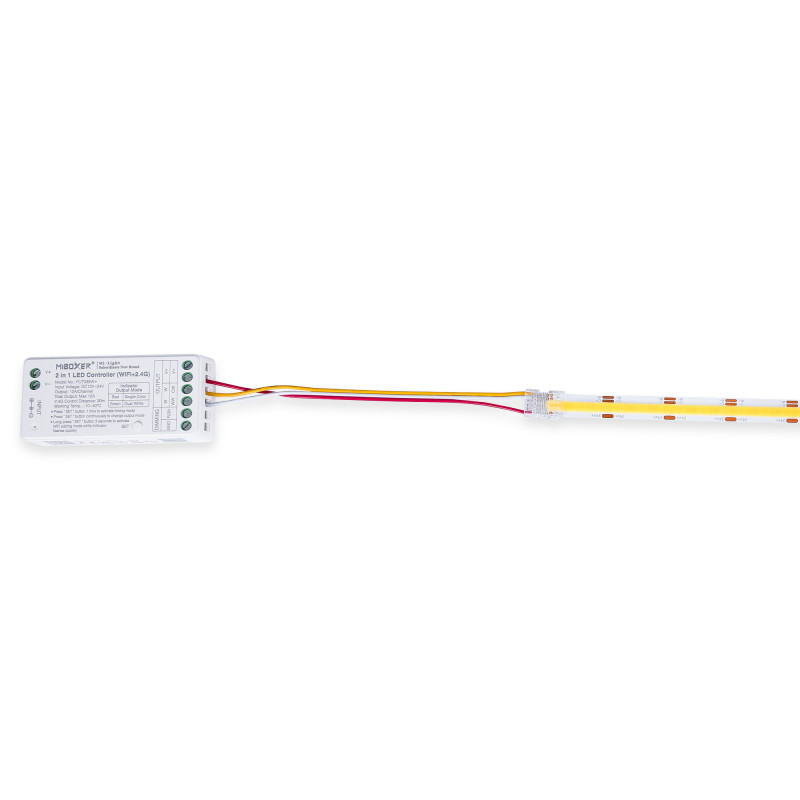

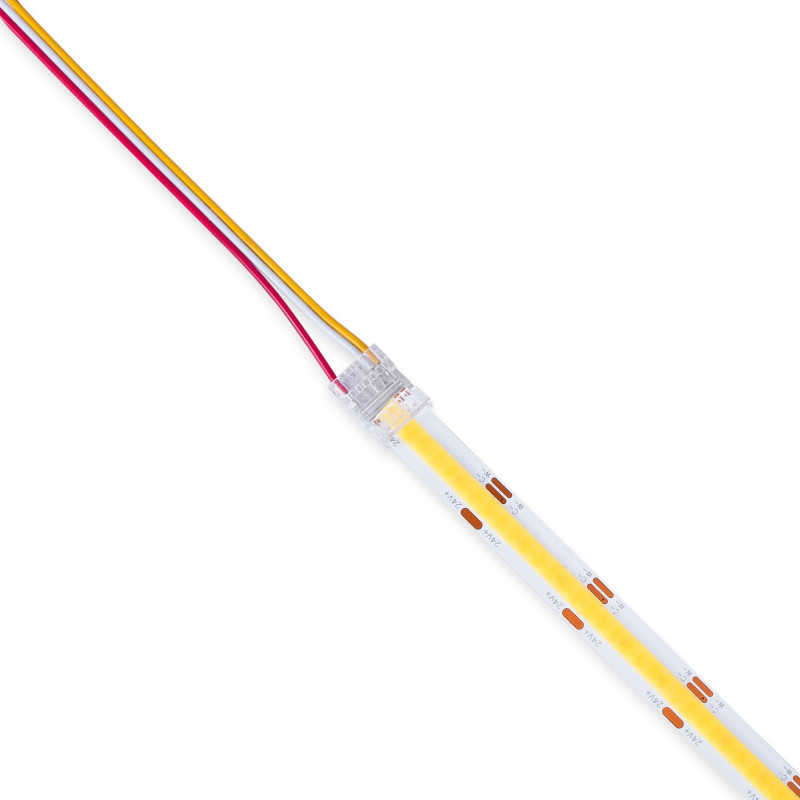

For installation, insert the strip into the terminals of the HIPPO connector. On the other end, connect the wires and then close the caps gently until you hear a click.

Due to its small dimensions, it can be used in tight spaces such as aluminium profiles, slots, and furniture gaps.

It's valid for all COB CCT LED strips with a 10mm wide PCB and a maximum of 24V.

Product features:

  • Input voltage: 3-24V DC
  • Maximum intensity: 3.5A
  • LED strip type: COB and SMD
  • PCB width: 10mm
  • LED strip width: 0.25~0.35mm
  • Number of pins: 3
  • Supported wire gauge: 22AWG (OD<1.70mm)

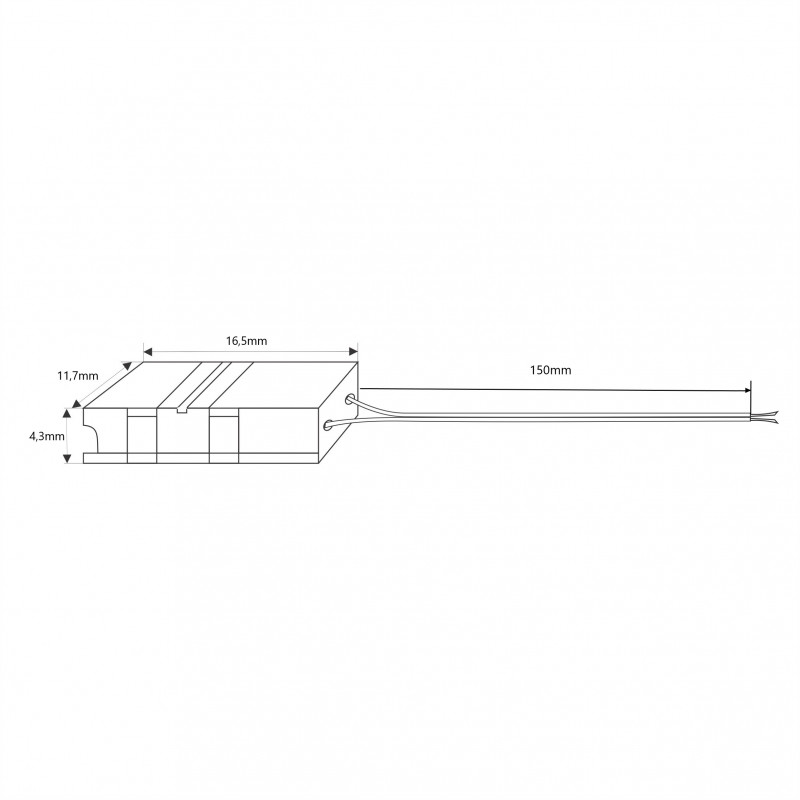

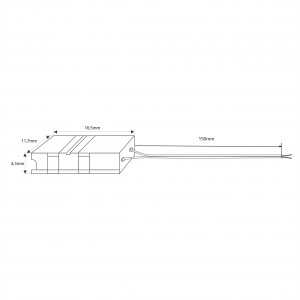

  • Dimensions: 16.5 x 11.7 x 4.3mm
  • Indoor use: IP20

Nominal Voltage (V)
12-24V
IP
IP20
Dimensions (mm) Lxlxh
16.5 x 11.7 x 4.3
LED Type
COB
Material
Polycarbonate
Use Outdoor
No
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Maximum intensity (A)
3.5
