RGBW LED modules for signage 0.96W 12V-DC IP65
RGBW LED modules for signage 0.96W 12V-DC IP65

RGBW LED modules for signage - 0.96W - 12V - IP65 - 140º.

SKU:BM1431RGBW
Has superado el límite de unidades
In stock 45 unidades

The RGBW LED modules offer homogeneous and decorative lighting ideal for advertising signs and special projects.

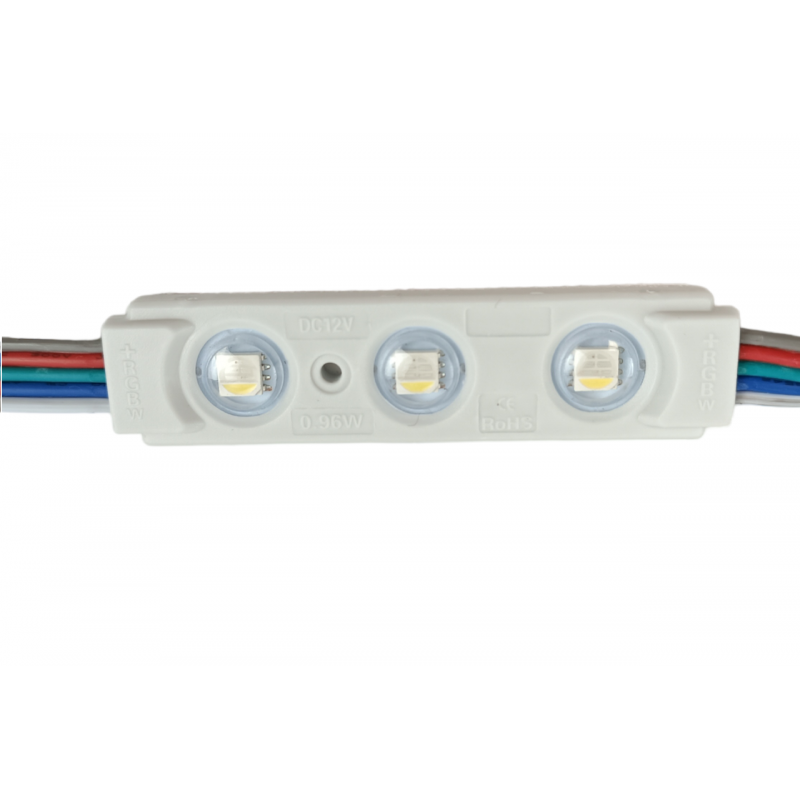

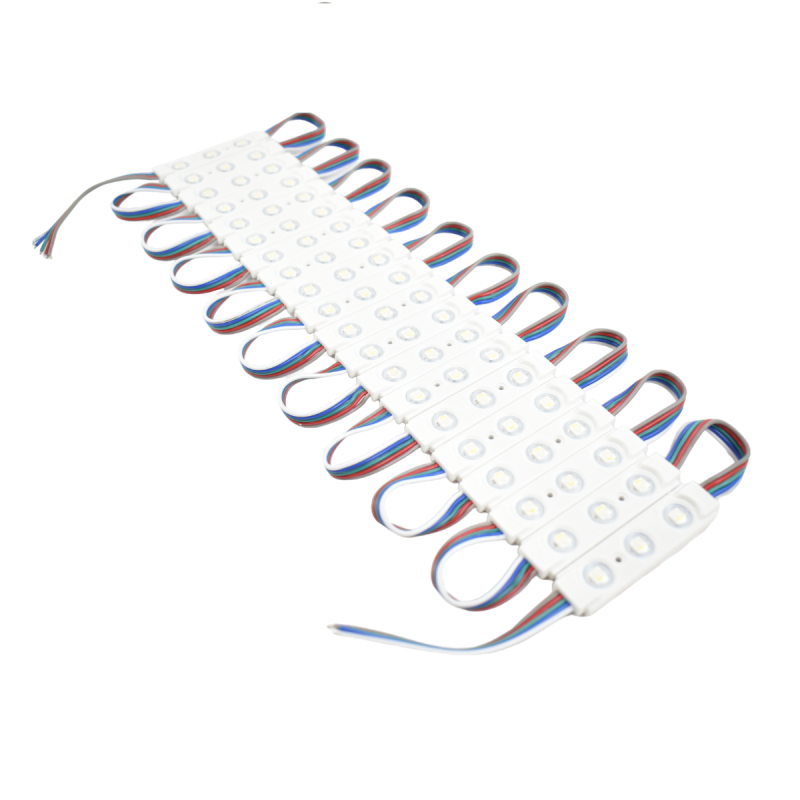

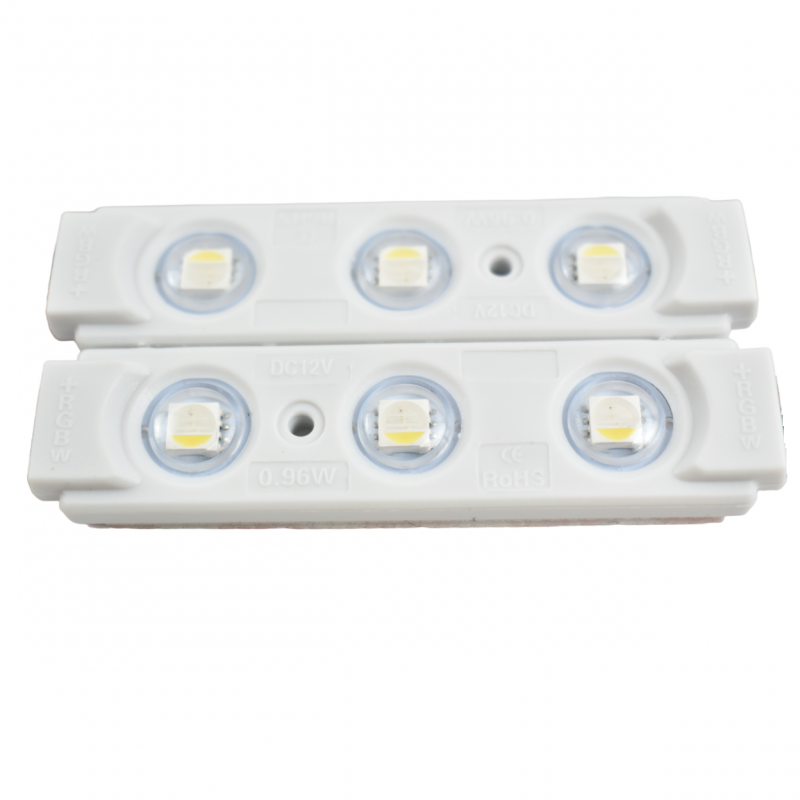

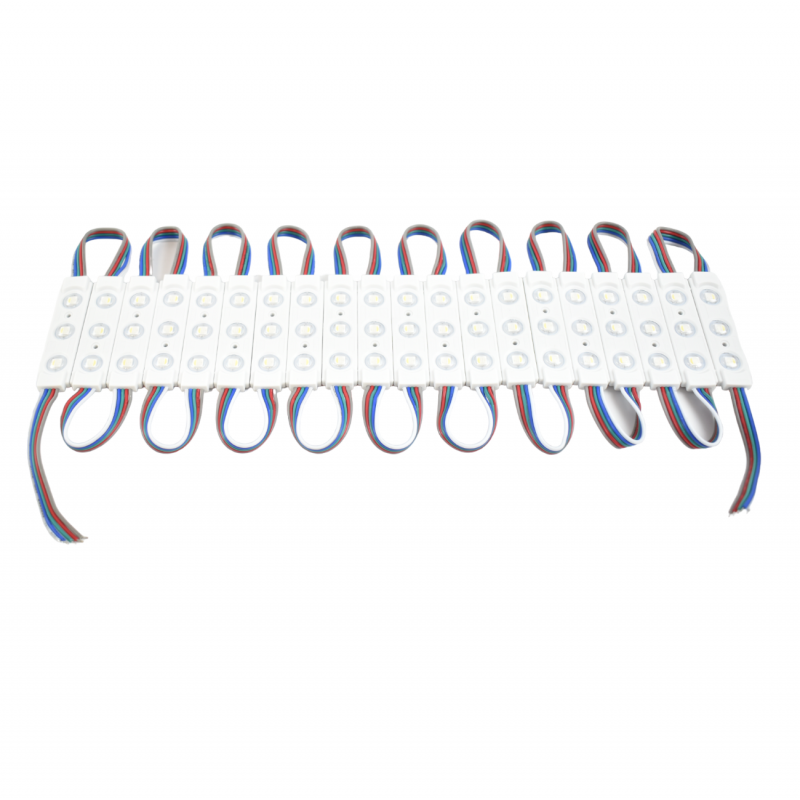

Each module has 3 integrated SMD5050 LEDs, a power of 0.96W and 3M self-adhesive on its base. The string includes 20 modules, with a total power of 19.2W.

Its installation is very simple and due to its high degree of watertightness, IP65, this product can be used outdoors.

*Price is per module or tablet*.

RGBW LED modules specially designed for signage and illuminated signage. They emit a high quality light and thanks to their RGBW system, they offer infinite decorative possibilities.

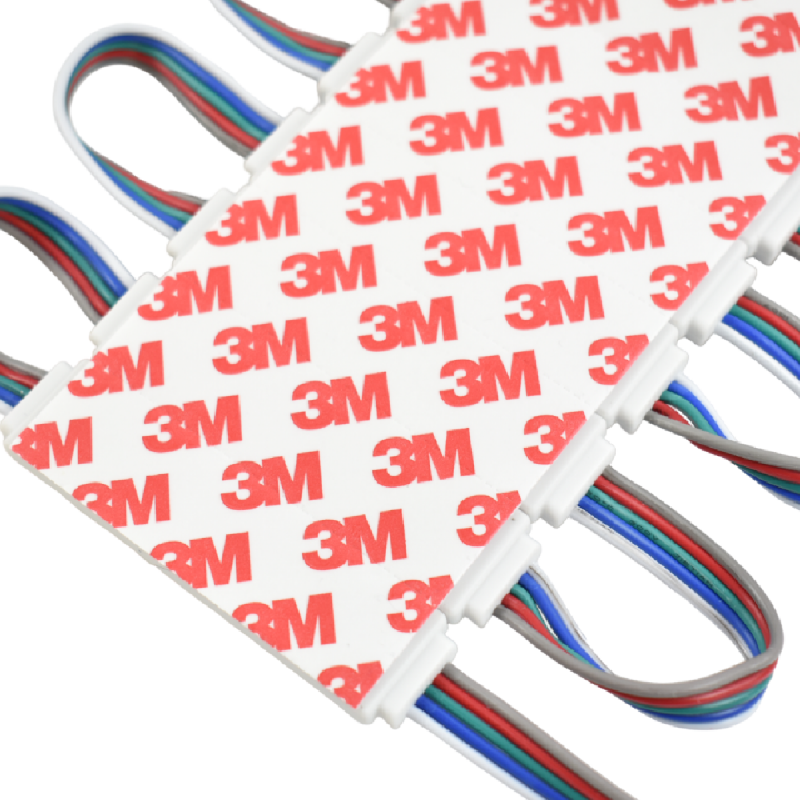

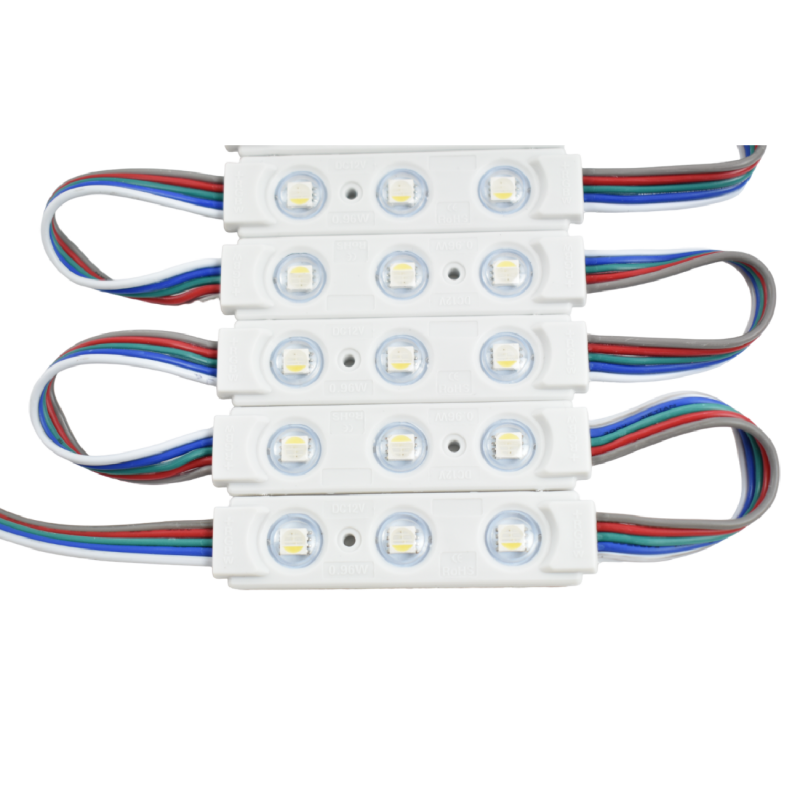

Each module is connected to the next one by means of a cable, which provides great flexibility in sign design. They adapt to any type of space and assembly is very simple, by means of the self-adhesive strips included in the base of each module.

The modules are made of highly resistant polycarbonate and have IP65 degree of protection, so they are suitable for both indoor and outdoor use.

Their 12V operation requires the use of a transformer or a suitable power supply. In addition, to change colors, create effects or specific sequences in the LED modules, it is necessary to connect an RGB controller.

This product is sold individually. The detailed price is per module or tablet incorporating 3 chips.

Main characteristics of the product:

  • Material: polycarbonate
  • Voltage: 12 V/DC
  • LED type: SMD5050
  • Module power: 0.96W
  • String power (20 modules): 19.2W
  • IP65: suitable for outdoor use
  • Color: RGBW

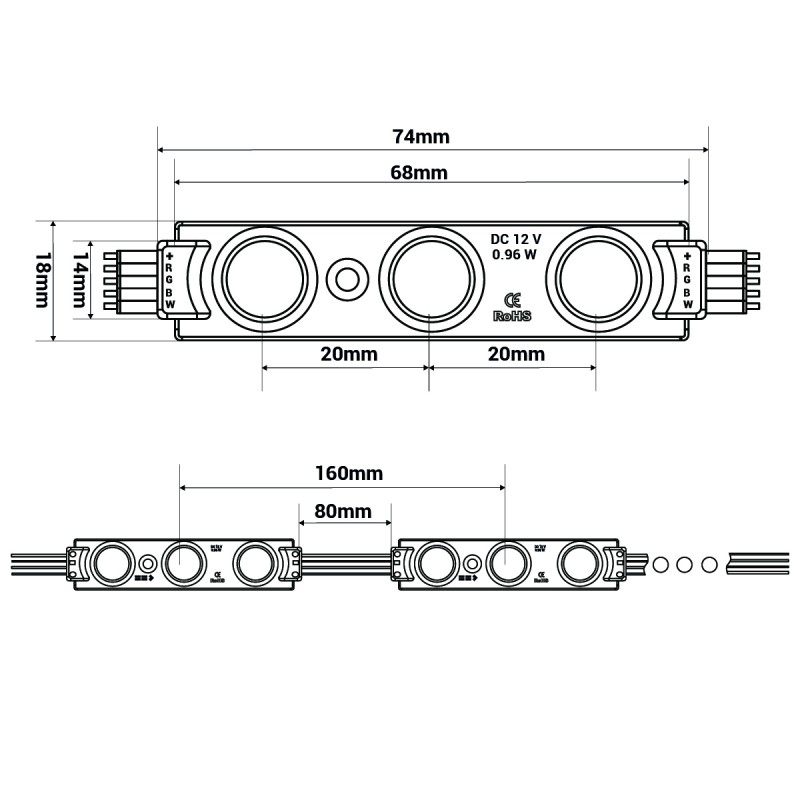

  • Module dimensions: 74 x 18 mm
  • Distance between modules: 80 mm

Nominal Voltage (V)
12V-DC
Power (W)
0,96
IP
IP65
Dimensions (mm) Lxlxh
Module: 74 x 18
Hue
RGB-W
LED Type
SMD 5050
Material
Polycarbonate
Use Outdoor
Yes
Adhesive
3M
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
