LED module for signage SMD2835 1W 12V 170º IP65

1W IP65 LED modules for signage

The LED modules or sign modules are the solution to illuminate backlit surfaces such as posters or illuminated signs with opal or semitransparent coverage. They are especially useful in those curved or irregular surfaces where the LED strip or fluorescent tubes are not the most suitable solution.

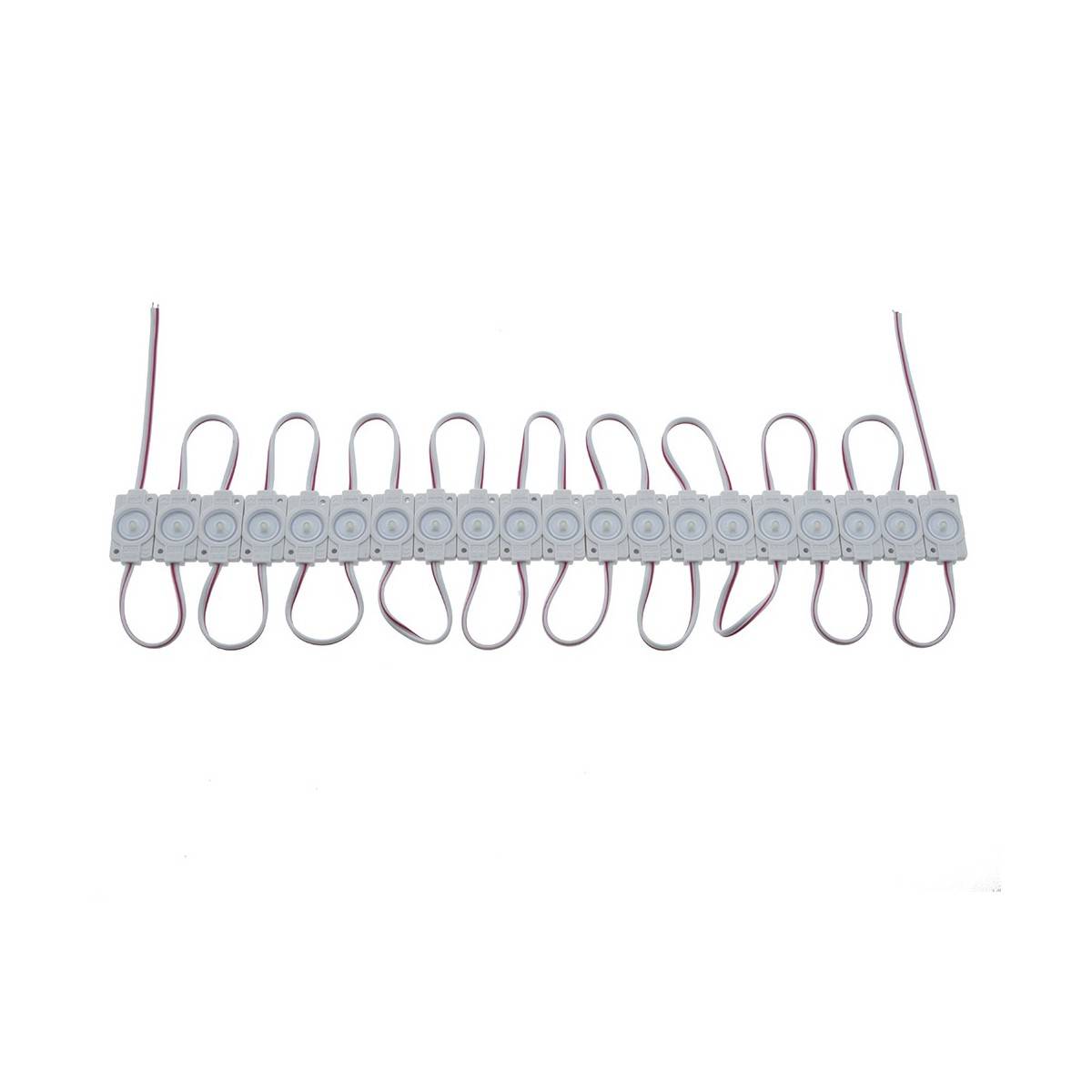

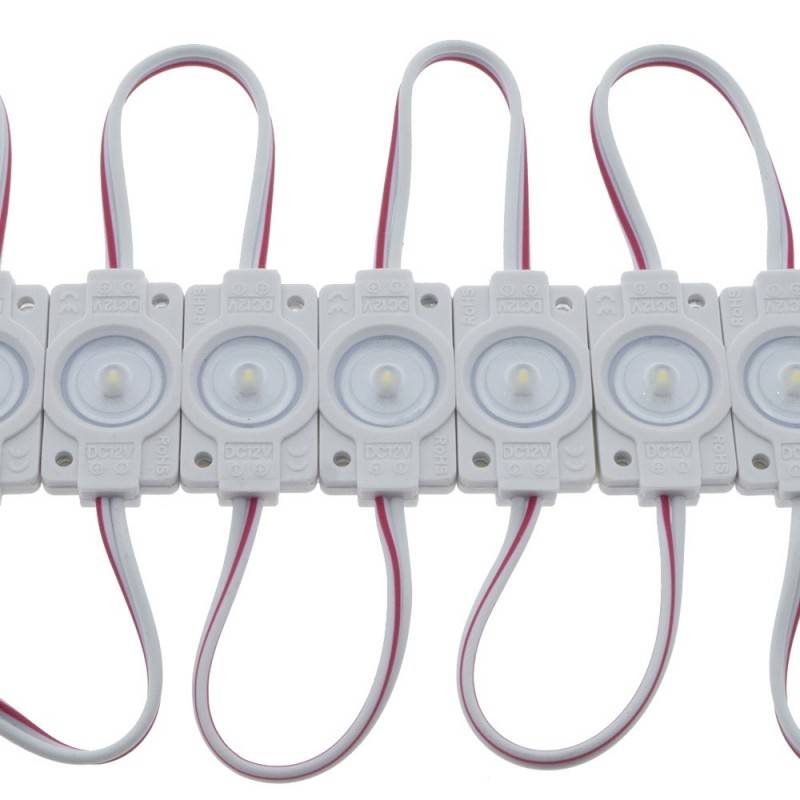

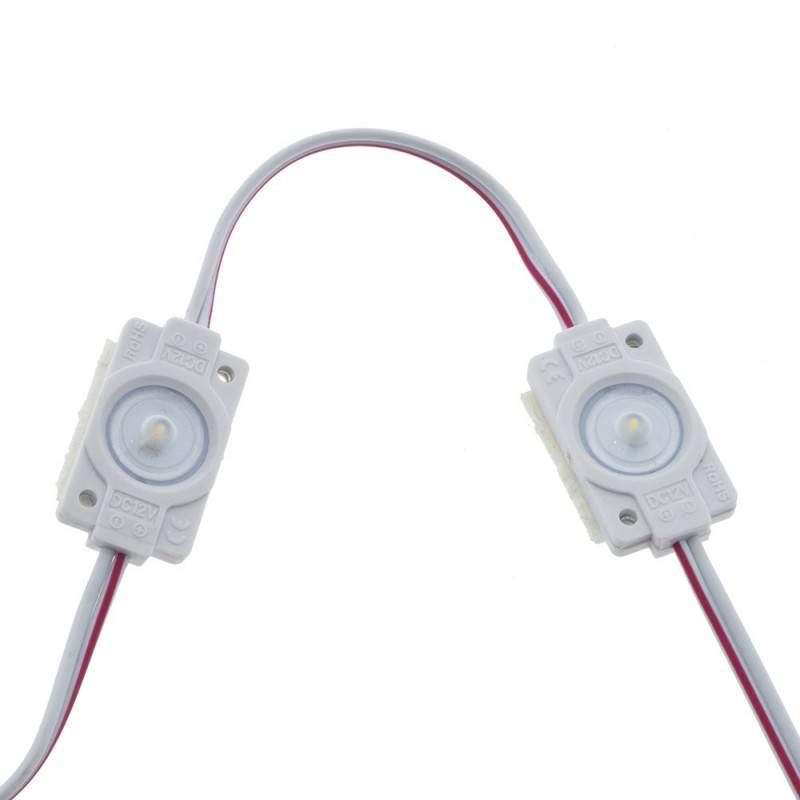

Each LED module consists of 1 high brightness SMD2835 chip mounted on a watertight plastic block with transparent optics of 170º opening. The modules are interconnected by a 9cm long cable, so that the whole assembly can reach up to 2680mm.

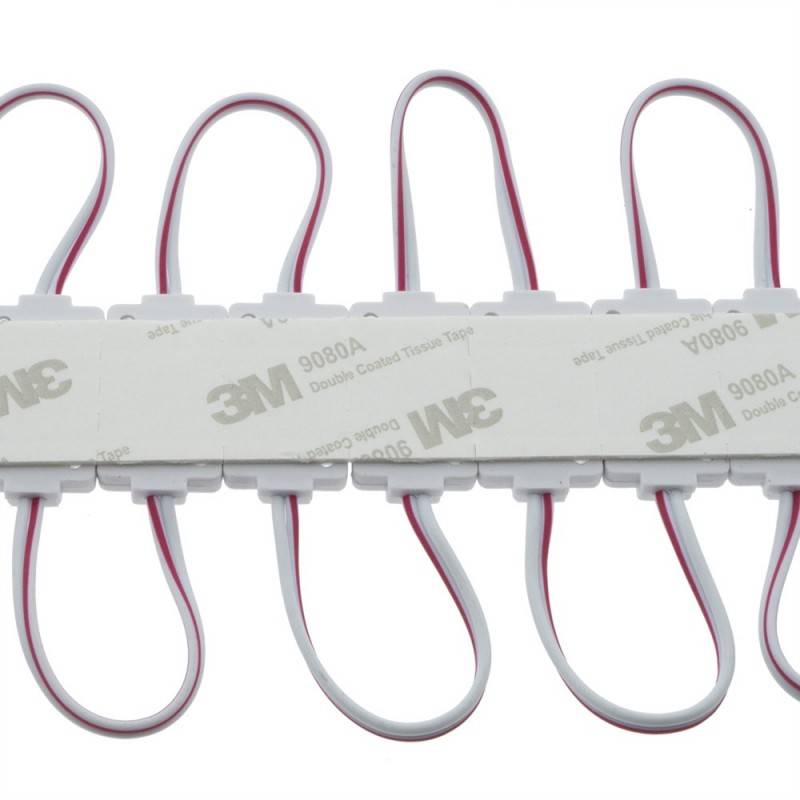

LED modules with 3M adhesive tape on the back, very easy to separate by cutting with cutter and scissors. Subsequently, the protective plastic is separated from the 3M and glued in the chosen places, in line or forming curves.

High performance with simple assembly

Despite its small size, the LED module offers a total of 1W of power each. The illumination is equivalent to 2 fluorescent tubes of 120cm. The connection is made to a 12V power supply (not included).

• Dimensions of the tablets: 18x33mm
• Thickness of the tablets: 8mm
• Length of the cable between pads: 90mm
• Available in cool white 6500K
• Dimmable / Dimmable

Applications of the LED modules

• Its most common application is signage, such as illuminated signs, giant letters illuminated from the inside, logos, luminous advertising boxes...
• Illumination of objects inside such as modding in computers or inside furniture or boxes.
• Illumination of fish tanks and aquariums.
• Decoration of exteriors
• Backlighting in general.
