Integral plaster luminaire with wave effect - 300 x 300 mm - GU10

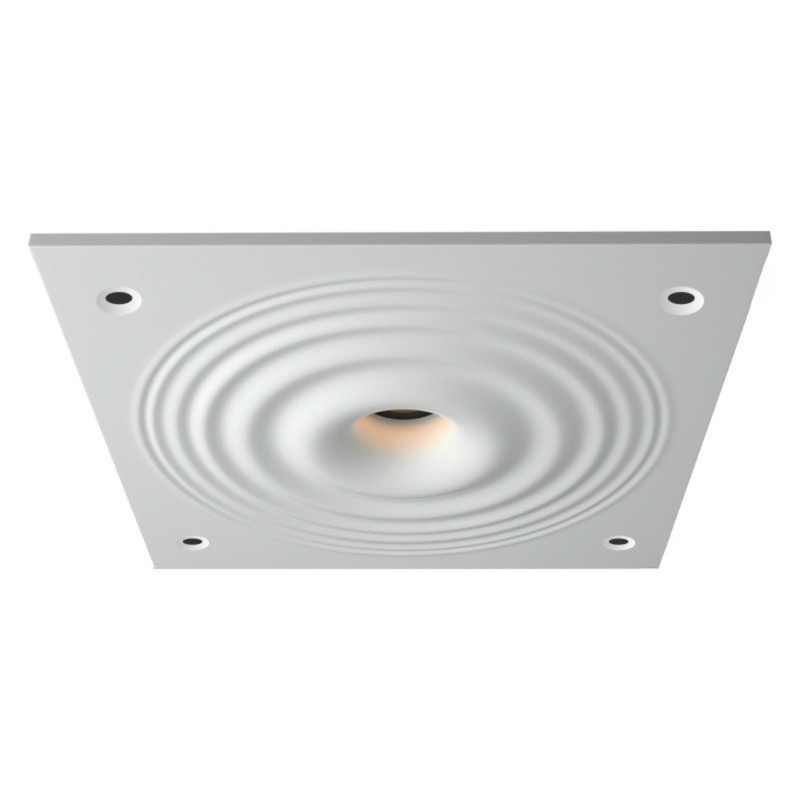

Plasterboard recessed luminaire with wave design: continuous and minimalist aesthetics.

This recessed luminaire is designed to integrate perfectly into plasterboard ceilings, offering a uniform visual finish thanks to its fading wave design. Made of white plaster, it can be painted to harmonize with any environment.

• Wave design that blends in with the ceiling.


• Material: paintable plaster, non-toxic and non-flammable.


• Easy installation with screws and putty.

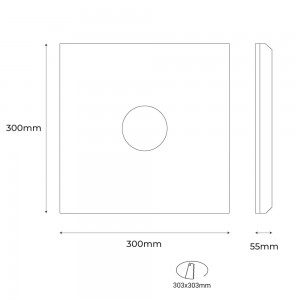

• Dimensions: 300 x 300 x 45 mm | Cut: 303 x 303 mm.


• Support for GU10 bulb (not included).


• Ideal for projects that require a discreet and elegant architectural lighting.

Installation instructions

1. Ceiling cutout
   Cut a hole in the plasterboard of 303 x 303 mm, according to the size specified for this model.

2. Positioning the luminaire
   Insert the luminaire into the cavity, making sure it fits correctly.

3. Fixing
   Insert the side wings into the recess and fix them to the plasterboard with screws. Check that the luminaire is firm and level.

4. Sealing and finishing
   Apply bonding paste and joint paste around the perimeter to cover joints and ensure integration.

5. Sanding and painting
   Once the putty is dry, sand the surface to a smooth finish. Paint in the desired color for full integration.

6. Electrical connection
   Make the electrical connections and install the GU10 bulb (not included).
