LED recessed emergency light 150lm 2,5W - 3 hours IP20

Emergency recessed luminaire with 150 lumens and 3h autonomy.

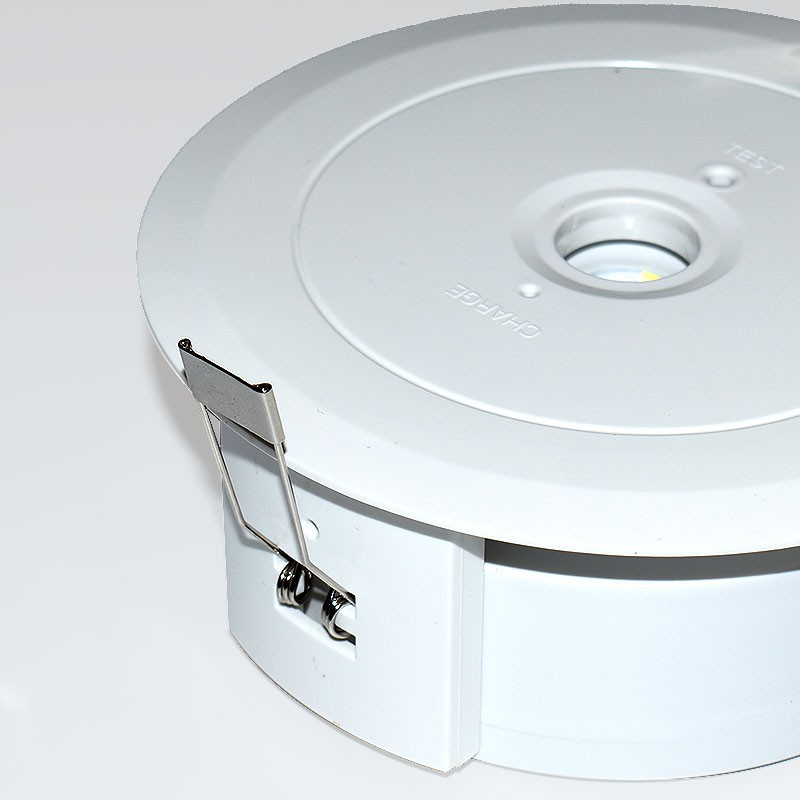

The recessed LED emergency light includes a red pilot light with "CHARGE" indicator. If the red light is on, it indicates that the lamp is charging and the power supply is flowing properly. When a power failure occurs, the red light turns off, and the lamp will light up.

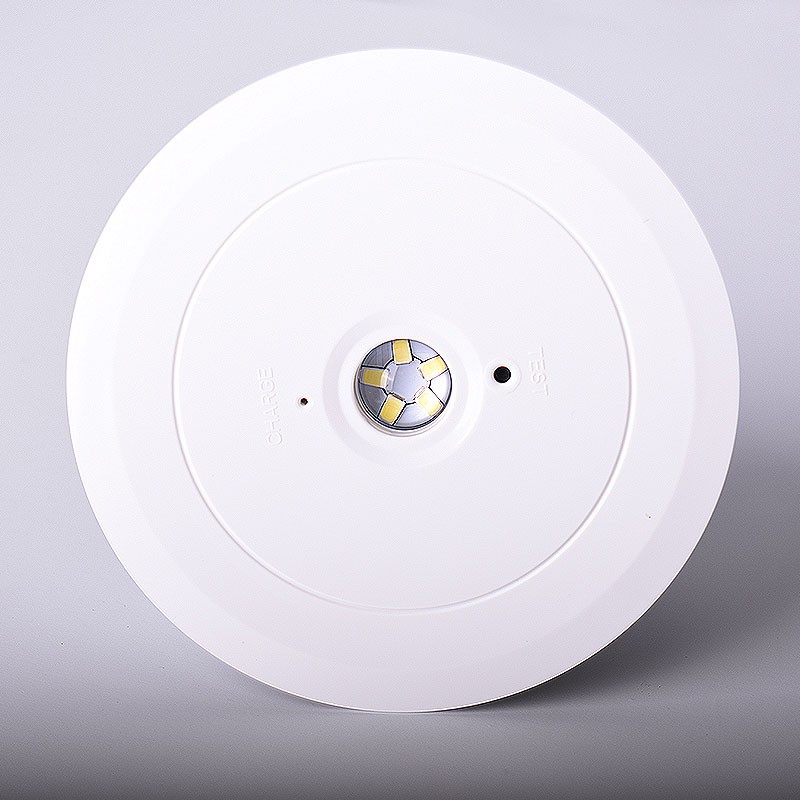

In accordance with current regulations, it incorporates a "TEST" button on the front of the lamp. The lamp activation occurs instantaneously after the interruption of the power supply, without flickering and without heating.

Technical characteristics:

✔ Integrated battery: Ni-mH, 3.6V, O.6Ah.
✔ Voltage: 230V/AC
✔ Approx. battery life: 3 hours at full charge.
✔ Luminous flux: 150 lumens.
✔ IP20

Instructions for use:

✔ Before installation, disconnect the power supply.
✔ Do not install this product in an environment of exterior doors, humidity and corrosive gases.
✔ Use only one circuit, do not connect with other lights, to ensure normal emergency recharging.
✔ Check regularly for proper operating conditions.
✔ When long-term storage or out of service, check the light condition every three months to maintain battery performance.

Installation:

The installation method of the emergency light is as follows:

✔ Open the product (turn the bottom).

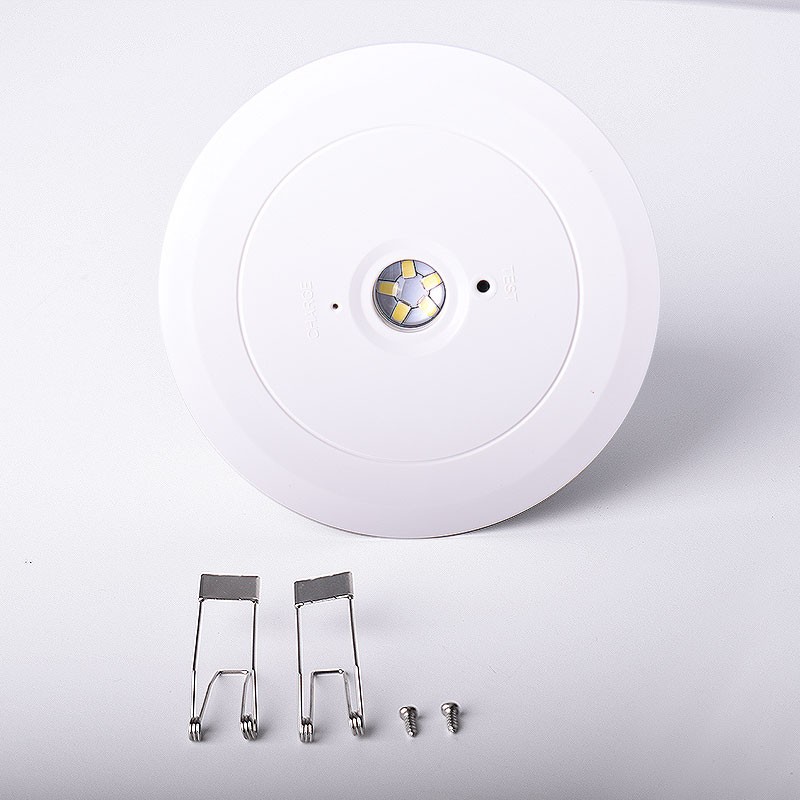

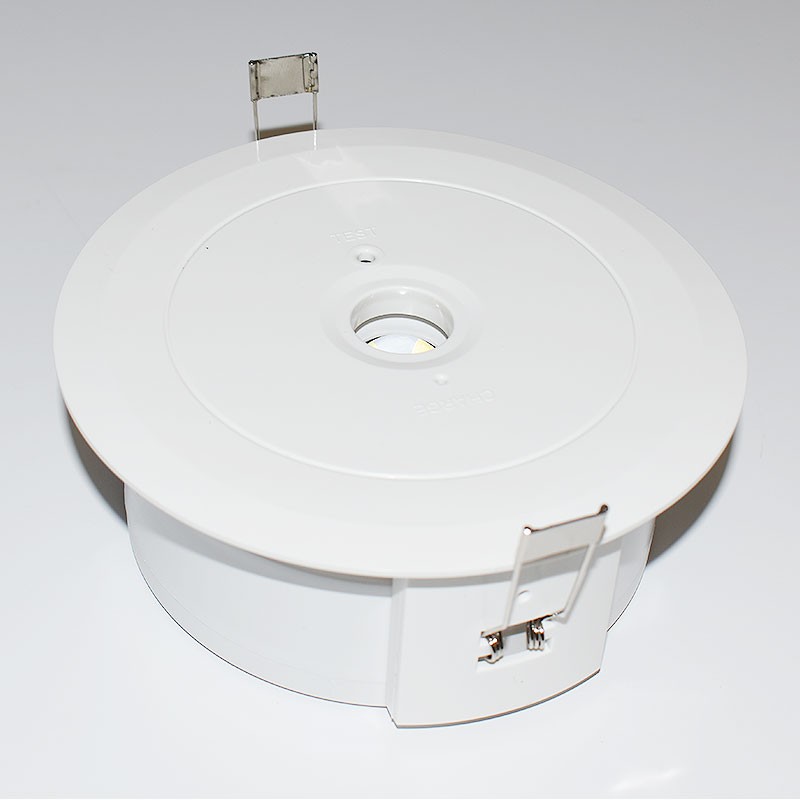

✔ Use the recessed clips to recess and attach the luminaire to the hole made in the ceiling.
✔ Pass the AC cable through the hole in the lower housing and connect the main circuit board to the L and N terminals.
✔ Close the diffuser.
✔ Connect to the AC power supply.
