Surface-mounted weatherproof box for emergency light - IP65

Surface-mounted weatherproof box for emergency light - IP65

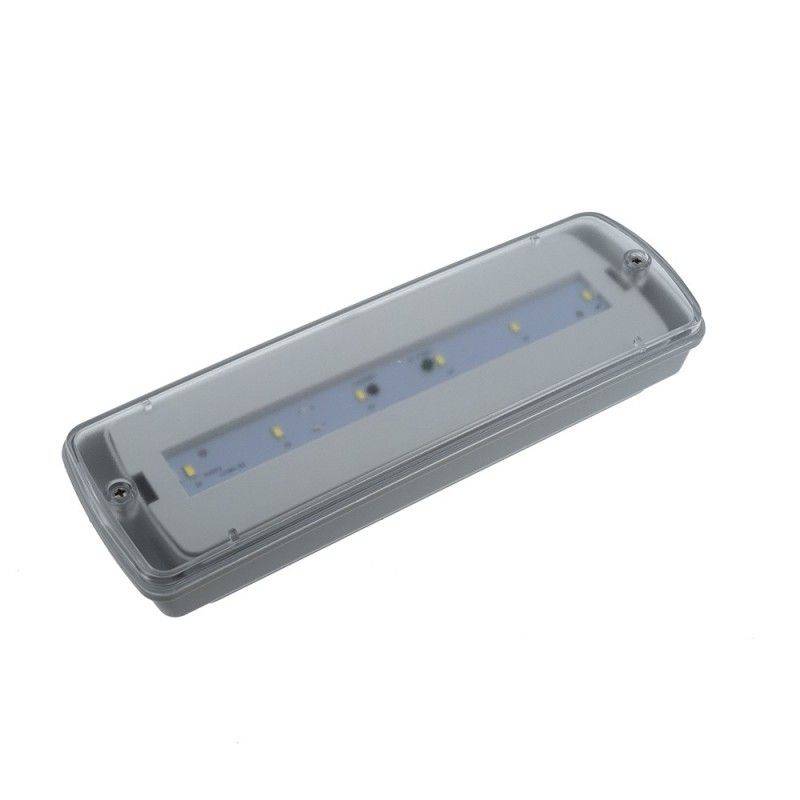

This watertight enclosure, designed for the B1050 emergency luminaire, offers an IP65 protection level.

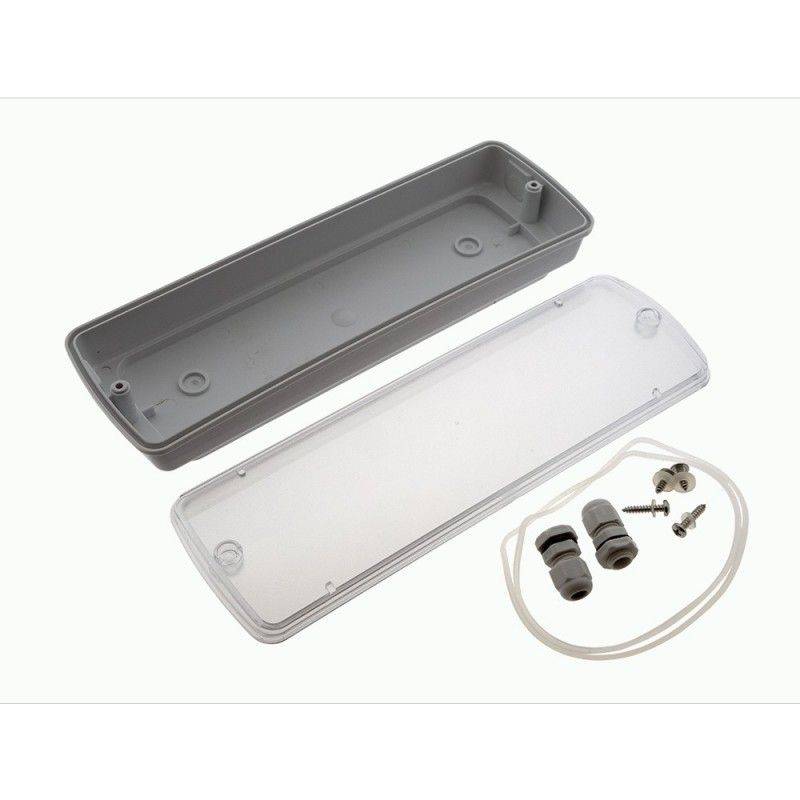

Made of resistant ABS plastic with a glazed transparent polycarbonate diffuser, it's equipped with all the necessary fastening, mounting and sealing elements.

Installation

1. For proper mounting of the B1050 emergency luminaire in the watertight housing, the surface fitting and the luminaire diffuser must be removed, exposing the LED plate.
2. In the watertight housing, the sides must be drilled according to the markings provided to pass the wiring, and then the tri-proof gaskets included in the package must be fitted. Subsequently, the emergency light is wired.

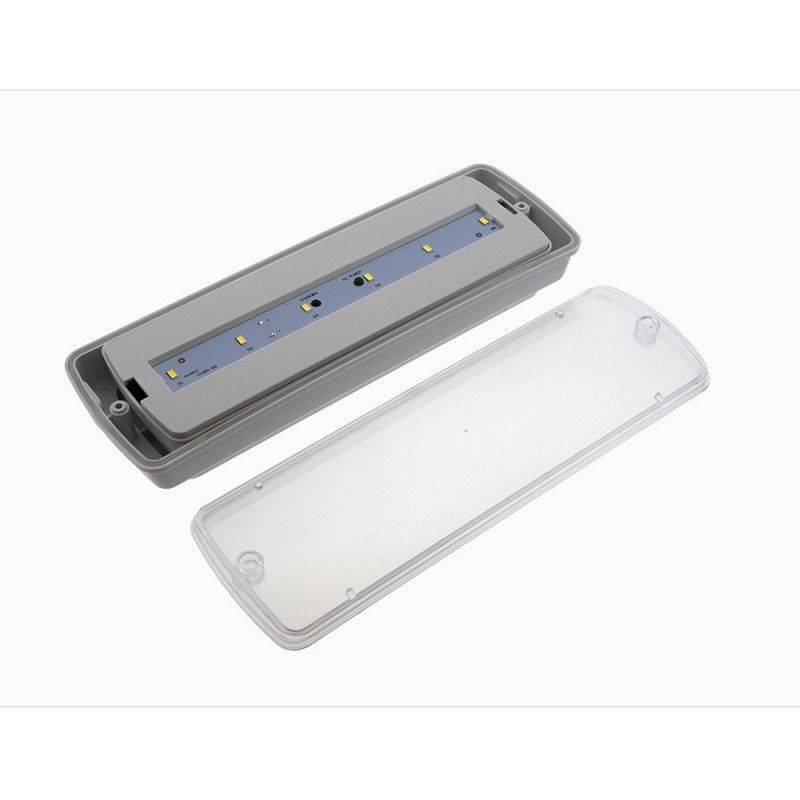

3. The lamp is fitted inside the watertight housing, and the rubber gasket is placed around the perimeter, making sure that it is perfectly integrated into the assembly.
4. Finally, the diffuser is placed in the housing and screwed to the sides.

Applications

This surface-mounted weatherproof housing is ideal for wet environments, exposed to splashes, rain or condensation. It's especially used in outdoor warehouses, subway parking lots, subway tunnels, among others.

Dimensions: 270 x 86 x 47mm
