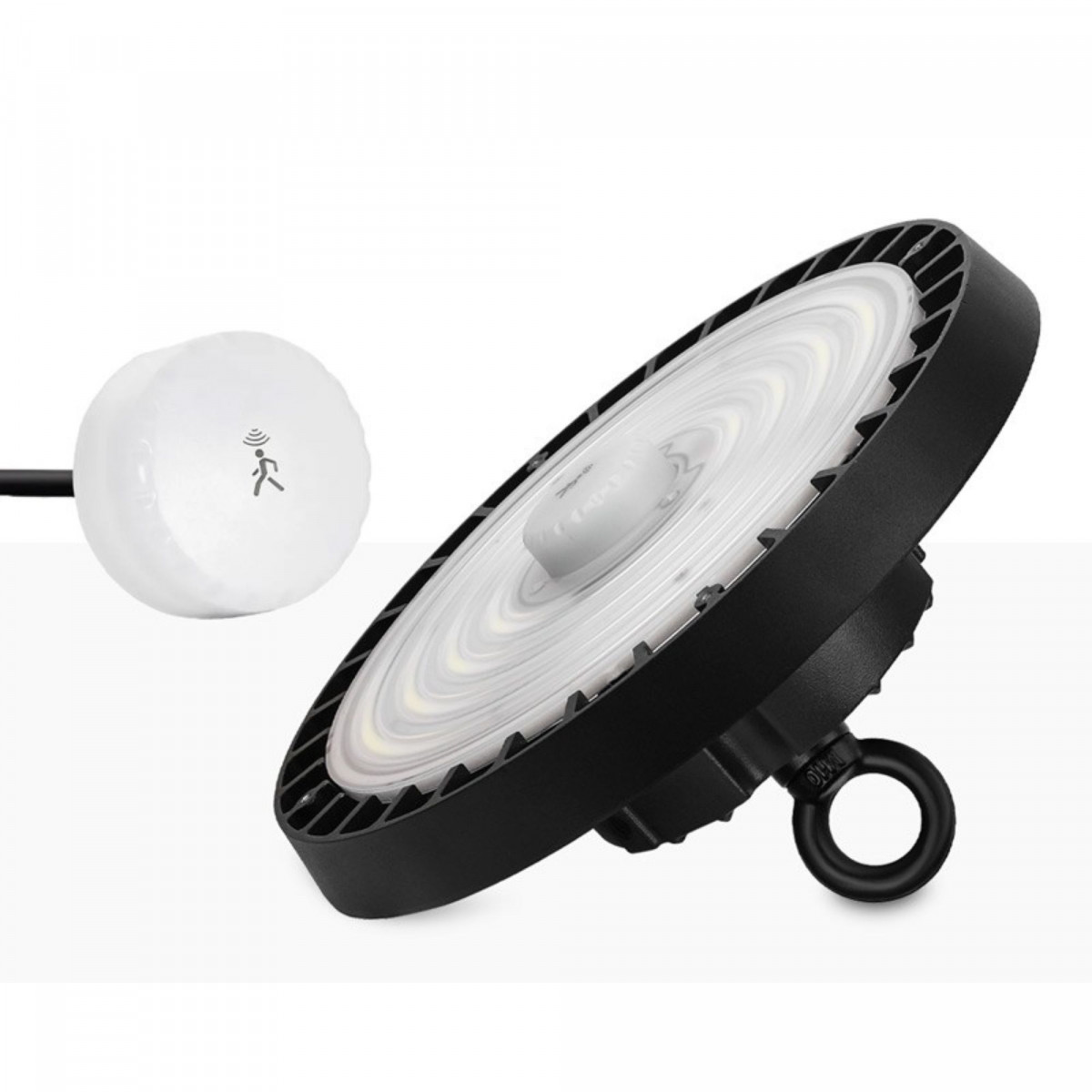

Dimmable LED High Bay 150W IP65 with motion sensor

SKU:K8138-150-4K-S
€129.95
€124.75 Tax included
Register as a professional and get your discount
Colour temperature
Has superado el límite de unidades
In stock 237 unidades
Data sheet

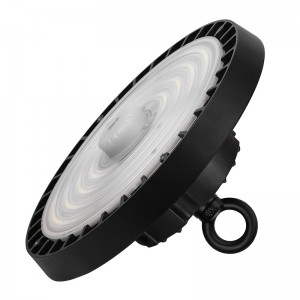

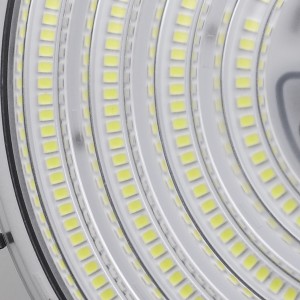

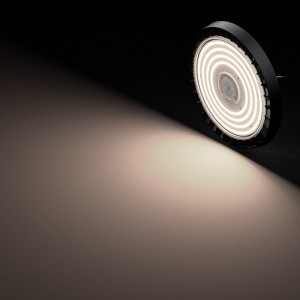

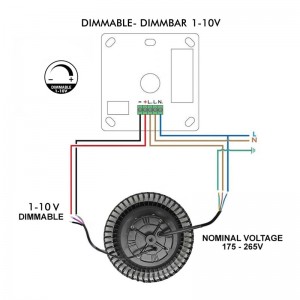

High power 150W industrial LED light fixture at 220-240V/AC. With circular design, extra flat and light, which allows to be installed easily and quickly. Available in warm white (3000K), neutral white (4000K) and cool white (5000K). Ideal for industrial warehouses, large areas, workshops, sports and recreational spaces. Manufactured with Philips Lumileds LEDs of maximum efficiency, with 160lm/chips that will allow you to save on your electricity bill. 1-10V dimmable LIFUD driver with microwave motion sensor.

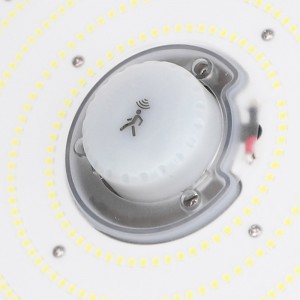

The motion sensor operates at 10-15V DC and has 3 switching modes. It activates, switches off or goes into "Standby" mode with movements and movements in its radius of action. This way you can save energy consumption and be more sustainable . It has an IP65 degree of protection , perfect for outdoor and indoor use exposed to humidity and high temperatures. It also includes a quick connector for easy and convenient installation.

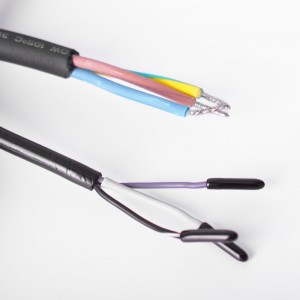

✔ Tin-plated cables for quick and convenient installation.
✔ LIFUD driver

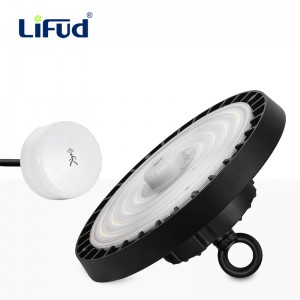

✔ Microwave motion sensor

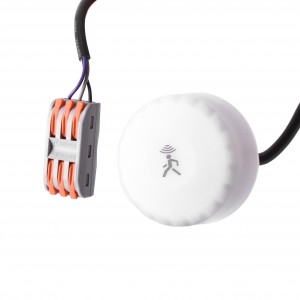

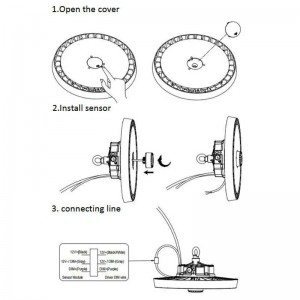

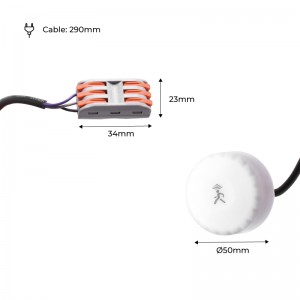

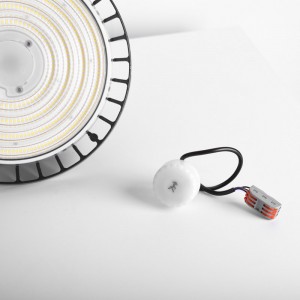

✔ Quick connector

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

Dimmable High Bay with motion sensor 150W IP65

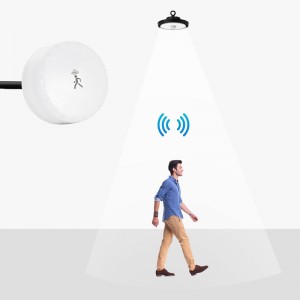

The motion sensor has 3 operating modes that will help you to economize energy consumption within your premises.

✔ ON/OFF
During daylight the device will remain off. At dusk the sensor detects that there is insufficient illumination and turns on the moment it detects a moving object. After a set time it will switch off the industrial high bay, whenever there is insufficient light or no motion is identified.

Dimming in 2-step mode
If you want to keep your lighting on throughout the day, you can do so using this function. The sensor will remain at low intensity to save on lighting costs and visualize your desired workspace. Once motion is detected it will illuminate 100% of its brightness.

Dimming in 3-Step Mode
The sensor will turn on the moment it detects motion. After the switch-on time has elapsed, the sensor dims the light to a low illumination level if no further motion is detected ("Standby" phase). During this phase we can choose after how long (10s/1min/3min/5min/10min/30min) we want the sensor to turn off the light, if no motion is detected.

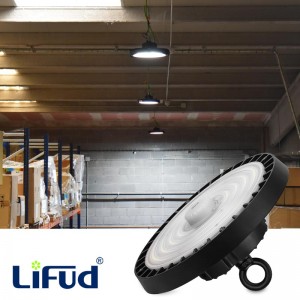

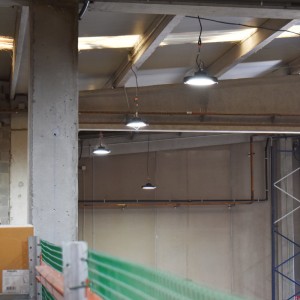

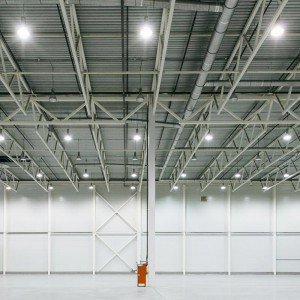

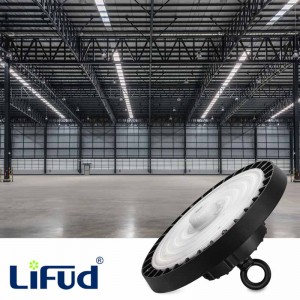

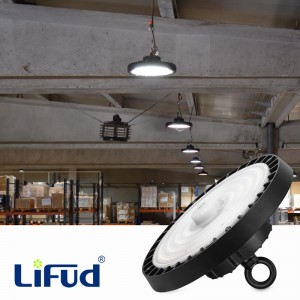

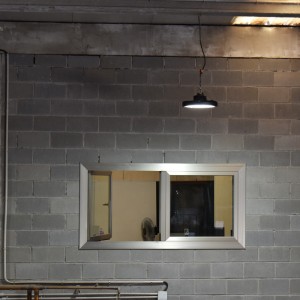

Ideal for installations in warehouses, industrial buildings, offices, corridors, supermarkets, etc.

Nominal Voltage (V)
220 - 240 V/AC
Power (W)
150
Lumens (Lm)
24000lm
Kelvin (K)
3000
4000
5000
IP
IP65

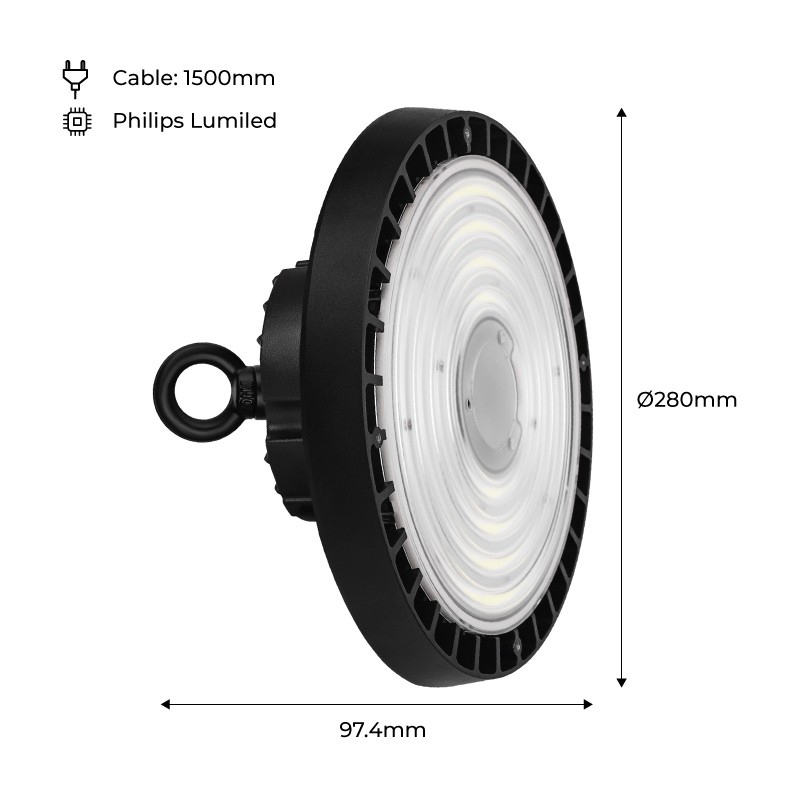

Dimensions (mm) Lxlxh
Ø280x97.4mm
Efficiency (Lm/w)
160
CRI
70-80
Material
Metal
Certificates
CE
ROHS
LIFUD

Questions

P: Question: Hello, I would like to know what distance the motion detector covers and if it is 360º.

Thank you
R: Answer: Hello, this sensor detects movement up to 12 meters and if the hood is suspended in the air, the sensor does measure 360º. Thank you very much!

Barcelona LED: Alejandro| el 12 de September de 2024
