Microwave motion sensor for ceiling 360º IP20
Microwave motion sensor for ceiling mounting 360º.
The microwave motion sensor is a discreet switch that, activated only by motion detection, helps us to improve the energy efficiency of our installations. The high-frequency electromagnetic wave sensors (5.8GHz) integrated in the sensor circuit allow automated management of lighting installations.
Why is it appropriate to install a microwave motion sensor?
A microwave motion sensor allows us to detect movement through doors, partitions or glass and windows, even through thin walls. In offices with different compartments, industrial buildings or multi-room installations, the microwave motion sensor is the perfect device, much more efficient and accurate than infrared sensors.
Installing the microwave motion sensor
- Disconnect the power supply and verify that the circuit is de-energized.

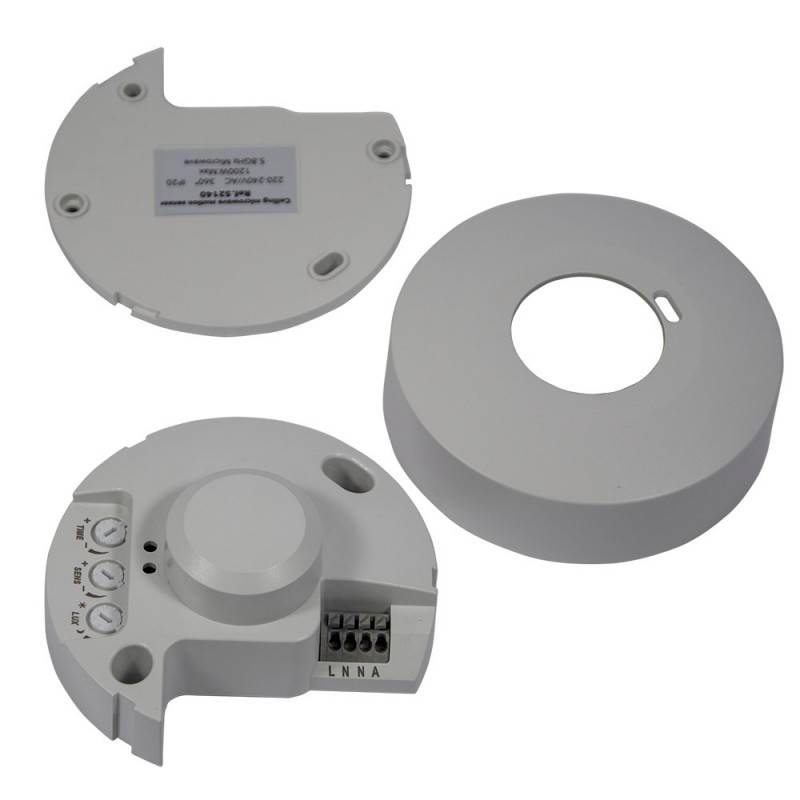

- Separate the front cover with a slight counterclockwise twist.

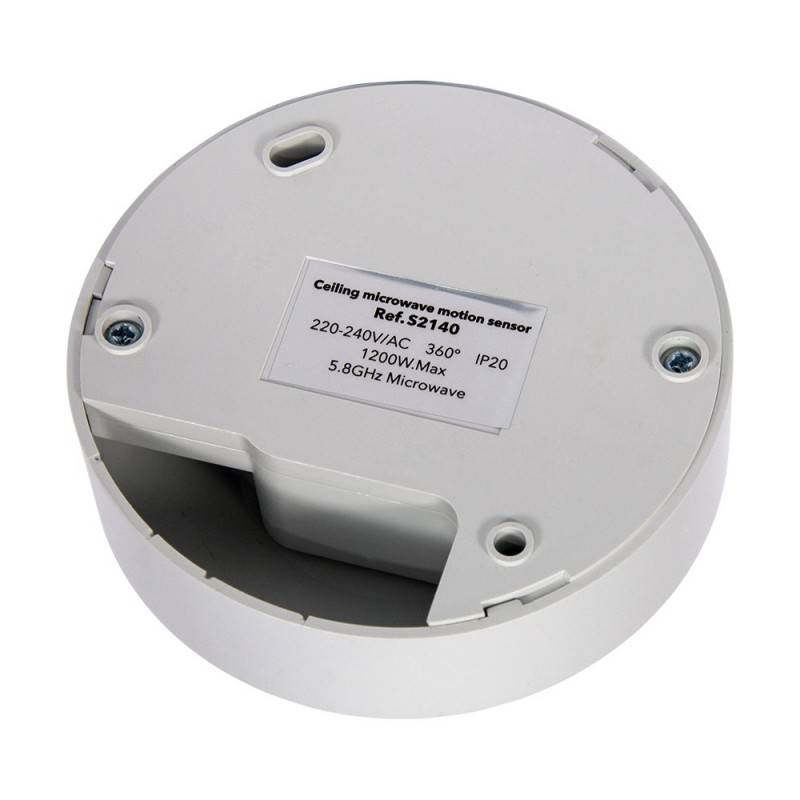

- It is not necessary to unscrew the rear cover, as the connections are made from the side panel of the sensor.
- Screw the assembly against the ceiling with the screws supplied.

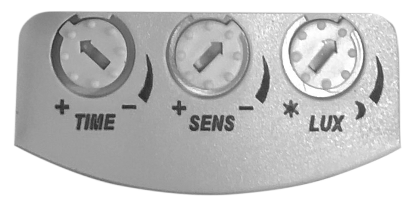

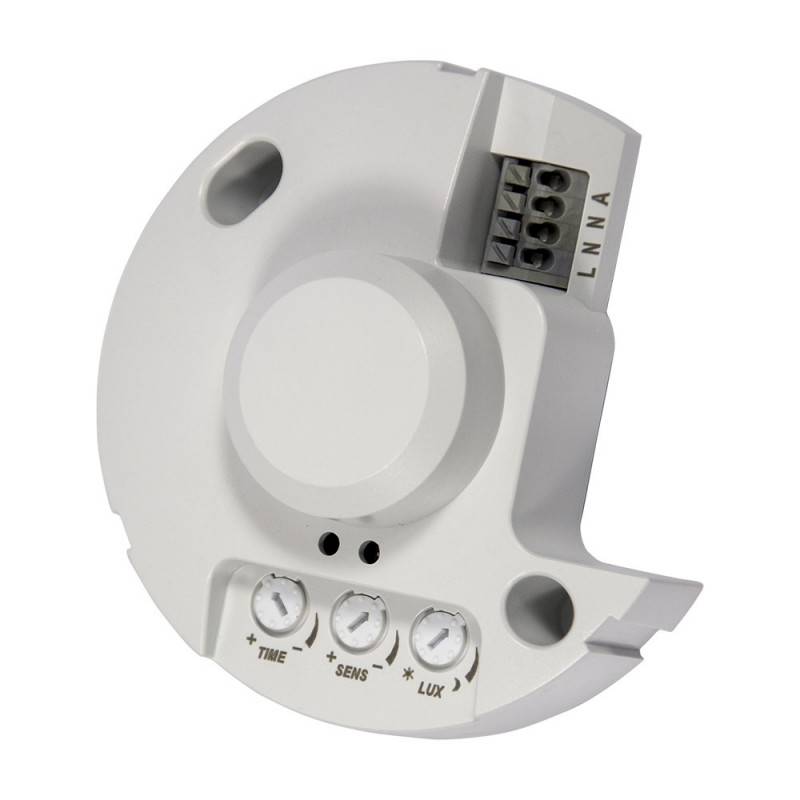

- Set the time, sensitivity (distance and angle of detection), and lux (ambient illumination) factors using the existing roulette wheels.

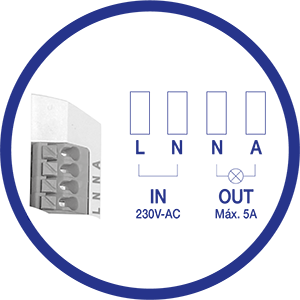

- Connect the wiring according to the installation diagram.
- Close the cover with the reverse rotation.
Remarks to be taken into account when installing a microwave motion sensor:
- We recommend installation by an electrician.
- Avoid placing objects in front of the sensor that may affect the correct motion detection.
- Avoid installing the sensor near areas where the air temperature is altered: heating, fans, air conditioners, etc.
- Do not connect a load higher than 300W LED
The sensor does not respond properly, what should I do?
In most occasions the motion sensor will require adjustments and revisions for a correct operation according to how we want it to be activated. To do this, you should check the following points:
- The sensor does not activate the circuit:
- Check that the motion sensor is receiving electrical charge.
- Does the pilot light stay on after detecting motion? If so, check the wiring.
- If the LED does not light after detecting motion, please check that it is set to day/night mode correctly.
- Check that the sensor is connected to the correct voltage (220-240V-AC).
- Sensitivity is poor/insufficient:
- Check that there is nothing in front of the detector pilot light hindering signal reception.
- Check the ambient operating temperature.
- Check that the source of the motion signal is within the detection range of the sensor.
- Check the height of the installation.
- The motion sensor does not automatically disconnect the circuit:
- Check that there is no constant motion, however small, within the detection change.
- Check that the operating time is not set to the maximum (15 minutes).
- Check that the current in the circuit is less than 5A.
- Check that there are no sudden temperature changes near the sensor, air conditioning or heating emission sources, etc.
Microwave motion sensor technical specifications
- Input voltage: 220-240V-AC
- Frequency: 50Hz
- Ambient light (adjustable) <10-2000 LUX
- Operating time after activation: minimum 10 seconds (+/-3 sec.) maximum 15 minutes (+/-3min.)
- Maximum load: 300W LED
- Maximum load: 1200W Incandescent
- Detection range: 360º.
- Detection distance: Radius from 3 to 10 meters, adjustable.
- High Frequency System: 5.8GHz radar CW, ISM band
- Transmitting power: <10mW
- Installation height: 1.5 to 3.5 meters
- Power consumption: 0.9W
- Motion detection: 0.6 to 1.5 meters/second.
ROHS
