Multicurrent DALI Driver 8W and 100-350mA Dimable

LIFUD dimmable DALI PUSH driver 9-42V 8W multicurrent (100-350mA)

Name: LIFUD driver constant current dimmable DALI and PUSH 100-350mA 9-42VDc 8W
Brand: LIFUD
SKU: LF-AAD008-0350-42
Price: 19.95 EUR
Availability: OutOfStock

SKU:LF-AAD008-0350-42

€19.95 Tax included

Out of stock

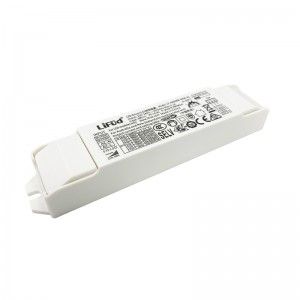

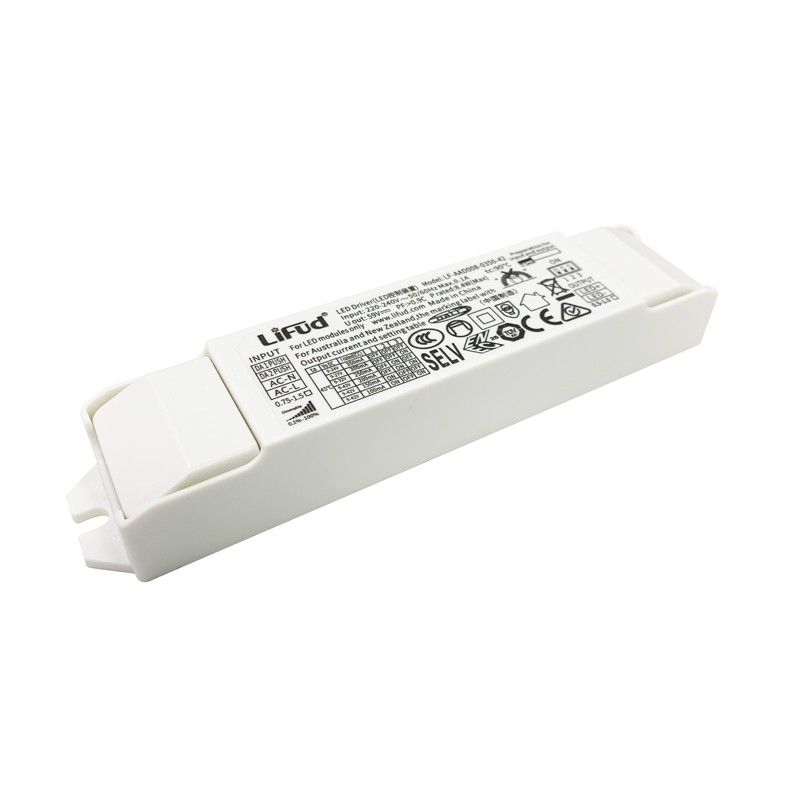

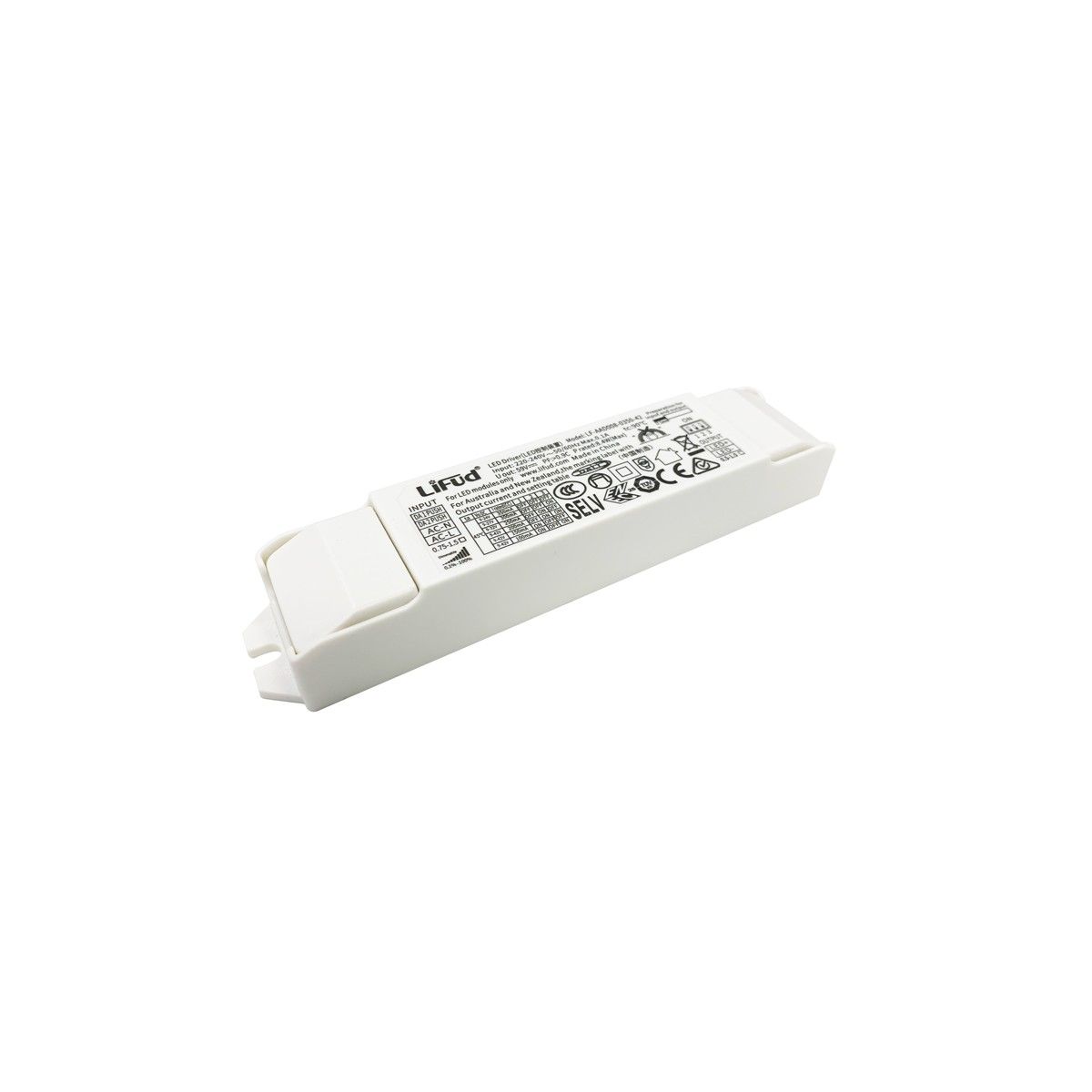

LIFUD Driver LF-AAD008-0350-42 is an 8W constant current LED driver. The product is dimmable from 0.1 to 100%. The rated input voltage limit is 220-240V and output 9-42. The output current can be adjusted via DIP switch from 100mA to 350mA, in 50mA steps. Control with your Dali multicolor driver up to 64 light points.

I accept the general terms and conditions and the privacy policy.

Features

IP20
Suitable for Class II luminaires

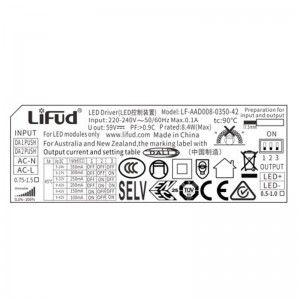

Constant current output. The output current can be adjusted via DIP switch.
Integrated PFC function - Standby power consumption: ≤0.5 W
DALI dimming depth: 0.1-100%. Logarithmic dimming curve or linear dimming curve can be selected via software.
Pulsed dimming function
