Recessed LED Panel 120X60cm - Dimmable TRIAC - 72W - UGR19
TRIAC Dimmable LED Panel TRIAC recessed 120x60cm 72W 6500LM UGR19

Recessed LED Panel 120X60cm - TRIAC Dimmable - 72W - UGR19

SKU:K5234-TRIAC-BF
Colour temperature
Has superado el límite de unidades
In stock 2 units
Data sheet

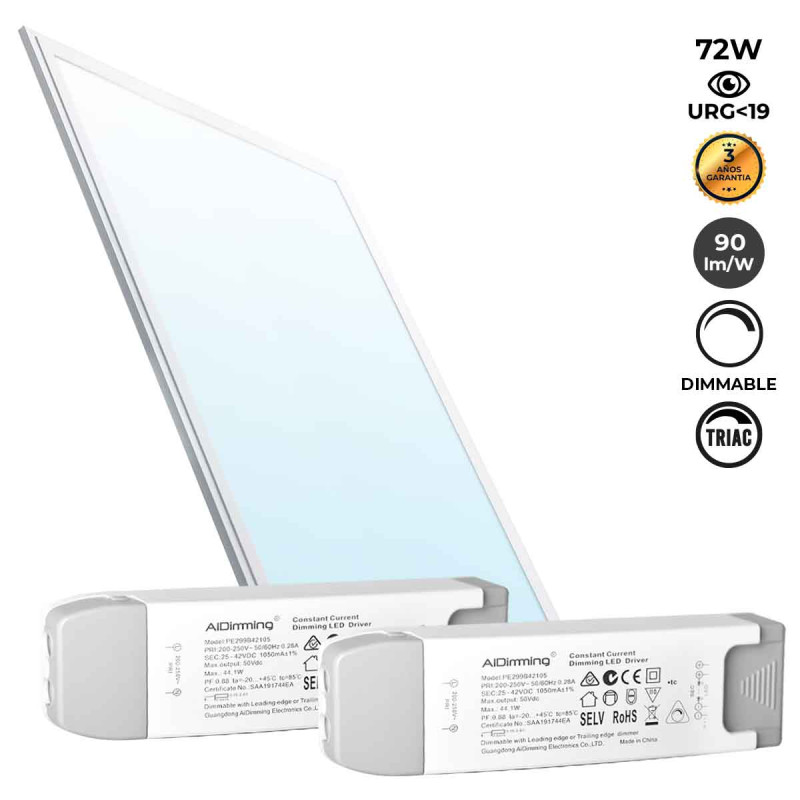

The 120 x 60 cm recessed LED panel has an ultra-slim design and state-of-the-art technology that allows it to provide powerful and uniform illumination.

Highly efficient, it has a power of 72W and a luminous flux of 5900 lumens.

It incorporates two TRIAC dimming drivers, which provides the possibility of regulating the luminous intensity.

Thanks to its low glare index, UGR19, this panel provides great visual comfort.

Available in 2 shades: neutral white (4000K) and cool white (6000K).

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  sales@barcelonaled.com

The 120x60cm LED panel is designed for recessed installation in false ceilings. It has an ultra-thin, modern and elegant design, adaptable to any environment.

It is a high luminosity product that emits a uniform light at an angle of 120°. Its high efficiency also allows significant energy savings compared to traditional energy-saving luminaires.

It incorporates a polystyrene diffuser and a light guide or LGP made of PMMA, a material resistant to heat and UV radiation, highly efficient and durable, which does not turn yellow over time.

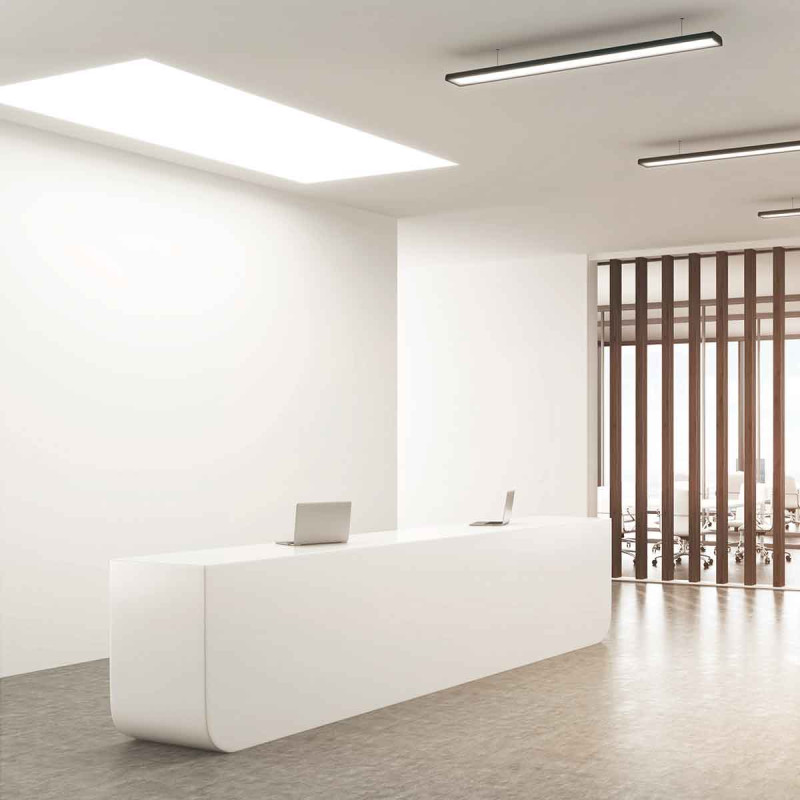

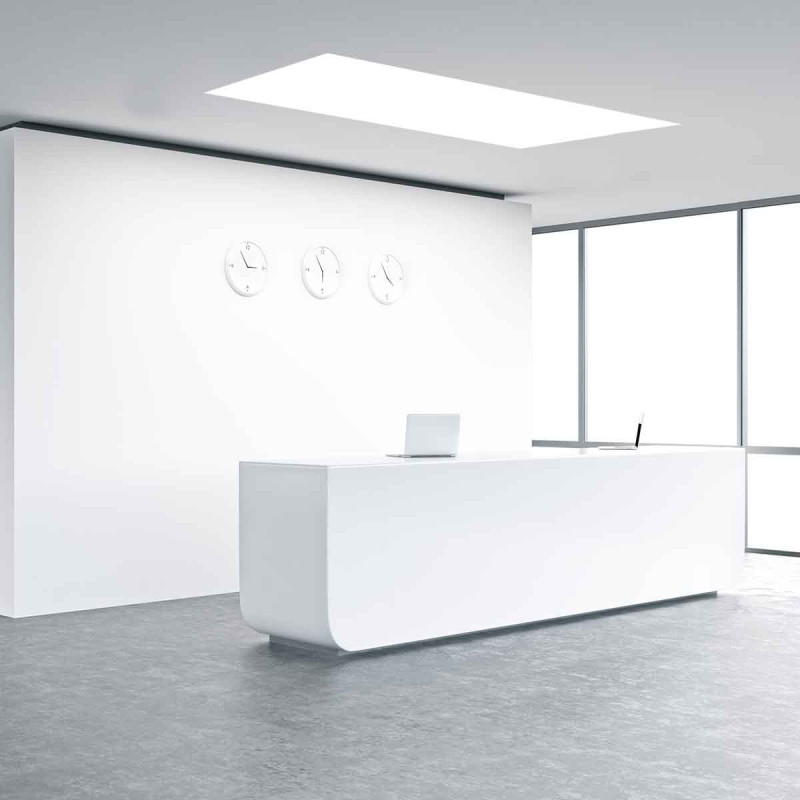

Thanks to its low glare index, UGR19, this panel provides great visual comfort, and is therefore suitable for illuminating offices, educational centers or any space where long periods of time are spent exposed to artificial light. The low levels of UGR increase people's sense of well-being, helping to improve concentration and productivity.

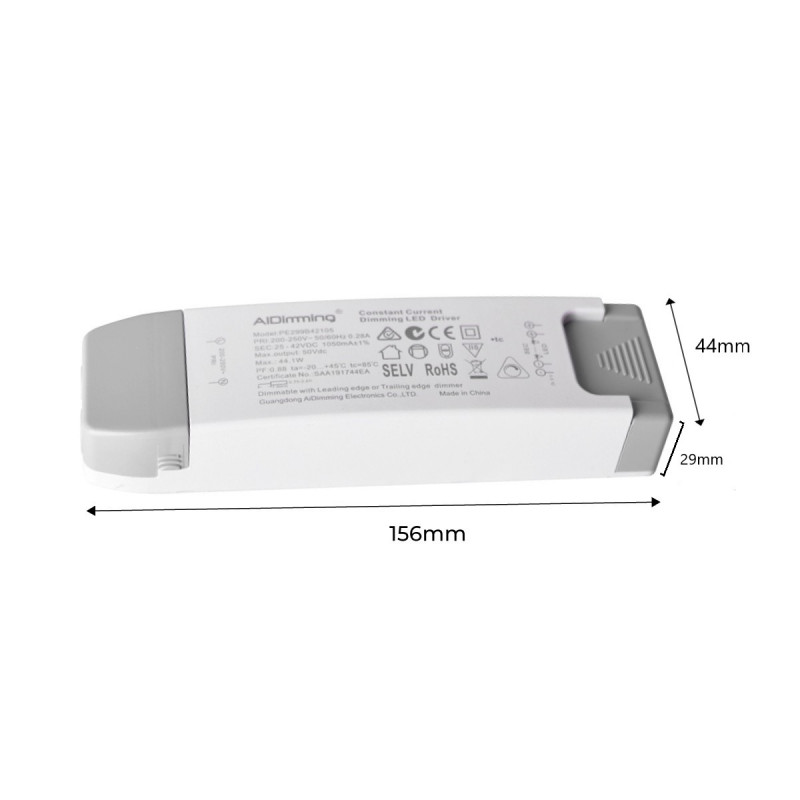

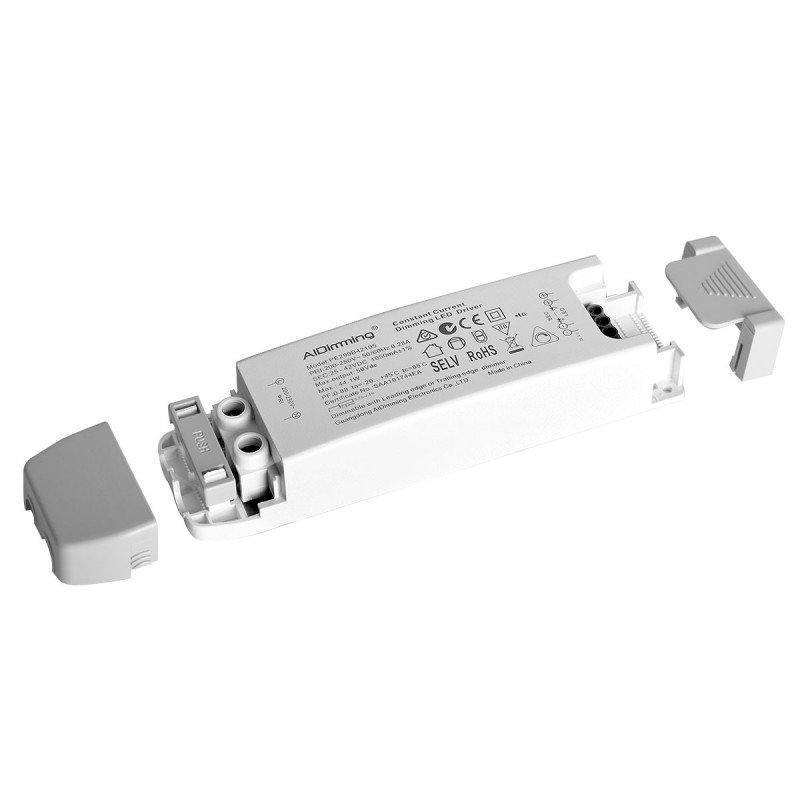

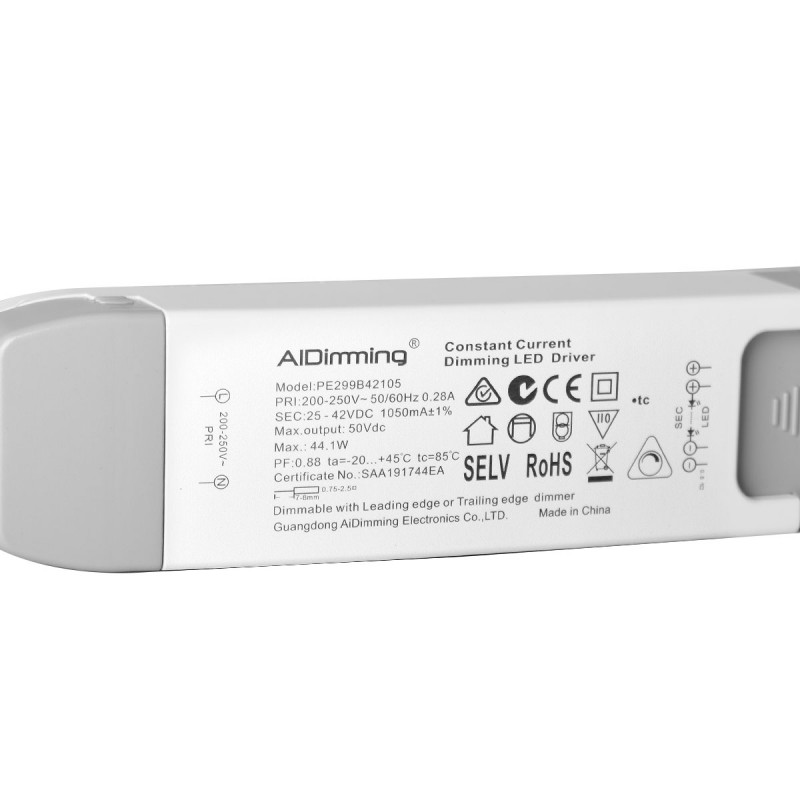

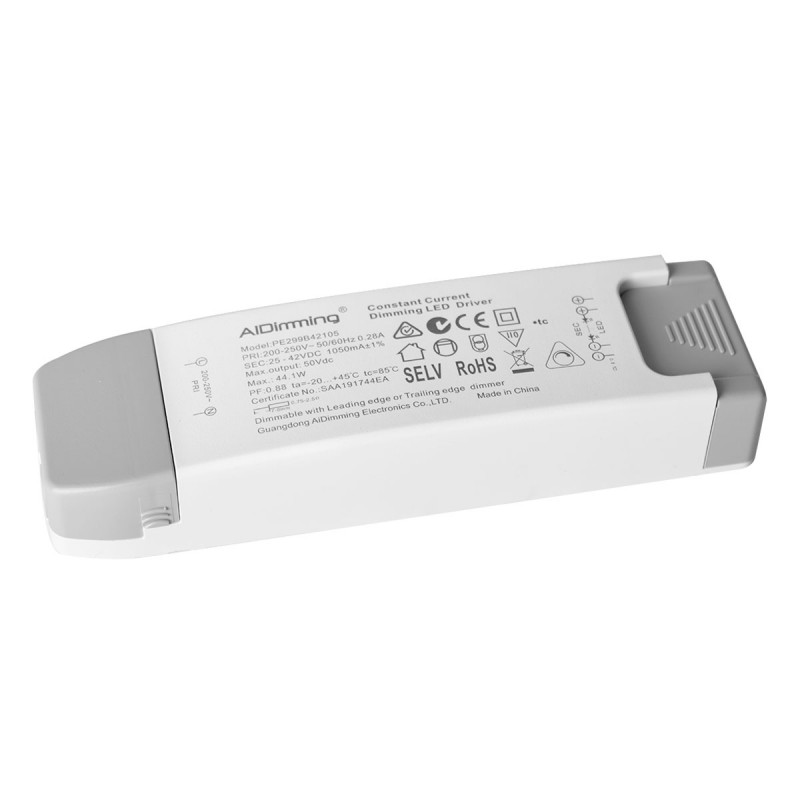

It incorporates two drivers that allow to regulate the luminous intensity of the panel by TRIAC regulation, according to the needs.

To see the technical characteristics of the drivers click here.

Main characteristics of the product:

  • Dimmable intensity (TRIAC)
  • Dimensions: 1200 x 600 x 6 mm
  • Voltage: 220-240V AC
  • Power: 72 W
  • Lumens: 5900 lm
  • Recessed installation
  • Allows surface installation by adding surface kit
  • Available in 2 shades: neutral white (4000K) and cool white (6000K)
  • CRI>80
  • UGR:19
  • Indoor use: IP20
  • Connector cable included

Please note that certain technical characteristics such as power or lumens may vary according to the color/shade of the product. For further details, please refer to the attached test reports in the "Downloads" section, or contact our sales advisors.

Nominal Voltage (V)
220 - 240 V/AC
Power (W)
72
Lumens (Lm)
5900
Kelvin (K)
4000
6000
Beam angle (º)
120
Lifetime (h)
25000
IP
IP20
Dimensions (mm) Lxlxh
1200 x 600 x 6
Frequency (Hz)
50 - 60
Hue
Cool white
Neutral white
Sensor
No
Efficiency (Lm/w)
85
CRI
80-85
UGR
UGR19
LED Type
SMD 2835
Dimmable
Yes
Orientable
No
Cutting dimensions (mm)
1200x600
Diffuser material
Polycarbonate
Use Outdoor
No
Temperature range
-18°C ~ +55°C
Frequency of use
Intensive
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
LED Panel dimensions
120x60
