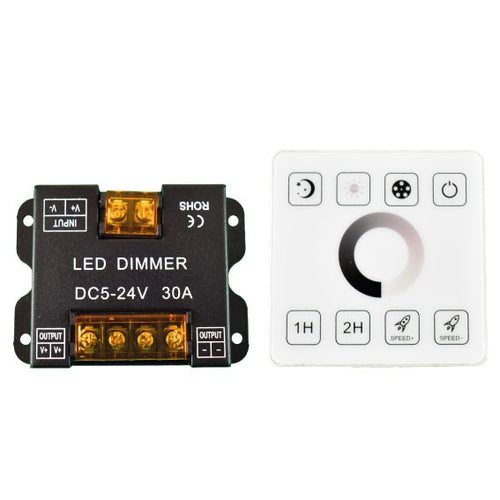

MONOCOLOR controller for LED strips with RF touch panel - 5-24V/DC
The single-color LED strip controller allows to control the lighting of single-color LED strips by means of a smooth and highly sensitive touch panel ,
In addition, it saves user settings and can be easily installed on the wall with two adhesive strips (included) or two screws (not included).
Compatible with most single-color LED strips on the market. Maximum range: 15 m.
Ideal for creating environments with customized lighting in a simple way.
**Includes: one controller, one touch panel, 2 adhesive strips and one manual**.
Detailed Description
This single color LED strip controller is compatible with most single color LED light fixtures from 5V to 24V with a maximum current of 10A.
It allows easy and gradual brightness control from 0 to 100% (gradual circle in the center). It offers the ability to set dynamic modes and adjust their speed, including fade, strobe and flash. It also has a delayed power off function (Keys: 1H and 2H). The settings are retained when the lights are turned off.
By using RF, it works wirelessly, so it does not require changing any existing electrical circuits. The control distance is 15 meters.
The panel also offers two easy ways for wall installation: using the double-sided adhesive tapes (included), or using two screws (not included). It is powered by a 3V CR2025 battery (included).
With its ultra-slim and classic design, the panel blends into any environment and allows you to customize the lighting in a complete and simple way.
Code to pair the strips:
- Long press the night light key within 5 seconds of turning on the remote and the light bar will flash slowly for 3 times.
Code to clear strip pairing:
- Long press and hold the maximum brightness key (100) within 5 seconds of turning on the remote and the light bar will flash rapidly for 3 times.
| Main product features:
|
MONOCOLOR controller for LED strips with RF touch panel - 5-24V/DC
