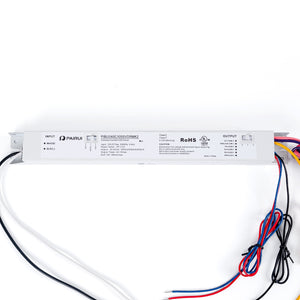

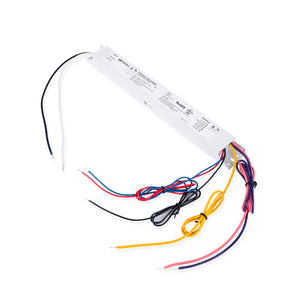

Driver for CCT LED linear light - 0-10V dimmable + 12V power supply - 30-42V DC - 44W - 650-1050mA
Driver for CCT LED linear light, constant current. Compatible with products: B9040 and B9091.
- Multicurrent adjustable by dip switch: 650/800/1050mA.
- CCT control configurable by dip switch.
- 0-10V regulation and 12V power supply included.
Detailed Description
Dimmable LED Driver 0-10V for CCT LED strips
The constant current LED Driver is compatible with CCT line arrays of references: B9040 and B9091.
✔ Universal input voltage: Compatible with 120-277V AC.
✔ Compact and durable design: High-quality metal housing and linear format with side feed.
✔ 0-10V regulation: compatible with 0-10V analog regulation standard.
✔ CCT control: dip switch control for easy selection:
- CCT1 = Warm white
- CCT2 = Neutral white
- CCT3 = Cool white
✔ Multicurrent adjustable 650/800/1050 mA: Allows us to regulate the light intensity by dip switch.
✔ Flicker free: this driver is designed to ensure flicker-free illumination.
12V auxiliary power supply: It includes an auxiliary power supply with 12V output voltage and 200mA output current. The supply features overload and overvoltage protection.
Outstanding features:
- Maximum power: 44W
- Output current: 500/800/1050mA
- Output voltage: 30-42VDC
- Power factor: 0.9
- Lifetime: 50,000 hours
- Indoor use: IP20
