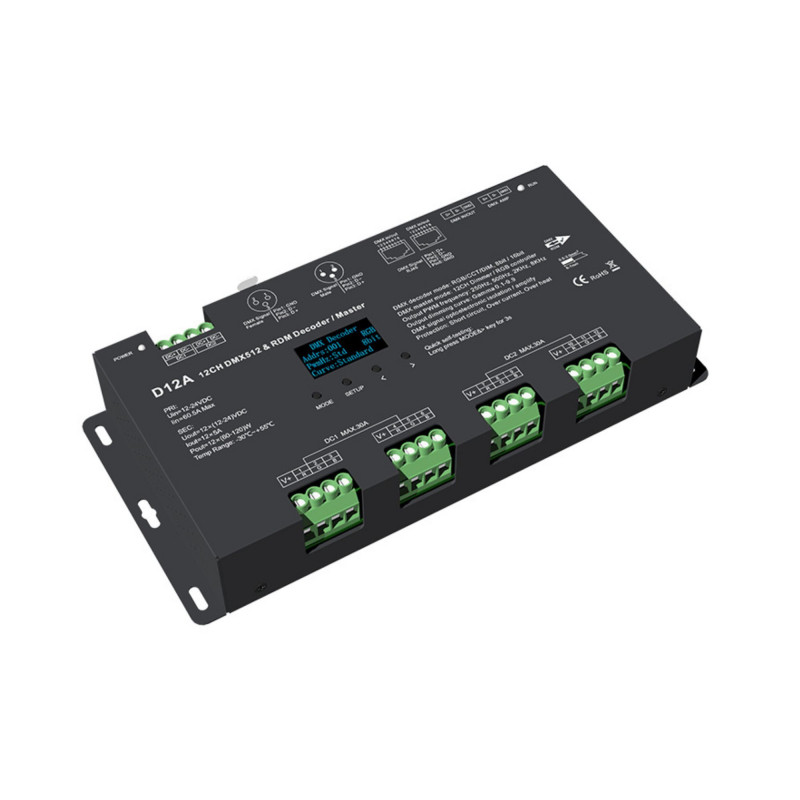

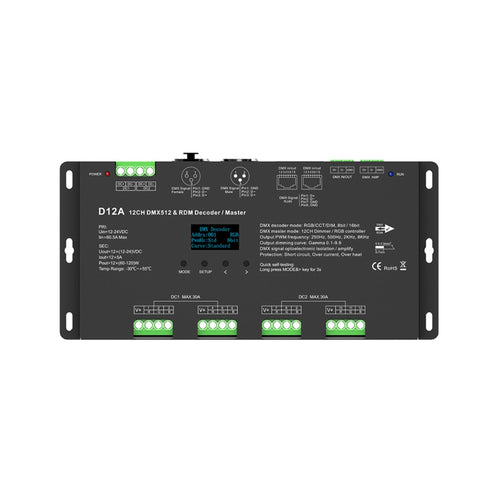

DMX512 Decoder 12-24V DC - 5A/channel - 12 Channels - OLED Display

The DMX512D Decoder is an advanced and complete solution for controlling LED lighting. It offers 12 channels of constant voltage output with 5A per channel and up to 1440W of power.

It can operate as master or decoder. Its OLED display and intuitive buttons make operation easy.

This device provides a range of decoding modes, including DIM, CCT, and RGB, along with the flexibility to fine-tune the PWM frequency, spanning from 250 to 16000 Hz.

Users have the option to select between 8-bit and 16-bit gray levels, and can fine-tune the dimming curve to suit their preferences.

In RGB mode, it can operate independently, but it can also seamlessly transition into an 8-bit DMX master, offering precise control over other decoders.

It incorporates 10 preset RGB programs with adjustable speed and brightness.

It features protection against overheat, overload and short circuit, and performs quick self-test for reliability.
