LED Strip Controller 2 in 1 - Monocolor/Dual White - 12/48VDC - 20A - 2.4G - WiFi - Milight

SKU:PW2
Has superado el límite de unidades
In stock 361 units
Data sheet

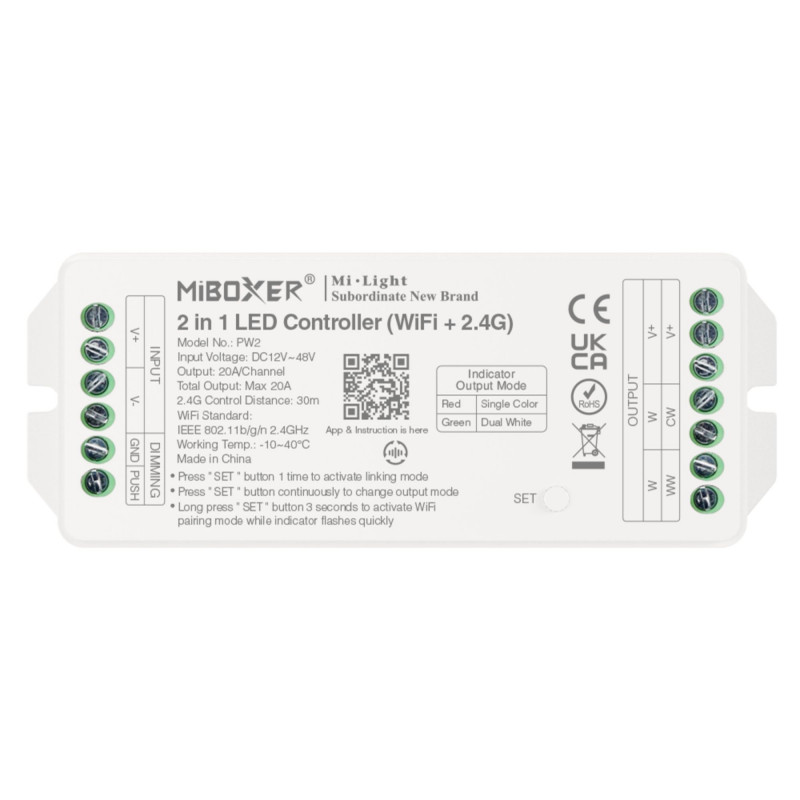

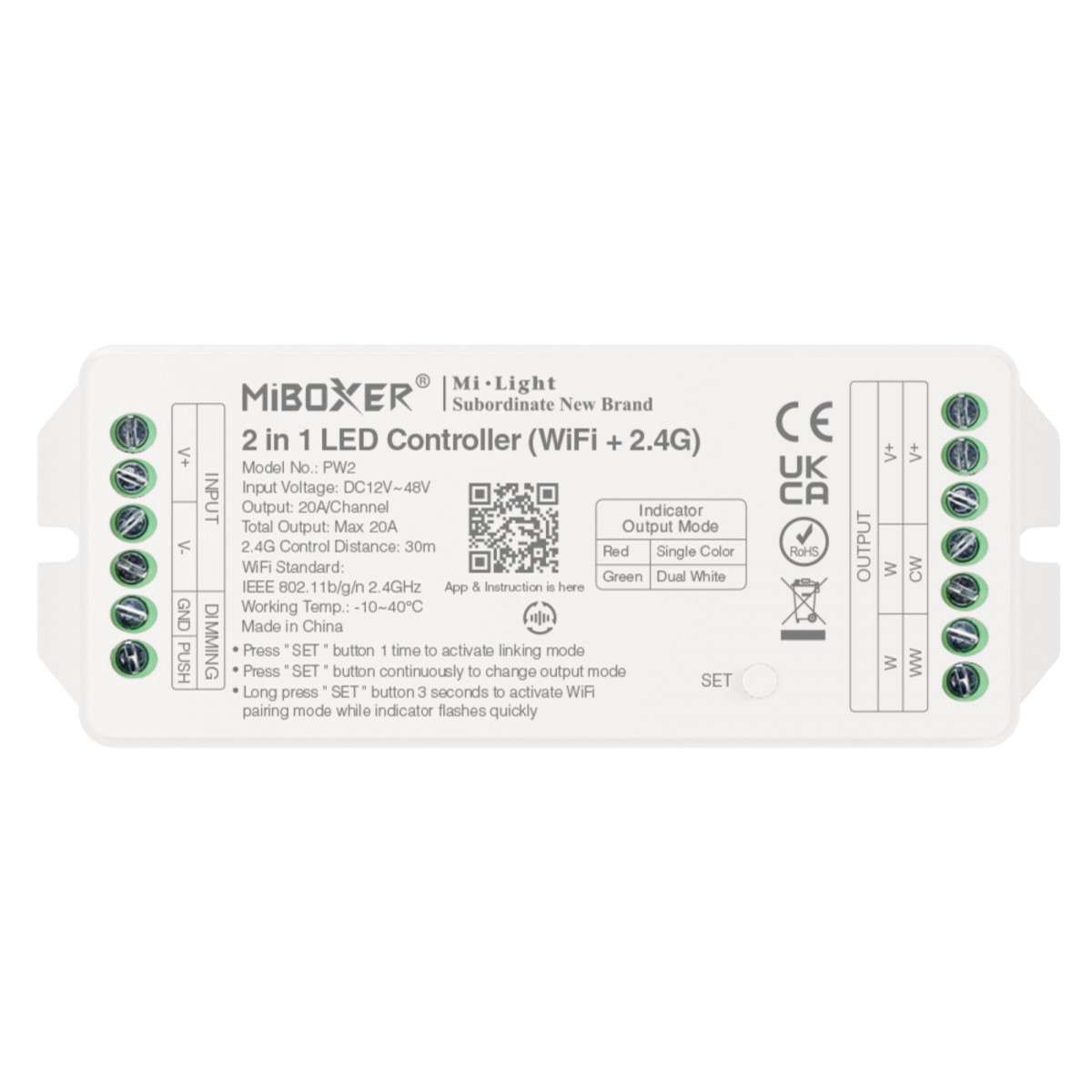

The MiBoxer 2 in 1 LED dimmer controller - 12/48V DC is a device that allows to control single color LED strips and CCT. It uses PWM technology and 2.4GHz wireless communication. It supports a voltage range from 12V to 48V and allows you to adjust brightness, saturation, color temperature, etc.

It has 2 output modes (single color/dual white) and can be controlled remotely via WiFi using the TUYA app or voice devices such as Alexa and Google. It can also be used with a compatible remote control.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  sales@barcelonaled.com

Controller for Single/Dual Color LED Strips - MiBoxer - 2 in 1 - 12-48V DC

This MiBoxer controller allows you to manage LED strips remotely via RF remote control or WiFi connection, offering flexibility and precise lighting control in multiple environments.

  • Compatibility and control: Compatible with MiBoxer RF controllers (FUT006 and FUT007) and PUSH dimming. 2.4GHz communication ensures fast and interference-free response, with a maximum range of 30 meters.

  • Control via WiFi: Possibility of remote control via compatible WiFi adapter, with integration into the "TUYA" app and voice control (Alexa and Google Assistant).

  • Output modes: Allows easy switching between "single color" and "dual white" via push button.

  • Easy installation: 12-48V DC power supply via Jack connector or direct connection to V+/V- ports, with maximum output current of 20A.

  • Cautions: Check the compatibility of the power supply and avoid installing in areas with large metal surfaces or strong electromagnetic waves in order not to reduce the range of the control.

Nominal Voltage (V)
12-24V
IP
IP20
Colour control
CCT
Monocolor
Connectivity
Bluetooth
RF
Wifi
Material
Plastic
Use Outdoor
No
Temperature range
-10~40°C
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Maximum intensity (A)
20
Control Distance
30m
Mi Light
