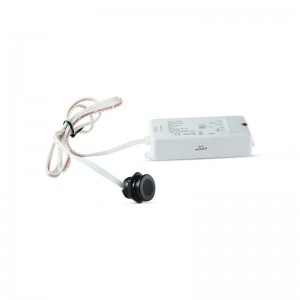

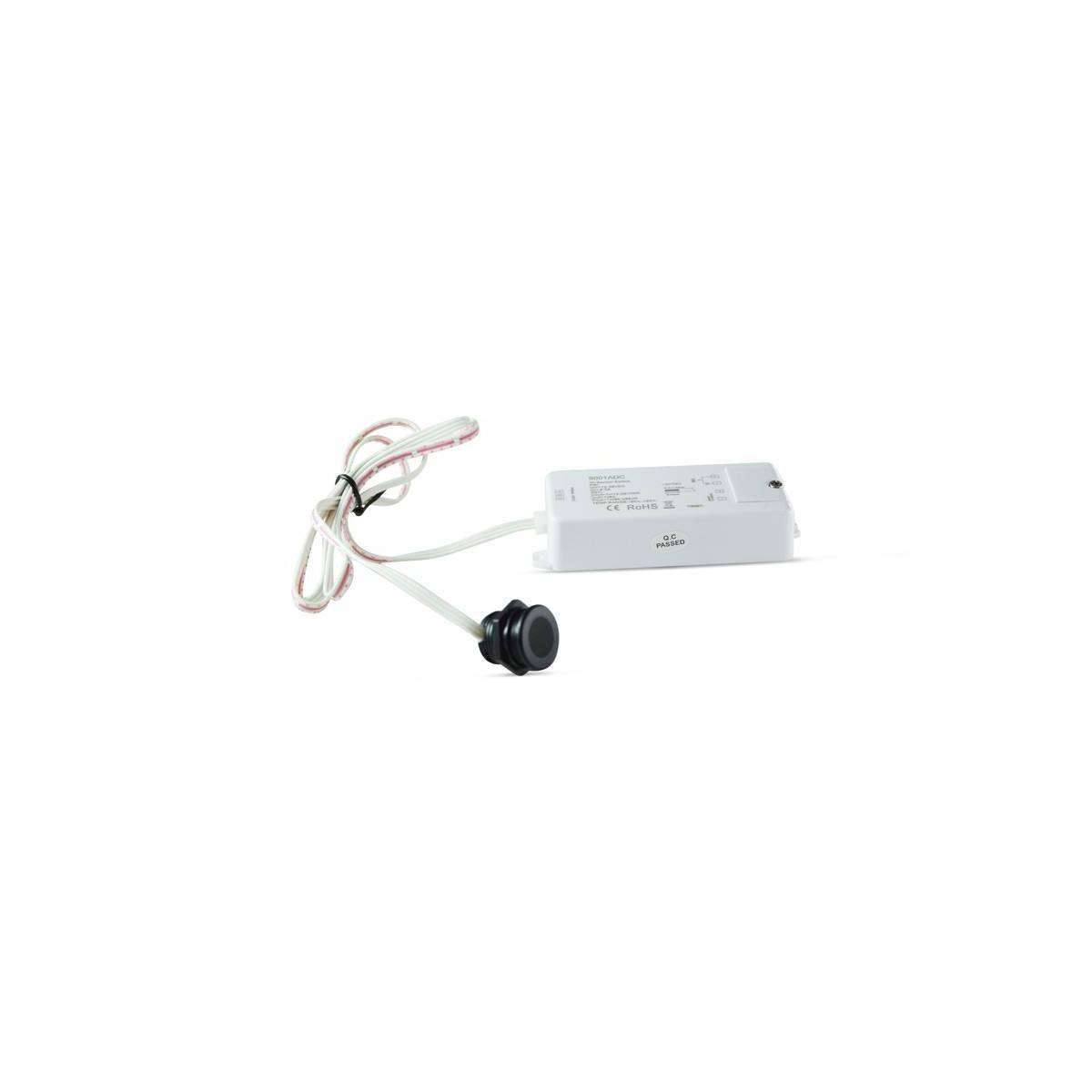

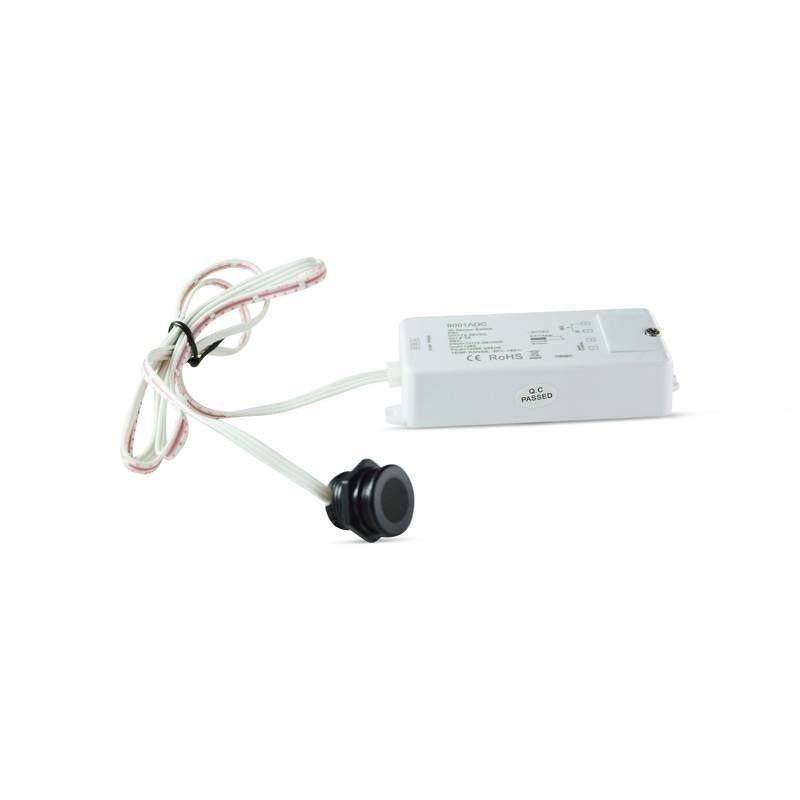

Switch with IR proximity sensor 12-36V ON/OFF function

12/36V IR switch sensor with motion detection

The IR Switch is a high sensitivity infrared motion detector with a detection range of 1 to 6cm. It is designed with a compact size.

How does it work?

The IR Switch Sensor is a proximity switch. When it detects presence, it will activate or deactivate the circuit, and vice versa. That is, it maintains the function until it detects the new signal. Example: if, with the light off, we pass our hand over the detection zone of the sensor, it will turn on the light and keep it on until we pass our hand again and turn off the light.

IR Switch Sensor Applications

The IR Switch Sensor is a perfect device to place in areas where an automatic switch on is required, for example, under furniture in kitchen, in mirrors, in installations of recessed LED strips, so that when we pass our hand the switch is activated and the light turns on, and turns off again when it detects movement.

Features of the IR Switch Sensor

• Motion sensitive
• Stable and high quality sensor head
• Detection range from 1 to 6 cm
• IP 20

IR Switch Sensor Safety and Warnings

• Before installing the sensor, turn off the power supply.
• Do not expose the device to moisture

IR Switch Sensor Wiring Diagram
