Switching power supply 12V 60W

Name: Switching power supply 60W 12V
Brand: Barcelona LED
SKU: B1563-60
Price: 19.99 EUR
Availability: InStock

SKU:B1563-60

€19.99 Tax included

In stock 114 unidades

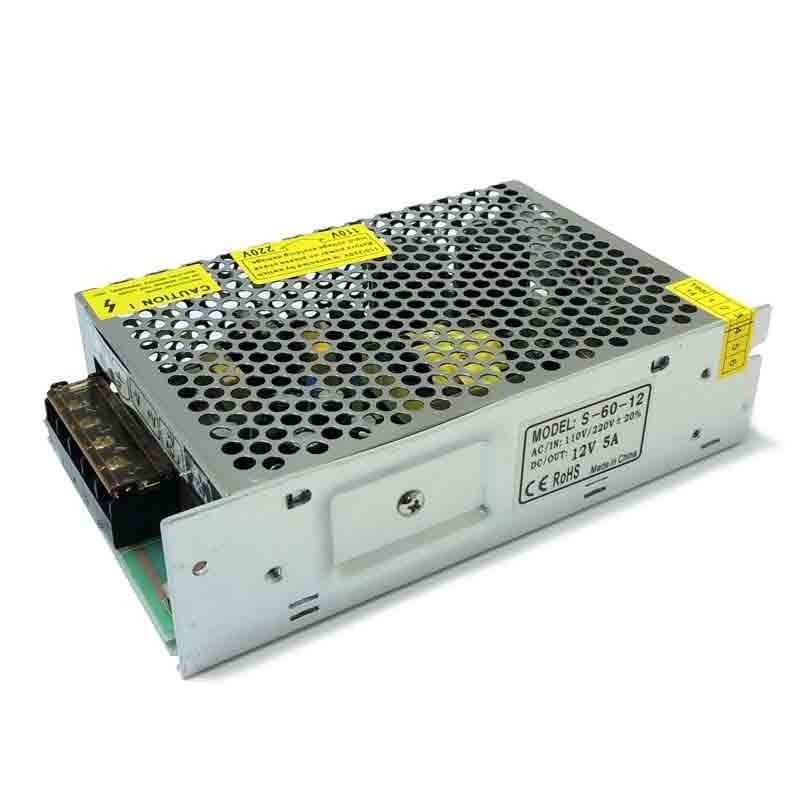

60Wswitching power supply, selectable input voltage 110-AC or 220V-AC adjustable ±20%, output 12V-DC 5A. Outside dimensions 78x36x110mm (W x H x H), power supply cooling by natural air convection, IP20 watertightness, overload and overvoltage protection.

60W 12V Switching Power Supply for LED Strips

The 60W switching power supply has an input voltage ranging from 110V-AC or 230V-AC and can be adjusted to ±20% and an output of 12V-DC 5A. The A.F. have protection against overloads and overvoltages, being its casing made of perforated sheet metal. This allows cooling by natural air convection. Their external dimensions are 78x36x110mm (w. x h. x l.), with a watertightness rating of IP20.

Applications:

Its main function is to power 12V-DC led strips, as well as any other element with 12V-DC working voltage, as long as it does not exceed the maximum power of the source.
Suitable for all kinds of uses: domestic, commercial, office, restaurant and hotel business, etc.

Nominal Voltage (V)

110-230

Power (W)

Lifetime (h)

25000

IP20

Dimensions (mm) Lxlxh

110x78x36

Frequency (Hz)

50 - 60

Power factor (cosφ)

0.5
