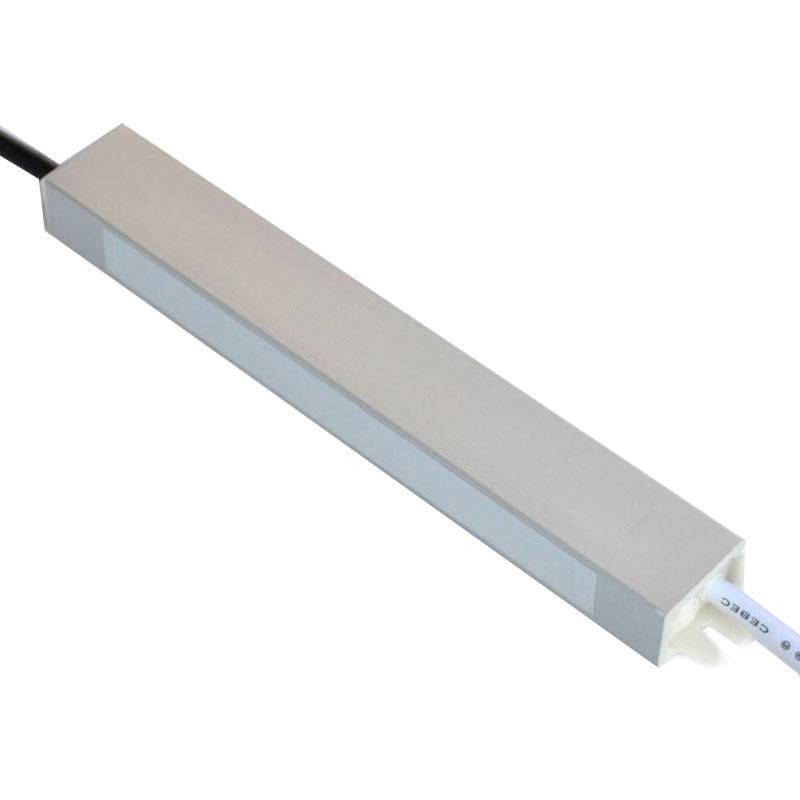

Power supply IP67 12V 30W
SKU:B1580-30
Waterproof power supply 12V 30W for LED strips
Technical Specifications:
Voltage range:170 ~ 250V
Frequency range: 50Hz
Current input 0.4A/115V 0.25A/235V
Output voltage: 12V DC
Output amperage: 3A
Output power : 30W
Automaticprotection: Over voltage and current / Short circuit / High temperature / Auto resetprotection.
Workingtemperature: -10 ~ 60
Waterproofrating: IP67
Dimensions : L168 X W26 X H20mm (aluminum)
2018-07-14
Nominal Voltage (V)
170-250
Power (W)
30
Lifetime (h)
25000
IP
IP67
Dimensions (mm) Lxlxh
168x26x20
Frequency (Hz)
50 - 60
Power factor (cosφ)
0.5
Output voltage (V)
12V
Material
Aluminium
Use Outdoor
Yes
Temperature range
-20°C ~ +40°C
Frequency of use
Normal
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years
Maximum intensity (A)
3
