Smart LED Strip IC RGB 5V DC - IP20 - 21,6W/m - 144 LED/m - Width 12mm - 2 meters

SKU:B1573RGB
Has superado el límite de unidades
In stock 536 unidades

The intelligent RGB LED strip (IC) is designed to operate with a voltage of 5V DC. Each LED chip has its own SMD5050 light source and integrated driver (IC), allowing individual control of each LED in the strip. In this way, the WS2812B LED strip can be programmed to create complex light patterns and customized animation effects.

In addition, it is possible to cut the strip into individual sections per chip, allowing for great versatility. It is also possible to extend the strip by 2 meters if necessary.

The smart LED strip IC allows each LED to be controlled individually. Each LED in the strip can be adjusted in terms of its red, green and blue color, with 8-bit PWM precision which translates to 24 bits per pixel. It is ideal for logo displays, advertising boards, hotels, bars, weddings, events and as a replacement for traditional neon.

The IC chip used in this strip is the WS2812B, with low power consumption and high efficiency, which enables intelligent RGB lighting control.

With a beam opening angle of 120° and a voltage of 5V, the strip features 144 high quality integrated SMD 5050 RGB RGB SMD LED lights.

The individual control of each chip offers multiple LED lighting possibilities, allowing you to create eye-catching visual effects. In addition, these RGB IC RGB LED strips are easy to program and work well with many types of controllers to create the desired effect every time.

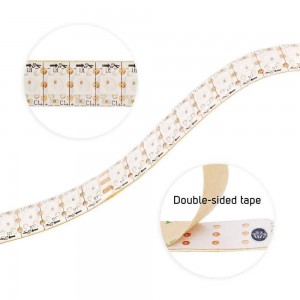

The LED strip is self-adhesive on the back and comes on a 2 meter reel with an IP20 protection rating.

It is possible to cut the strip at each LED chip, allowing for greater flexibility in the length of the strip.

The wires of the LED strip are made of high quality copper and have excellent conductivity, which ensures stable and uniform illumination. The outer layer of the strip is made of PVC, which makes it eco-friendly and durable, and provides it with a very long service life.

Main product features:

  • Voltage: 5V DC
  • Efficiency: 60lm/W
  • Power: 43.2W
  • Width: 12mm
  • Length: 2m
  • IP20: indoor use
  • SMD5050 RGB
  • 144ch/m
  • WS2812B IC
  • 8 bits green, red and blue shifted to 24 bits color
  • Strip can be cut on each LED chip (every 7mm)

Nominal Voltage (V)
5
Power (W)
43,2
Beam angle (º)
120
IP
IP20
Efficiency (Lm/w)
60
LED Type
RGB IC WS2812b
SMD 5050
No. of chips/metre
144
Track width (mm)
12
Use Outdoor
No
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
