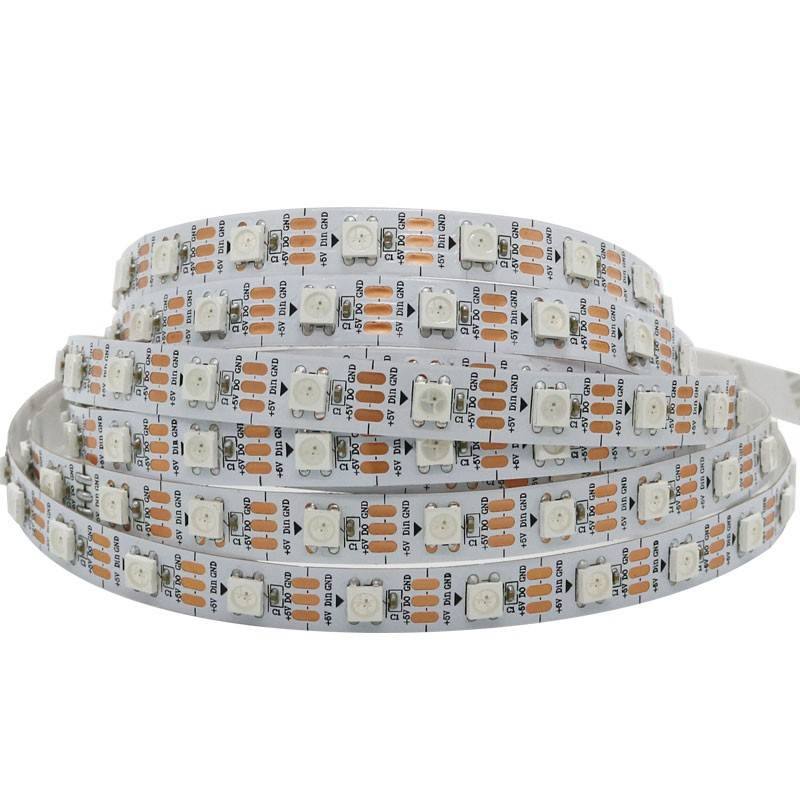

Smart LED Strip IC RGB 5V DC - 14,4W/m - IP20 - 60 LED/m - Width 10mm - 5 meters

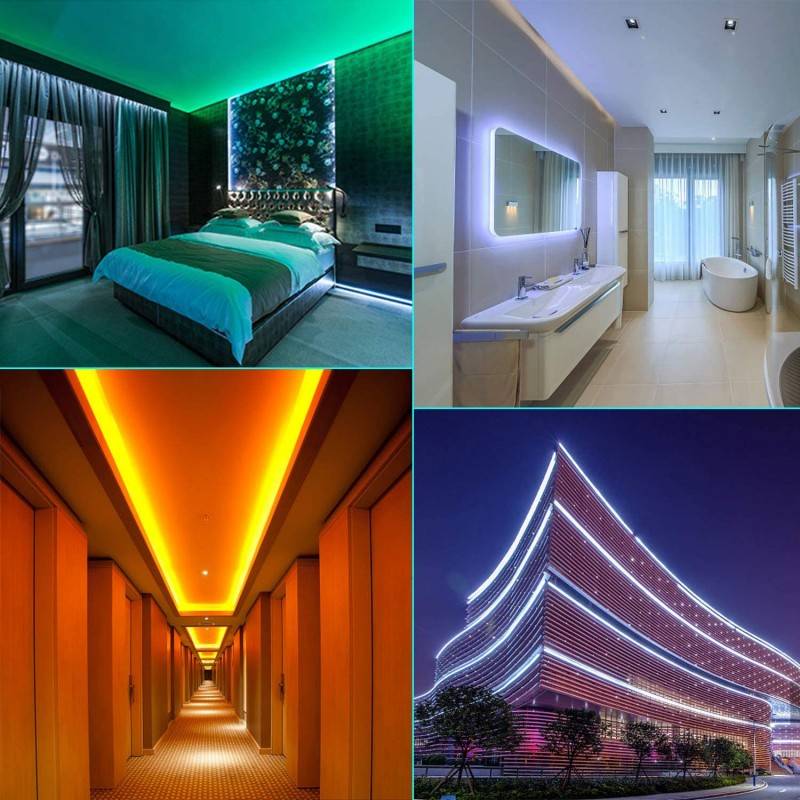

The intelligent LED strip IC allows you to control each LED individually. It is ideal for logo displays, advertising boards, hotels, bars, weddings, events, and as a replacement for traditional neon lights.

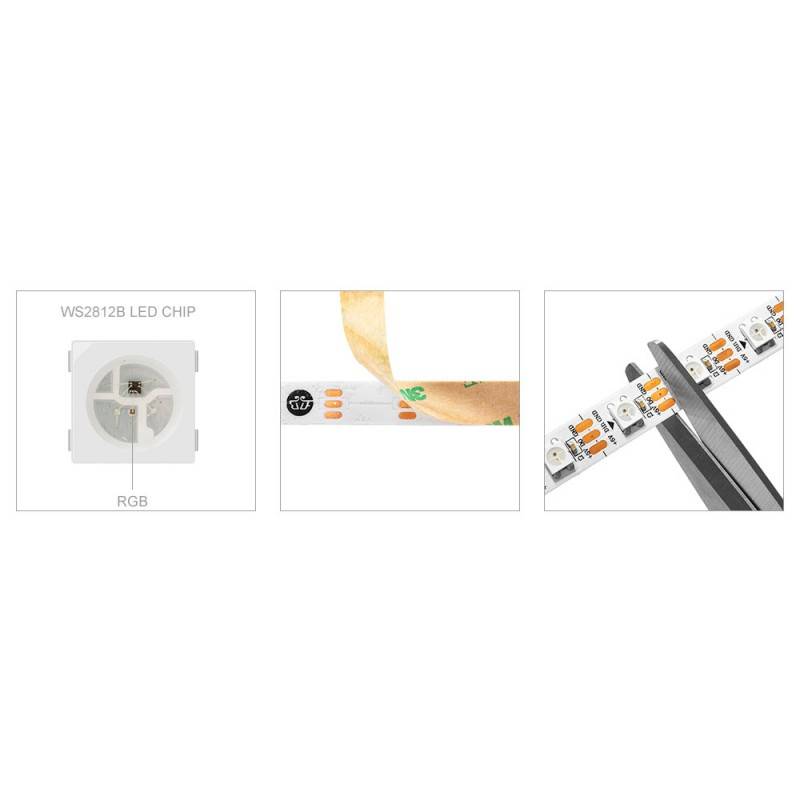

The IC chip used in this strip is WS2812B, with low power consumption and high efficiency, which enables intelligent RGB lighting control.
With a beam opening angle of 120° and a voltage of 5V, the strip features 144 high quality integrated SMD 5050 RGB RGB SMD LED lights.
The individual control of each chip offers multiple LED lighting possibilities, allowing you to create eye-catching visual effects. In addition, these RGB IC RGB LED strips are easy to program and work well with many types of controllers to create the desired effect every time.
The LED strip is self-adhesive on the back and comes on a 5 meter reel with an IP20 protection rating.
It is possible to cut the strip every 17mm, which allows great versatility for different applications.
The wires of the LED strip are made of high quality copper and have excellent conductivity, which ensures stable and uniform illumination. The outer layer of the strip is made of PVC, which makes it eco-friendly and durable, and provides it with a very long service life.
Main product features:
|
SMD 5050
ROHS
Questions
P: Question: |
I need a complete kit of 25 meters. Can you tell me all the material I need and how much it would cost. Thanks |
---|
R: Answer: | Please contact comercial@barcelonaled.com for orders, these are pixel led strips, experience in installation of smart strips is required. |
---|
P: Question: |
Good, I suppose that if the voltage is 5v I will need every 5mts of Led strip a power supply of 5v 15 Amps? That would make 5x15=75w, it's a lot of amperage I think? Thanks |
---|
R: Answer: | Correct, that's why for lighting we try to supply strips with higher voltages, to reduce the current and minimize the cable section in longer linear assemblies. Even so it is a model of Pixel LED strip to make sequences of movement in different colors, its maximum currents are with all LEDs on and all channels (RGB) on at the same time. |
---|
P: Question: | Are there LED strips that change color as if they were moving? |
---|
R: Answer: | IC strips are for programmable controllers with different motion effects. |
---|
P: Question: | What controller do you use and how would you program it? |
---|
R: Answer: | You need a specific controller for this type of strips. Depending on the controller its configuration, programming or mapping can vary by , you have to define pixel by pixel. For example B1480. If what you want are colored LED strips, perhaps you can look for RGB LED strips, of less complexity. |
---|
P: Question: | How many amperes is the transformer? |
---|
R: Answer: | It doesn't come with a transformer, you can choose the 5V power supply according to your installation: https://www.barcelonaled.com/pt/pesquisar?controller=search&s=Fonte+de+Alimenta%C3%A7%C3%A3o+5V+
Barcelona LED: Carla| 25/01/2021 |
---|
P: Question: | Hello I wanted you to advise me what kind of power supply I can place this led strip counting that will be extended in the future to at least 20 m in total and a Wi-Fi controller with mobile application, greetings. |
---|
R: Answer: | Every 5mts of led strip needs 72W, a voltage of 5V must be connected every 5mts, the controller must be for IC strip as the B1480. |
---|
P: Question: | I would like to know the price of a 10 meter kit and how it would be connected if the strip is cut. |
---|
R: Answer: | This IC strip can be joined every 5 m with another 5 m roll by means of connectors that are already soldered on the strip. It has to be connected to a power supply every 5 mts. If the strip is cut between the 5 mts, it has to be joined by soldering. |
---|
