Switch-mode power supply 24V, 75W

Switching power supply 24V 75W

SKU:B1566-75
Has superado el límite de unidades
In stock 353 unidades

75W switching power supply, selectable input voltage 110-AC or 230V-AC, output 24V-DC 2.5A, output voltage adjustable ±10%, power supply cooling by natural air convection, IP20 waterproof, overload and overvoltage protection.

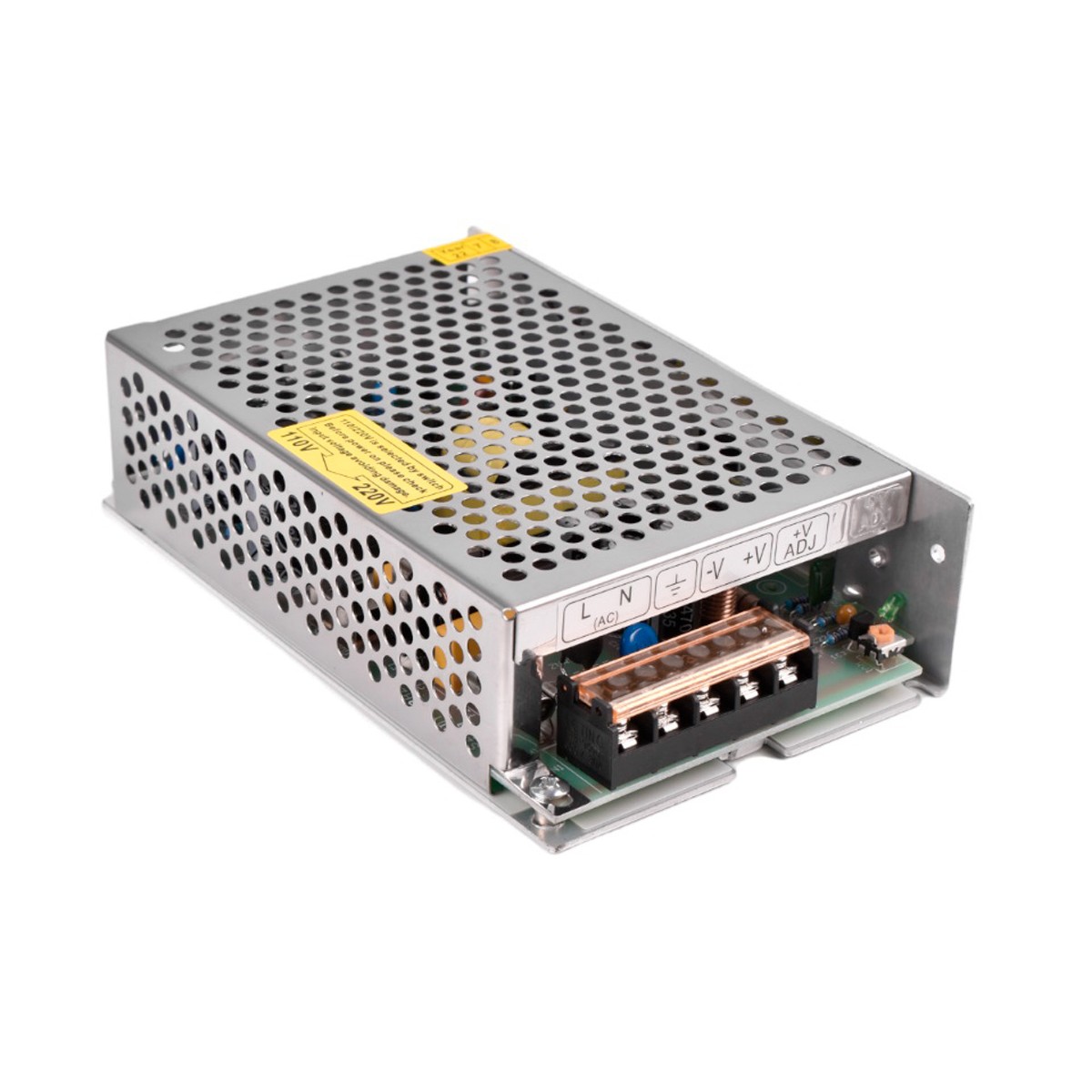

75W 24V Switch Mode Power Supply

The 75W switching power supply automatically detects the input voltage 110-AC or 230V-AC and has a 24V-DC 2.5A output. By adjusting the output voltage by ±10%, the voltage drop between the AC power supply and the point of consumption can be compensated and the power supply can be moved away from the point of consumption. The A.F. has overload and overvoltage protection.

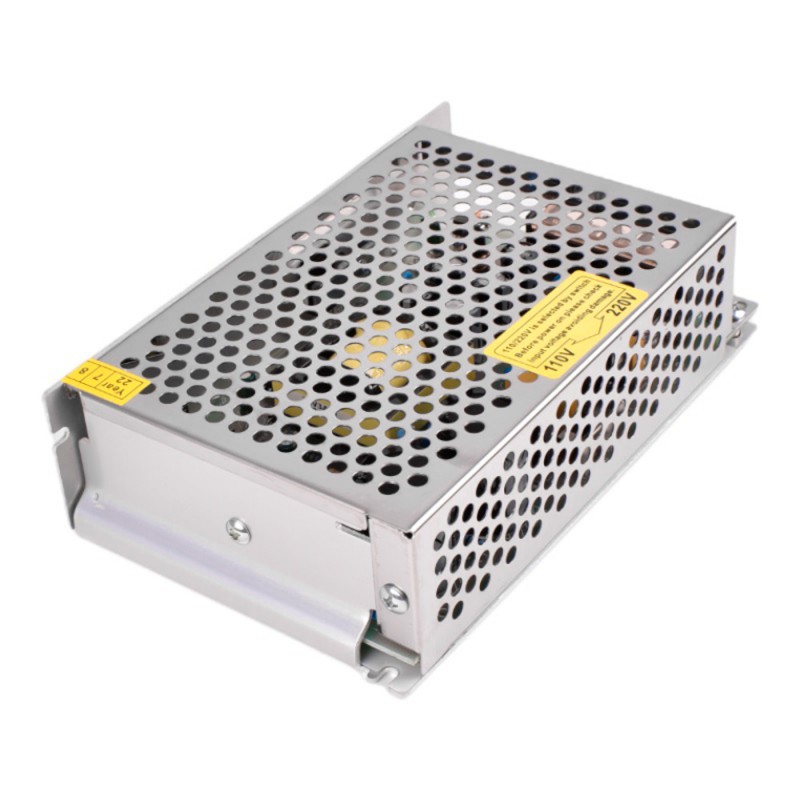

Its perforated sheet metal casing favors cooling by natural air convection.

Their external dimensions are 83x37x111mm (w. x h. x l.), with a degree of watertightness of IP20.

Applications:

  • Its main function is to power 24V-DC led strips, as well as any other element with 24V-DC working voltage, as long as it does not exceed the maximum power of the source.
  • Suitable for all kinds of uses: domestic, commercial, office, restaurant and hotel business, etc.
2018-07-06
Nominal Voltage (V)
110-230
Power (W)
75
Lifetime (h)
25000
IP
IP20
Dimensions (mm) Lxlxh
159x98x41
Frequency (Hz)
50 - 60
Power factor (cosφ)
0.5
Output voltage (V)
24V
Material
Aluminium
Use Outdoor
No
Temperature range
-20°C ~ +40°C
Frequency of use
Normal
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Maximum intensity (A)
3
