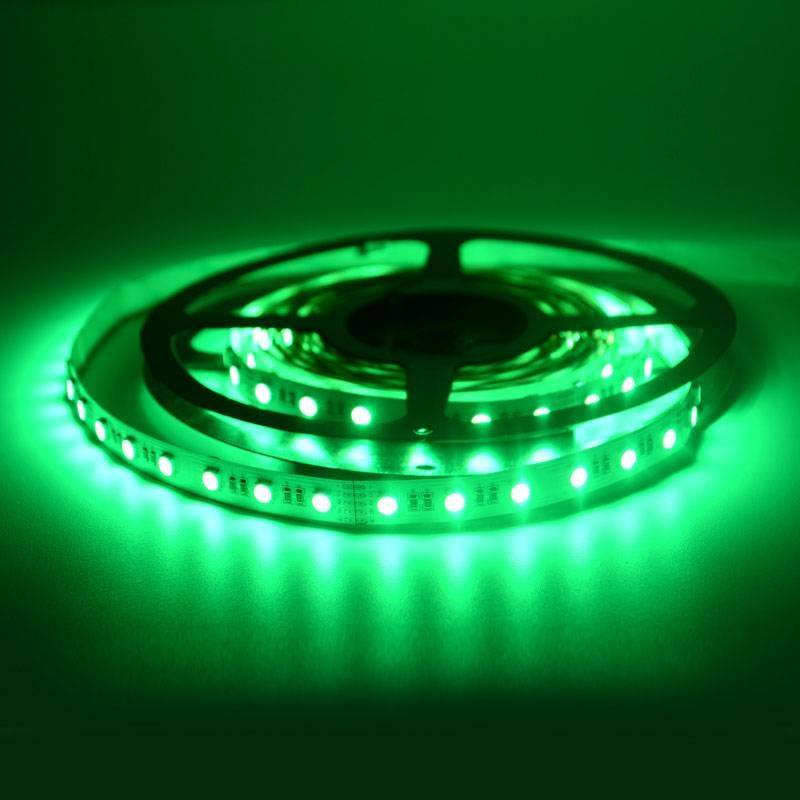

LED Strip 24V-DC 96W RGBWW IP20 (SMD5050) 5 meters Roll

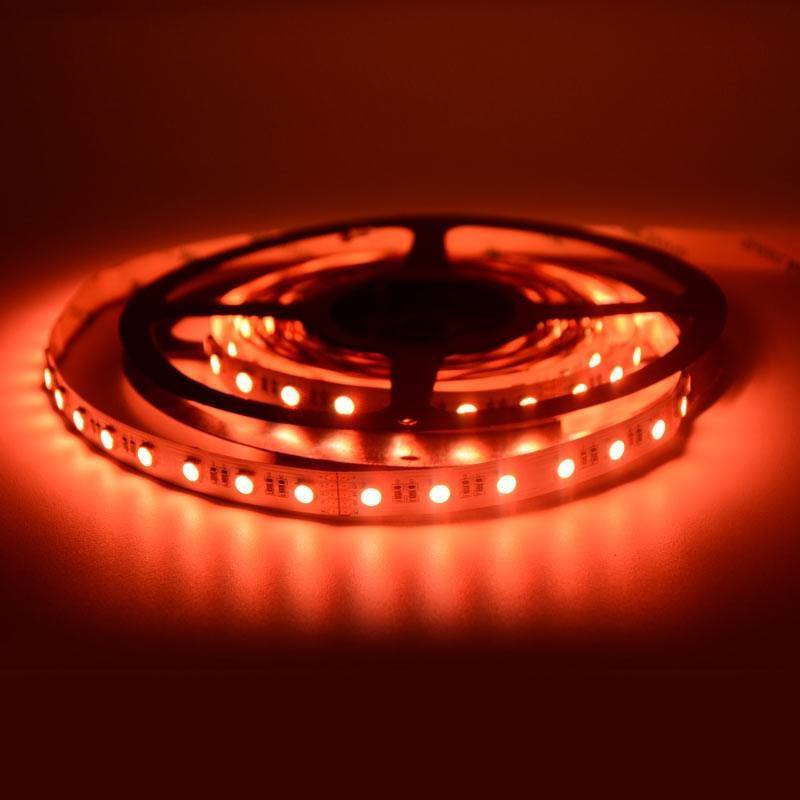

24V-DC LED Strip RGBWW 72W IP20 5ml Coil

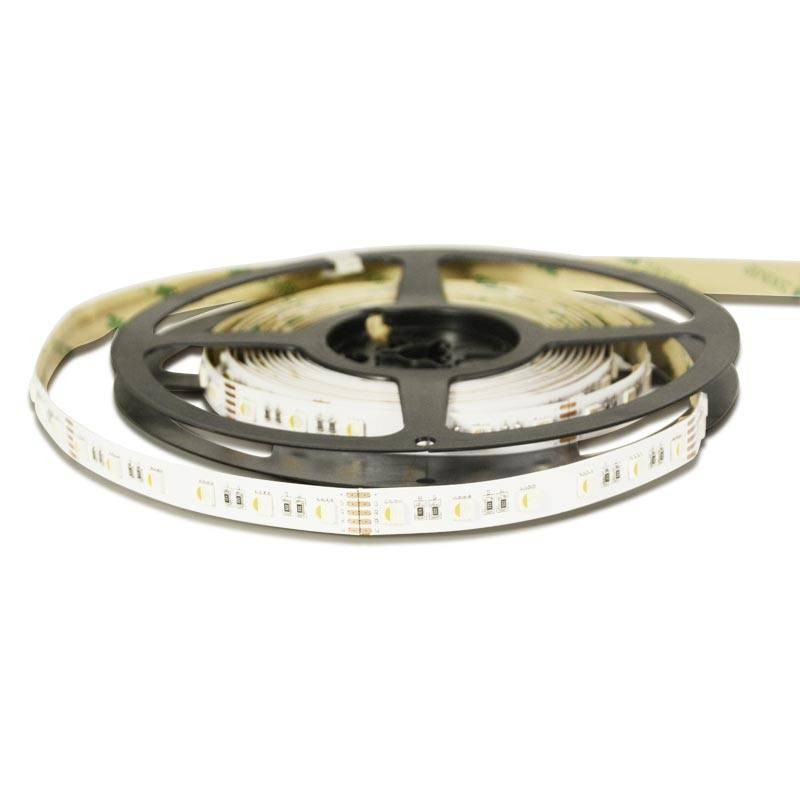

24V-DC LED Strip RGBWW 72W IP20 5ml Coil

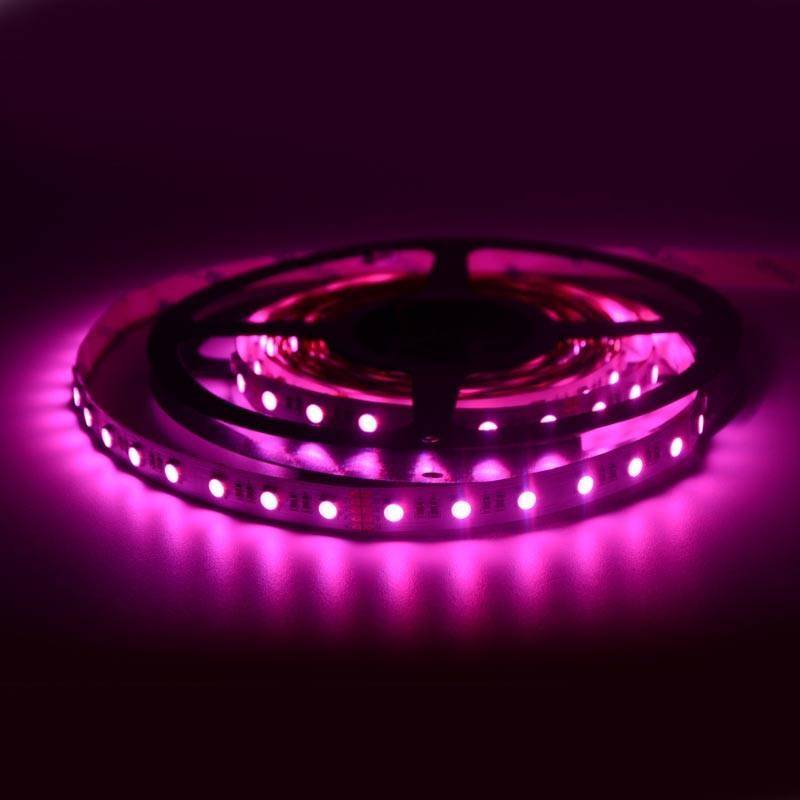

24V-DC LED Strip RGBWW 72W IP20 5ml Coil

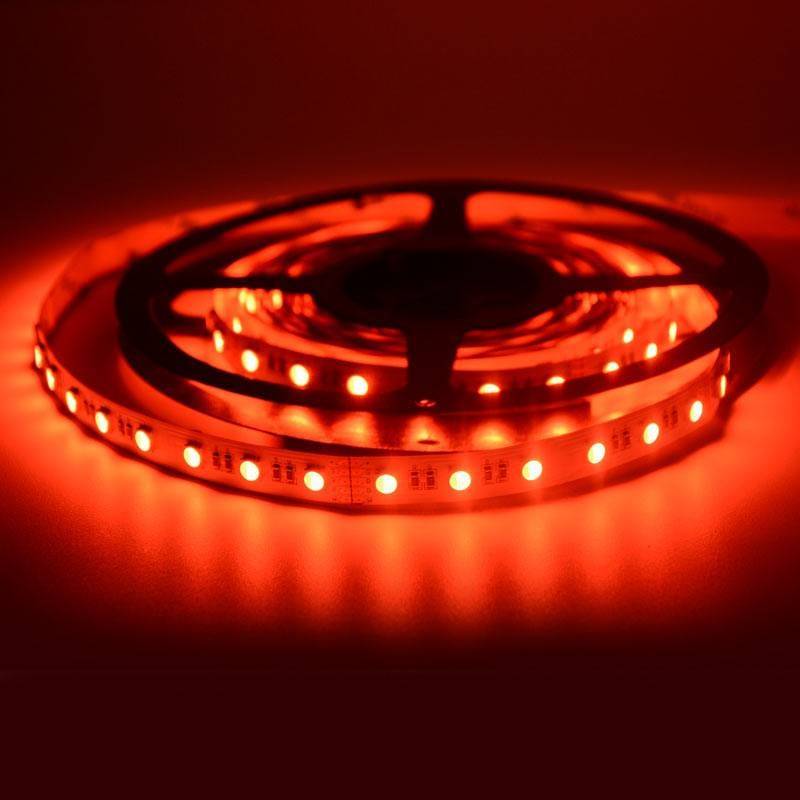

24V-DC LED Strip RGBWW 72W IP20 5ml Coil

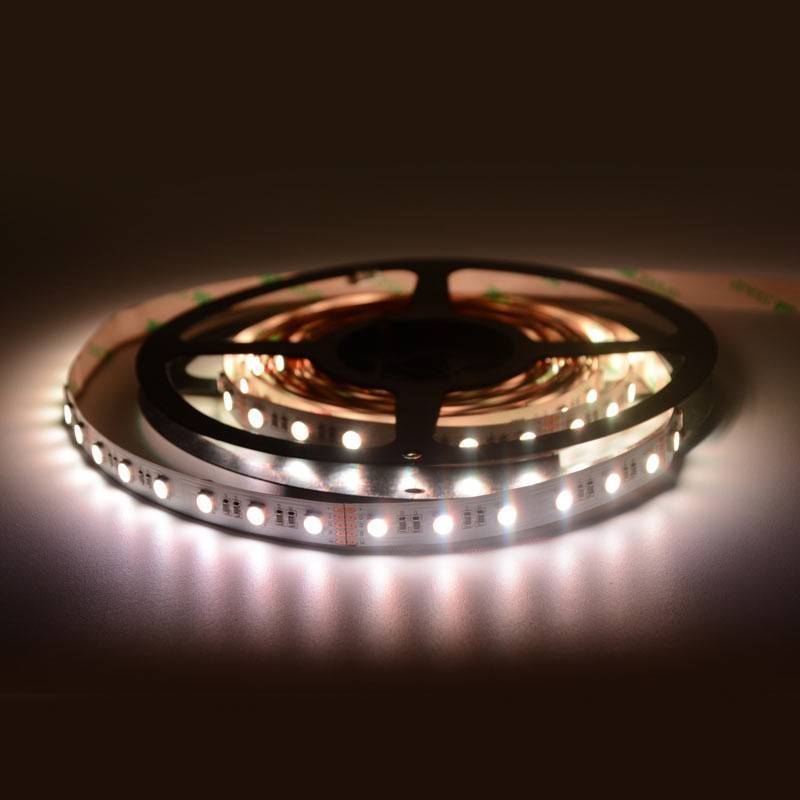

24V-DC LED Strip RGBWW 72W IP20 5ml Coil
24V-DC LED Strip RGBWW 72W IP20 5ml Coil

LED Strip 24V-DC 96W RGBWW IP20 (SMD5050) 5 meters Roll

SKU:B1548RGBWW
Has superado el límite de unidades
In stock 844 units
Data sheet

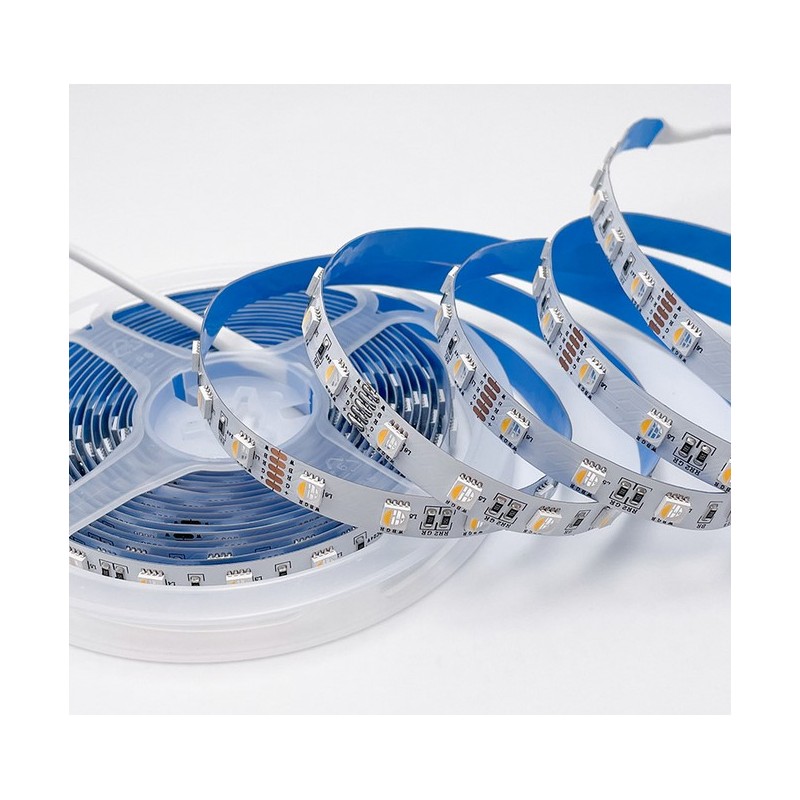

RGBWW 24V-DC 96W (300 SMD5050 chips) PCB 12mm 5 meter coil, cut every 10cm. The acronym RGBWW means that any color of the RGB spectrum can be shaded to warm white colors (WW=Warm White). As a result we obtain a strip with an infinite range of colors where any color can be converted into a lighter one. Create more or less warm environments depending on your needs.

  • 24V-DC
  • 96W
  • IP20
  • 120º
  • RGBWW
Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

RGBWW 24V LED Strip offers you infinite color combinations.

The RGBWW LED strip is one of the most technologically advanced and highest quality strips in our catalog. It incorporates warm white light diodes in this case, (there is also a cold white LED strip RGBWW), which allows you to use the strip as decorative or ambient, if we use colored light, and can even shade that color to warmer tones thanks to its WW option. In case you only want to illuminate it is also possible thanks to its warm light diodes, so you will get a very powerful light in warm white tones.

Characteristics and installation of RGBWW strips:

It is a very powerful strip as it offers us a total of 96W along its 5 meters and 300 SMD5050 chips, so each meter has a power of 19.2W/mt. and 60 chips. It offers us approximately for each watt of consumption 150 lumens, so if we make the complete installation of the 5 meters we would obtain about 4800 lumens.

The steps to follow for the correct installation of the RGBW LED strip is exactly the same as for any other LED strip, the only difference is that we must use a specific controller for the control of white both to illuminate in warm white tones and to shade the RGB colors.

In our LED lighting store we have two types of RGBWW controllers (also suitable for RGBW strips): a handheld controller and a recessed touch controller. It is also essential the RGBWW receiver as they work by radio frequency and a 24V power supply suitable for the power of the installation to be performed. We also have specific cables for RGBW/RGBWWW strips and connectors.

We cannot forget that for a perfect installation of our LED strips is highly recommended the use of aluminum profiles for LED strips for better heat dissipation and help to extend the life of the LED strip. That is not its only advantage, as you will get a premium finish and have different diffusers to diffuse the light as needed. And to incorporate it to the profile is very simple and fast thanks to the fact that the back of the strip has a 3M adhesive.

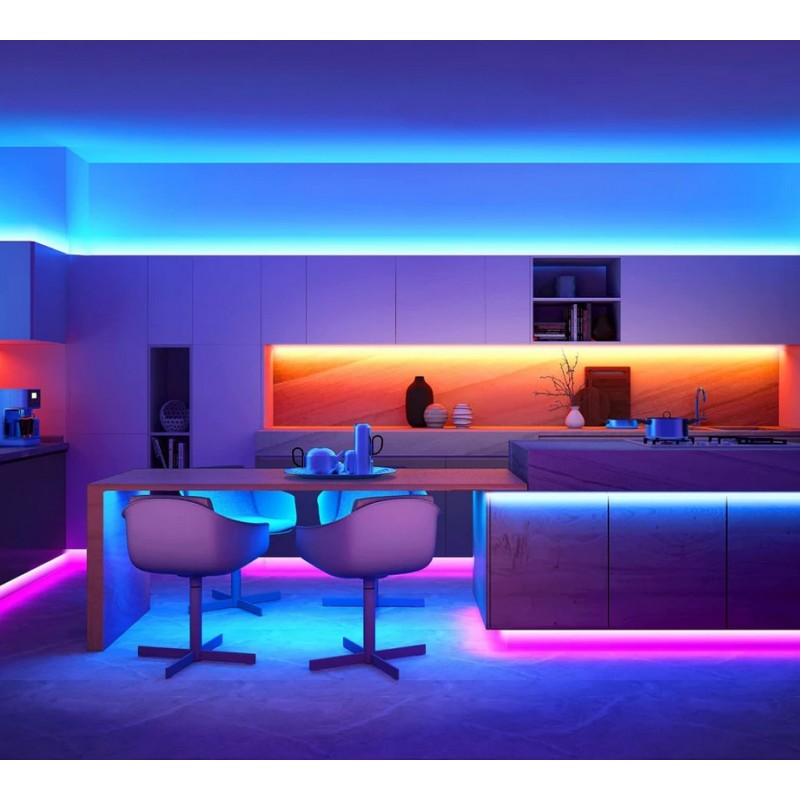

Applications of RGBWW LED strip:

- They are ideal for lighting and decoration of music bars, discos, restaurants, hotels.

- Store lighting and business lighting, to attract attention in shop windows or indoors, in addition to lighting.

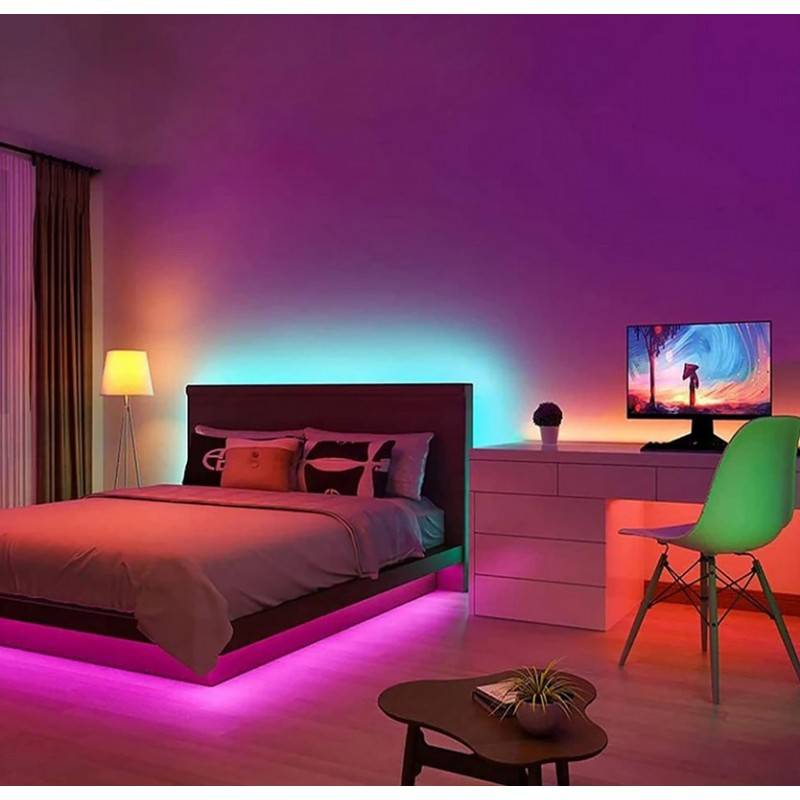

- Home lighting and decoration.

iluminación con tiras LED RGBWW iluminación led con tiras en bares musicales iluminación de salas con tiras led rgbw

2018-06-02
Nominal Voltage (V)
24V-DC
Power (W)
96
Power/m (W/m)
19,2
Lumens (Lm)
4800
Beam angle (º)
120
Lifetime (h)
25000
IP
IP20
Dimensions (mm) Lxlxh
5000x12
Frequency (Hz)
50 - 60
Hue
RGB-WW
Efficiency (Lm/w)
50
CRI
80-85
LED Type
SMD 5050
Dimmable
Yes
No. of chips/metre
60
Track width (mm)
12
Cutting distance (mm)
100
Use Outdoor
No
Adhesive
3M
Energy efficiency class
A++ (2021)
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Barcelona LED

Questions

P: Question: Good afternoon,
I have to illuminate with rgb a local. The idea is to place them in aluminum profile to illuminate the wall and, when the rest of the local lights is reduced, the rgb light is seen more clearly to create atmosphere. Of the rgb models that you offer, which would be the most recommendable?

Thank you.
Best regards.
R: Answer: This model also allows you to put warm white light. There are other models of higher power as ref. B1547-IP20. Please contact comercial@barcelonaled.com.
P: Question: Good morning

I am looking for a RGB +W strip, which gives a 3000K warm white. The 2700k shade seems too yellowish to me.

In this RGBWW version they answer above that the tone is 2700 K. What tone does the RGBW version give? Is the tone adjustable to obtain 3000 k?

Thank you very much
R: Answer: The B1548-RGBWW model is around 2700ºK (Warm White) and the B1548RGBW model is around 6000ºK (Cool White).
P: Question: Hello,
My idea is to install them in each room of the house. Maximum (20m for each one). Could all of them be managed from an APP?
R: Answer: The 24v strips can not exceed 10mts linear, for longer lengths you have to use amplifiers + power supplies every 10mt. To use an APP you must choose an RGBW controller that uses APP. Several controllers can be synchronized to the mobile application.
P: Question: Good morning, I would need a dimmable led strip RGB + white from 2700 to 6000ºK, with this strip I could get it. In case it is not possible, which strip would be the right one. Thank you.
R: Answer: Models B1548-RGBW and B1548-RGBWWW are available in one color temperature each.
P: Question: Hi, what power supply would 10 meters of this strip require? Do you have aluminum profiles for it? Thank you!
R: Answer: This model is about 19W/m, you will need a 24v source of about 200W. The strip is 12mm, any profile with an interior greater or equal to 12mm.
P: Question: How many wires are needed to connect this LED strip? 5 or 6?
R: Answer: You need 5 wires.
P: Question: Hello
I have to make several installations in rgbw with warm white max 3000k. I have seen this type of LED Strip 24V-DC 96W RGBWWW IP20 (SMD505050) Roll 5 meters.
In one area are 10 meters and in the other 25 meters, I would like to know what I need to do the installation and know if with a remote I can control both sites can change the colors.
R: Answer: For 24v RGBWW led strip, its maximum linear mounting is 10mts to avoid voltage drop. To be able to make longer assemblies you may need a repeater/amplifier after every 10mts. The assembly can be synchronized in a single command "example D1009FA + D2819S".
P: Question: Hello
The warm white color is 2700k.
Thank you
R: Answer: If between 2700 and 2800 ºK
P: Question: Good morning
Is it possible to control the LED Strip 24V-DC 96W RGBWW IP20 (SMD505050) Part number:B1548RGBWWW with the RGBW PWM Controller 12-36V-DC Part number:D1009FA and the RGBW radio frequency controller, Part number:D2819S ?
I say this because the strip is RGBWW but the controller and the controller are RGBW.
In this case you lose the control of the second led W?
Greetings
R: Answer: The RGBWW strip model refers to Red, Green, Blue and Warm White channels. The D2819S knob activates and regulates the white channel of the controller. If the strip is W, cool white, it will regulate as cool and if the strip is WW, warm white, it will regulate as warm.
P: Question: Good afternoon,
what power supply do you recommend for this LED strip : SKU:B1548RGBWW
R: Answer: The power supply should be 24V. The power will depend on the length of the installation, if it is 5m for example, the power supply should have at least 100W of power, ideally with 10% more for protection in case of overvoltage. If you need more information, please contact us:
Tel: 351 211.165.839/ Whatsapp: +351 920.287.383 / carla@barcelonaled.com / comercial@barcelonaled.pt
Here is a link to the 24V supplies: https://www.barcelonaled.com/pt/fitas-led/fonte-de-alimenta%C3%A7ao-led/fuente-alimentacion-24v-led/
