LED Strip 220V 75W (600xSMD2835) 12mm IP67 5 meter roll

LED Strip 220V 75W (600xSMD2835) 12mm IP67 5 meter roll

SKU:B1535-BF
Colour temperature
Has superado el límite de unidades
In stock 675 units
Data sheet

LED strip 220V direct current in roll of 5 meters. With high quality SMD2835 chip and a quantity of 120 Leds per meter. With a total power of 75W and a high luminous intensity of 7125 lumens. The difference with the other LED strips in the market is the cut, this 220V LED strip does not need to be cut every meter, it can be cut every 100mm, in the indicated place. In addition, it works without rectifier. With IP67 protection degree for outdoor use, no worry about humidity, rain, dust, etc. With a beam opening angle of 180 degrees. High color rendering (CRI >80). No transformer required. Ideal for places where high brightness is required, including outdoors, self-adhesive 220v LED strip, cutting area every 10 cm.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

LED strip 220V, 75W (15w per meter), IP67 for outdoor use 5 meters.

The 220V LED strip does not need a transformer. They are strips of only 12mm wide with a very powerful light and do not require any type of power supply for its operation. It is designed according to the highest quality standards, both in terms of technology and IP67 protection for outdoor mounting. These LED strips are self-adhesive. Its watertight connectors are designed to be able to work outdoors without having to use watertight junction boxes or perform complex assemblies. The cut is made every 10cm on the marked part, which facilitates installation.

Silicone coated to be completely flexible and protect the LED strip outdoors, withstanding extreme conditions. With high quality silicone extrusion system. We can select between different color temperatures, according to the needs of the space and the environment we want to create, warm white 2700ºK, neutral white 4000ºK and cool white 6500ºK.

It is coated with silicone to be completely flexible and protect the LED strip outdoors withstanding different weather conditions. It allows a certain degree of regulation with specific controllers for 220v LED strip as the SR-1009HT.

High power and low consumption

With a total of 75W of power, you get an intense illumination covering large spaces. These 220V LED strips have a high luminous intensity of 7125 lumens and a beam opening angle of 180 degrees. With a high color rendering index for faithful color rendering, CRI >80. With a total of 600 SMD2835 LED chips.

Easy handling and installation

The 220V LED strip comes pre-assembled in 5 meter roll, with initial power connector and end connector with plug. You can make cuts every 100mm and place a silicone plug at the end. The width of the strip is 12mm. Flexible LED strip completely protected.

The strip works directly at 220V, does not require installation of drivers or transformers of any kind. Without rectifier. The cut is made by the mark where the soldering is.

tira led de 220V

CRI

Recommended use for LED strips

  • General outdoor lighting.
  • To illuminate showcases, shelves and shop windows.

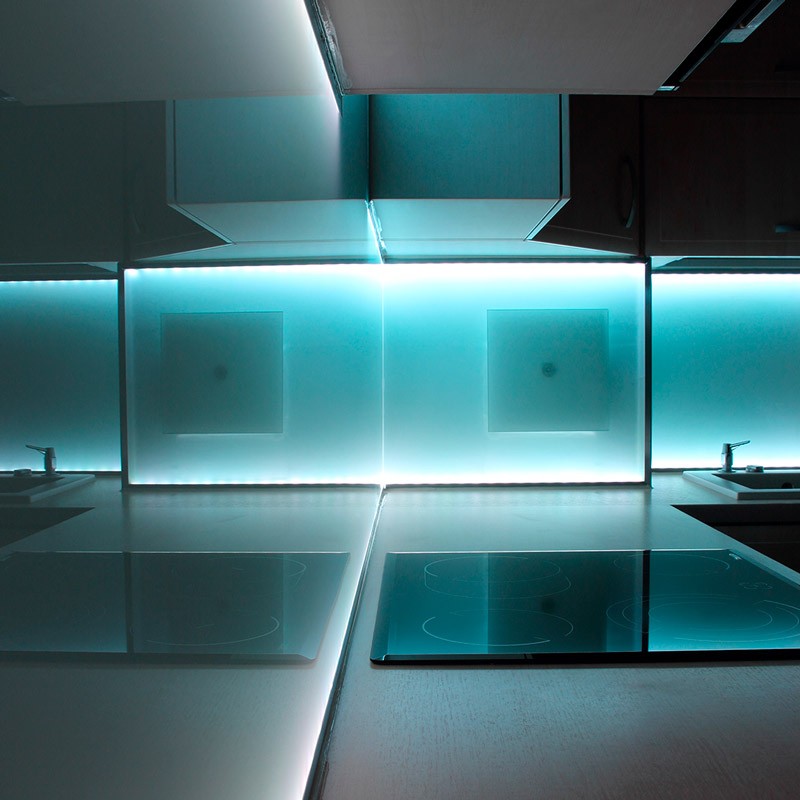

  • Indoor decorative lighting.

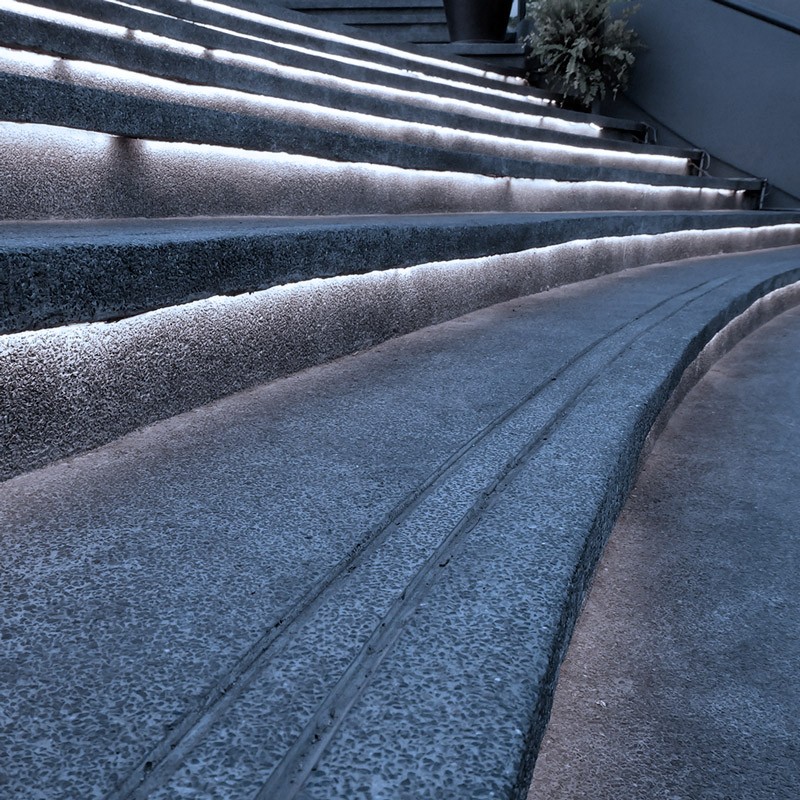

  • Indoor and outdoor architectural lighting.
  • Highlight objects, contours, structures and environments.

Technical specifications of 220V LED strip

  • 220V-AC
  • Lumens: 7125lm
  • Power 75W ( 15w meter)
  • Opening angle: 180 degrees.
  • Width: 12mm
  • Cutting distance 100mm
  • CRI: CRI>80
  • IP67
  • 5 meters
  • LED chips: 600xSMD2835
  • 120chips/m.
  • Strip length 5 meters
  • TRIAC type dimming may cause flickering at minimum dimming.

TIRA LED 220V

TIRAS LED

Nominal Voltage (V)
220 - 240 V/AC
Power (W)
75
Lumens (Lm)
7125
Kelvin (K)
3000
4000
6500
Beam angle (º)
180
IP
IP67
Frequency (Hz)
50 - 60
Hue
Cool white
Neutral white
Warm white
LED Type
SMD 2835
No. of chips/metre
120
Use Outdoor
Yes
Temperature range
-20°C ~ +40°C
Adhesive
3M
Frequency of use
Normal
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Barcelona LED

Questions

P: Question: I need two pieces for the bathroom, one of 170cm and one of 80 cm. I want to connect them to a same cable that I have already in the wall connected to a switch with which I would turn on and off that light.
I need to know everything I have to buy, aluminum rail with heat sink, connectors, cable to connect the two strips, etc., I'm not sure and I need information to make the installation without missing any component and work properly.
I imagine that I will have to buy the roll of five meters, but what I do not know well are the rest of accessories. THANK YOU
R: Answer: Hello good day ... for budgets and orders can contact comercial@barcelonaled.com
Please note that it is a 220v strip not suitable for certain areas of the bathroom.
P: Question: Good afternoon I was thinking of mounting a 1 meter LED strip 230V without profile in a wooden hole to illuminate some mirrors in the entrance-hall of a property owners. my question is the LED strip is class II? as it has no grounding and I have no grounding in the line of the farm. thanks.
R: Answer: The strip is watertight ip67, if it is manipulated by cuts it must be watertight and protected.
P: Question: Hi, is it dimmable in intensity? Thank you
R: Answer: Hi, this led strip allows some degree of adjustment with specific controllers for 220v led strips such as the SR-1009HT.

Barcelona LED: Alex| 19/01/2023

P: Question: Hello,
1) As far as I have understood each cut we make of the led strip to 220 v we have to solder the wires and put silicone protections without any other additional complication?
2) If each cut we mount it inside an old box for outdoor fluorescent with IP67 protection is considered sufficient ?
3) If I want to get a lot of brightness I will get it by mounting 2 or 3 strips in the place that occupied the fluorescent?
Thanks
R: Answer: You must cut in the indicated area, weld and leave the strip watertight.
The strip must be completely watertight.
Each meter is of 1600LM, about 15W/m
P: Question: Good, I want to mount this led strip in an aluminum profile, to be 220v is already protected no? I say this in case it can heat more than anything, is it necessary to put the diffuser in the profile?
R: Answer: It is not necessary to add a diffuser to the profile.
P: Question: It is possible to join strips of different color temperatures and in cuts of different lengths, for example a 2.5m strip of warm color and a 1m strip of cold color. thanks.
R: Answer: It is possible to join strips of the same electrical characteristics with different color temperatures. It is recommended to insulate 230v models.
P: Question: Hello, good afternoon, I am interested in the 220v. LED strip with reference B1535-BF, in the description says that the roll of 5 meters brings the initial connector to current, how long is this cable? In the case that I would like it to be longer, would it be possible to request the appropriate measure to my needs when placing the order?
Thank you very much.
R: Answer: The starting cable is about 14cm. There are start and end plugs to be plugged in after cutting and soldering of cables by the installer.
P: Question: Good evening,
I would like to know if the LED strip 220V 75W (600xSMD2835) 12mm IP67 - 5 meters, cutting every 10 cm, is it necessary to have a transformer or can I connect directly to 220v only 10 cm ?
Thank you
R: Answer: you can connect directly to the mains, as long as it's cut correctly in the right place.
P: Question: I want to put these LED strips in different areas of my house.the first section I see that brings the cables and no problem to hook up to the current.but to continue using the strip, I have to buy to hook it to the current? Thanks
R: Answer: In the 220v strip models, the cable must be soldered with tin in the copper track where the cuts are made and a start and end plug must be placed with silicone. ref. B1540-TI
P: Question: I would like to put the strip of Leds in the bedroom directly to 220v. Is it possible to regulate the intensity by means of a rotary regulator embedded in the wall. If it is possible, which one should be installed for the strip to work properly?
R: Answer: 220v LED strips do not have a stable dimming, the flickering is noticeable with most TRIAC dimmers, we recommend 12dcv or 24vdc strips for dimming.
