12V-DC LED STRIP, SMD2835, 50W 5ML COIL IP20
12V-DC LED STRIP, SMD2835, 50W 5ML COIL IP20
12V-DC LED STRIP, SMD2835, 50W 5ML COIL IP20
12V-DC LED STRIP, SMD2835, 70W 5ML COIL IP20

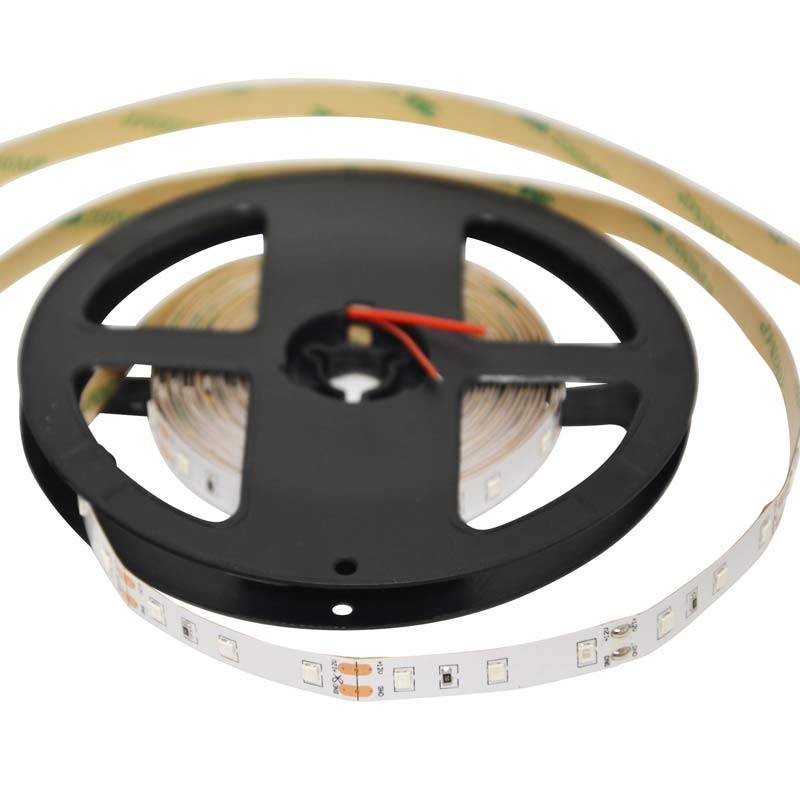

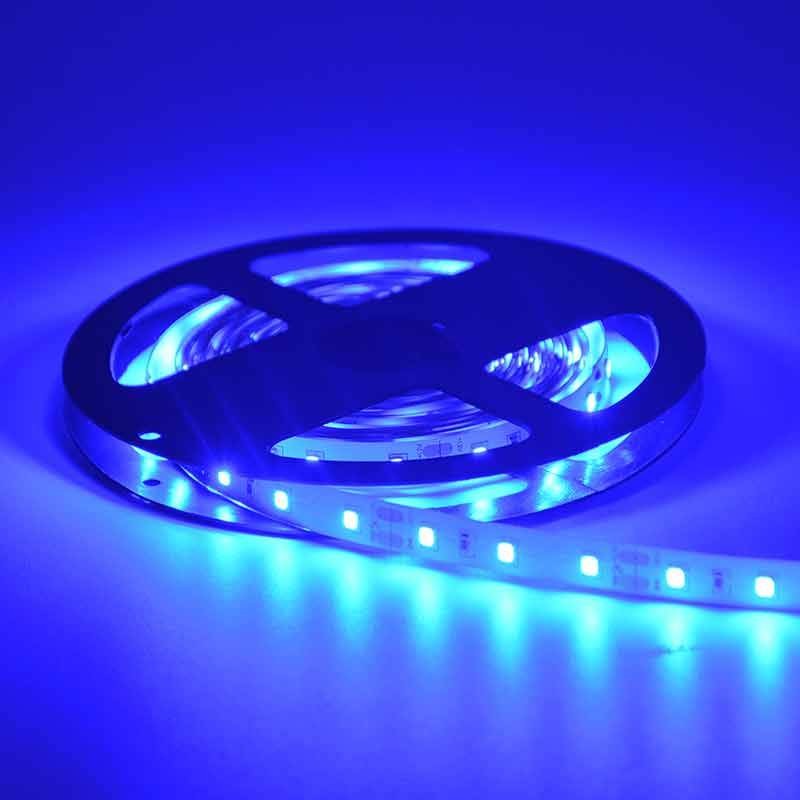

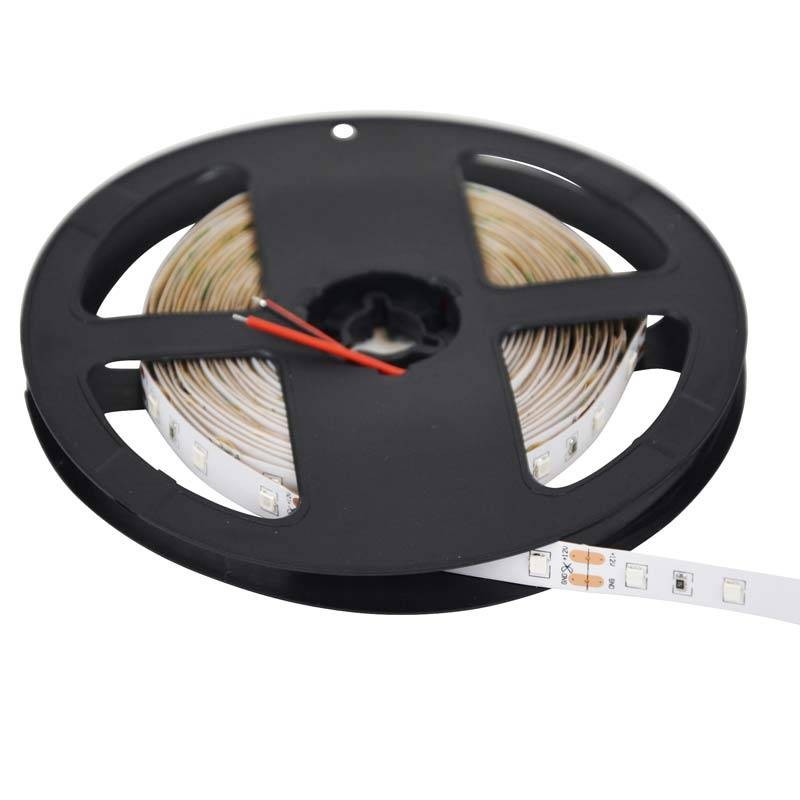

LED Strip 12V-DC 50W 10mm single color IP20 (SMD2835 60ch/m) 5 meter roll

SKU:B1539AZ
€16.45
€3.29 Tax included
Register as a professional and get your discount
Colour temperature
Has superado el límite de unidades
In stock 394 units
Data sheet

Single colorLED strip at 12V DC, total power 50W, width and luminous angle 120º. Available in Red, Green and Blue

  • 12V DC

  • 50W (10W/m)

  • 5 meters

  • Width: 10 mm

  • Cut: 50mm

  • IP20

  • 300 x SMD2835

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

✔ 12V LED Strip 50W
✔ Available in Red, Green or Blue
✔ 5 meter reel
✔ 60 chips/meter SMD2835
✔ Cutting distance 50mm
✔ IP20 protection rating
✔ PCB width: 10 mm
✔ Self-adhesive 3M
✔ Flexible, high gloss and brightness.
✔ Requires power supply (not included).

The LED strip is an element that integrates into your projects with minimal visual impact, creating indirect and diffused lighting that highlights architectural elements.

SMD2835 LED strips are low power and low consumption. Average consumption is estimated at 10 W/m. They can be cut every 50mm, allowing them to be adapted and spliced according to the needs of each project.

Installation:

The LED strip comes supplied with 3M self-adhesive tape on the back. Place it on a smooth, non-porous surface and make sure to clean it beforehand. As a flexible strip, it can be used in tight bends. Mounting against the power supply can be done using connectors or by soldering the cable directly to the power supply.

For a complete LED strip installation you will need a controller, a power supply and, optionally, aluminum profiles (surface or recessed). It is estimated that for 12V LED strips, if you want to make stretches longer than 5 meters, you will need to install additional power supplies and signal amplifiers, to avoid voltage drops.

Recommended uses:

✔ Highlighting architectural contours.
✔ Lighting under furniture and shelves, showcases.
✔ Aisles, shop windows, with indirect lighting.

2018-07-06
Nominal Voltage (V)
12V-DC
Power (W)
70
Power/m (W/m)
10
Lifetime (h)
25000
IP
IP20
Dimensions (mm) Lxlxh
5000x10
Frequency (Hz)
50 - 60
Hue
Blue
Green
Red
LED Type
SMD 2835
Dimmable
Yes
No. of chips/metre
60
Track width (mm)
10
Cutting distance (mm)
50
Use Outdoor
No
Adhesive
3M
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
