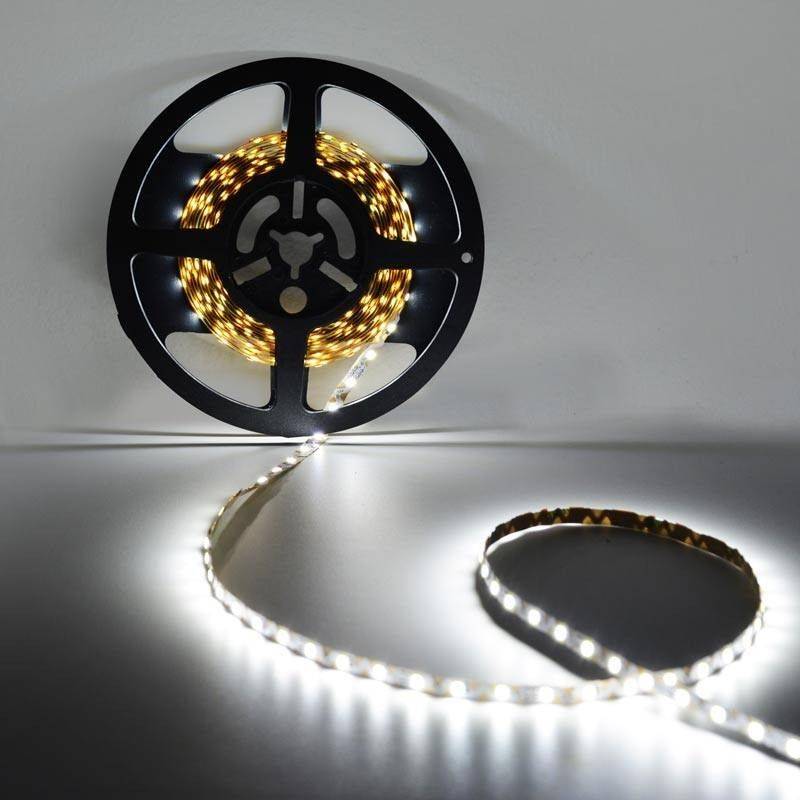

LED Strip 12V-DC 36W 6mm Zig Zag IP20 (SMD2835 60ch/m) 5 meter roll
LED LIGHT ZIG ZAG contour 36w IP20 12V-DC
LED LIGHT ZIG ZAG contour 36w IP20 12V-DC
LED LIGHT ZIG ZAG contour 36w IP20 12V-DC

LED Strip 12V-DC 30W 6mm Zig Zag IP20 (SMD2835 60ch/m) 5 meter roll

SKU:B1522BF
Colour temperature
Has superado el límite de unidades
In stock 398 unidades

LED Zig Zag Strip for Contours at 12V DC, total power 30W, width 6mm and luminous angle 120º.

  • 12V DC

  • 30W

  • 5 meters

  • Width: 6 mm

  • Cut: every 3 chips

  • IP20

  • 300 x SMD2835

Zig Zag LED Strip 12V for contours, ultra-flexible

  • 5 meter reel

  • 60 chips/meter SMD2835

  • Cutting distance 50mm

  • IP20 protection degree

  • PCB width: 6mm in zig zag pattern

  • 3M self-adhesive

  • Flexible, high brightness and luminosity

  • Requires power supply (not included)



The LED strip is an element that integrates into your projects with minimal visual impact, creating indirect and diffused lighting that highlights architectural elements.

SMD2835 LED strips are low power and low consumption. They can be cut every 3 chips, allowing them to be adapted and spliced according to the needs of each project.

Installation:

The LED strip comes supplied with 3M self-adhesive tape on the back. Place it on a smooth, non-porous surface and make sure to clean it beforehand. As a flexible strip, it can be used in tight bends. Mounting against the power supply can be done using connectors or by soldering the cable directly to the power supply.

For a complete LED strip installation you will need a controller, a power supply and, optionally, aluminum profiles (surface or recessed). It is estimated that for 12V LED strips, if you want to make stretches longer than 5 meters, you will need to install additional power supplies and signal amplifiers, to avoid voltage drops.

Recommended uses:

  • Highlighting architectural contours.

  • Lighting under furniture and shelves, showcases, showcases

  • Aisles, shop windows, with indirect illuminationtira led 12v

tiras led

Applications for ZIGZAG LED Strip:

- Signs

- Contours of pictures, masks or objects.

- Railings

- Shelves

- Showcases

tiras de led

luces led tiras

Technical Installation:

1. The installation surface must be smooth, clean and dry.

2. The LED component part can not be fixed on the surface of a sharp edge.

3. The contour LED strip must not be knocked or stepped on.

4. The LED strip can be cut along the marked cutting lines.

tira de luces led

2018-07-06
Nominal Voltage (V)
12V-DC
Power (W)
36
Power/m (W/m)
7,2
Lumens (Lm)
3700
Kelvin (K)
3000
6000
Beam angle (º)
120
Lifetime (h)
25000
IP
IP20
Dimensions (mm) Lxlxh
5000x6
Frequency (Hz)
50 - 60
Hue
Cool white
Warm white
Efficiency (Lm/w)
103
CRI
85-90
LED Type
SMD 2835
Dimmable
Yes
No. of chips/metre
60
Track width (mm)
6
Cutting distance (mm)
50
Use Outdoor
No
Adhesive
3M
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
