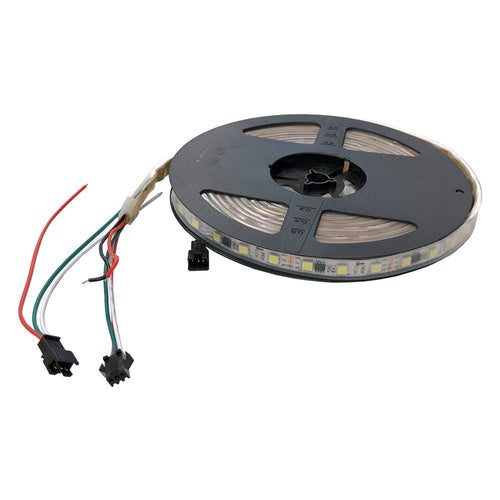

Intelligent LED Strip IC 12V DC - 14,4W/m - IP67 - 60 LED/m - Width 10mm - 6000K - 5 meters

SKU:B1542-3IC-BF
Has superado el límite de unidades
In stock 193 unidades

Intelligent LED strips at 12V DC, total power 72W, width 10mm (12mm with silicone coating) and luminous angle 120º, for outdoor IP 67.

  • Cool white 6000K

  • 12V DC

  • 72W (14.4W/m)

  • 5 meters

  • Width: 10mm

  • Cut: 50mm

  • IP67

  • 300 x SMD5050

  • WS2811 IC chip

Intelligent LED Strip, 12V 72W 300 chips SMD5050 IP67

  • 72W12V LED Strip

  • 5 meter reel

  • Cool white 6000K

  • 60 chips/meter SMD5050

  • WS2811 IC control chip

  • Cutting distance 50mm

  • IP67 protection rating

  • PCB width: 10mm (12mm with protective silicone sleeve)

  • Flexible, high brightness and luminosity

  • Power supply required (not included)

Intelligent LED strip, 3-core groups, to form translation, flickering, motion and rhythm effects. Strip width 10 mm.

Available in cool white (6000K). Responds to sound with the corresponding B1610-WIFI controller (sold separately).
With proper programming, arrays and soundbar effects can be formed. With over 2048 programmable effects and variable speed and intensity, the combinations with each other are endless.

The IP67-rated strips are covered with silicone sleeve and do NOT have 3M self-adhesive tape. A variety of clamps, brackets and profiles are available for easy mounting.

Meaning of the colored wires:

Red: positive
White: negative (GND)
Green: data

Nominal Voltage (V)
12V-DC
Power (W)
72
Power/m (W/m)
14,4
Kelvin (K)
6000
Beam angle (º)
120
Lifetime (h)
25000
IP
IP67
Dimensions (mm) Lxlxh
5000x12x4
Frequency (Hz)
50 - 60
Hue
Cool white
CRI
80-85
LED Type
SMD 5050
Dimmable
Yes
No. of chips/metre
60
Track width (mm)
10
Cutting distance (mm)
50
Use Outdoor
Yes
Adhesive
No
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
