Aluminum profile for flexible moldable LED strip 18x6 surface (2meters)

SKU:BPERF18X6
Has superado el límite de unidades
In stock 1783 unidades
Data sheet

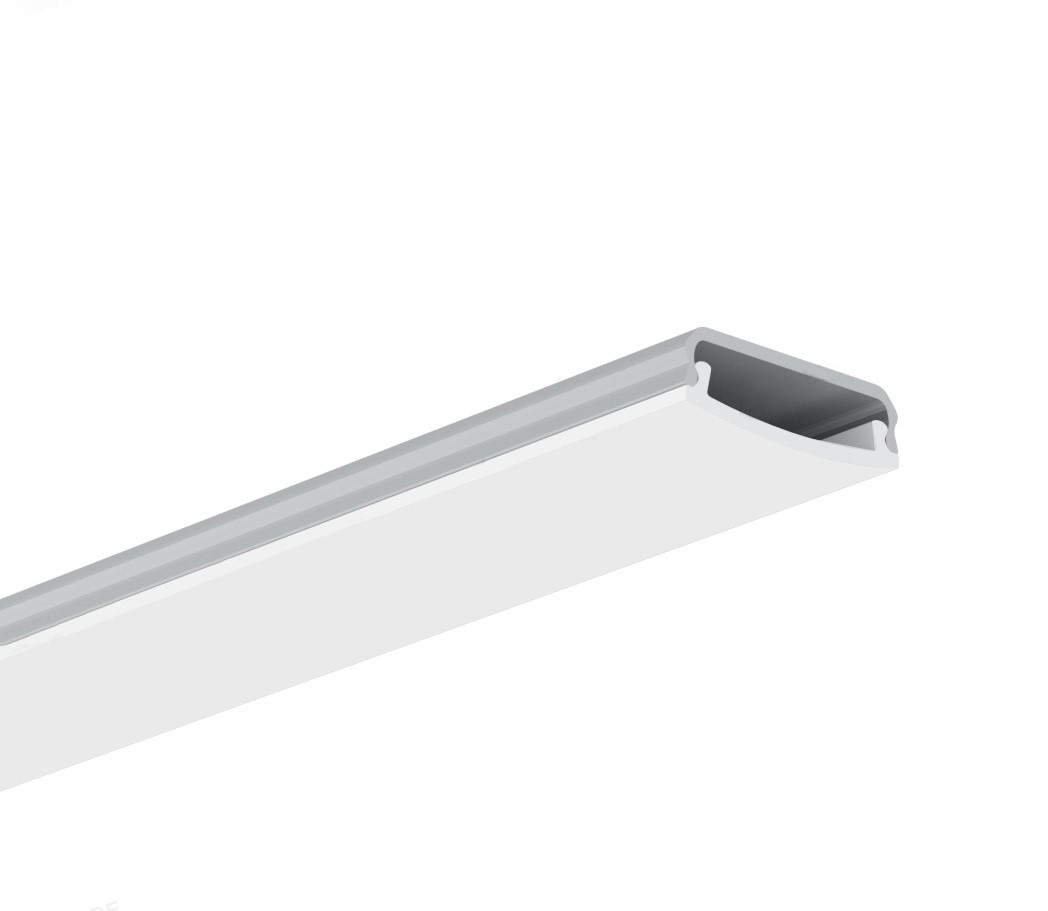

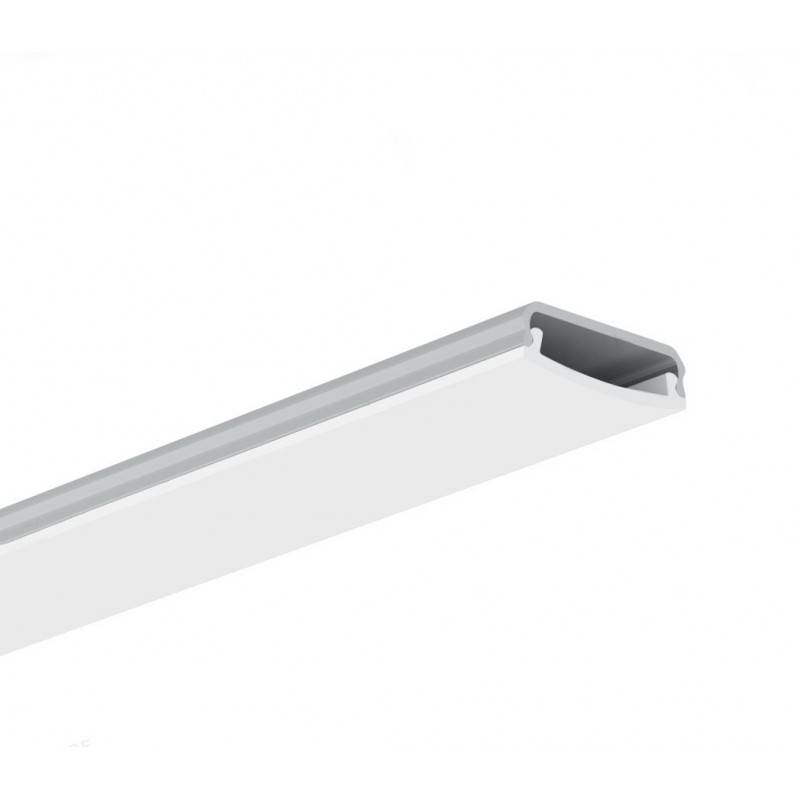

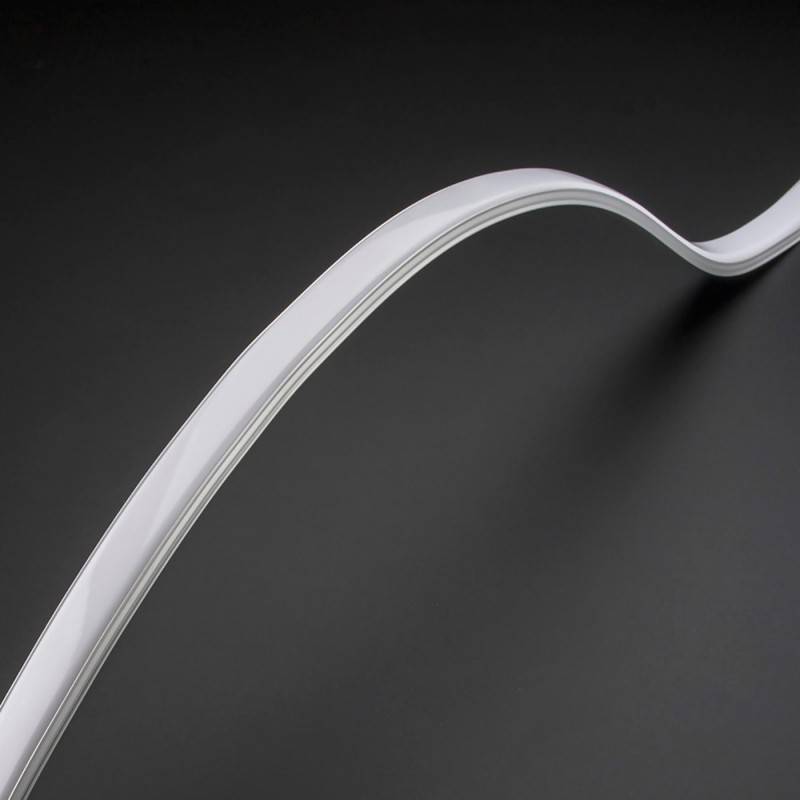

Aluminum profile for LED strip extruded 18X6mm. FLEXIBLE AND MOLDABLE. The installation of a strip in this type of profile is ideal to save irregularities and create custom shapes with curved forms with no more limit than your own imagination.

- Accessories and diffuser not included -

Length 2 meters

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

ALUMINIUM PROFILE for led strip FLEXIBLE MOULDABLE 18x6 SURFACE

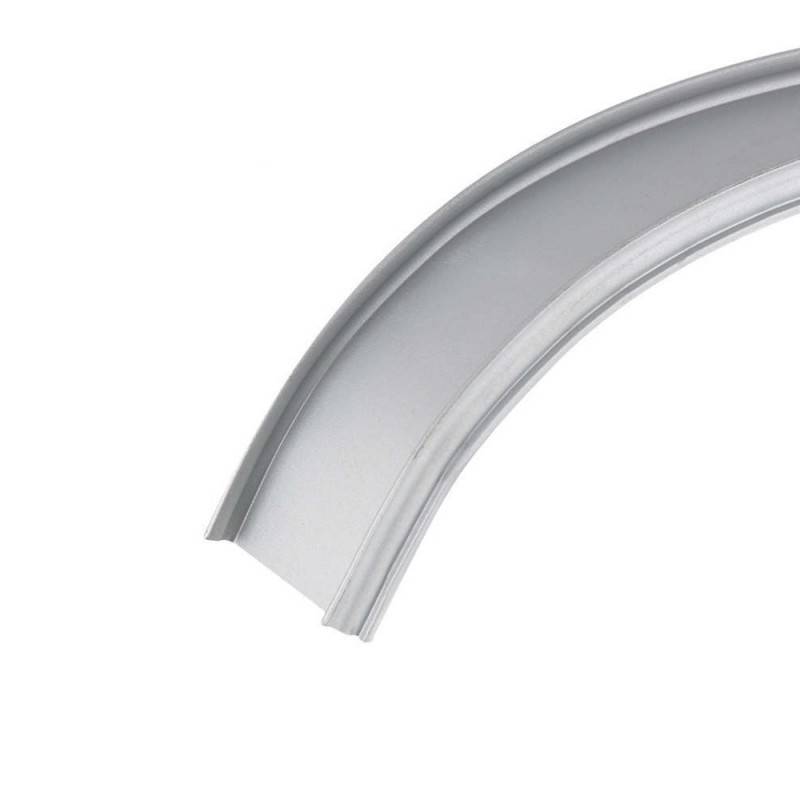

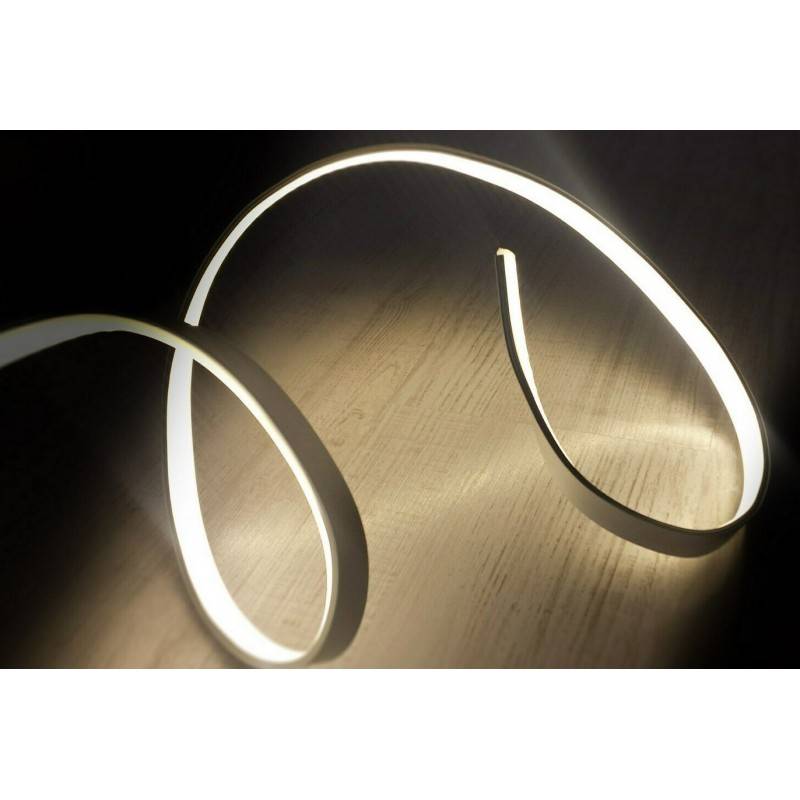

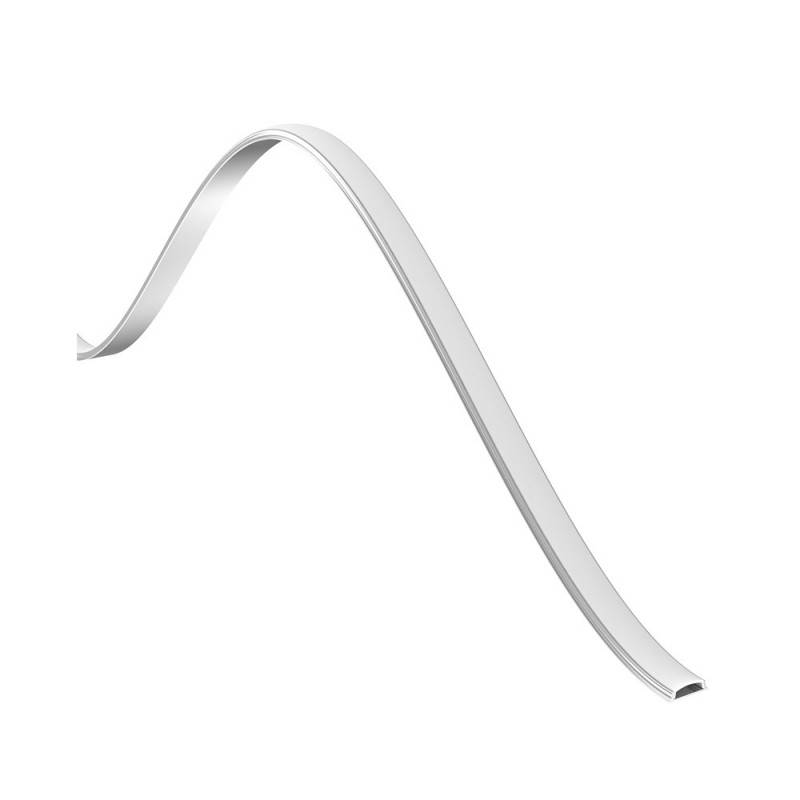

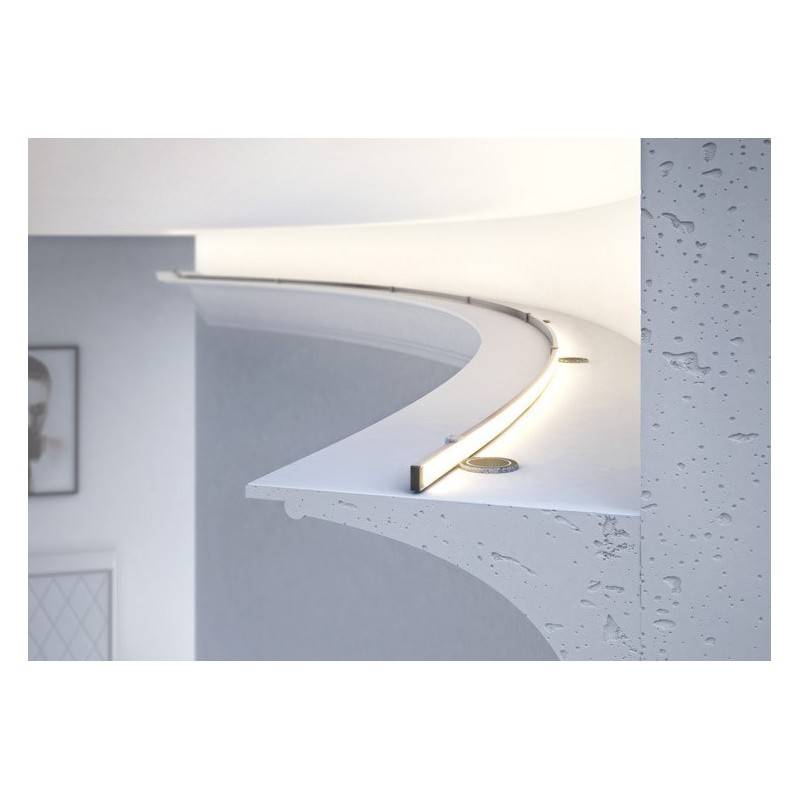

The 18x6 mm flexible profile allows us to create any irregular or curved shape. Circles, spirals, waves... no shape can resist this profile.

perfil de superficie moldeable

perfil aluminio tira ledperfil para tira led

perfil tira led

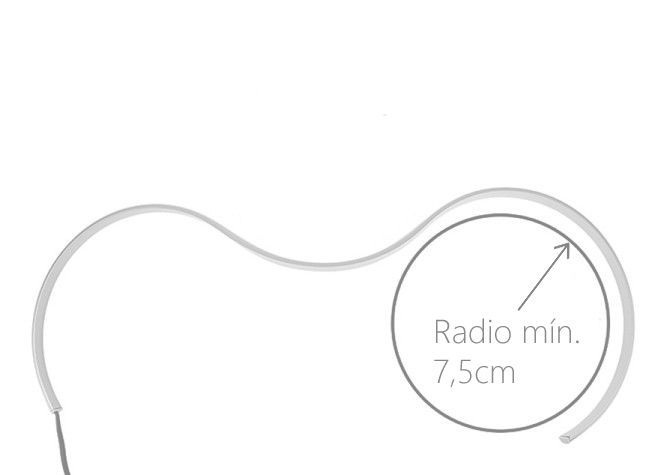

The inner dimension of the profile allows the installation of 10mm wide LED strip IP20. Due to the elastic resistance of aluminum, you can create curves with a minimum radius of torsion of 7.5cm. Not recommended for corners. We recommend that the bending is done with a roller system.

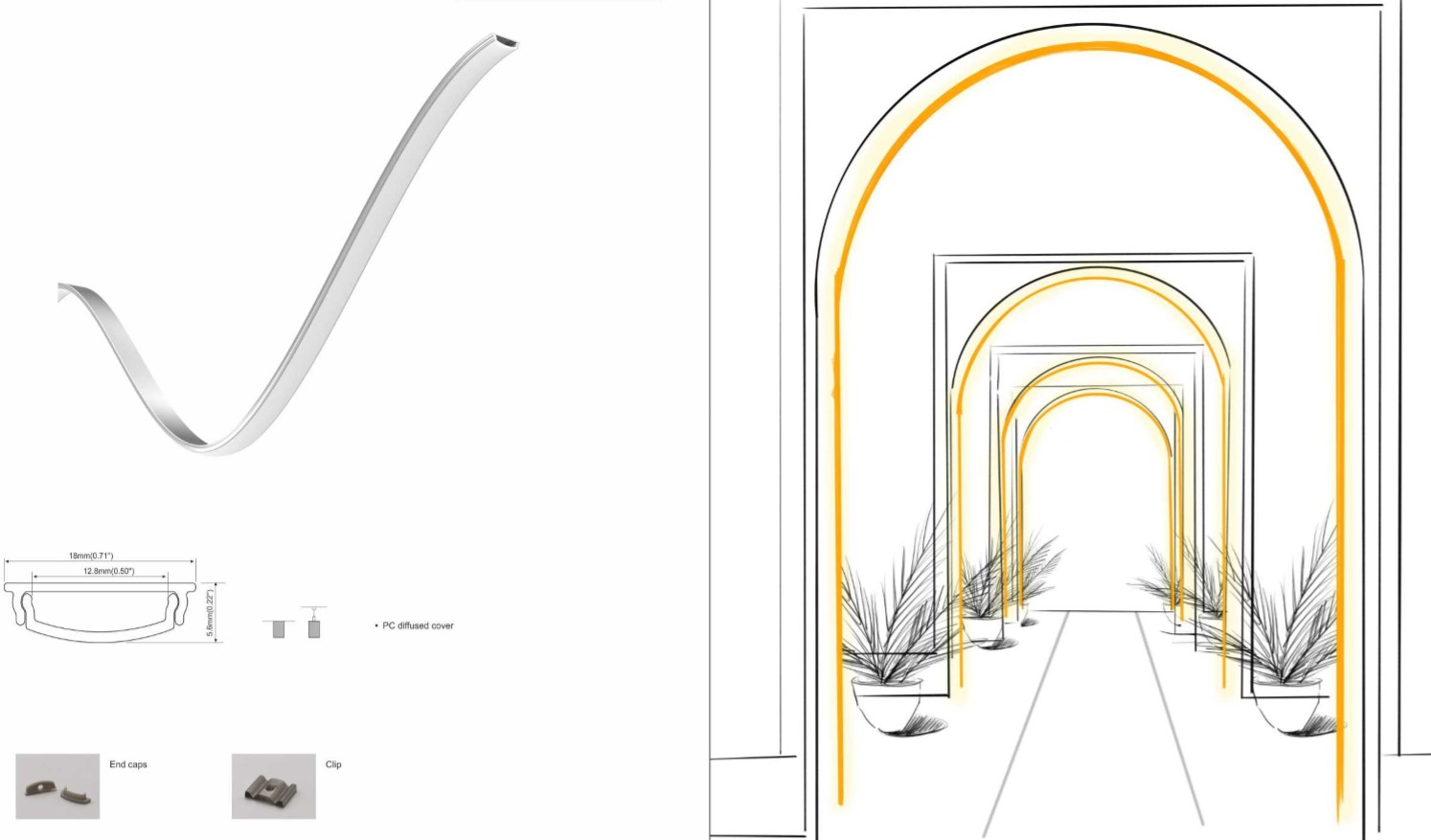

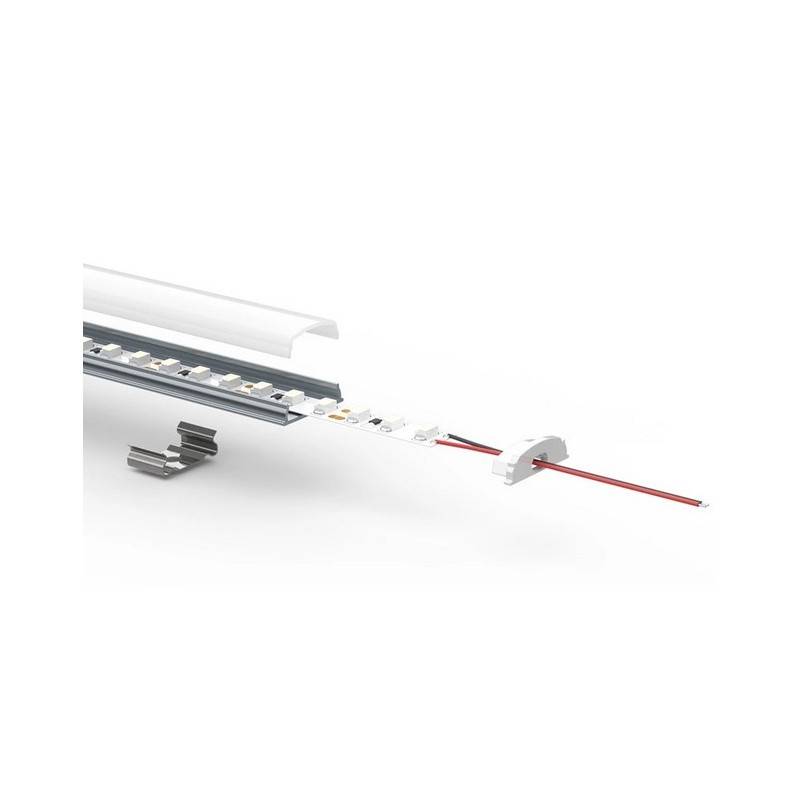

perfilpara tira led moldeable esquema de instalacion

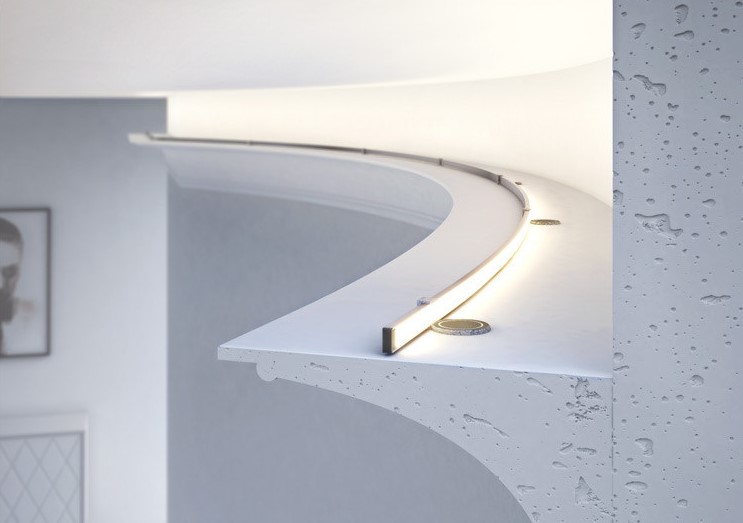

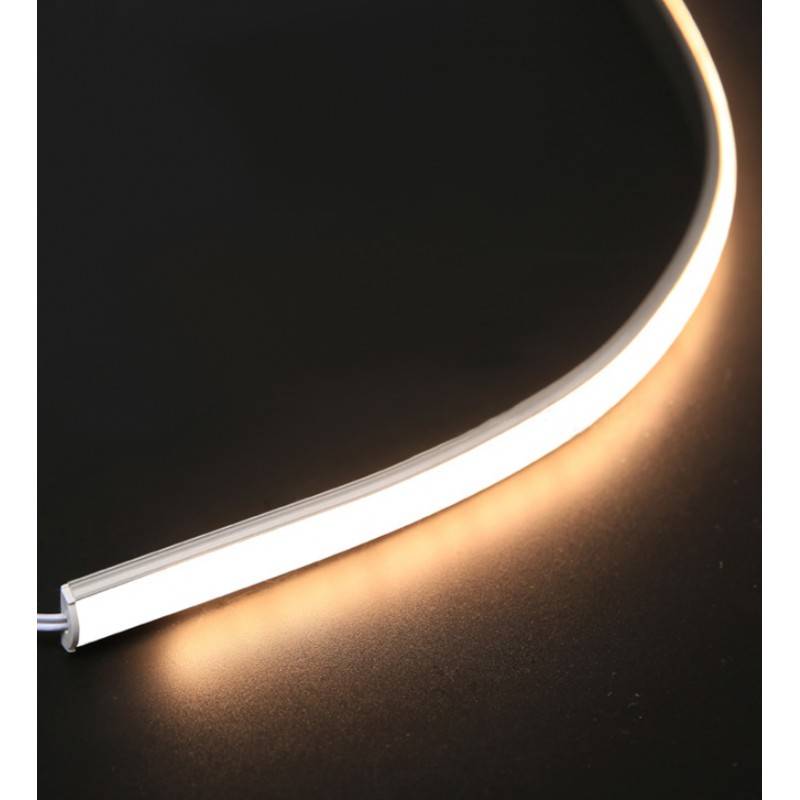

perfil moldeable aspecto con tira led

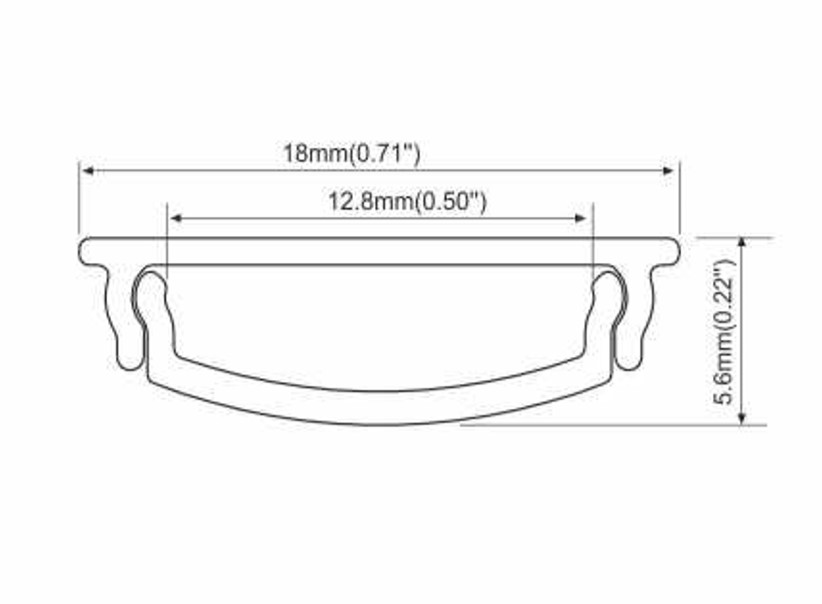

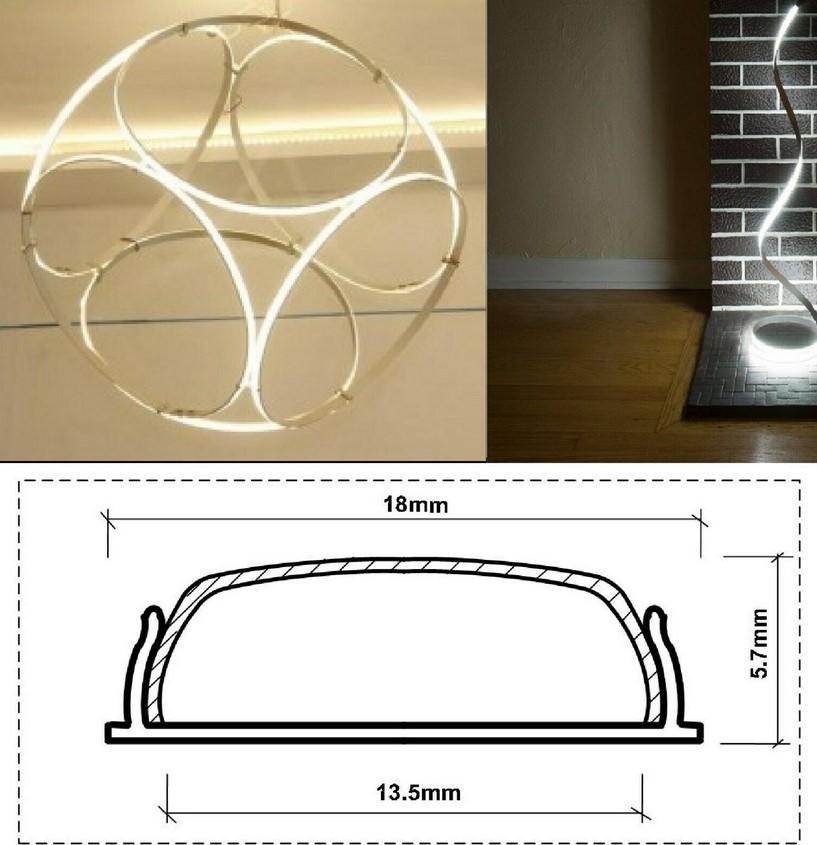

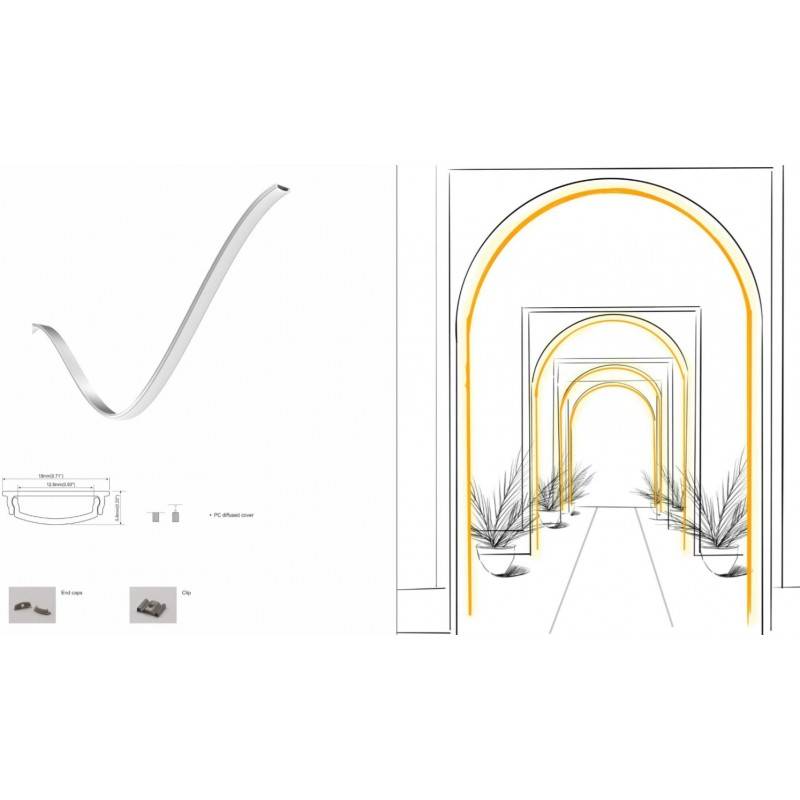

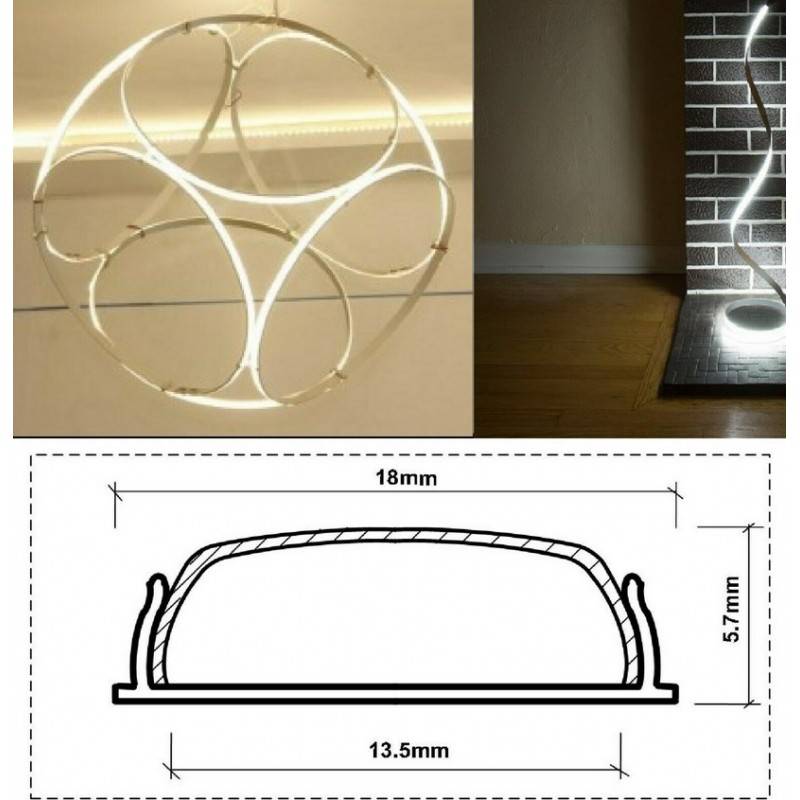

perfil moldeable esquema tecnico

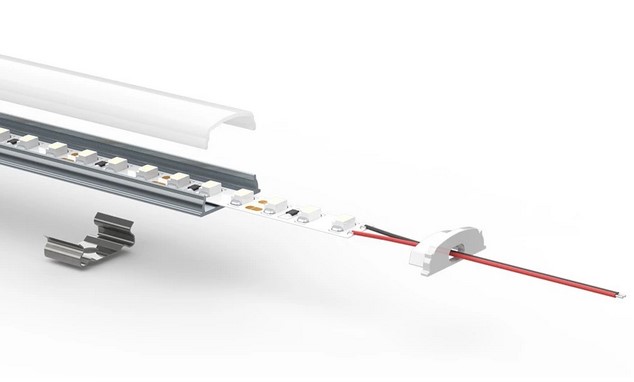

perfil de tira led flexible con tapaperfil para tira led flexible con difusor

Supplied in 2 meter bars.

IP
IP20
Dimensions (mm) Lxlxh
2000x18x6
Material
Aluminium
Use Outdoor
No
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Barcelona LED

Questions

P: Question: Suitable for neon strips
R: Answer: No, the profile is only for LED strips.
P: Question: When will you receive the aluminum profile?
R: Answer: For availability, please contact comercial@barcelonaled.com.
P: Question: When will the flexible aluminum channel be available?
R: Answer: Contact comercial@barcelonaled.com for product availability.
P: Question: Hello, I would need it longer. Are they available in 3m? Thanks
R: Answer: The profiles are 2mts.
P: Question: As the item is due to be available soon, how or if is it possible to pre-order this product?
R: Answer: Normally sufficient stock is available. You can contact comercial@barcelonaled.pt to see if a reservation is possible.

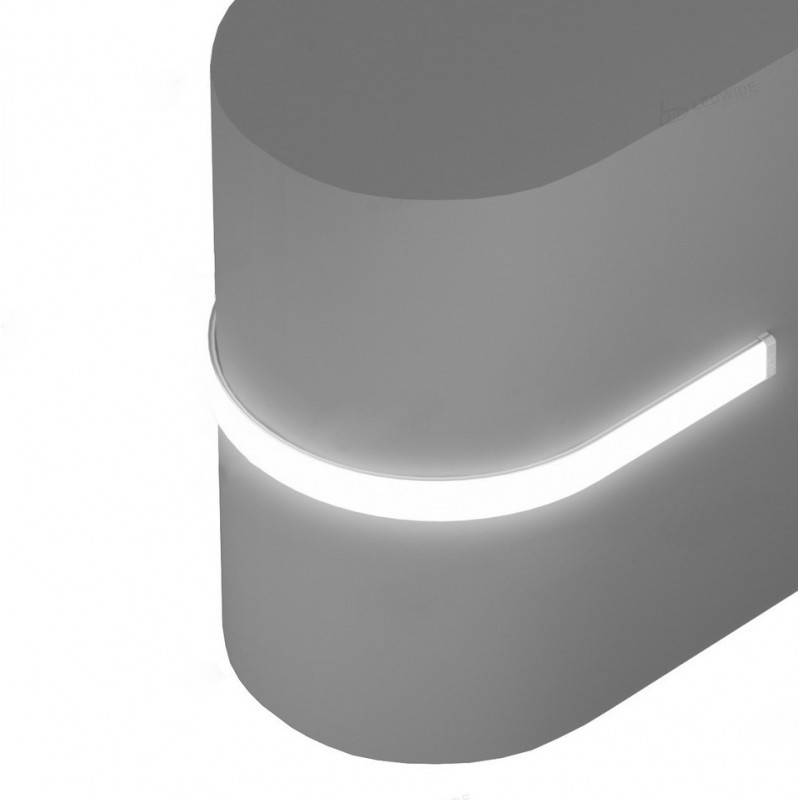

P: Question: Hi. I want to put it standing on the side as in the last photo.
The staples that I see of suggestion are not the same, how would it be fixed? Is it another staple? Thanks
R: Answer: The only clamp available is the one in accessories, ref. BGM18.
P: Question: Hello, I would like to know if it is suitable to put it behind a round mirror with the led light inside.
And how could it be attached or glued?
Thank you.
R: Answer: This model has staples that must be screwed to the surface ref, BGM18. If this is not possible, perhaps a 3M double-sided strip can be used to fix it.
P: Question: I would like to know if the white cover is included or if it is just the aluminum strip, thank you very much.
R: Answer: No, it is only the profile, you can add the diffuser, side covers and clips in the accessories section.
P: Question: Are there connectors to be able to splice 2 sections?

Thank you.
R: Answer: No, only side covers and fastening clips are available as accessories.
P: Question: Hello I wanted to know if the back has glue to be able to stick on the wall ?
R: Answer: No, the profile has staples as accessories, it can be glued with a 3M double-sided strip.
