Single color quick connector bridge strip to strip or profile to profile 10mm
Single color quick connector bridge strip to strip or profile to profile 10mm
Single color quick connector bridge strip to strip or profile to profile 10mm

10mm COB strip to strip single color bridging quick connector

SKU:BCI10BXB-2W
Has superado el límite de unidades
In stock 101 unidades

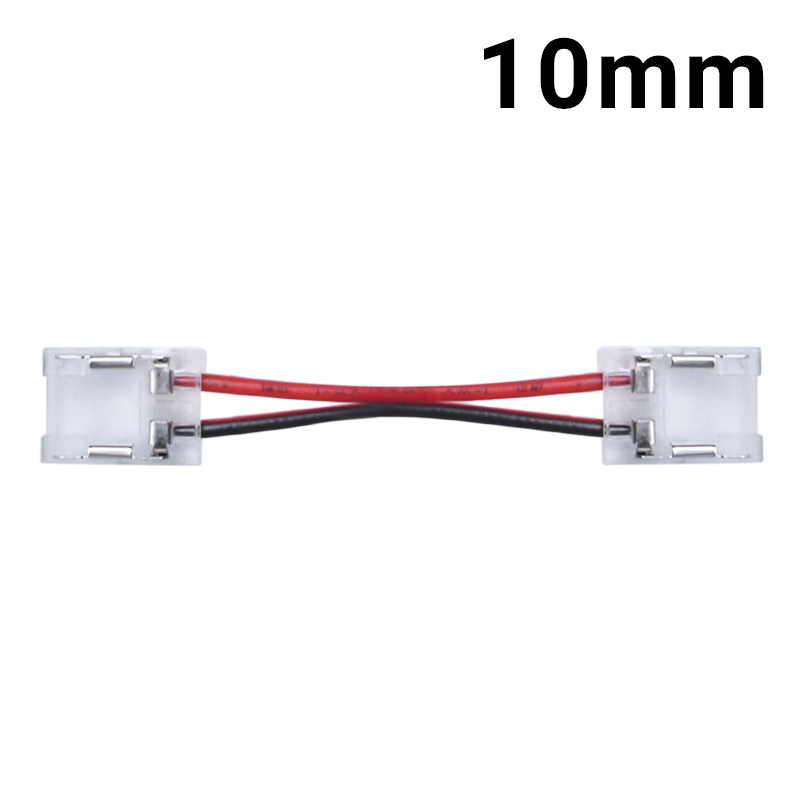

Connector for single-color connection of 10mm wide COB LED strips. 10mm wide COB strip to strip jumper, exclusive for indoor use, with IP20 protection. Easily joins both ends of strips or profiles with this innovative connector. Central cable with a length of 150mm, black-red. 3/24V-DC. 2pin. 3.5A.

Perfect for quick and easy connection of 10mm COB LED strips effortlessly.

3-24V-DC single color COB strip-to-strip jumper

Connector for splicing 10mm wide COB LED strips.

Innovative solution for COB LED strips, strips with high density and unique linear illumination. This quick connector gets rid of the dark area caused by the conventional connector between two high density LED strips and provides a complete finish for lighting professionals and individuals.

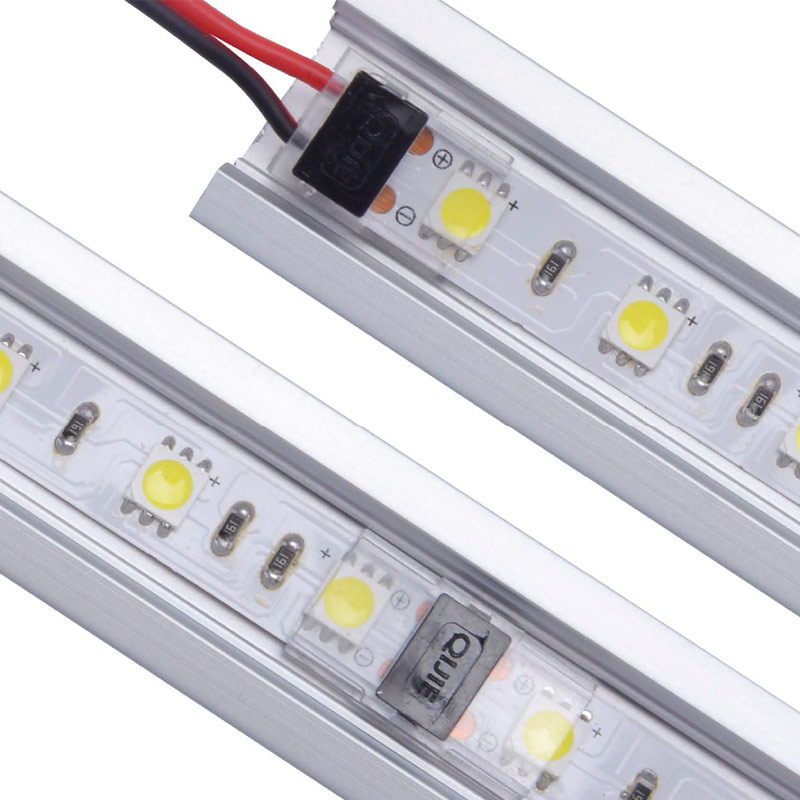

conector perfil a perfil

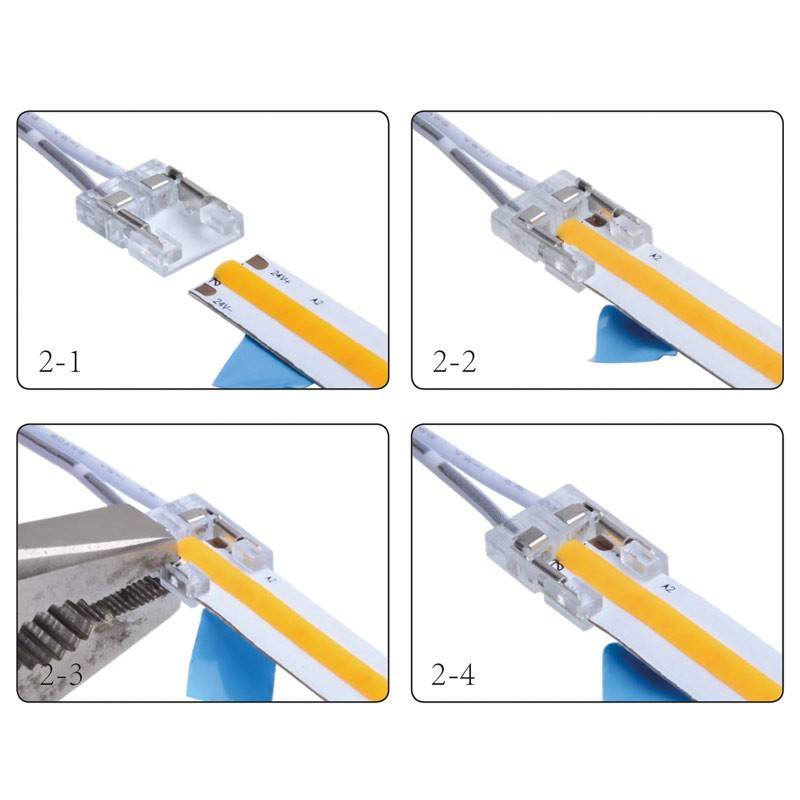

Perfect quick connector for splicing profiles or LED strips with dimensions of 0.8cm wide, without the need for soldering. Thanks to this, very simple connections can be made in different sections of the strips or profiles to each other.

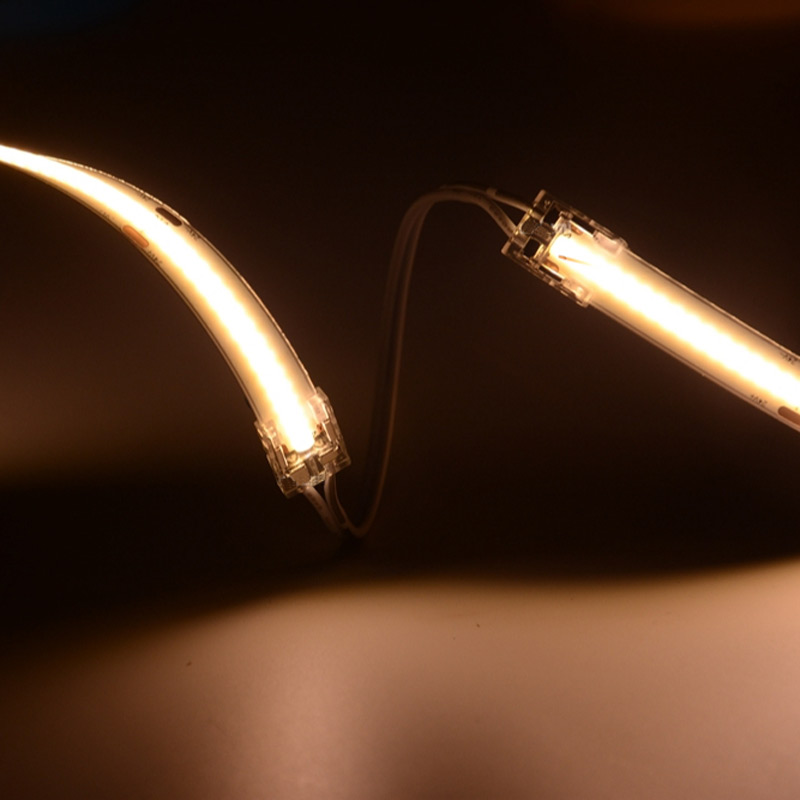

puente tira a tira

Advantages of the quick connector

  • No soldering is required.
  • Add additional strips or profiles with quick connectors!
  • Connection on different lengths of strips or profiles.
  • Possibility to disconnect and connect circuits.
  • Durable fixing brackets.
  • Indoor use only.

    conector monocolor

    conector de tiras y perfiles

Technical characteristics single-color connector

Voltage: 3/24V-DC.
3.5A.
Dimensions: 15.6x11.6x3.3mm.
For 10mm wide COB strips.
Bridge strip to COB LED strip.
✔ S ingle color.
2 pin.
Degree of protection: IP20.

conector monocolor 10mm

2018-06-02
Nominal Voltage (V)
12/24V-DC
IP
IP20
Dimensions (mm) Lxlxh
15.6x11.6x3.3
Control system
Monocolor
Track width (mm)
10
Material
Polycarbonate
Use Outdoor
No
Temperature range
-20°C ~ +40°C
Frequency of use
Intensive
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
