LED module for signage 2.5W direct to 230V IP65 120º.

ADHESIVE LED MODULES FOR ILLUMINATED SIGNS 230V 2,5W OPEN ANGLE 120º.

The LED modules for signage are the perfect solution when illuminating backlit surfaces with opal cover, or in those curved or irregular surfaces where the LED strip is not the right solution.

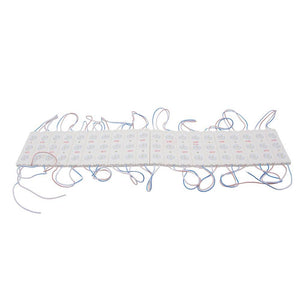

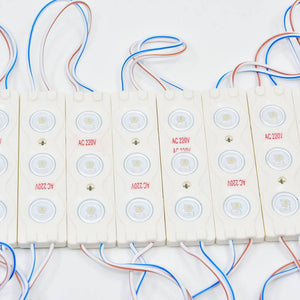

Each module consists of 3 SMD3030 LED chips encapsulated in a watertight plastic block, connected one to the other by an electrical cable 140mm apart from one module to another.

The chips are all glued in line on the back with 3M self-adhesive, very easy to separate with the cut of a scissors or cuttex. Afterwards, the plastic covering the 3M is separated and glued in the chosen place in line or creating shapes.

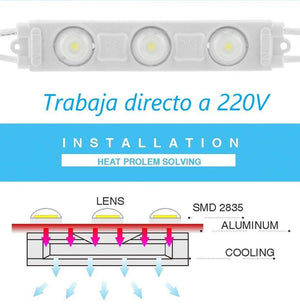

High performance with easy direct mounting at 230V.

Despite its small size, 3 SMD3030 chips per chip, has a high power of 2.5W, each module. The illumination is equivalent to an installation of fluorescent tubes in backlit panels, signs or labels. The connection is made directly to the 230V mains (no transformer required).

• Dimensions of the tablets: 95x23.6mm
• Thickness of the pads: 11mm
• Length of the cable between the pads: 140mm
• Available in warm white 3000K and cool white 6500ºK.
• Not dimmable.

Applications of the LED modules:

• Its most common application is signage, such as illuminated signs, giant letters illuminated from the inside, logos, advertising light boxes....
• Illumination of objects inside such as modding in computers or inside furniture or boxes.
• Illumination of fish tanks and aquariums.
• Decoration of exteriors
• Backlighting in general.
